Ribble Gravel AL Frameset

BDFSGRAVAL1
From: US$808.80
This is a loan of US$970.56 with US$0.00 deposit.
Repayable by 36 monthly repayments of US$33.14.
Total amount repayable US$1,193.17.
14.9 APR representative.
Finance is subject to status. Terms and conditions apply.
Or from: US$33.14 a month
Also available on Cycle To Work schemes
Satin Metallic Green
Custom Colour Available

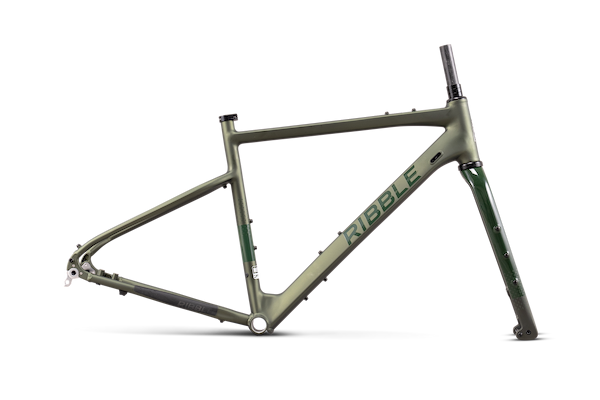

An image of the Ribble Gravel AL Frameset
Gravel AL
Frameset

The Gravel AL has been designed for a new breed of rider, one that thrives on pushing bike and body to the limit, on a bike designed to conquer the most challenging gravel terrain. Delivering a ride that is fast, light and agile, it explodes into life when tackling flowy singletrack, indulging in a spot of gravel grinding action or bikepacking into the unknown. The Gravel AL is the fastest, and most off-road capable alloy drop-bar machine that we have created and maybe, just maybe, the most fun too!

Full
Specification

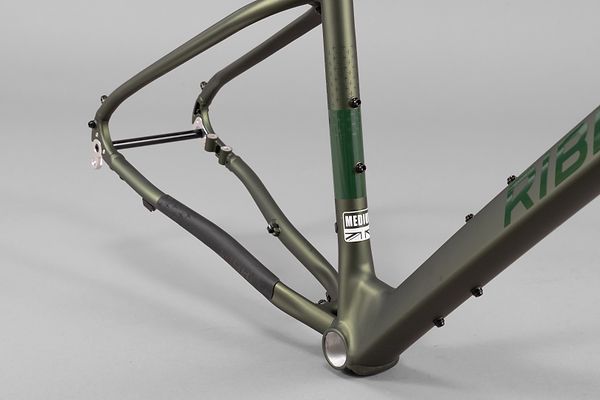

Frame: 6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Colour: Metallic Green Satin.

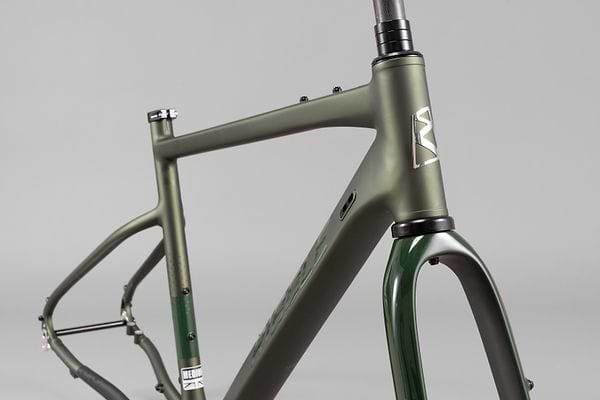

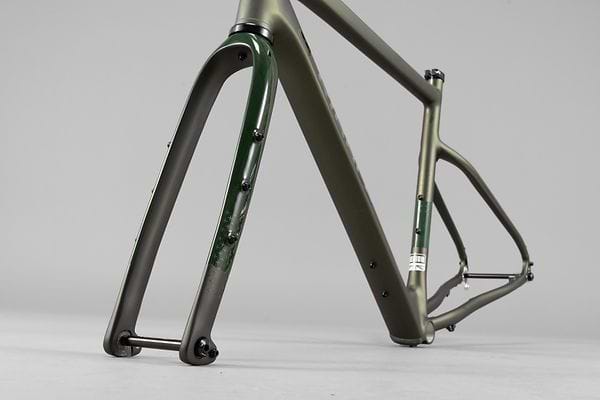

Fork: Carbon fibre monocoque, tapered steerer, 'carryall' mounts.
Headset: LEVEL 44, (available in your choice of colour).
Brake Fitment: Flat mount disc.
Cable Routing: Internal, including compatibility with Shimano Di2 & dropper post.
Front Derailleur Mount: Braze-On.
Bottom Bracket: Threaded BSA 68mm.
Seatpost Diameter: 27.2mm.

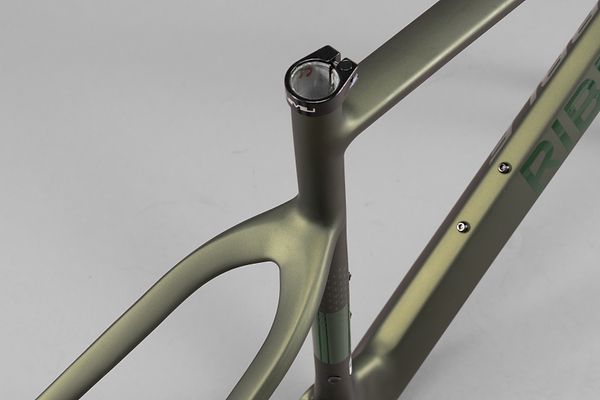

Seat Clamp: 31.8mm.
Tyre Clearance: 650bx47mm, 700x45mm.
Mudguard Compatible. Yes.
Thru-Axles: 100/120/M12*P1.5 front - 142/157/M12*P1.5 rear.
Sizes: XXS, XS. S, M, L, XL.
Frameset
includes:
  • Frame & Fork
  • Headset
  • Seat Clamp
  • Carbon Fork Expander
  • Thru-Axles
Custom Colour
Available

You decide the design, we create the bike. Be bold and bright or stealthy as you like. With millions of combinations, you can make a bike unique to you.

Just select customise after choosing your size.

Your Bike. Your Way
Size
Guide

To assist you in selecting the correct size simply find you height below. The graphic below illustrates our recommendations so you can be confident that the size you order will be correct.

XX-Small
5' 0" - 5' 4"
152cm - 162cm
X-Small
5' 4" - 5' 7"
162cm - 170cm
Small
5' 7" - 5' 9"
170cm - 175cm
Medium
5' 9" - 5' 11"
175cm - 180cm
Large
5' 11" - 6' 1"
180cm - 185cm
X-Large
6' 1" - 6' 4"
185cm - 194cm
View Full Sizing & Geometry
Sizing &
Geometry
Ribble Gravel AL Frameset
Size XXS XS S M L XL
Rider Height 5'0" - 5'4"
152 - 162cm
5'4" - 5'7"
162 - 170cm
5'7" - 5'9"
170 - 175cm
5'9" - 5'11"
175 - 180cm
5'11" - 6'1"
180 - 185cm
6'1" - 6'4"
185 - 194cm
Wheel Size 650B/700c 650B/700c 650B/700c 650B/700c 650B/700c 650B/700c
A - Seat Angle (mm) 75.5° 75.5° 74° 73.5° 73.3° 73°
B - Top Tube, Horizontal (mm) 508 522 550 570 588 603
C - Head Angle (mm) 70.0° 70.5° 71.5° 71.5° 72° 72°
D - Fork Rake/Offset (mm) 50 50 50 50 50 50
E - Head Tube (mm) 90 110 130 150 170 190
F - BB Drop (mm) 70 70 67 65 65 65
G - Seat Tube (mm) 440 460 480 500 520 540
RC - Chainstay (mm) 440 440 440 440 440 440
FC - Front Centre (mm) 595 606 611 626 637 649
Reach (mm) 372.2 381 388 397.2 406 412
Stack (mm) 525 546 565 584 602 625
WB - Wheelbase (mm) 1025 1036 1042 1057.8 1068 1081
Available on
Cycle To Work

The Ribble Gravel AL Frameset is available to order on cycle to work schemes.

We accept all major cycle to work scheme vouchers.
