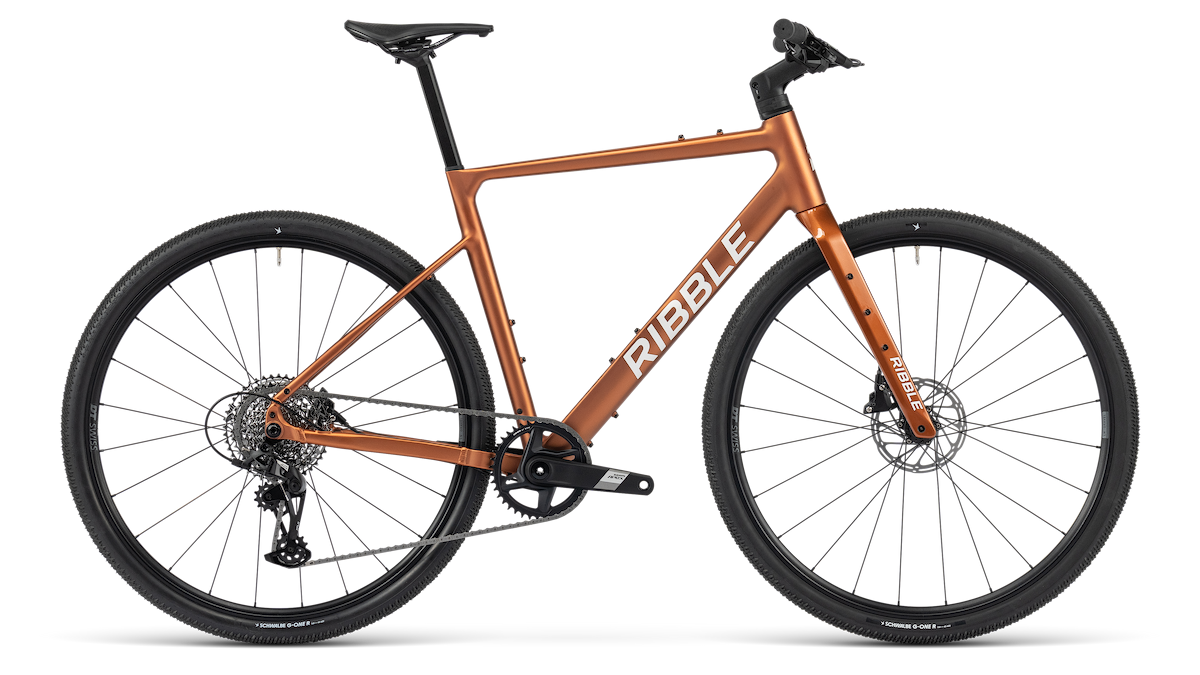

Allgrit AL Sportfit Apex XPLR

  1. $1,699

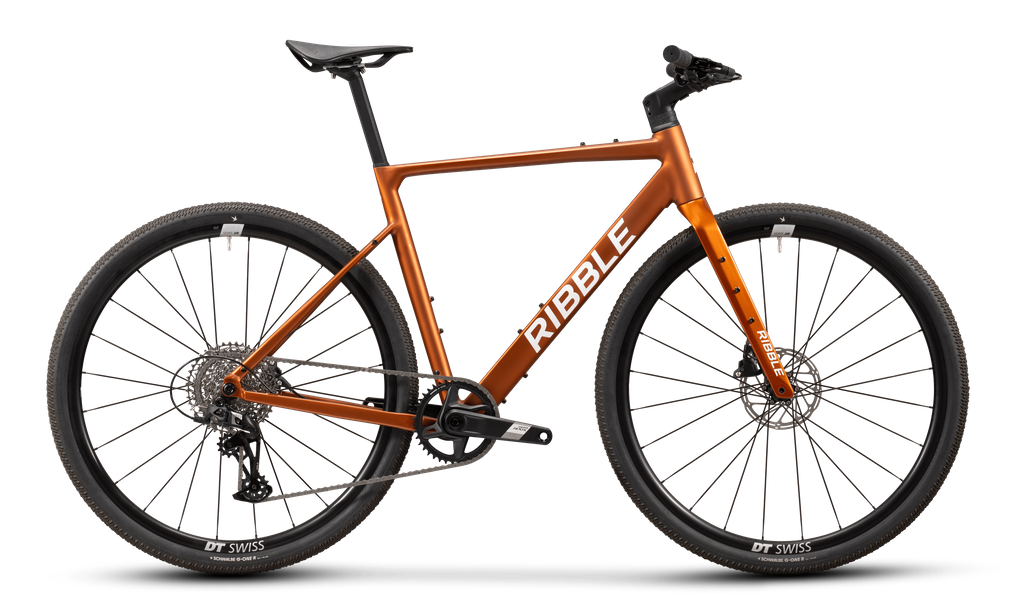

The ALLGRIT AL SPORTFIT is built for versatility and comfort, with a more upright and confident riding position for greater control on varied terrain. From daily detours to cross-country epics, it’s ready to carry you and your gear wherever you need to go. Weighing just 10.0 kg, it pairs our lightweight 7005 aluminium frame with confidence-enhancing flat handlebars, a rugged, wide-range SRAM Apex XPLR drivetrain, durable DT Swiss G 1800 alloy wheels, versatile 45 mm Schwalbe G-One R Performance tyres and an adventure-ready Selle Italia Novus Boost saddle.
Choose Your Size
Product code: BGRAVALG2APXPFB

...And Many Ways To Pay...

Description

The ALLGRIT AL SPORTFIT is built for versatility and comfort, with a more upright and confident riding position for greater control on varied terrain. From daily detours to cross-country epics, it’s ready to carry you and your gear wherever you need to go. Weighing just 10.0 kg, it pairs our lightweight 7005 aluminium frame with confidence-enhancing flat handlebars, a rugged wide-range SRAM Apex XPLR drivetrain, durable DT Swiss G 1800 alloy wheels, versatile 45 mm Schwalbe G-One R Performance tyres and an adventure-ready Selle Italia Novus Boost saddle.

Frameset

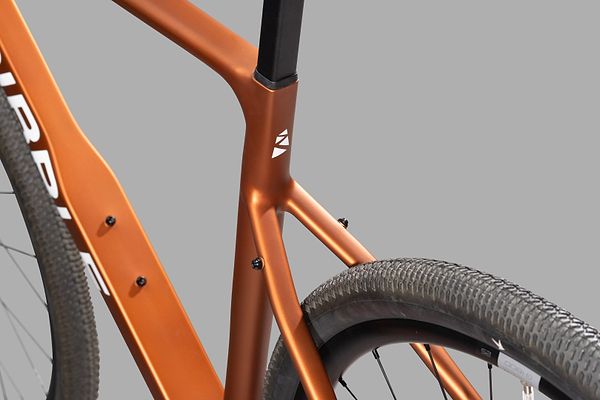

Crafted from lightweight 7005 aluminium, this frameset delivers an ideal combination of strength, responsiveness, and low weight. Its hydroformed tube profiles are carefully shaped for maximum aerodynamic efficiency, ensuring minimal drag and maximum speed. Full internal cable integration and seamless weld technology contribute to a clean, refined look that rivals the sleek aesthetic of high-end carbon frames. The result is a frameset that performs as impressively as it looks. Fast, smooth, and uncompromising in style.

Frameset

Groupset

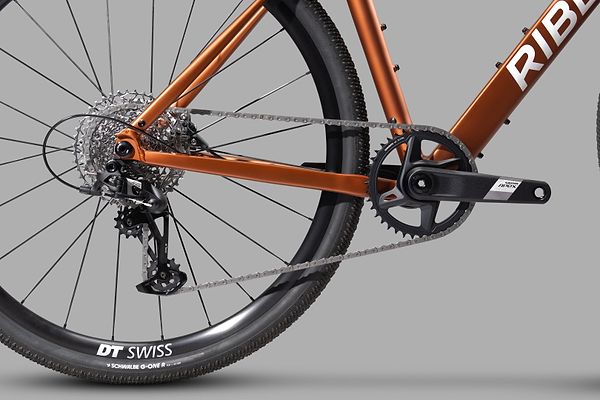

When you want your bike to do everything, you need the gears to match. Apex XPLR hits the sweet spot, offering smooth jumps over a big gear range, with the added security and simplicity of a 1x drivetrain and the quiet confidence of hydraulic braking. Rapid and reliable, the wide-range gearing gives you the freedom to go full-gas on gravel, bike pack into the unknown or enjoy a casual cruise.

Groupset

Wheelset

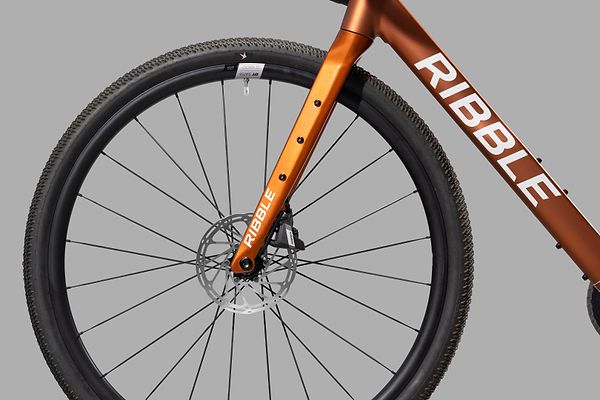

Boasting a wide rim profile and robust construction, the DT Swiss G 1800 Spline alloy wheelset delivers confident control and comfort across rough and unpredictable gravel terrain. Paired with 45 mm Schwalbe G-One R Performance tyres, it strikes the perfect balance of speed, grip, and stability. Ideal for riders who push the boundaries across varied and demanding surfaces.

Wheelset

Handlebars

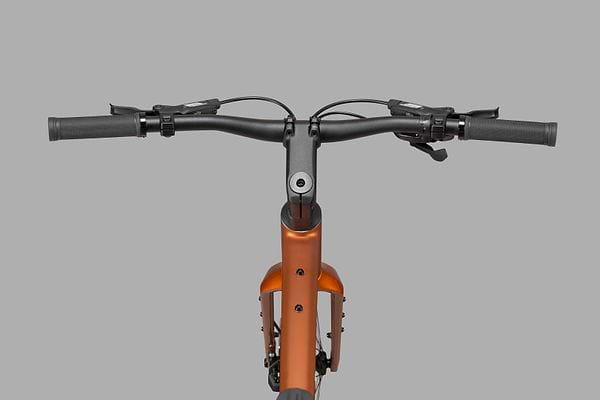

Flat bars put you in a relaxed, upright position, so you’ve got a clear view and better control on varied terrain. Ergonomic grips add comfort on longer rides, and the lightweight Ribble alloy stem keeps things steady and responsive, on back lanes, gravel and everything in between.

Handlebars

Saddle

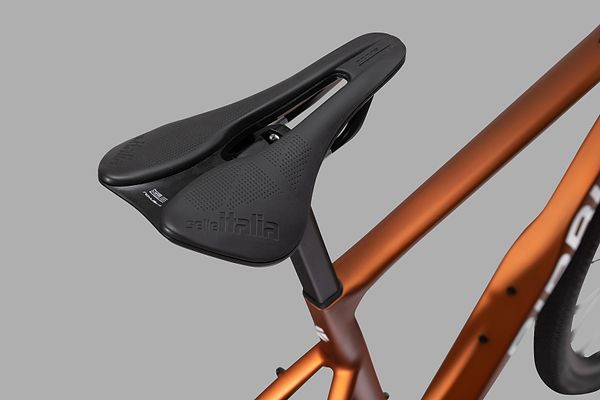

Stay stable and comfortable over rough terrain. Our integrated seat clamp, proprietary D-shaped alloy seatpost, and Selle Italia Novus Boost Evo saddle combine to deliver outstanding rear-end compliance, smoothing out trail chatter for improved comfort and all-day performance.

Saddle

Suspension Fork Upgrade

When the gravel gets rough and the terrain turns technical, the RockShox Rudy Ultimate fork smooths out the ride. Available as an upgrade on the Ribble ALLGRIT AL SPORTFIT, this premium suspension fork is purpose-built for gravel racing, delivering up to 30mm of travel for added comfort, control, and confidence. Whether you're carving through corners or charging down loose descents, Rudy’s refined damping and lightweight design help you stay fast, focused, and fully in command.

Suspension Fork Upgrade

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube (mm)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
Wheelbase (mm)10301036105210611075
Handlebar Default (mm)660660660660660
Stem Default (mm)9090909090
Min. Saddle Height (mm)620640710730740
Max. Saddle Height (mm)700720790810830
Crank Length (mm)165170170172.5172.5

FAQ's

If you're between sizes on the ALLGRIT AL SPORTFIT, we recommend choosing the smaller frame. It’s easier to adjust the fit by raising the seat post or using a longer stem, while a larger frame limits fine-tuning options.

Weight varies by build and fork type on the ALLGRIT AL SPORTFIT. Based on a medium frame size:

  • Apex XPLR AXS build: 10.2 kg (carbon forks) or 11.0 kg (RockShox Rudy Ultimate)
  • Apex XPLR build: 10.3 kg (carbon forks) or 10.9 kg (RockShox Rudy Ultimate
  • SPORTFIT: 10.0 kg or 10.7 kg (RockShox Rudy Ultimate)

Frame only (medium): 1,700 g.

The ALLGRIT AL SPORTFIT comes with a lifetime warranty on the frame and forks for the original owner, covering manufacturing defects. Other components, including the optional RockShox suspension forks, are protected by the standard manufacturer’s warranty.

Yes, the ALLGRIT AL SPORTFIT offers an optional RockShox Judy suspension fork upgrade to improve comfort and control on rough gravel trails.

The ALLGRIT AL SPORTFIT features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.

The ALLGRIT AL SPORTFIT comes with 45 mm gravel tyres as standard, and can take up to 50mm, or 45mm with mudguards. The front fork also accepts a 29 x 2.1" (700 x 53c) mountain bike tyre.

Yes, you can fit a rear pannier rack using an adaptor kit (sold separately) to boost carrying capacity.

Yes. A removable bridge makes fitting mudguards easy (mudguard bridge sold separately).

The ALLGRIT AL SPORTFIT frame accepts an 85.5 mm T47 threaded bottom bracket for durability and ease of maintenance.

The ALLGRIT AL SPORTFIT features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.

The ALLGRIT AL SPORTFIT comes with a 350 mm D-shaped alloy seat post (8mm setback), compatible with carbon and alloy saddle rails.

Two: one on the downtube and one on the seat tube, positioned to work with Ribble aero bottle cages.

Extra luggage mounts on the ALLGRIT AL SPORTFIT are located on the top tube, underside of the downtube, and carryall mounts on the front forks.

Thru axles.

  • Front: 12 mm x 123 mm x 1.5 mm
  • Rear: 12 mm x 167.5 mm x 1.0 mm

While equipped with a 1x drivetrain, the ALLGRIT AL SPORTFIT supports a 34.9 mm front derailleur and 2x gravel chainsets (31T/48T or 30T/46T).

The ALLGRIT AL SPORTFIT uses SRAM’s UDH (Universal Derailleur Hanger) system for universal hanger compatibility and easy replacement.

The maximum recommended system weight for the ALLGRIT AL is 120 kg, including bike, rider, and luggage.

The ALLGRIT AL SPORTFIT is designed to accommodate the latest flat-mount disc brakes for reliable stopping power.

Pedals aren’t included, so you can choose the ones that suit your riding style.
