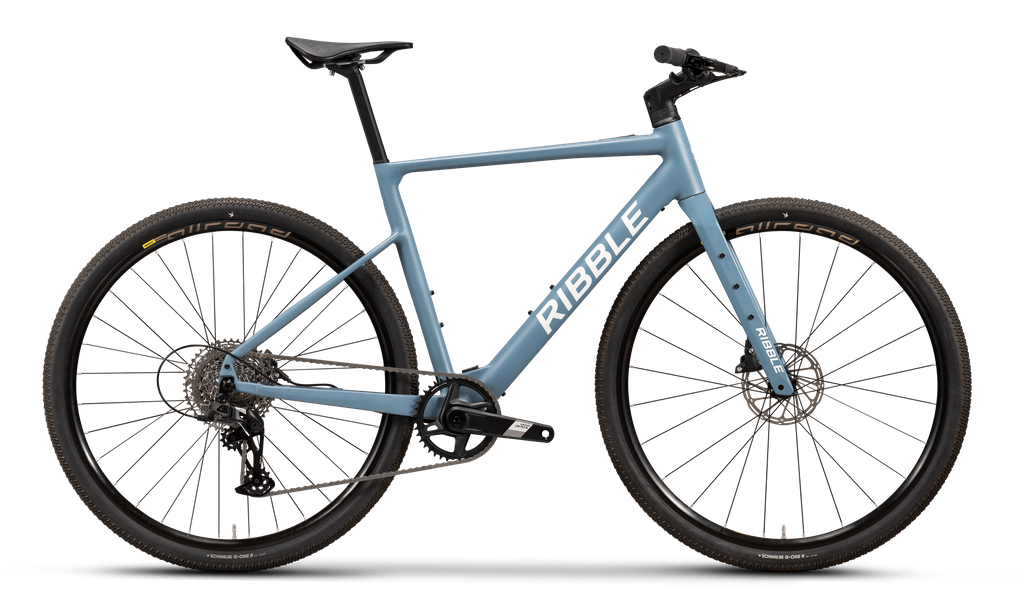

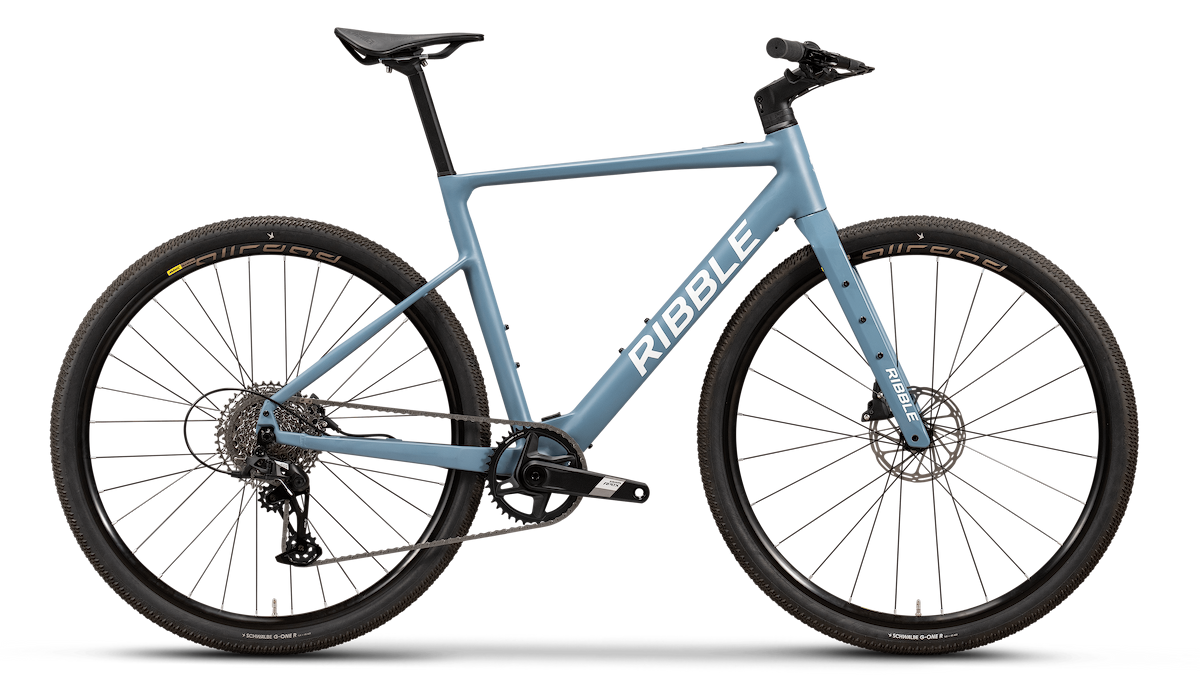

Allgrit E AL Sportfit Apex XPLR

Please note we can not ship this product to your selected country
  1. $2,899
The ALLGRIT E AL SPORTFIT is a lightweight 13.8 kg aluminium e-gravel bike that seamlessly combines everyday gravel performance with smooth on-demand electric assistance. for everyday adventure. It features a 7005 aluminium frame and upright flat bar position, boosting control and comfort across rough terrain. The rugged SRAM Apex XPLR gearing, Mavic Allroad wheels, 45 mm Schwalbe G-One tyres, and a Selle Italia Novus Boost saddle complete this versatile, go-anywhere machine.
Product code: BGRAVALE2APXPFB

...And Many Ways To Pay...

Description

The ALLGRIT E AL SPORTFIT is a lightweight 13.8 kg aluminium e-gravel bike that seamlessly combines everyday gravel performance with smooth on-demand electric assistance. for everyday adventure. It features a 7005 aluminium frame and upright flat bar position, boosting control and comfort across rough terrain. The rugged SRAM Apex XPLR gearing, Mavic Allroad wheels, 45 mm Schwalbe G-One tyres, and a Selle Italia Novus Boost saddle complete this versatile, go-anywhere machine.

Electric Motor System

The MAHLE X30 e-drive system delivers just the right level of assistance. Light, quiet and so seamlessly integrated, it fades into the background. Designed for mixed-terrain exploration, it offers a natural ride feel, an impressive 90 km range on a single charge and low-maintenance performance. The intuitive Duo handlebar remote puts unmatched command of your ride at your fingertips, while over-the-air updates and a lighter overall system make it as easy to live with as it is to ride.

Electric Motor System

Groupset

When you want your bike to do everything, you need the gears to match. Apex XPLR hits the sweet spot, offering smooth jumps over a big gear range, with the added security and simplicity of a 1x drivetrain and the quiet confidence of hydraulic braking. Rapid and reliable, the wide-range gearing gives you the freedom to go full-gas on gravel, bike pack into the unknown or enjoy a casual cruise.

Groupset

WHEELSET

Designed to ride smoother and faster on dirt, gravel, and road, you can ride it all with confident control with the lightweight, durable, and responsive Mavic Allroad wheels with integrated MAHLE X30 motor. Paired with 45 mm Schwalbe G-One R Performance tyres, it strikes the perfect balance of speed, grip, and stability. Ideal for riders who push the boundaries across varied and demanding surfaces.

WHEELSET

Handlebars

Flat bars put you in a relaxed, upright position for better visibility and confident control across varied terrain. The Duo handlebar control unit lets you effortlessly adjust assistance levels without taking your hands off the bars, keeping you fully focused on the ride. Ergonomic grips enhance long-ride comfort, while the lightweight Ribble alloy stem ensures responsive, stable handling on back lanes, gravel and everything in between.

Handlebars

Saddle

Stay stable and comfortable over rough terrain. Our integrated seat clamp, proprietary D-shaped alloy seatpost, and Selle Italia Novus Boost Evo saddle combine to deliver outstanding rear-end compliance, smoothing out trail chatter for improved comfort and all-day performance.

Saddle

Suspension Fork Upgrade

When the gravel gets rough and the terrain turns technical, the RockShox Rudy Ultimate fork smooths out the ride. Available as an upgrade on the Ribble ALLGRIT E AL SPORTFIT, this premium suspension fork is purpose-built for gravel racing, delivering up to 30mm of travel for added comfort, control and confidence. Whether you're carving through corners or charging down loose descents, Rudy’s refined damping and lightweight design help you stay fast, focused and fully in command.

Suspension Fork Upgrade

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length (mm)165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube (mm)522550570585602
C - Head Angle70.5°71.5°71.5°7272°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
Wheelbase (mm)10301036105210611075
Bar Default (mm)660660660660660
Stem Default (mm)9090909090
Min. Saddle Height (mm)620540710730740
Max. Saddle Height (mm)700720790810830

FAQ's

If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.

Weight varies by build and fork type. Based on a medium frame size:

  • Apex XPLR AXS build: 13.9 kg (carbon forks) / 14.6 kg (RockShox Rudy Ultimate)
  • Apex XPLR build: 13.8 kg (carbon forks) / 14.5 kg (RockShox Rudy Ultimate)
  • SPORTFIT: 13.8 kg (carbon forks) / 14.5 kg (RockShox Rudy Ultimate)

Frame only (medium): 2.0 kg in a raw finish.

Like all Ribble bikes, the ALLGRIT E AL SPORTFIT comes with a lifetime frame and fork warranty for the original owner. This covers any manufacturing defects in materials or workmanship. All other components, including third-party suspension forks, are covered by the standard manufacturer’s warranty.

Yes. The ALLGRIT E AL SPORTFIT is available with the optional RockShox Rudy suspension fork. This upgrade enhances comfort and control on rougher gravel trails, allowing you to stay fast and confident when the terrain becomes technical.

Range depends on rider weight, terrain, tyre pressure, and temperature. As a guide, a 90 kg rider on mixed routes can expect up to 90 km on a full charge. Add the optional eX1 range extender and this increases by up to 60 km.

Yes. The ALLGRIT E AL SPORTFIT is pedal-assisted, so it always requires rider input. Stop pedalling and it coasts to a stop. Just like a regular bike.

Absolutely. The motor only provides assistance when you pedal. You’re always in full control of speed and handling.

No. You don’t need a licence, tax or insurance to ride pedal-assisted electric bikes in the UK. That said, we always recommend having some form of bike insurance.

Yes, the ALLGRIT E AL SPORTFIT is eligible for Cycle to Work.

The Duo handlebar remote allows you to adjust assistance levels with a single press, providing effortless and intuitive control at your fingertips. Assistance levels are shown as follows:

  • White: off
  • Green: minimum
  • Orange: medium
  • Purple: maximum
  • Cyan: smart assist via app

The ALLGRIT E AL’s X30 control unit shows battery charge with seven LEDs.

  • Fully lit = 94–100%
  • Fewer lights = lower charge
  • Slow blinking = 0–10%
  • Fast blinking = critically low

Just plug into any standard socket using the supplied charger. The optional range extender can also be used to charge the main battery on the go.

Yes, you can test ride the ALLGRIT E AL SPORTFIT at our Clitheroe showroom or during UK demo events. Contact the showroom in advance to reserve your test bike.

Yes. The ALLGRIT E AL SPORTFIT’s electrical components are IP54 rated for splash protection but should not be jet washed or fully immersed. Use a waterproof cover when transporting in wet conditions.

Yes. A MAHLE-certified technician can remove the battery by taking off the press-fit bottom bracket via the bottom bracket shell.

The ALLGRIT E AL SPORTFIT's iX2 battery is designed to handle around 500 full charge cycles with minimal degradation, provided it is stored and maintained correctly.

Yes. The ALLGRIT E AL features integrated cable routing for a clean look and protection from the elements.

The ALLGRIT E AL SPORTFIT comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards. The front forks will also accept a 29 x 2.1" (700x53c) mountain bike tyre.

Yes, you can fit a rear pannier rack using an adaptor kit (sold separately) to boost carrying capacity.

Yes. A removable bridge makes fitting mudguards easy (mudguard bridge sold separately).

The frame uses a Mahle-specific press-fit PF46 bottom bracket with an integrated torque sensor.

It features a 1.5” integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings.

The ALLGRIT E AL comes with a D-shaped alloy seat post (8mm setback), compatible with carbon or alloy saddle rails.

Two: one on the downtube and one on the seat tube, positioned to work with the Ribble seat tube-specific aero bottle cage.

The ALLGRIT E AL SPORTFIT has full frame mounts including rear rack, top tube, downtube, and carryall mounts on the forks.

Thru axle.

  • Front: 12 mm x 123 mm x 1.5 mm
  • Rear: bolt-on

Yes, the ALLGRIT E AL accepts 34.9 mm front derailleurs and 2x compact road chainsets (34/50T), though it comes standard with a 1x drivetrain.

It features a proprietary derailleur hanger designed specifically for the MAHLE e-system, ensuring perfect alignment.

The ALLGRIT E AL SPORTFIT supports a total system weight of 120 kg including rider, bike, and luggage.

The ALLGRIT E AL SPORTFIT is designed for the latest flat-mount disc brakes.

Pedals aren’t included, so you can choose the ones that suit your riding style.
