• New

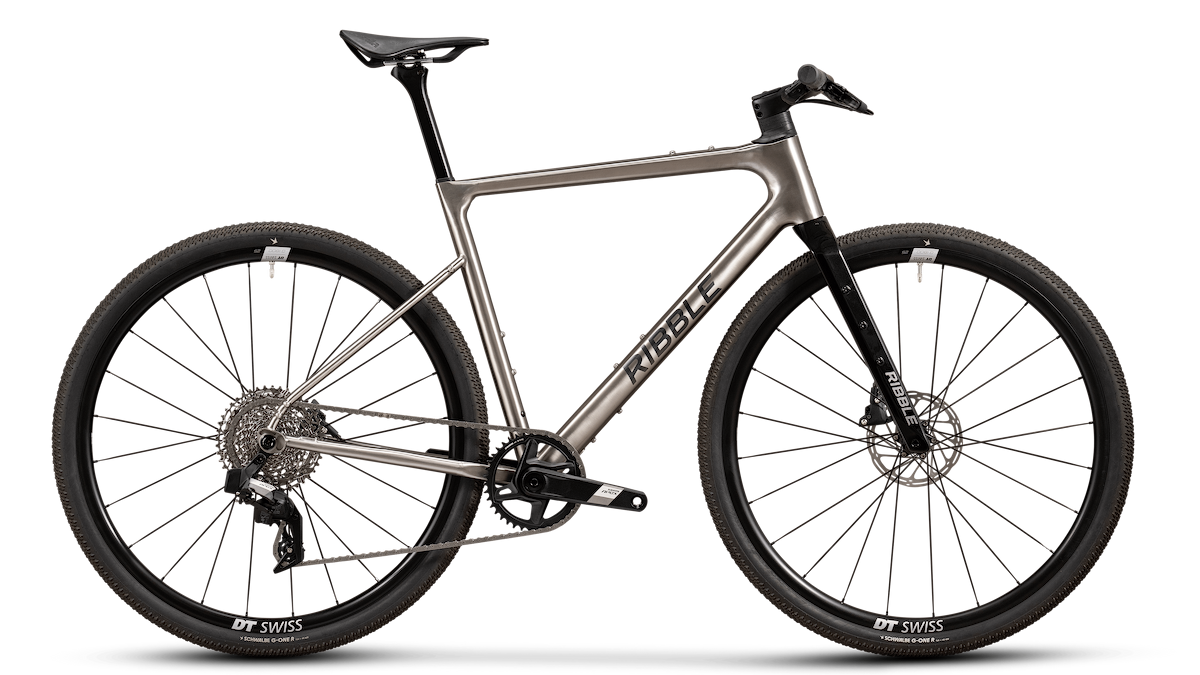

Allgrit Ti-X Sportfit Apex XPLR AXS

  1. $3,499
The ALLGRIT TI-X SPORTFIT is our premium flat-bar titanium gravel bike, designed for comfort, control and all-terrain adventure. Its upright position boosts confidence, while a 3Al–2.5V titanium frame with 3D-printed lugs ensures lasting performance wherever you roam. This build combines our lightweight, aerodynamic titanium frame with a rugged, fully wireless SRAM Apex AXS drivetrain, dependable DT Swiss G 1800 alloy wheels, smooth-rolling 45 mm Schwalbe G-One tyres and a comfort-focused Selle Italia Novus Boost saddle. Topped off with a sleek, integrated one-piece carbon cockpit.
Choose Your Size
Product code: BGRAVTIG2APAXFB

...And Many Ways To Pay...

Description

The ALLGRIT TI-X SPORTFIT is our premium flat-bar titanium gravel bike, designed for comfort, control and all-terrain adventure. Its upright position boosts confidence, while a 3Al–2.5V titanium frame with 3D-printed lugs ensures lasting performance wherever you roam. This build combines our lightweight, aerodynamic titanium frame with a rugged, fully wireless SRAM Apex AXS drivetrain, dependable DT Swiss G 1800 alloy wheels, smooth-rolling 45 mm Schwalbe G-One tyres and a comfort-focused Selle Italia Novus Boost saddle. Topped off with a sleek, integrated one-piece carbon cockpit.

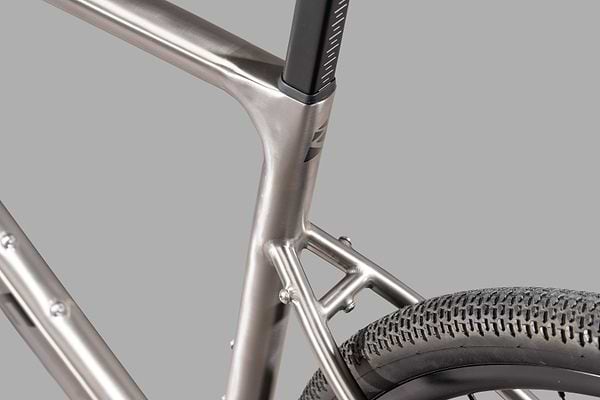

Frameset

Blending timeless elegance with cutting-edge performance, the ALLGRIT TI-X redefines titanium frame construction through the fusion of traditional craftsmanship and advanced 3D-printed technology. Precision-engineered titanium offers outstanding strength, a remarkably smooth ride, and natural corrosion resistance for enduring performance. Its hand-finished surfaces develop a unique patina over time, adding character with every mile. The aerodynamically optimised design features a widened fork profile that flows seamlessly into the headtube, reducing drag while maintaining titanium’s exceptional ride quality, making the ALLGRIT TI-X the ultimate choice for all-day speed and comfort.

Frameset

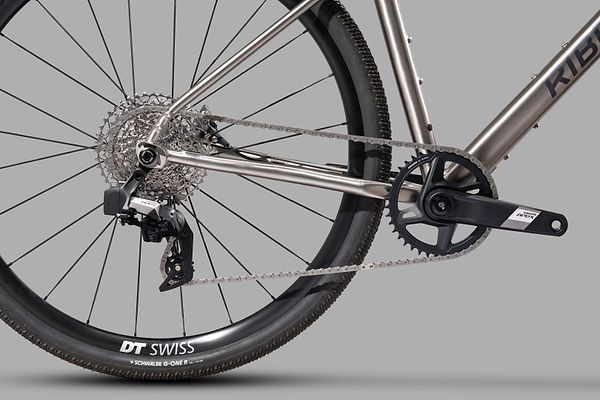

Groupset

Apex is the groupset designed for riders who demand versatility and performance. Apex AXS delivers a wide range 1x12 drivetrain that's ideal for gravel, bikepacking, adventure, casual rides, and everything in between. Its wireless electronic shifting ensures smooth, reliable performance with precise gear changes, excellent chain retention, and confident hydraulic disc braking. With full AXS connectivity, you can customise shift settings, monitor battery life, and update firmware, all from a single device. Intuitive and user-friendly, Apex keeps your focus where it belongs: on the ride.

Groupset

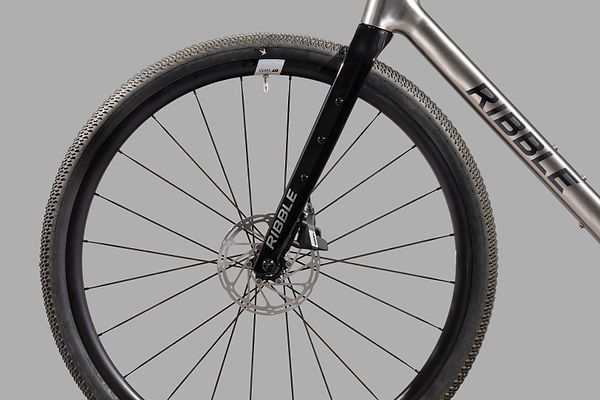

Wheelset

Boasting a wide rim profile and robust construction, the DT Swiss G 1800 Spline alloy wheelset delivers confident control and comfort across rough and unpredictable gravel terrain. Paired with 45 mm Schwalbe G-One R Performance tyres, it strikes the perfect balance of speed, grip, and stability. Ideal for riders who push the boundaries across varied and demanding surfaces.

Wheelset

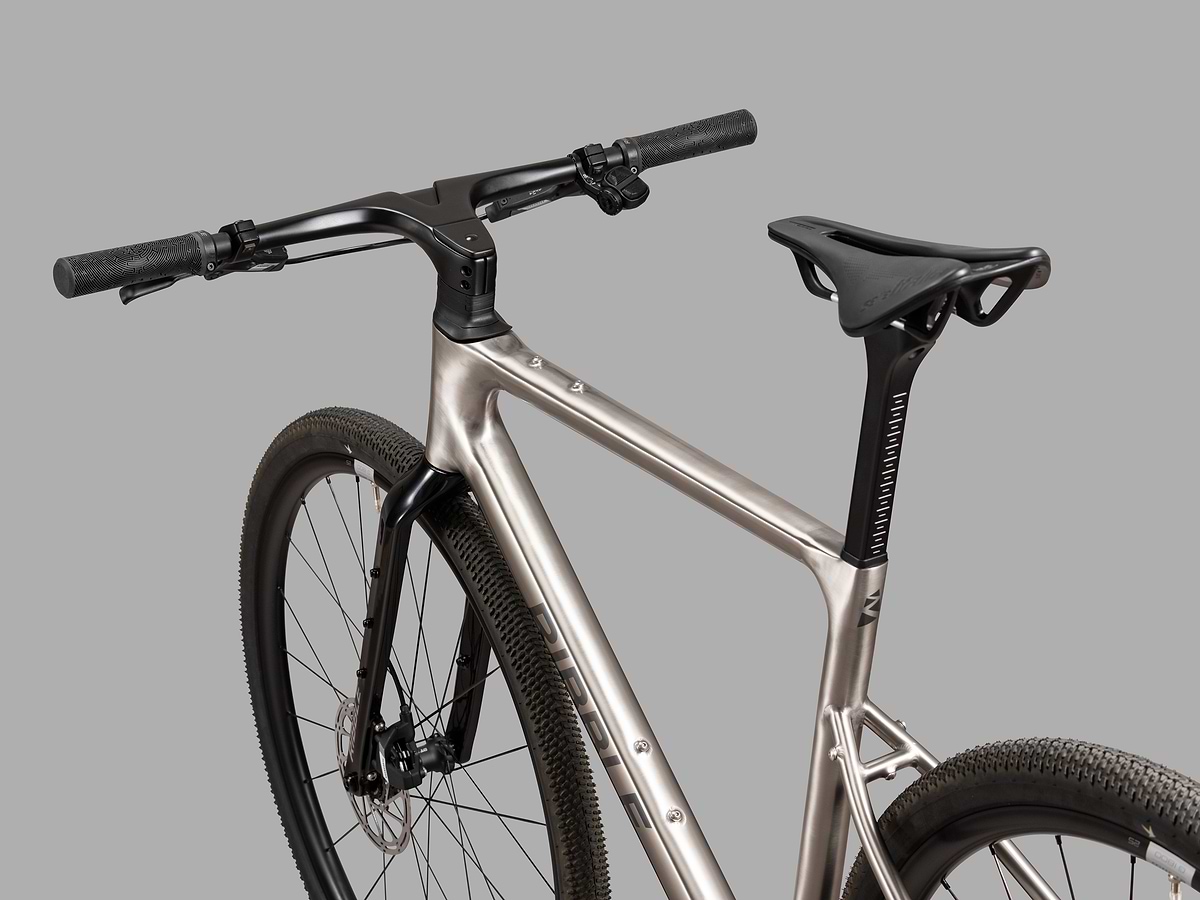

Handlebars

The new Ribble one-piece carbon cockpit enhances performance while sharpening the bike’s aesthetic with clean lines and fully integrated cabling. Its relaxed, upright position improves control and visibility across mixed terrain, while ergonomic grips boost all-day comfort and confident handling, on back lanes, gravel, and everything in between.

Handlebars

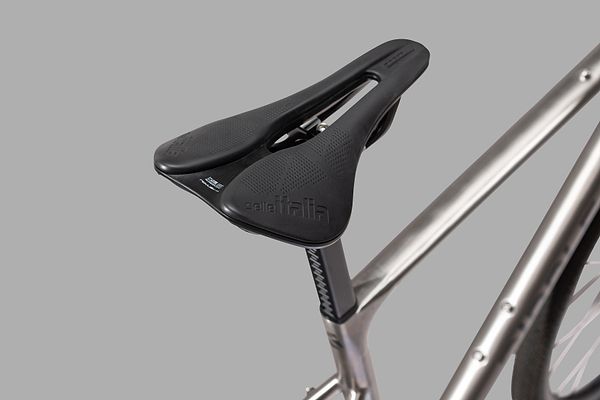

Saddle

Stay stable and comfortable over rough terrain. Our integrated seat clamp, proprietary D-shaped carbon seatpost, and Selle Italia Novus Boost Evo saddle combine to deliver outstanding rear-end compliance, smoothing out trail chatter for improved comfort and all-day performance.

Saddle

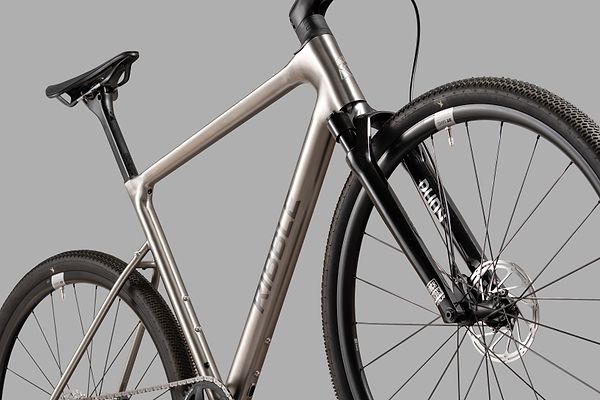

Suspension Fork Upgrade

When the gravel gets rough and the terrain turns technical, the RockShox Rudy Ultimate fork smooths out the ride. Available as an upgrade on the Ribble ALLGRIT TI-X SPORTFIT, this premium suspension fork is purpose-built for gravel racing, delivering up to 30mm of travel for added comfort, control and confidence. Whether you're carving through corners or charging down loose descents, Rudy’s refined damping and lightweight design help you stay fast, focused and fully in command.

Suspension Fork Upgrade

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Ride Height5'3 - 5'7 (159 - 169)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length (mm)165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube (mm)522550570585602
C - Head Angle (mm)70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
Wheelbase (mm)10301036105210611075
Integrated Bar Default (mm)660 x 90660 x 90660 x 90660 x 90660 x 90
Min. Saddle Height (mm)620640710730740
Max. Saddle Height (mm)700720790810830

FAQ's

If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.

Weight varies by build and fork type. Based on a medium frame size:

• Apex XPLR AXS build: 9.9 kg (carbon forks) / 10.6 kg (RockShox Rudy Ultimate)
• Rival XPLR AXS build: 9.8 kg (carbon forks) / 10.5 kg (RockShox Rudy Ultimate)
• Force XPLR AXS build: 9.2 kg (carbon forks) / 9.9 kg (RockShox Rudy Ultimate)
• SPORTFIT: 9.6 kg (carbon forks) / 10.3 kg (RockShox Rudy Ultimate)

Frame only(medium): 1,700 g

Like all Ribble bikes, the ALLGRIT TI-X SPORTFIT comes with a lifetime frame and fork warranty for the original owner. This covers any manufacturing defects in materials or workmanship. All other components, including third-party suspension forks, are covered by the standard manufacturer’s warranty.

Yes. The ALLGRIT TI-X SPORTFIT is available with the optional RockShox Rudy suspension fork. This upgrade enhances comfort and control on rougher gravel trails, allowing you to stay fast and confident when the terrain becomes technical.

Yes. The ALLGRIT TI-X SPORTFIT features enhanced cable integration for a clean, uncluttered look. Cables are fully hidden from view, protected from the elements and shielded from drag.

The ALLGRIT TI-X SPORTFIT comes with 45 mm gravel tyres and can accommodate up to 50 mm tyres, or 45 mm with mudguards. The front fork also accepts a 29 x 2.1" (700 x 53c) mountain bike tyre.

Yes. The ALLGRIT TI-X SPORTFIT includes discreet frame mounts for a rear pannier rack, offering a practical way to carry extra gear.

The frame uses traditional 90-degree mounting points, so not all pannier racks will be compatible. Quick-release racks with limited adjustment may not fit correctly. For suitable options, please feel free to contact us.

Yes. The ALLGRIT TI-X SPORTFIT's built-in frame mounts make fitting mudguards easy.

The ALLGRIT TI-X SPORTFIT uses a threaded T47 68 mm bottom bracket. Threaded systems offer proven reliability and are easier to install, maintain, and replace than press-fit alternatives.

The ALLGRIT TI-X SPORTFIT features a 1.5" integrated headset and R457B 52 x 42 x 7 mm 45° x 45° headset bearings top and bottom.

The ALLGRIT TI-X SPORTFIT features a D-shaped carbon seat post with an integrated wedge clamp, compatible with both carbon and alloy saddle rails. Frame sizes XS–SM use a 280 mm post, while M–XL come with a 330 mm version.

The ALLGRIT TI-X features two bottle cage mounts: one on the downtube and one on the seat tube. Ribble’s stainless steel cages are the perfect complement, pairing functional durability with a finish that echoes the timeless look of titanium.

The ALLGRIT TI-X SPORTFIT includes extra luggage mounts on the top tube, underneath the downtube and carryall mounts on the front forks.

Thru axles.

  • Front: 12 mm x 123 mm x 1.5 mm
  • Rear: 12 mm x 169 mm x 1.0 mm

Yes. While the ALLGRIT TI-X SPORTFIT comes with a 1x drivetrain, it can also accommodate a 34.9 mm front derailleur and 2x gravel chainsets (31T/48T min/max).

The ALLGRIT TI-X SPORTFIT uses SRAM’s UDH (Universal Derailleur Hanger) system, which standardises hanger design across bikes. That means no more hunting for frame-specific spares. Just one simple, universal solution.

The ALLGRIT TI-X SPORTFIT has a maximum recommended system weight of 120 kg, including bike, rider and luggage.

The ALLGRIT TI-X SPORTFIT is designed for the latest flat-mount disc brakes, delivering powerful, consistent braking across all conditions.

Pedals aren’t included, so you can choose the ones that suit your riding style.
