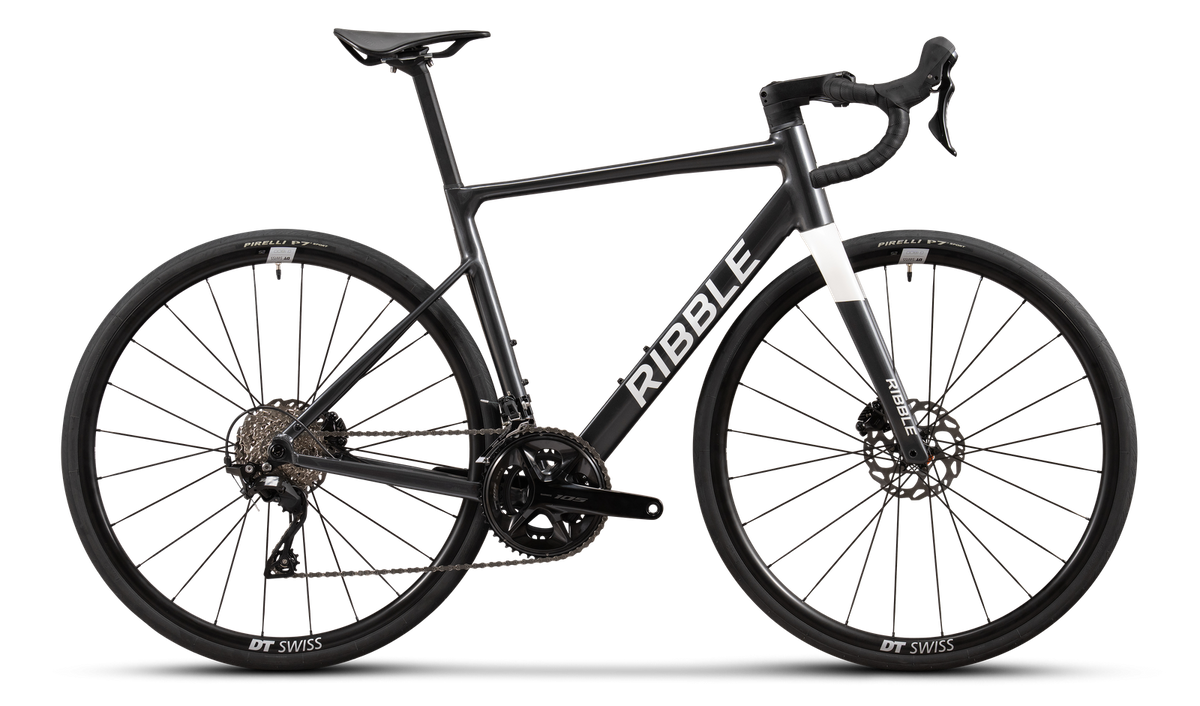

Allroad AL 105

  1. $1,599
Allroad AL is built for riders who want one road bike that can do it all. From long climbs and daily commutes to weekend epics. The 7005 aluminium frame is light, fast and tough. Matched with Shimano’s 105 mechanical groupset for slick and precise 12-speed shifting, DT Swiss G 1800 alloy wheels for all-road dependability and grippy Pirelli P7 tyres. Finished with a unisex Selle Italia Model X saddle, it's a setup designed to go the distance—in comfort and with lasting durability.
Product code: BALLRAL7100D

...And Many Ways To Pay...

Description

Allroad AL is built for riders who want one road bike that can do it all. From long climbs and daily commutes to weekend epics. The 7005 aluminium frame is light, fast and tough. Matched with Shimano’s 105 mechanical groupset for slick and precise 12-speed shifting, DT Swiss G 1800 alloy wheels for all-road dependability and grippy Pirelli P7 tyres. Finished with a unisex Selle Italia Model X saddle, it's a setup designed to go the distance—in comfort and with lasting durability.

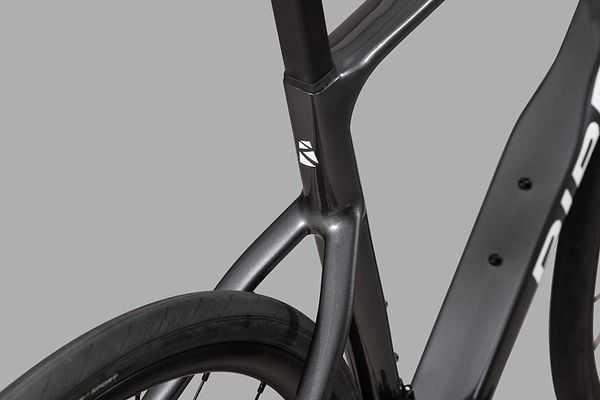

Frameset

Crafted from upgraded 7005-series aluminium, the Allroad AL frameset is both lighter and stronger than previous generations, delivering durability without compromise. Hydroformed tubing retains the sleek, aerodynamic profile of our flagship Allroad SL R carbon model, offering wind-cheating efficiency in a more accessible platform. Internal cable routing ensures a clean, modern aesthetic and is fully compatible with integrated cockpit systems for next-level integration. A robust T47 bottom bracket enhances drivetrain stiffness while simplifying internal cable routing, giving you responsive handling and smooth power transfer.

Frameset

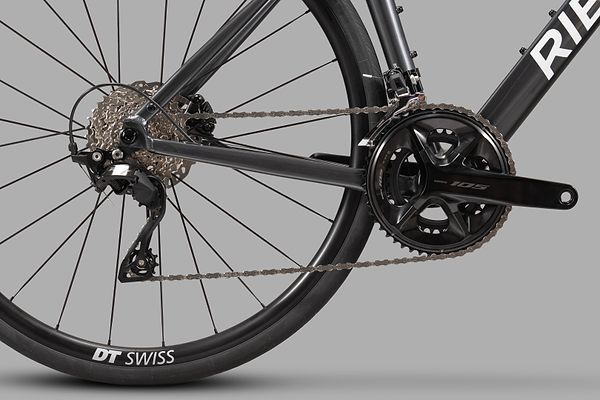

Groupset

Shimano’s first and only 12-speed mechanical groupset is the latest addition to their premium road family. 105 7100 combines pure cycling with pure craftmanship. Inspired by 105 Di2, this versatile drivetrain delivers the wide gear range, hand-friendly ergonomics, and all-condition braking confidence you’ve always craved. Developed from Shimano’s Science of Speed philosophy, 105 raises accessible performance to a whole new level.

Groupset

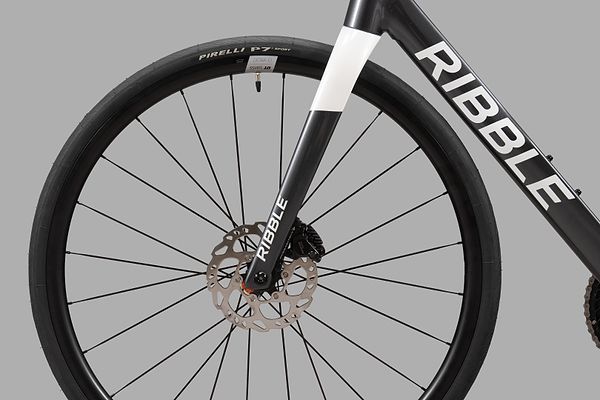

Wheelset

Boasting a wide rim profile and robust construction, the DT Swiss G 1800 Spline alloy wheelset delivers confident control and comfort across rough and unpredictable gravel terrain. Paired with the ultimate all-round training tyre, the Pirelli P7 Sport offers improved durability and confident all-condition control for both road racers and everyday riders.

Wheelset

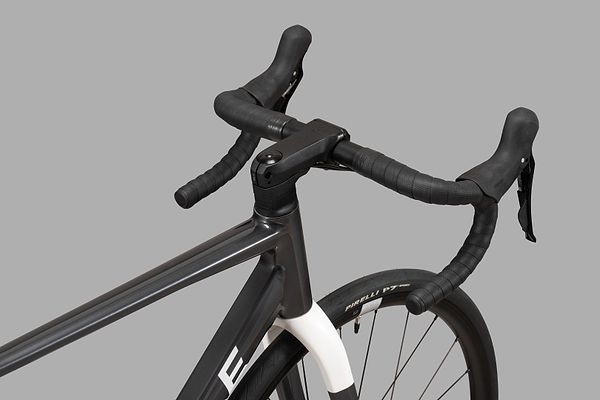

Handlebars

Ribble alloy handlebars are designed with everyday riders in mind, offering a compact shape with a shorter drop and reach for easy, natural transitions between the tops, hoods, and drops. The ergonomic profile helps reduce strain and promotes all-day comfort, letting you find your ideal riding position with minimal adjustment. Paired with a matching alloy stem and wrapped in plush bar tape, they deliver a confident, comfortable feel on every ride, whether it's a quick spin or a full day in the saddle.

Handlebars

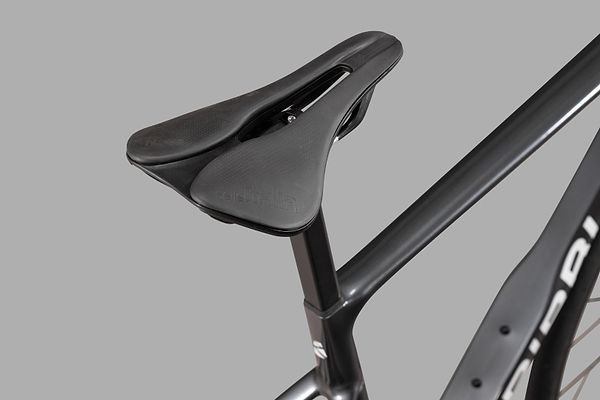

Saddle

The lightweight D-shaped alloy seat post offers the perfect blend of strength and low weight, with a two-bolt design for easy saddle adjustment. It’s paired with the unisex Selle Italia Model X saddle, featuring gel padding, and a Superflow cutout for enhanced comfort on longer rides.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 -5'5 (160 - 168cm)5'6 - 5'9 (168 - 175cm)5'9 - 5'11 (175 - 180cm)5'11 - 6'1 (180 - 185cm)6'1 - 6'4 (185 - 193cm)
Crank Length (mm)165170170172.5172.5
A - Seat Angle75°74.5°73.5°73.5°73.5°
B - Top Tube C/C (Horizontal)505525545565585
C - Head Angle71°72°73°73°73°
D - Fork Rake (mm)4545454545
E - Head Tube (mm)120140160180200
F - BB Drop (mm)6969696969
G - Seat Tube C/Top (mm)450480500520540
RC - Rear Centre (mm)415415415415415
FC - Front Centre (mm)573580580.5600.5620.6
Reach (mm)365374377391405.3
Stack (mm)523546568588607
WB- Wheelbase (mm)97898598610061027
Handlebar Default (mm)380400400420420
Stem Default (mm)8090100100110

Frequently Asked Questions

If you're between sizes, we generally recommend choosing the smaller option. It's easier to fine-tune the fit of a smaller frame by raising the seat post or using a longer stem, whereas a larger frame leaves much less room for adjustment.

Complete build weights, based on a medium size, are Tiagra (10.2 kg) and 105 (9.8 kg)

Frame only weight is 1650 g based on a medium size.

The Allroad AL includes a lifetime warranty on frame and forks for the original owner, covering manufacturing defects. Other components carry the standard manufacturer’s warranty.

The Allroad AL features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.

The Allroad AL comes with quick, grippy, and puncture-resistant 32mm tyres and can fit up to 35mm tyres, even with mudguards installed..

Yes, the Allroad AL can be fitted with a rear pannier rack using an adaptor kit for added cargo capacity (rack adaptor kit sold separately).

A removable bridge on the Allroad AL allows easy fitting of mudguards to improve wet weather protection (mudguard bridge sold separately).

The frame accepts an 86.5mm T47 threaded bottom bracket.

The Allroad AL features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.

The Allroad AL comes with a proprietary 350 mm D-shaped alloy seat post, featuring a 10 mm setback, and is compatible with both carbon and alloy saddle rails.

The Allroad AL includes two bottle cage mounts on the seat tube and downtube, compatible with Ribble aero cages.

The Allroad AL uses 12 mm x 123 mm x 1.5 mm front and 12 mm x 174 mm x 1.0 mm rear thru-axles for secure wheel attachment.

The Allroad AL uses SRAM’s UDH (Universal Derailleur Hanger) system for universal hanger compatibility and easy replacement.

The maximum recommended system weight for the Allroad AL is 120 kg, including bike, rider, and luggage.

No pedals are included with the Allroad AL, allowing you to choose the best pedals for your riding style during bike configuration.
