Allroad SL R Frameset

  1. £2,099
The Allroad SL R is our fastest and most capable endurance frameset—engineered for all-day comfort on everything from rough backroads to smooth tarmac. Crafted from a high-performance M46 and T1000 carbon blend, it combines speed, compliance, and design cues from our Ultra-Aero race platform. With integrated storage, a clean one-piece cockpit, and optional mudguard mounts, it’s built for any ride, in any conditions. Now available as a frameset, your dream build starts here.
Choose Your Size
Product code: FALLRSLR

...And Many Ways To Pay...

Description

The Allroad SL R is our fastest endurance road bike—engineered for all-day comfort on everything from rough backroads to smooth tarmac. Crafted from a blend of high-performance M46 and T1000 carbon, it combines speed, compliance, and design cues from our Ultra-Aero race platform. With integrated storage, a clean one-piece cockpit, and discreet mudguard mounts, it’s built for any ride, in any conditions. Now available as a frameset so that you can create the ultimate endurance machine, your way.

Endurance-Focused Technology

The Allroad SL R frame combines M46 and T1000 carbon fibres to create a lightweight, stiff, and aerodynamic design. Engineered for speed and comfort, it delivers a smooth, responsive ride across every road surface.

Endurance-Focused Technology

Advanced Aero Design

The SL R is fast, it’s that simple. We have taken the innovations we pioneered from our Ultra-Aero race bike and incorporated them into the SL R. Starting at the front of the bike, a wider fork profile and aero headtube, slice effortlessly through the air. The downtube flares out around the lower section to direct airflow around the bottle and cage, making this bike faster with a bottle fitted than without and increasing the stiffness of the bottom bracket area.

Advanced Aero Design

Practical Integration

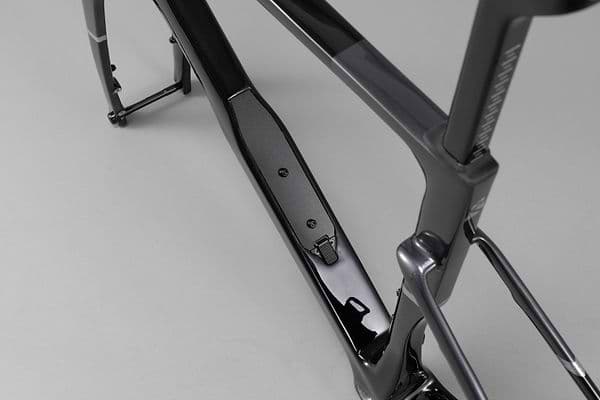

The Allroad SL R features an internal storage compartment for stashing your favourite tools, nutrition, and a spare tube, maintaining the bike’s sleek design and aerodynamics. The optional RIFTT Wrap ensures rattle-free storage. Our exclusive carbon composite downtube bottle cage can be bolted to the compartment door for optimal airflow, helping to maximise the aero advantage. Optional mounts for computers, lights, and removable mudguards are also available for added accessory customisation

Practical Integration

Allroads Versatility

The Allroad SL R is designed to let you push your rides further and across more diverse terrains than traditional road bikes can possibly handle. Featuring durable, 32 mm road-focused tyres, this bike is also capable of accommodating 38 mm tyres, giving you the freedom to choose your next adventure. Its hidden mounts ensure you can easily equip mudguards for those unpredictable conditions. Plus, the integrated frame storage compartment allows you to keep all your ride essentials organised and within reach, ensuring you're prepared for any ride, no matter how long the journey.

Allroads Versatility

Specifications

  • Frame: Ribble Allroad SL R Carbon Fibre Monocoque
  • Forks: Ribble Allroad SL R Full Carbon Tapered
  • Headset: Ribble Allroad SL R (included)
  • Seatpost: Ribble Allroad SL R Carbon (included)
  • Saddle Rail Clamps: 7 x 7 and 7 x 9 mm
  • Bottom Bracket: 68 mm Threaded BSA
  • Front Derailleur Fitting: Braze-on
  • Max. Tyre Clearance: 25 - 38 mm*
  • Front Axle: 12 x 100 mm (included)
  • Rear Axle: 12 x 142 mm (included)
  • Weight: Frame - 995 g; Forks - 475 g

* Dependent upon tyre tread profile

Size & Geometry

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'6 (160-168cm)5'6 - 5'9 (168-175cm)5'9 - 5'11 (175-180cm)5'11 - 6'1 (180-185cm)6'1 - 6'4 (185-193cm)
A - Seat Angle75°74.5°73.5°73.5°73.5°
B - Top Tube C/C (Horizontal)505525545565585
C - Head Angle71°72°73°73°73°
D - Fork Offset (Rake)4545454545
E - Head Tube120140160180200
F - BB Drop6969696969
G - Seat Tube C/T450480500520540
FC - Front Centre573580580600620
RC - Chainstay Length415415415415415
Reach365374376391405
Stack523546568588607
WB - Wheelbase97898598510051026

Frequently Asked Questions

The M46/T1000 carbon fibre monocoque frame weighs 995 g, and the matching full carbon forks 475 g (based on a medium frame).

We offer a lifetime warranty on all Ribble frames and forks for the original purchaser. This covers any manufacturing defects in materials or workmanship, so you can ride with complete confidence. The standard manufacturer's warranty covers all other components.

The frame accommodates tyres up to 38mm (depending on the tread profile) and is fully compatible with mudguards and 32mm tyres.

Yes. Our exclusive mudguard conversion kit allows full-length mudguards to be fitted with up to 32 mm tyres (kit available separately)

Yes. Our exclusive mudguard and pannier conversion kit allows a pannier rack to be fitted, so you can carry whatever belongings you need (kit available separately).

The Allroad SL R features a proprietary D-shaped carbon seat post exclusive to our Allroad carbon line up (included).

When tightening the seat post wedge, do not exceed a maximum torque of 9- 10 Nm.

We recommend a total system weight of 120 kg (bike, rider, and luggage).

The frameset accepts a 68mm BSA threaded bottom bracket.

The Allroad SL R features identical R457B 52 x 42 x 7 mm 45 x 45° bearings at both the top and bottom.

The frame uses M12 x 123 mm x 1.5 mm front and M12 x 169 mm x 1.5 mm rear thru axles (supplied).

When tightening the axles, you should not exceed 10 Nm.

We recommend you apply the following:

  • Lithium grease: bolts, bearings, thru-axles and pedal axles
  • Carbon Grip Paste – seat post and fork expander

The frame accepts a braze-on type front derailleur.

The carbon seat post can be trimmed to length, but we recommend that this be done by a professional bike mechanic.

Yes, the frameset is compatible with all the latest mechanical and electronic groupsets.

The Allroad SL R features internal cable routing for an ultra-clean, cable-free aesthetic.
