• Express

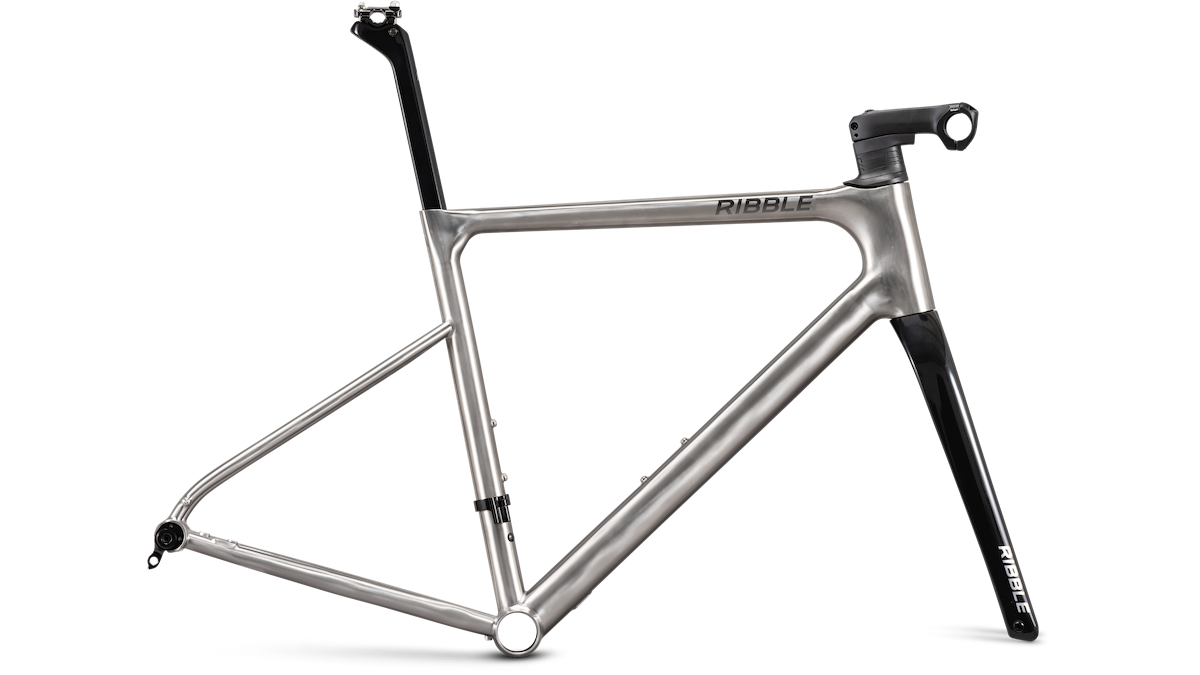

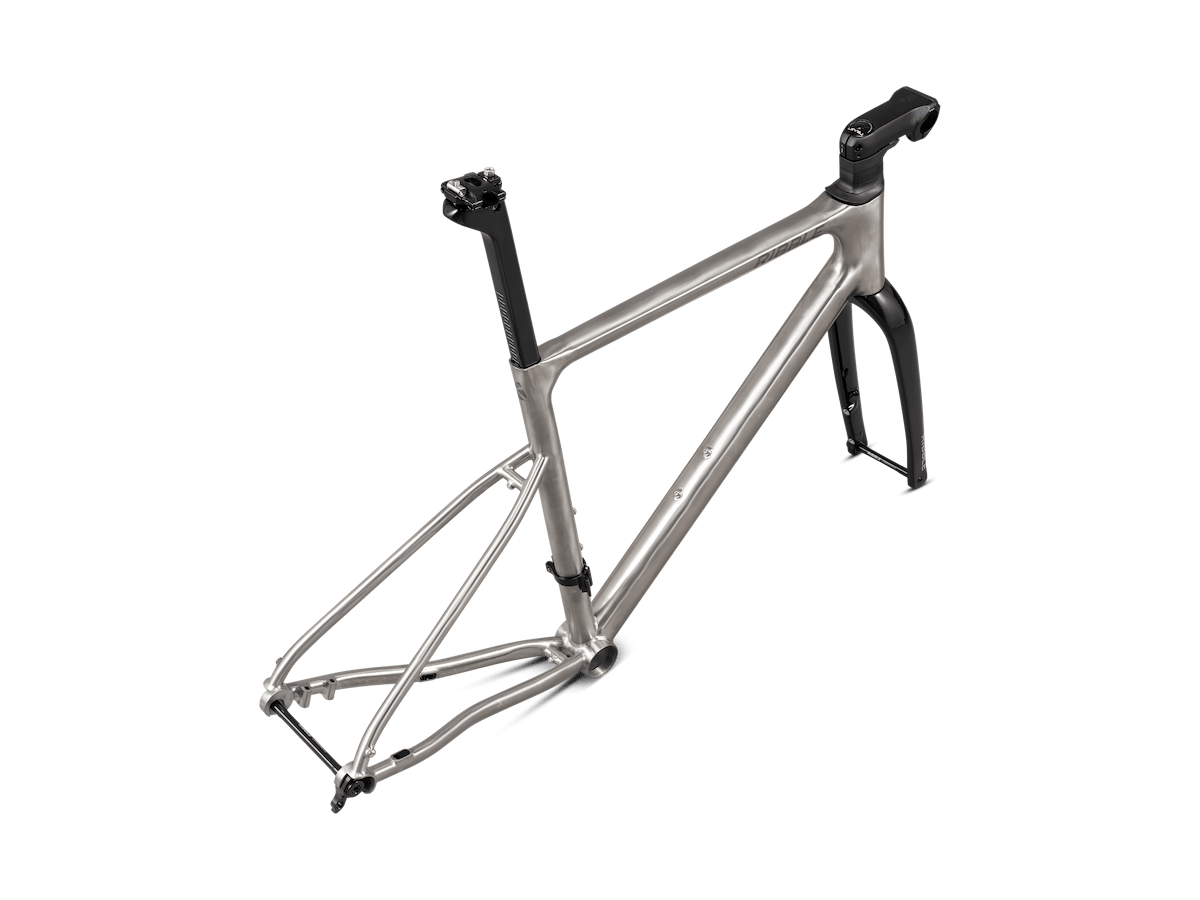

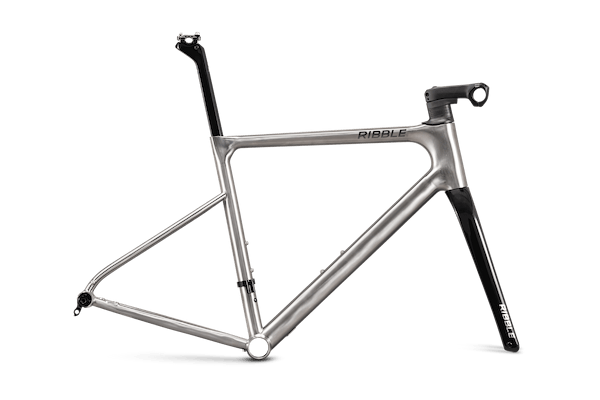

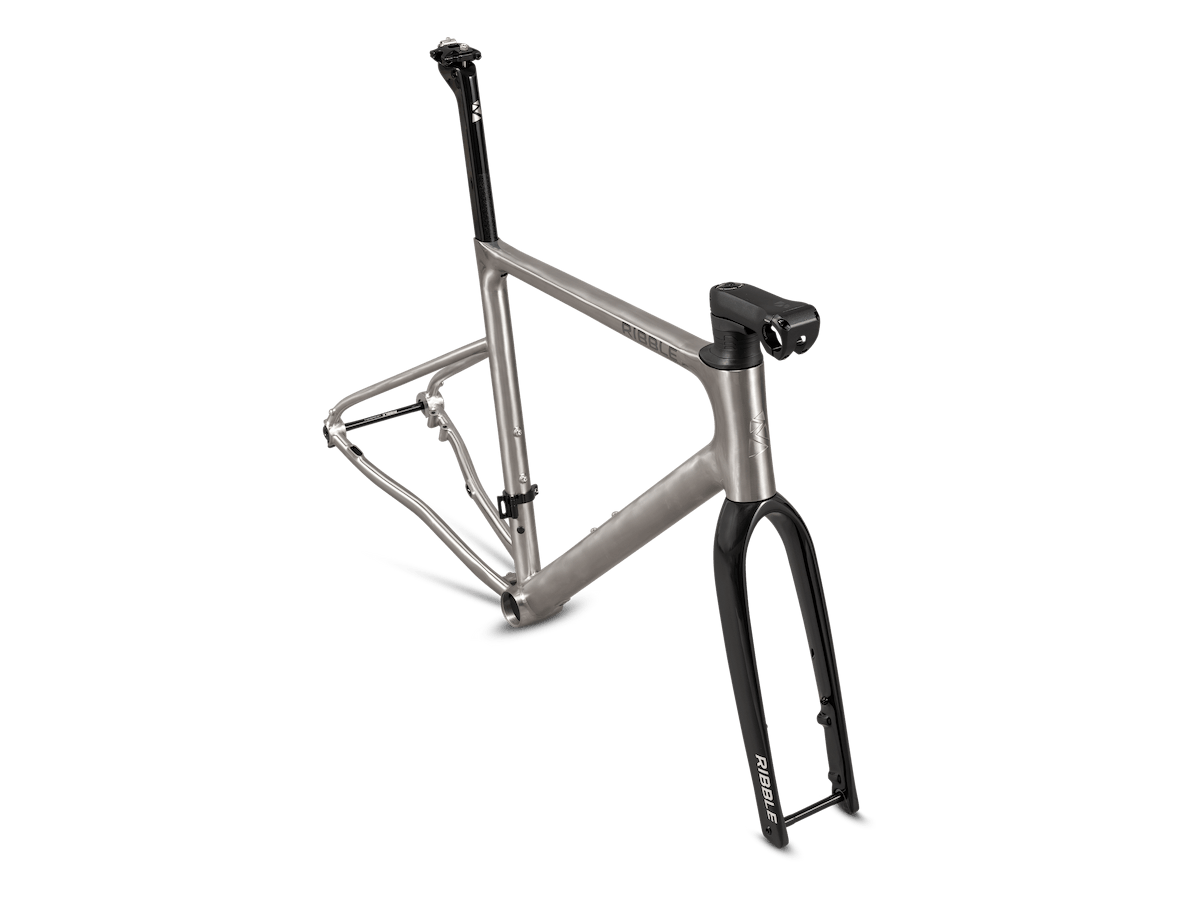

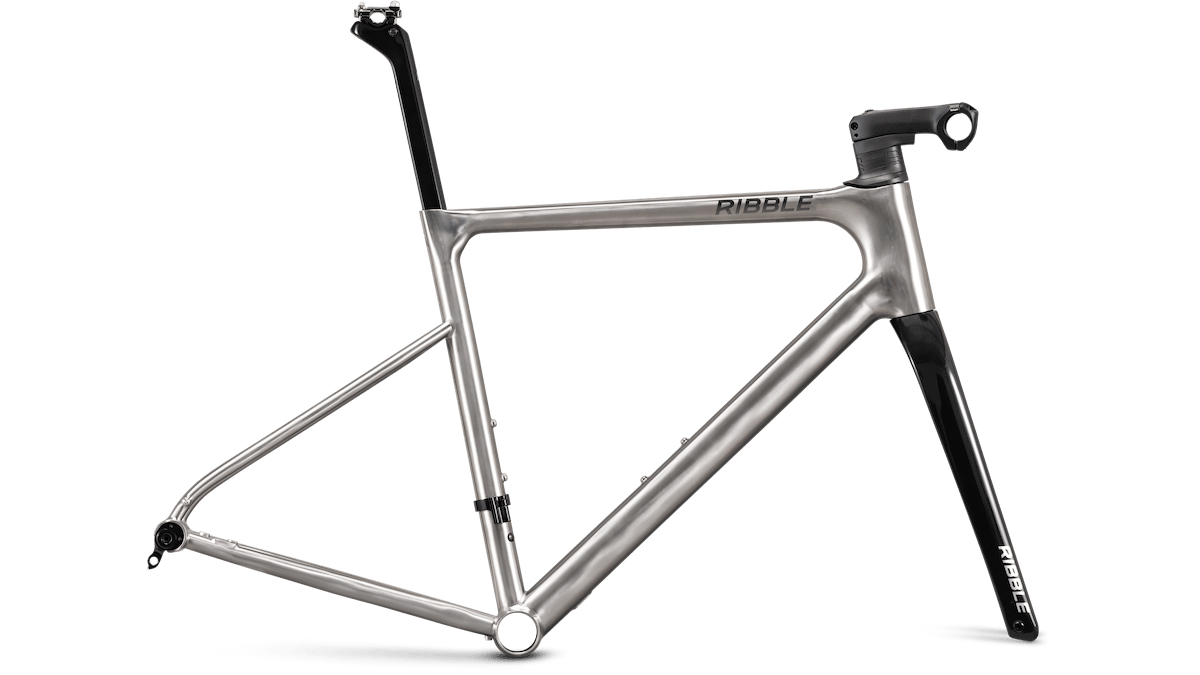

Allroad Ti
Frameset

  1. £2,699
Crafted for more. Cutting-edge titanium construction, seamlessly sculpted lines, optimised for performance. Marrying state-of-the-art 3D printing with traditional construction techniques, this is the future of titanium bikes.
Choose Your Size
Product code: FALLRTI

...And Many Ways To Pay...

DescriptionConstructionVersatilityIntegrationSpecificationsSizeGeometryFrequently Asked Questions

Description

The Allroad Ti is a revolutionary titanium frame that redefines your riding experience. By integrating state-of-the-art 3D printing in the seat tube and head tube clusters with exquisite craftsmanship, it delivers a premium road platform designed for exhilarating mixed-terrain adventures. Now offered exclusively as a frameset, this is your perfect opportunity to customise a bike that truly fulfils your vision of the ultimate riding machine.

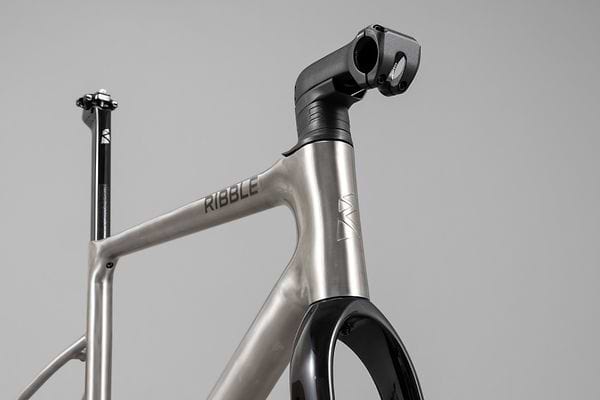

Construction

Combining timeless elegance with rugged practicality, the Allroad Ti delivers on comfort and performance. A fusion of contemporary and traditional engineering delivers optimal strength and a seamless aesthetic, complemented by meticulous hand-finishing. The naturally corrosion-resistant titanium develops a unique patina over time, building character ride after ride.

Construction

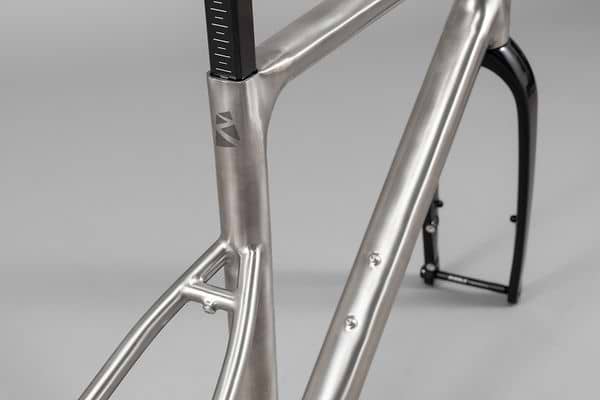

Versatility

With an impressive strength-to-weight ratio, titanium offers unmatched durability and resilience, making the Allroad Ti an ideal choice for both fast road rides and mixed-surface adventures. Ample clearance for 38 mm tyres allows you to extend your rides to include more challenging terrain. Hidden mudguard mounts provide year-round performance and protection, ensuring the Allroad Ti inspires you to embrace every adventure ahead.

Versatility

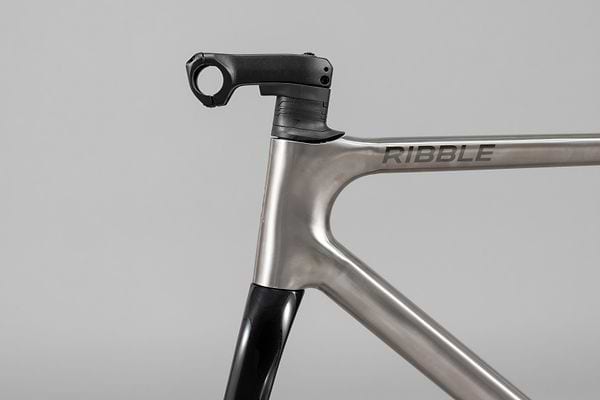

Integration

The Allroad Ti boasts a cutting-edge printed headtube cluster with invisible cable routing, creating a strikingly clean, cable-free cockpit. Whether you choose mechanical or electronic gearing, this bike delivers a sleek and streamlined design. The RS-2 stem expertly manages internal routing for brake hoses, gear cables, and electronic wires, ensuring an organised and polished setup that stands out.

Integration

Specifications

Frame: Ribble Allroad Ti 3Al/2.5V Titanium

  • Forks: Ribble Allroad Ti Full Carbon Tapered
  • Headset: Ribble Allroad Ti (included)
  • Seat post: Ribble Allroad Carbon (included)
  • Saddle Rail Clamps: 7x7 and 7x9 mm
  • Bottom Bracket: T47 Threaded
  • Front Derailleur: 34.9 mm (braze-on adapter included)
  • Max. Tyre Clearance: 28 - 38* mm
  • Front Axle: 12 x 100 mm (included)
  • Rear Axle: 12 x 142 mm (included)
  • Weight: Frame - 1700 g; Forks - 470 g

* Dependent upon tyre tread profile

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'6 (160 -168cm)5'6 - 5'9 (168-175cm)5'9 - 5'11 (175-180cm)5'11 - 6'1 (180 - 185cm)6'1 - 6'4 (185 - 193cm)
A - Seat Angle75°74.5°73.5°73.5°73.5°
B - Top Tube C/C (Horizontal)505525545565585
C - Head Angle71°72°73°73°73°
D - Fork Offset (Rake)4545454545
E - Head Tube120140160180200
F - BB Drop6969696969
G - Seat Tube C/T450480500520540
FC - Front Centre573580580600620
RC - Chainstay Length415415415415415
Reach364.8373.6376.5391405.3
Stack523.3545.8568.4587.6606.7
WB - Wheelbase97898598510051026

Frequently Asked Questions

The 3Al/2.5V Titanium frame weighs 1700 g, and the matching full carbon forks 470 g (size medium).

The rear mech hanger is a fail-safe component designed to protect the frame and drivetrain during impacts. We include a spare hanger with your frameset to ensure you’re prepared should a replacement ever be necessary.

We offer a lifetime warranty on all Ribble frames and forks for the original purchaser. This covers any manufacturing defects in materials or workmanship so you can ride with complete confidence. The standard manufacturer's warranty covers all other components.

Although we recommend a 35 mm tyre size, low-profile 38 mm tyres may also fit, depending on the tread design. We have successfully fitted Challenge Gravel Grinder 700x38mm tyres to the Allroad Ti.

Yes. Discreet frame mounts allow full-length mudguards to be fitted for unrivalled wet weather protection.

No. The Allroad Ti isn't designed to accept a rear rack mounted to the frame

The frameset is supplied with our proprietary D-shaped Allroad carbon seat post.

Yes. Do not exceed a total system weight of 120 kg (bike, rider, and luggage).

When tightening the seat post wedge, do not exceed a maximum torque of 9-10 Nm

The frameset takes an oversize T47 threaded bottom bracket.

The Allroad Ti requires 2x PT-R457B 52 x 7 x 45° bearings (supplied).

The frame uses an M12 x 123 mm x 1.5 mm front and M12 x 167.5 mm x 1.5 mm rear thru axle (supplied).

When tightening the thru axles, you should not exceed 10 Nm.

The components you fit to your titanium frameset will require different protection depending on their material and the job they are designed to perform. We recommend the following:

· Copper Grease – headset bearings, rear thru-axle, bottle cage bolts, bottom bracket, frame doors

· Carbon Grip Paste – seat post, fork expander

· Lithium Grease – mudguard bolts, front thru-axle

The frame is supplied with a 34.9 mm adaptor, which allows a braze-on type front derailleur to be mounted to the frame.

We supply the frameset with a 350 mm or 400 mm seat post, depending on the selected frame size. We need to provide which size seat post is supplied with which frame – Matt A can provide this info. Remove the section on cutting down – not relevant.

Yes, the Allroad Ti is compatible with the latest mechanical and electronic groupsets.

Yes, the frame is suitable for dynamo hub setups, which can be particularly useful for long-distance touring or commuting

No. The d-shaped carbon seat tube means that the frame is incompatible with all models of dropper posts.

The Allroad Ti features internal cable routing for a clean aesthetic and compatibility with both 1x and 2x setups.
