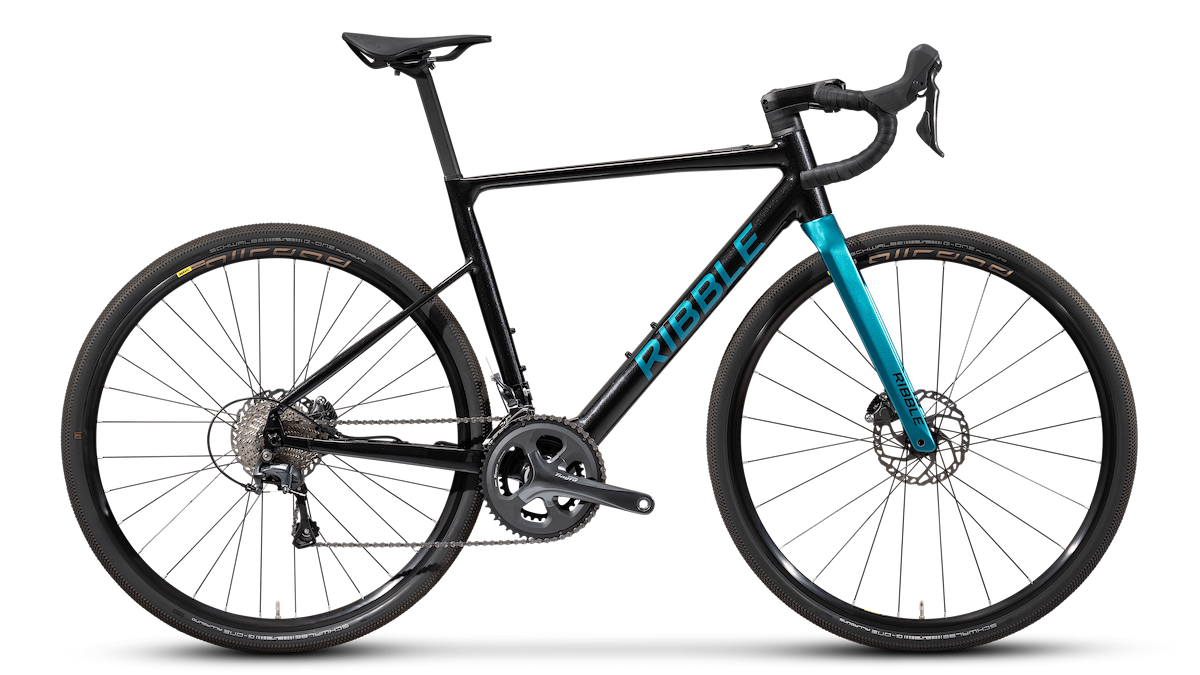

CGR E AL Tiagra

Please note we can not ship this product to your selected country
  1. $3,320
Wherever the ride takes you, the CGR E AL is ready. From city commutes to gravel tracks and weekend adventures, this do-it-all aluminium e-bike combines everyday practicality with confident all-surface performance. The 7005 hydroformed alloy frame is paired with the smooth and efficient MAHLE X30 rear hub e-drive system, providing a natural-feeling pedal assist that helps you ride further and tackle climbs with ease. With Shimano’s reliable Tiagra 10-speed gearing, durable Mavic Allroad wheels, fast rolling 40mm Schwalbe G-One Allround tyres and a Selle Italia Novus Boost saddle, the CGR E AL is built for comfort, control, and versatility, wherever the road, path, or trail leads.
Product code: BCGRALEG24720D

...And Many Ways To Pay...

Description

Wherever the ride takes you, the CGR E AL is ready. From city commutes to gravel tracks and weekend adventures, this do-it-all aluminium e-bike combines everyday practicality with confident all-surface performance. The 7005 hydroformed alloy frame is paired with the smooth and efficient MAHLE X30 rear hub e-drive system, providing a natural-feeling pedal assist that helps you ride further and tackle climbs with ease. With Shimano’s reliable Tiagra 10-speed gearing, durable Mavic Allroad wheels, fast rolling 40mm Schwalbe G-One Allround tyres and a Selle Italia Novus Boost saddle, the CGR E AL is built for comfort, control, and versatility, wherever the road, path, or trail leads.

Electric Motor System

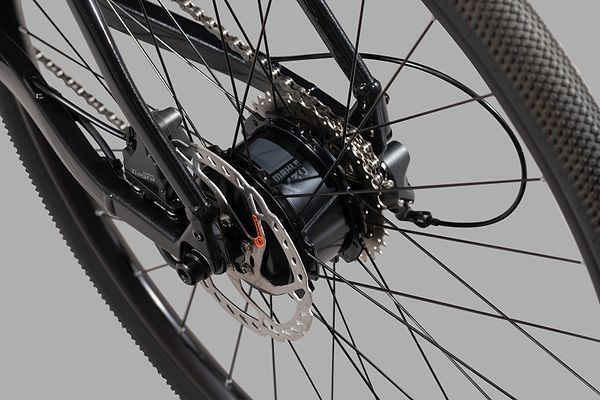

The Mahle X30 e-drive system delivers just the right level of assistance - light, quiet, and so seamlessly integrated, it fades into the background. Designed for mixed-terrain exploration, it offers a natural ride feel, an impressive range of 90km off one charge, and low-maintenance performance. With a lighter weight and over-the-air software updates, it’s as easy to live with as it is to ride.

Electric Motor System

Groupset

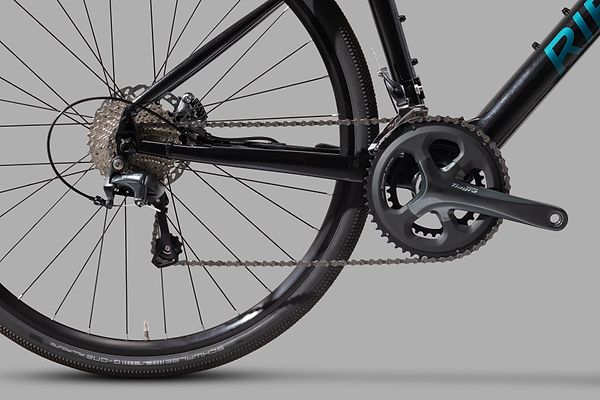

Shimano Tiagra delivers impressive entry-level performance, drawing on technology cascaded from Shimano’s top-tier groupsets. The smooth, dependable shifting of the 2x10-speed Tiagra drivetrain ensures consistent performance in all conditions—perfect for riders building confidence and pushing their limits. Hydraulic disc brakes provide powerful, responsive stopping power, instilling confidence on high-speed descents and in wet or unpredictable weather. Whether you're commuting, training, or exploring new routes, Tiagra is built to support your journey, mile after mile.

Groupset

Wheelset

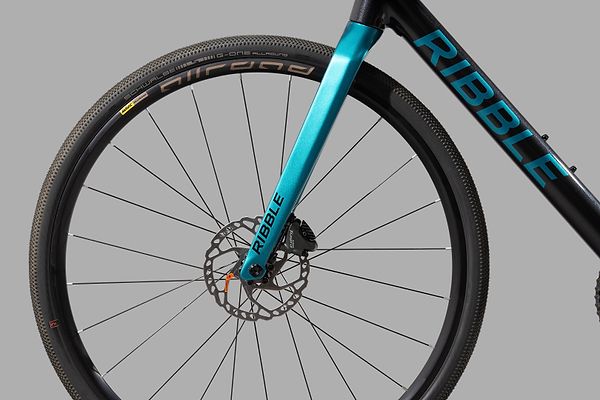

Designed to ride smoother and faster on dirt, gravel, and road, you can ride it all with confident control with the lightweight, durable, and responsive Mavic Allroad wheels with integrated MAHLE X30 motor. Paired with 40mm Schwalbe G-One tyres, this versatile combination is equally at home on hidden dirt tracks or fast-paced road rides.

Wheelset

Handlebars

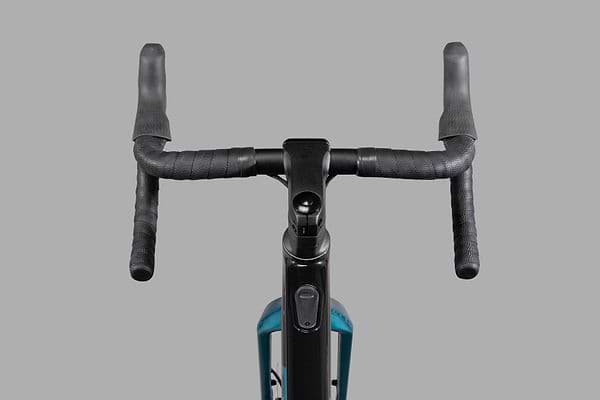

Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke—whether you’re heading out for an hour or all day.

Handlebars

Saddle

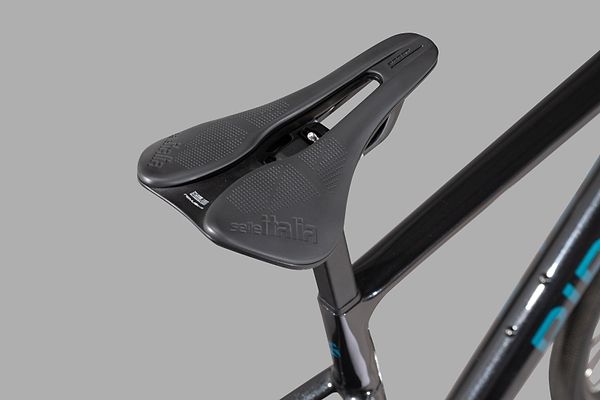

Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped alloy post and Selle Novus Boost Evo saddle work together to soak up the buzz and smooth out the ride.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 -5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length (mm)165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube C/C (Horizontal)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube C/Top (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
WB- Wheelbase (mm)10301036105210611075
Handlebar Default (mm)380380400400420
Stem Default (mm)70809090100
Min. Saddle Height (mm)620640710730740
Max. Saddle Height (mm)700720790810830

Frequently Asked Questions

If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.

Weights based on a medium frame size:

  • Tiagra build: 14.1 kg
  • 105 build: 13.9 kg
  • SPORTFIT: 13.7 kg

Frame only (medium): 1900 g

Like all Ribble bikes, the CGR E AL is covered by a lifetime warranty on frame and forks for the original purchaser. This includes any manufacturing defects in materials or workmanship. The standard manufacturer's warranty applies to all other components.

Range depends on rider weight, terrain, tyre pressure, and temperature. As a guide, a 90 kg rider on mixed routes can expect up to 90 km on a full charge. Add the optional eX1 range extender and this increases by up to 60 km.

Yes. The CGR E AL is pedal-assisted, so it always requires rider input. Stop pedalling and it coasts to a stop. Just like a regular bike.

Absolutely. The motor only provides assistance when you pedal. You’re always in full control of speed and handling.

No. You don’t need a licence, tax or insurance to ride pedal-assisted electric bikes in the UK. That said, we always recommend having some form of bike insurance.

Yes, the CGR E AL is eligible for Cycle to Work.

Press the main control button to cycle through the assistance levels:

  • White: Off
  • Green: Minimum
  • Orange: Medium
  • Purple: Maximum
  • Cyan: Smart assist (via app)

The CGR E AL’s X30 control unit uses seven LEDs to display battery charge:

  • Fully lit = 94-100%
  • Fewer lights = lower charge
  • Slow blinking = 0-10%
  • Fast blinking = critically low

Just plug into any standard socket using the supplied charger. The optional range extender can also be used to charge the main battery on the go.

Yes. Book a test ride at our Clitheroe showroom or one of our UK demo events. Just contact the showroom in advance to reserve your bike.

Yes. The electrical system is IP54 rated for splash protection. Don’t jet wash or fully submerge the bike, and use a waterproof cover if transporting in wet conditions.

Yes. A MAHLE-certified technician can remove the battery by accessing it through the bottom bracket shell.

The CGR E AL’s MAHLE iX2 battery is designed to handle around 500 full charge cycles with minimal degradation, provided it's stored and maintained correctly.

The CGR E AL SPORTFIT offers the same ride and versatility, but with flat bars for a more upright and confident position. It’s a step up from a typical hybrid, designed for control, comfort and all kinds of riding.

Yes. The CGR E AL features integrated cable routing for a clean look and protection from the elements.

The CGR E AL comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards.

Yes, you can fit a rear pannier rack using an adaptor kit (sold separately) to boost carrying capacity.

Yes. A removable bridge makes fitting mudguards easy (mudguard bridge sold separately).

The CGR E AL uses a PF46 press-fit bottom bracket with an integrated torque sensor.

The CGR E AL features a 1.5” integrated headset and R457B 52 x 42 x 7mm 45° x 45° headset bearings top and bottom.

The CGR E AL comes with a 350 mm D-shaped alloy seat post (8 mm setback), compatible with both carbon and alloy saddle rails.

There are two bottle cage mounts: one on the downtube and one on the seat tube. To ensure the best fit, the downtube mount is designed specifically for the seat tube version of the Ribble Aero Bottle Cage.

Thru axle and bolt-on.

  • Front: 12 mm x 123 mm x 1.5 mm
  • Rear: Bolt-on

It features a proprietary derailleur hanger designed specifically for the MAHLE e-system, ensuring perfect alignment.

The maximum recommended system weight for the CGR E AL is 120 kg, including bike, rider, and luggage.

The CGR E AL comes with a 50-34T road compact chainset and doesn't fit smaller 46-40T gravel-specific versions.

Pedals aren’t included, so you can choose the ones that suit your riding style.
