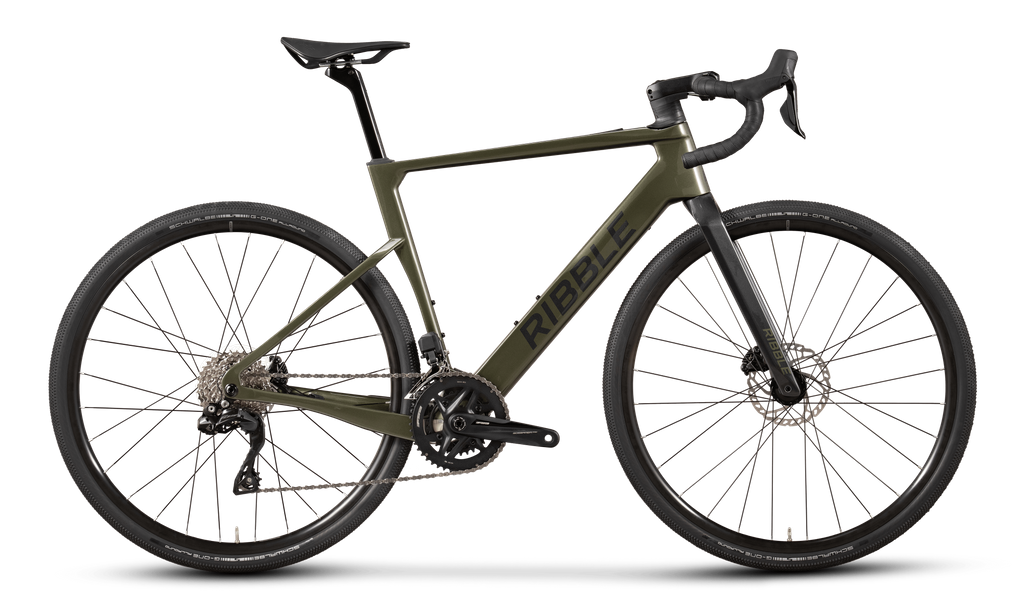

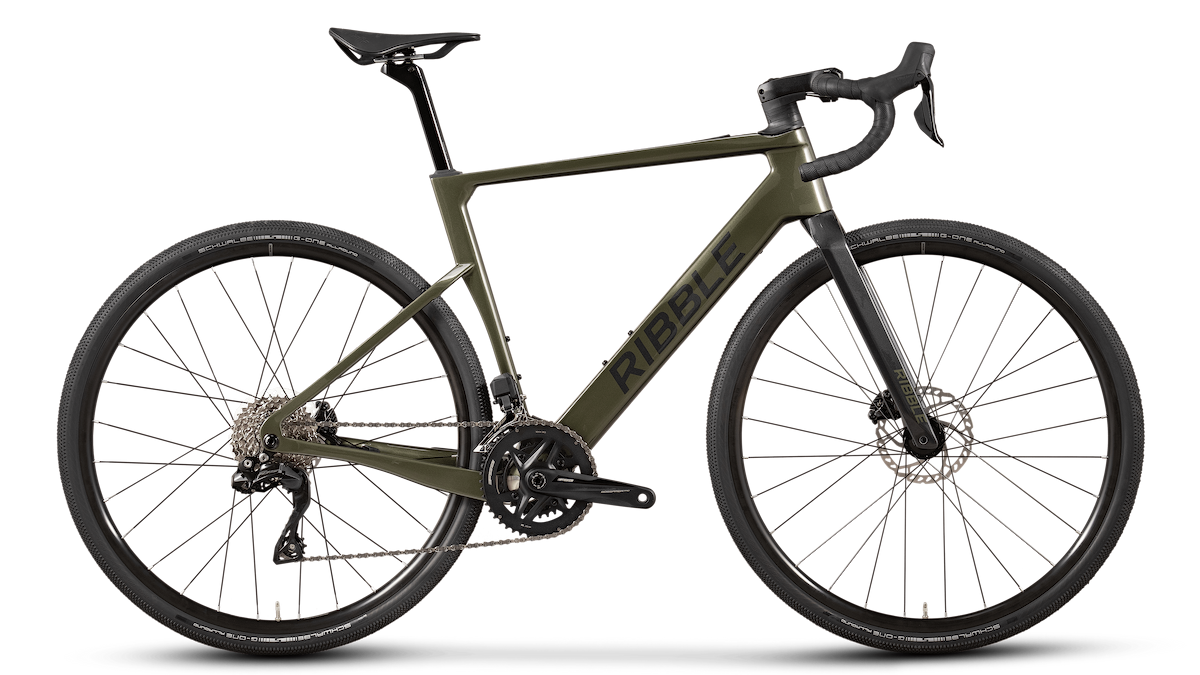

CGR E Carbon-X 105 Di2

Please note we can not ship this product to your selected country
  1. $4,599
The CGR E CARBON-X blends everyday practicality with smooth electric assist and a lightweight carbon frame. A super-lightweight carbon bike with internal cable routing, it's capable of anything you are. Weighing just 12.4 kg, it pairs a sleek carbon monocoque frame with the near-silent MAHLE X20 e-drive system for smooth, natural assistance when you need it most. Shimano’s 105 Di2 12-speed wireless groupset takes care of shifting, while tough Mavic Allroad wheels, and 40 mm Schwalbe G-Ones keep things fast, stable, and comfortable, on road or off it.
Product code: BCGRSLRE7150D

...And Many Ways To Pay...

Description

The CGR E CARBON-X blends everyday practicality with smooth electric assist and a lightweight carbon frame. A super-lightweight carbon bike with internal cable routing, its capable of anything you are. Weighing just 12.4 kg, it pairs a sleek carbon monocoque frame with the near-silent MAHLE X20 e-drive system for smooth, natural assistance when you need it most. Shimano’s 105 Di2 12-speed wireless groupset takes care of shifting, while tough Mavic Allroad wheels, and 40 mm Schwalbe G-Ones keep things fast, stable, and comfortable—on road or off it.

Electric Motor System

The MAHLE X20 e-drive system gives you lightweight, natural-feeling power that kicks in when you need it. It’s whisper-quiet, stealthily tucked away, and gives you up to 140 km of assistance—or more than 200 km if you choose the optional range extender. With 55Nm of torque and a bigger 350Wh battery, it helps you up the climbs, across rough ground, and through longer days in the saddle. You can even set it to respond to your effort or heart rate, so it’s always working how you want it to, whether you're training, building back, or just riding for the love of it.

Electric Motor System

Groupset

Shimano’s first and only 12-speed mechanical groupset is the latest addition to their premium road family. The 105 R7100 combines pure cycling with pure craftsmanship, delivering the wide gear range, hand-friendly ergonomics, and all-condition braking confidence you’ve always craved. Developed from Shimano’s Science of Speed philosophy, 105 raises accessible performance to a whole new level and is paired with the lightweight, performance-driven FSA Gossamer chainset for efficient power delivery with every pedal stroke.

Groupset

Wheelset

Ride smoother, faster, and further—wherever the road (or trail) takes you. Lightweight and tough, the Mavic Allroad wheels with integrated MAHLE X20 motor deliver responsive power and confident control across any terrain. Paired with 40mm Schwalbe G-One tyres, it’s a setup that’s as eager for hidden dirt tracks as it is for tapping out the tempo on tarmac.

Wheelset

Handlebars

Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke—whether you’re heading out for an hour or all day.

Handlebars

Saddle

Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped carbon post and Selle Novus Boost Evo saddle work together to soak up the buzz and smooth out the ride.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length (mm)165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B -Top Tube C/C (Horizontal)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)70676565665
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
WB - Wheelbase (mm)10301036105210611075
Handlebar Default (mm)380380400400420
Stem Default (mm)70809090100
Min. Saddle Height (mm)620640710730740
Max. Saddle Height (mm)700720790810830

Frequently Asked Questions

If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.

Weights based on a medium frame size:

  • 105 Di2 build: 12.4 kg
  • Ultegra Di2 build: 12.3 kg
  • SPORTFIT: 12.0 kg

Frame only (medium): 920 g

Like all Ribble bikes, the CGR E CARBON-X is covered by a lifetime warranty on frame and forks for the original purchaser. This includes any manufacturing defects in materials or workmanship. The standard manufacturer's warranty applies to all other components.

Range depends on rider weight, terrain, tyre pressure, and temperature. As a guide, a 90 kg rider on mixed routes can expect up to 140 km on a full charge. Add the optional eX1 range extender, which increases the range by up to 55 km.

Yes. The CGR E CARBON-X is pedal-assisted, so it always requires rider input. Stop pedalling and it coasts to a stop. Just like a regular bike.

Absolutely. The motor only provides assistance when you pedal. You’re always in full control of speed and handling.

No. You don’t need a licence, tax or insurance to ride pedal-assisted electric bikes in the UK. That said, we always recommend having some form of bike insurance.

Yes, the CGR E CARBON-X is eligible for Cycle to Work.

Press the main button to cycle through the assistance levels:

  • White: off
  • Green: minimum
  • Orange: medium
  • Purple: maximum
  • Cyan: smart assist via app

The CGR E CARBON-X's X20 control uses seven LEDs to display battery charge.

  • Fully lit = 94–100%
  • Fewer lights = lower charge
  • Slow blinking = 0–10%
  • Fast blinking = critically low

Just plug into any standard socket using the supplied charger. The optional range extender can also be used to charge the main battery on the go.

Yes. Book a test ride at our Clitheroe showroom or one of our UK demo events. Just contact the showroom in advance to reserve your bike.

Yes. The electrical system is IP54 rated for splash protection. Don’t jet wash or fully submerge the bike, and use a waterproof cover if transporting in wet conditions.

Yes. A MAHLE-certified technician can remove the battery by accessing it through the bottom bracket shell.

The CGR E CARBON-X's iX3 battery is designed to handle around 500 full charge cycles with minimal degradation, provided it is stored and maintained correctly.

Yes. The CGR E CARBON-X features integrated cable routing for a clean look and protection from the elements.

The CGR E CARBON-X comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards.

Yes, you can fit a rear pannier rack using an adaptor kit (sold separately) to boost carrying capacity.

Yes. A removable bridge makes fitting mudguards easy (mudguard bridge sold separately).

The frame uses a PF46 press-fit bottom bracket with an integrated torque sensor.

The CGR E CARBON-X features a 1.5” integrated headset and R457B 52 x 42 x 7mm 45° x 45° headset bearings top and bottom.

The CGR E CARBON-X comes with a 350 mm D-shaped carbon seat post (10mm setback), compatible with both carbon and alloy saddle rails.

There are two bottle cage mounts: one on the downtube and one on the seat tube. They’re compatible with Ribble aero cages.

Thru Axles.

  • Front: 12 mm x 123 mm x 1.5 mm
  • Rear: 12 x 174 mm x 1.0 mm

It uses SRAM’s UDH (Universal Derailleur Hanger) for easy replacement and compatibility.

The maximum recommended system weight for the CGR E CARBON-X is 120 kg, including bike, rider, and luggage.

The CGR E CARBON-X comes with an FSA 46-30T chainset and fits smaller 31-48T gravel-specific versions, but not a road compact 50-34T.

Pedals aren’t included, so you can choose the ones that suit your riding style.
