• New

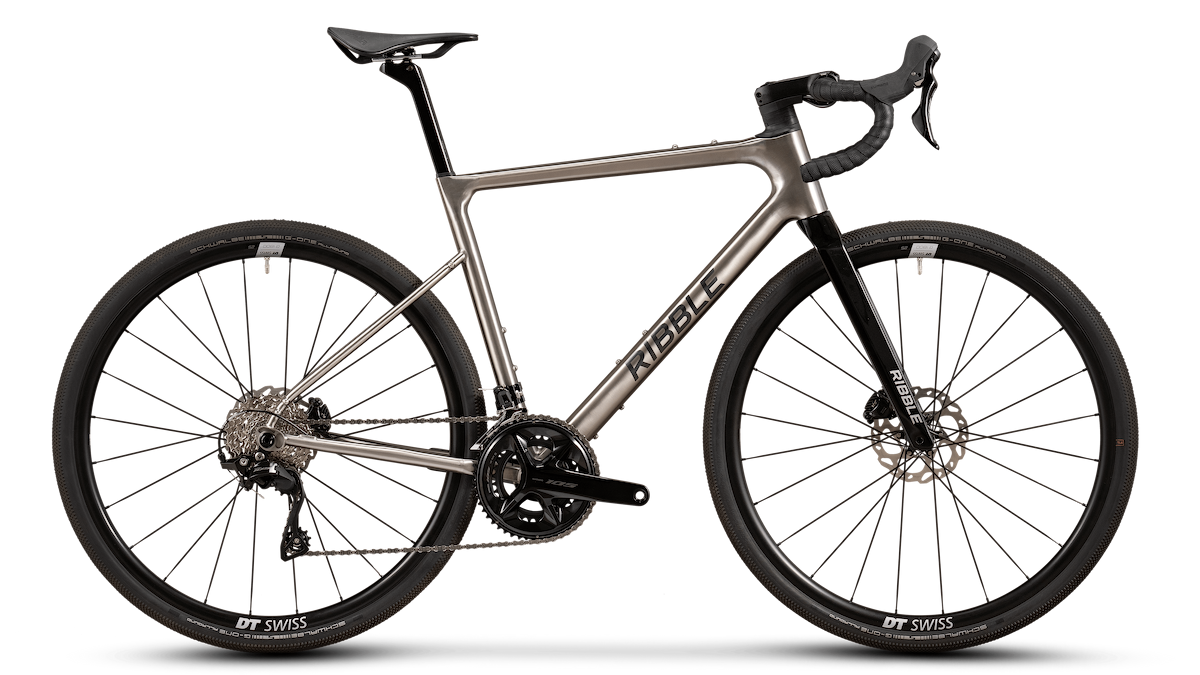

CGR Ti-X 105

  1. $3,099
The CGR Ti-X is an elegant, versatile titanium all-rounder that pairs the proven go-anywhere CGR design with the strength, comfort and longevity of triple-butted titanium. Lightweight, responsive and compliant, it's built to ride further, more often, for longer. Shimano’s 105 12-speed groupset keeps shifting sharp on the road or trail, while DT Swiss wheels and 40mm Schwalbe G-One Allround tyres bring the grip, speed and comfort. Finished with a Selle Italia Novus Boost saddle, it’s ready for whatever you throw at it.
Choose Your Size
Product code: BCGRTIG27100D

...And Many Ways To Pay...

Description

The CGR Ti-X is an elegant, versatile titanium all-rounder that pairs the proven go-anywhere CGR design with the strength, comfort and longevity of triple-butted titanium. Lightweight, responsive and compliant, it's built to ride further, more often, for longer. Shimano’s 105 12-speed groupset keeps shifting sharp on road or trail, while DT Swiss wheels and 40 mm Schwalbe G-One Allround tyres bring the grip, speed and comfort. Finished with a Selle Italia Novus Boost saddle, it’s ready for whatever you throw at it.

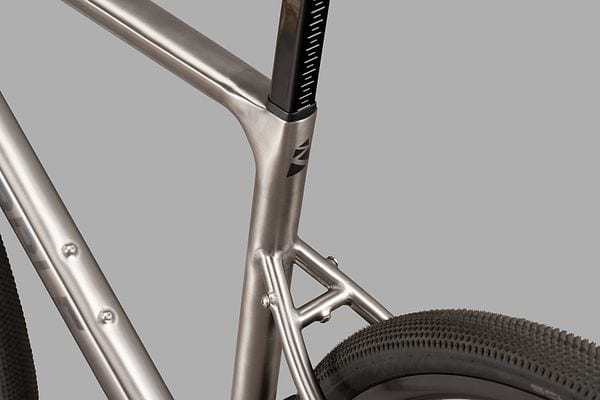

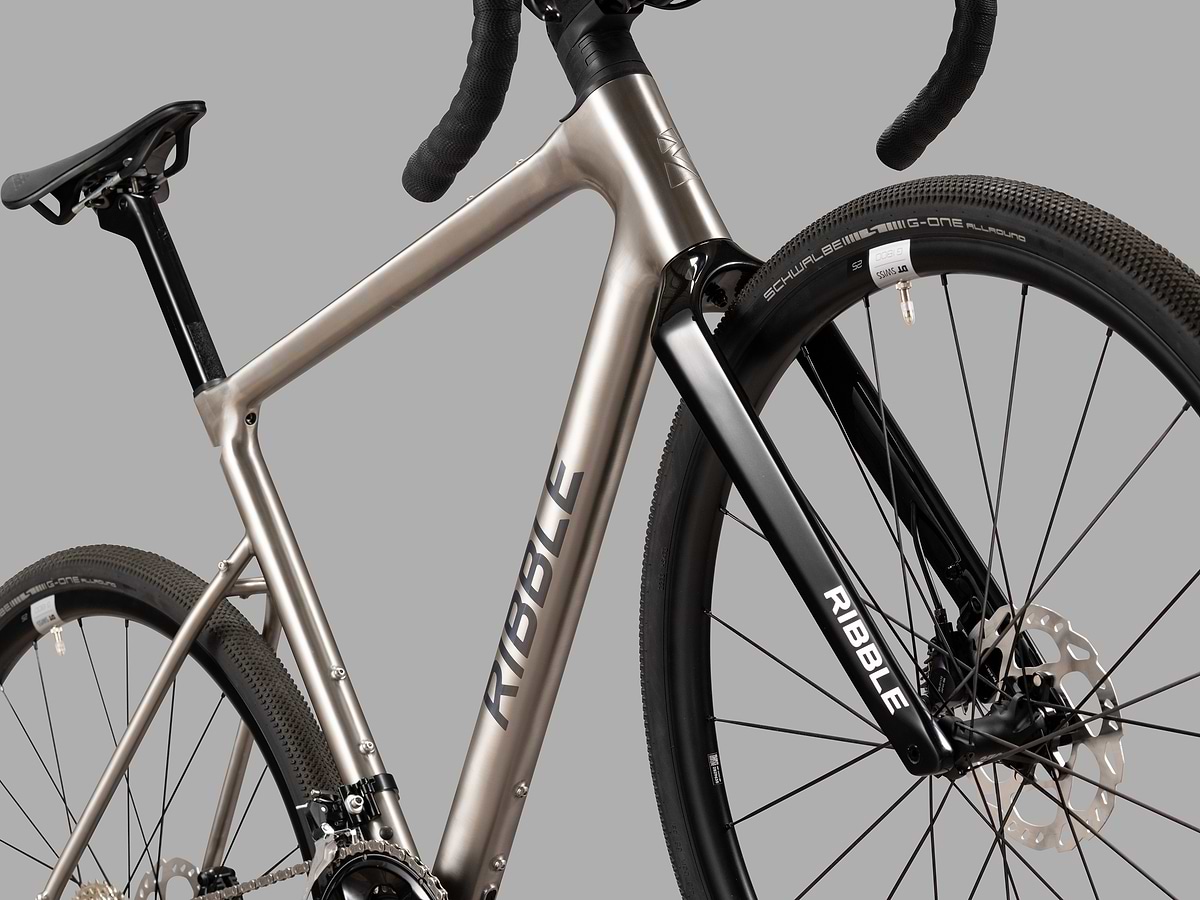

Frameset

The CGR Ti-X is our premium all-rounder built from precision-engineered titanium—for fast miles on road or gravel. 3D-printed frame parts push the limits of what's possible in ti, blending traditional craftsmanship with the latest cutting-edge tech. It's tough, naturally resistant to corrosion, and smooth as silk to ride. Over time, the hand-finished surfaces pick up a unique patina that tells the story of every ride. With aero touches like the widened fork and headtube blend, it’s built for speed without losing the supple ride feel that makes titanium special.

Frameset

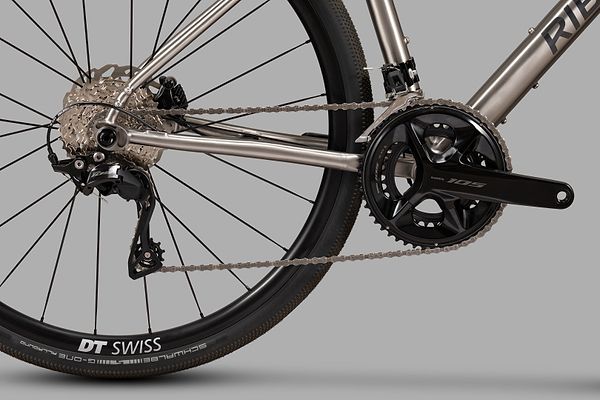

Groupset

Shimano’s first and only 12-speed mechanical groupset is the latest addition to their premium road family. 105 7100 combines pure cycling with pure craftmanship. Inspired by 105 Di2, this versatile drivetrain delivers the wide gear range, hand-friendly ergonomics, and all-condition braking confidence you’ve always craved. Developed from Shimano’s Science of Speed philosophy, 105 raises accessible performance to a whole new level.

Groupset

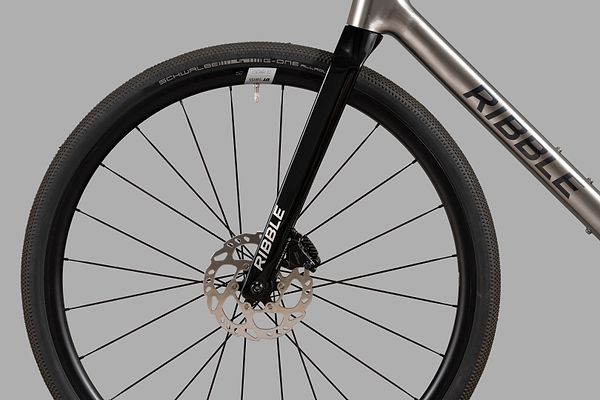

Wheelset

Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.

Wheelset

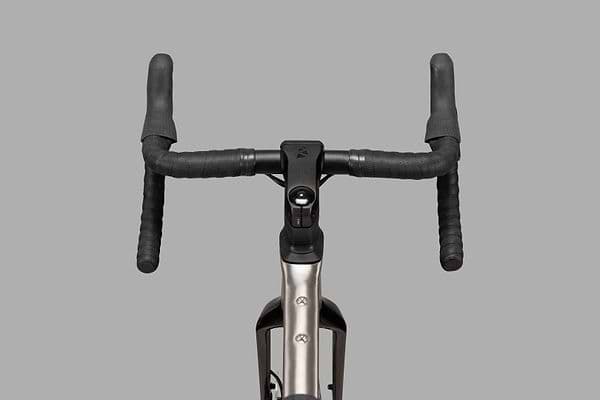

Handlebars

Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke—whether you’re heading out for an hour or all day.

Handlebars

Saddle

Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped carbon post and Selle Novus Boost Evo saddle work together to soak up the buzz and smooth out the ride.

Saddle

Size Guide

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size Guide

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube (mm)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
WB - Wheelbase (mm)10301036105210611075
Handlebar Default (mm)380380400400420
Stem Default (mm)70809090100
Min. Saddle Height (mm)620640710730740
Max. Saddle height (mm)700720790810830

Frequently Asked Questions

If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.

Weights based on a medium frame size:

  • 105 build: 10.0 kg
  • 105 Di2 build: 9.9 kg
  • SPORTFIT: 9.5 kg

Frame only (medium): 1700 g

The CGR TI-X includes a lifetime warranty on frame and forks for the original owner, covering manufacturing defects. Other components carry the standard manufacturer’s warranty.

The CGR TI-X SPORTFIT offers the same ride and versatility, but with flat bars for a more upright and confident position. It’s a step up from a typical hybrid, designed for control, comfort and all kinds of riding.

The CGR TI-X features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.

The CGR TI-X comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards.

Yes, you can fit a rear pannier rack using the built-in mounts to boost carrying capacity.

The frame utilises traditional 90-degree mounting points, so not all pannier racks will be compatible. Quick-release racks with limited adjustment may not be compatible. For advice on suitable options, please contact us.

Yes. The CGR TI-X's frame mounts make fitting mudguards easy.

The CGR TI-X uses a threaded 68mm T47 threaded bottom bracket.

The CGR TI-X features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.

The CGR TI-X comes with a 350 mm D-shaped carbon seat post (8 mm setback), compatible with both carbon and alloy saddle rails.

The CGR TI-X features two bottle cage mounts: one on the downtube and one on the seat tube. Ribble’s stainless steel cages are the perfect complement, pairing functional durability with a finish that echoes the timeless look of titanium.

The CGR TI-X includes extra luggage mounts on the top tube and underneath the downtube.

Thru Axles.

  • Front: 12 mm x 123 mm x 1.5 mm
  • Rear: 12 mm x 169 mm x 1.0 mm

The CGR TI-X uses SRAM’s UDH (Universal Derailleur Hanger) system for universal hanger compatibility and easy replacement.

The maximum recommended system weight for the CGR TI-X is 120 kg, including bike, rider, and luggage.

Pedals aren’t included, so you can choose the ones that suit your riding style.
