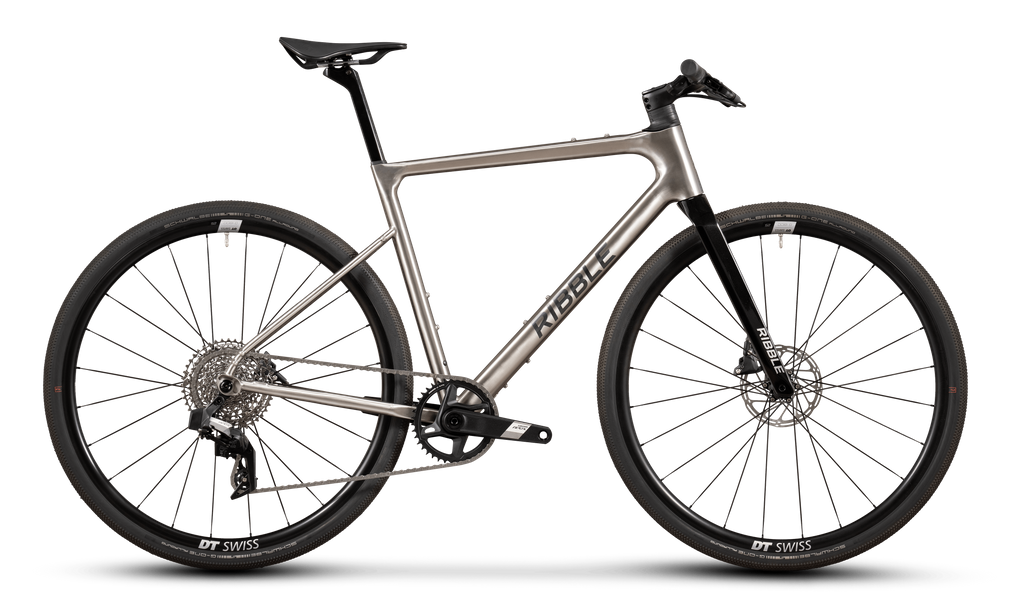

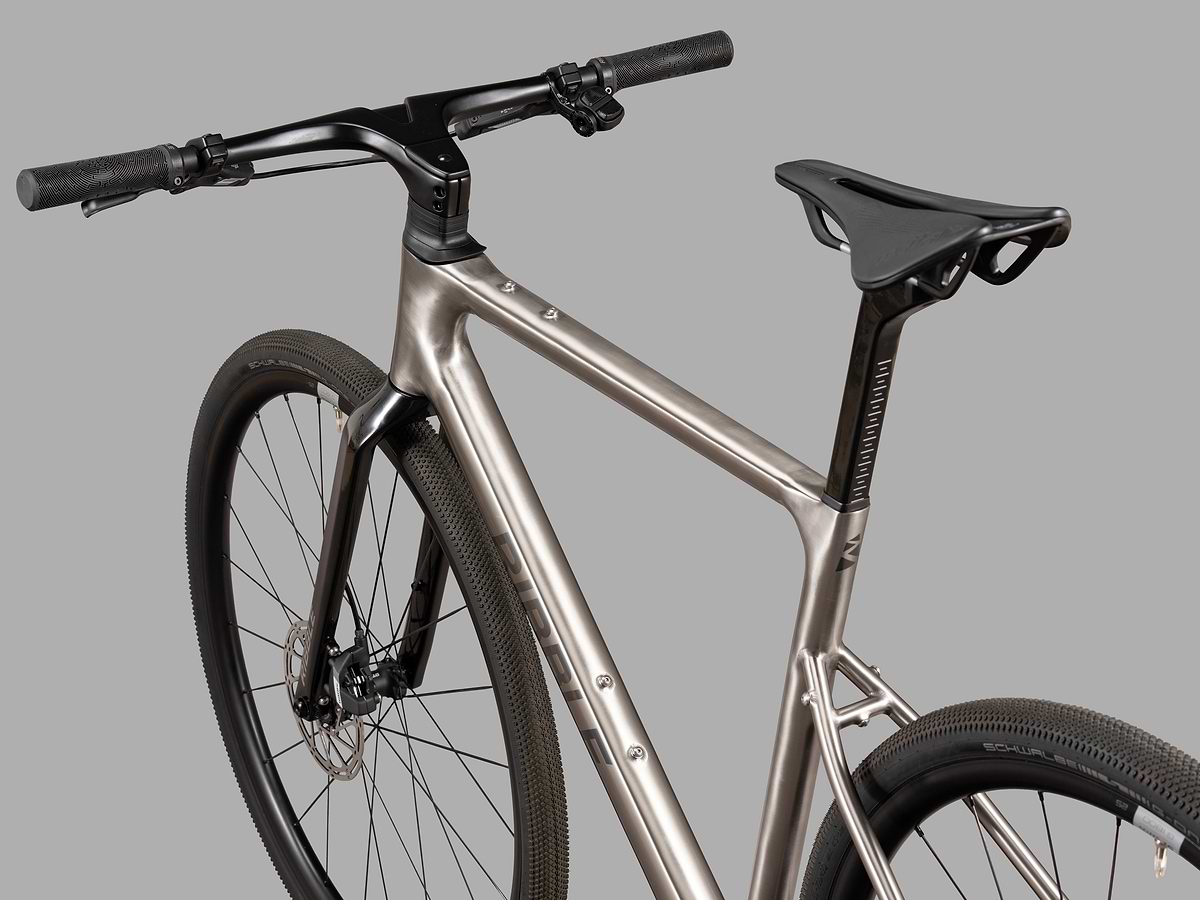

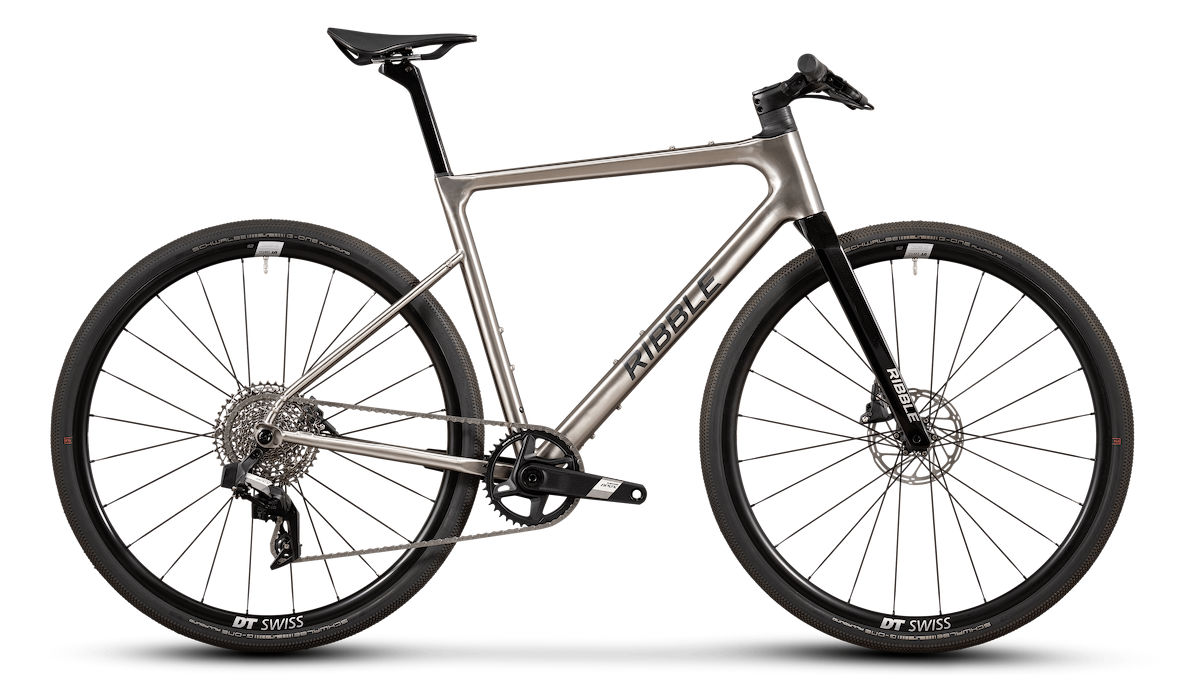

CGR Ti-X Sportfit Apex XPLR AXS

  1. $3,499
The CGR TI-X SPORTFIT combines the proven versatility of our go-anywhere CGR design with a more upright, confident riding position, along with the strength, comfort, and longevity of triple-butted titanium. Lightweight, responsive, and naturally compliant, it’s built to go further, more often. SRAM’s fully wireless Apex XPLR AXS 12-speed groupset delivers simple, consistent, and intuitive shifting on road or trail. DT Swiss wheels and 40mm Schwalbe G-One Allround tyres add grip, speed, and all-surface comfort. Finished with a Selle Italia Novus Boost saddle, it’s your ticket to fast miles, fresh routes, and long weekends in the saddle.
Product code: BCGRTIG2APAXFB

...And Many Ways To Pay...

Description

The CGR TI-X SPORTFIT combines the proven versatility of our go-anywhere CGR design with a more upright, confident riding position, along with the strength, comfort, and longevity of triple-butted titanium. Lightweight, responsive, and naturally compliant, it’s built to go further, more often. SRAM’s fully wireless Apex XPLR AXS 12-speed groupset delivers simple, consistent, and intuitive shifting on road or trail. DT Swiss wheels and 40mm Schwalbe G-One Allround tyres add grip, speed, and all-surface comfort. Finished with a Selle Italia Novus Boost saddle, it’s your ticket to fast miles, fresh routes, and long weekends in the saddle.

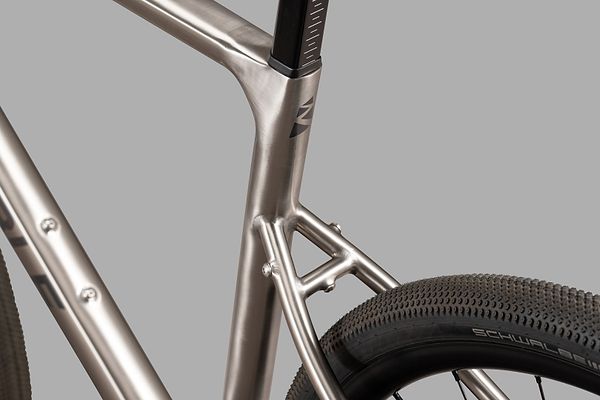

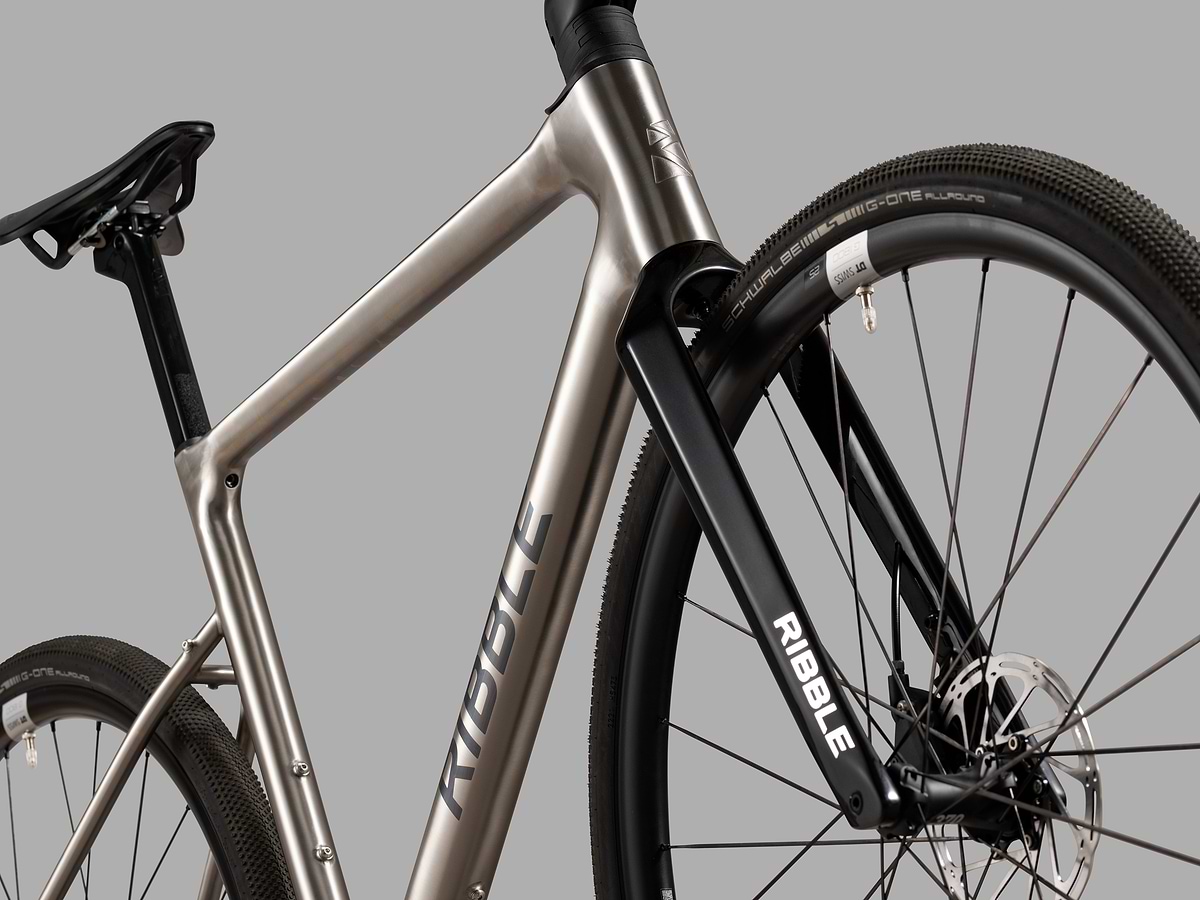

Frameset

The CGR Ti-X is our premium all-rounder built from precision-engineered titanium, for fast miles on road or gravel. 3D-printed frame parts push the limits of what's possible in ti, blending traditional craftsmanship with the latest tech. It's tough, naturally resistant to corrosion, and smooth as silk to ride. Over time, the hand-finished surfaces pick up a unique patina that tells the story of every ride. With aero touches like the widened fork and headtube blend, it’s built for speed without losing the supple ride feel that makes titanium special.

Frameset

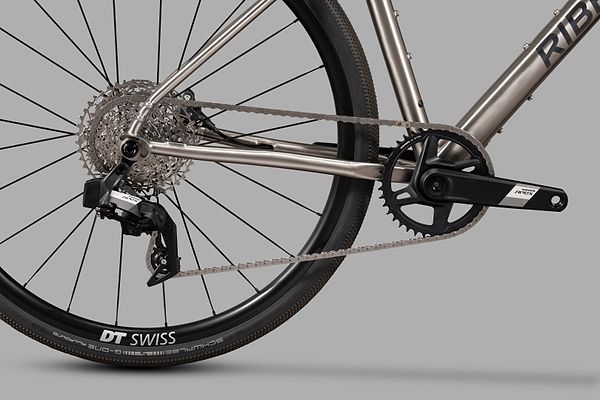

Groupset

Apex is built for riders who demand versatility and solid performance. Its 1x12 drivetrain gives you a wide range, perfect for gravel, bikepacking, and everything in between. Wireless shifting is smooth, reliable, and precise, while hydraulic disc brakes give you control in all conditions. With full AXS connectivity, you can tweak your settings, check battery life, and update firmware, straight from your phone. Simple to use, Apex keeps you focused on what matters most: the ride.

Groupset

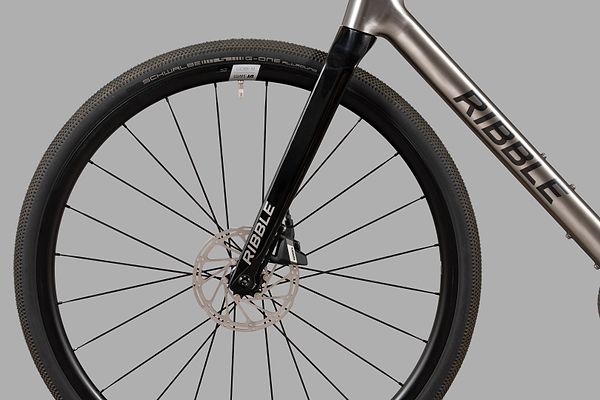

Wheelset

Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.

Wheelset

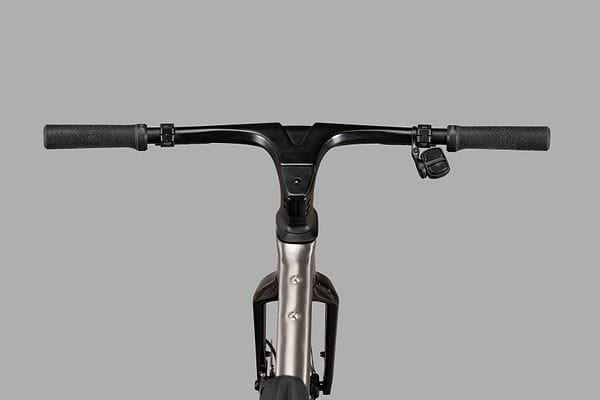

Handlebars

The new Ribble one-piece carbon cockpit enhances performance while sharpening the bike’s aesthetic with clean lines and fully integrated cabling. Its relaxed, upright position improves control and visibility across mixed terrain, while ergonomic grips boost all-day comfort and confident handling, on back lanes, gravel, and everything in between.

Handlebars

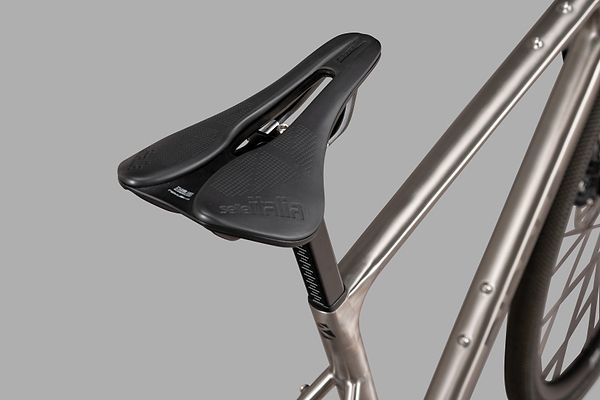

Saddle

Stay stable and comfortable over rough terrain. Our integrated seat clamp, proprietary D-shaped carbon seatpost, and Selle Italia Novus Boost Evo saddle combine to deliver outstanding rear-end compliance, smoothing out trail chatter for improved comfort and all-day performance.

Saddle

Size Guide

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size Guide

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube (mm)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
WB - Wheelbase (mm)10301036105210611075
Integrated Handlebar Default (mm)660 x 90660 x 90660 x 90660 x 90660 x 90
Min. Saddle Height (mm)620640710730740
Max. Saddle height (mm)700720790810830

Frequently Asked Questions

If you're between sizes, we typically recommend going down a size. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.

Weights based on a medium frame size:

  • 105 build: 10.0 kg
  • 105 Di2 build: 9.9 kg
  • SPORTFIT: 9.5 kg

Frame only (medium): 1700 g

The CGR TI-X SPORTFIT includes a lifetime warranty on frame and forks for the original owner, covering manufacturing defects. Other components carry the standard manufacturer’s warranty.

The CGR TI-X SPORTFIT features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.

The CGR TI-X SPORTFIT comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards.

Yes, you can fit a rear pannier rack using the built-in mounts to boost carrying capacity.

The frame utilises traditional 90-degree mounting points, so not all pannier racks will be compatible. Quick-release racks with limited adjustment may not be compatible. For advice on suitable options, please contact us.

Yes. The CGR TI-X SPORTFIT's frame mounts make fitting mudguards easy.

The CGR TI-X SPORTFIT uses a threaded 68mm T47 threaded bottom bracket.

The CGR TI-X SPORTFIT features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.

The CGR TI-X SPORTFIT comes with a 350 mm D-shaped carbon seat post (8 mm setback), compatible with both carbon and alloy saddle rails.

The CGR TI-X features two bottle cage mounts: one on the downtube and one on the seat tube. Ribble’s stainless steel cages are the perfect complement, pairing functional durability with a finish that echoes the timeless look of titanium.

The CGR TI-X SPORTFIT includes extra luggage mounts on the top tube and underneath the downtube.

Thru Axles.

  • Front: 12 mm x 123 mm x 1.5 mm
  • Rear: 12 mm x 169 mm x 1.0 mm

The CGR TI-X SPORTFIT uses SRAM’s UDH (Universal Derailleur Hanger) system for universal hanger compatibility and easy replacement.

The maximum recommended system weight for the CGR TI-X is 120 kg, including bike, rider, and luggage.

Pedals aren’t included, so you can choose the ones that suit your riding style.
