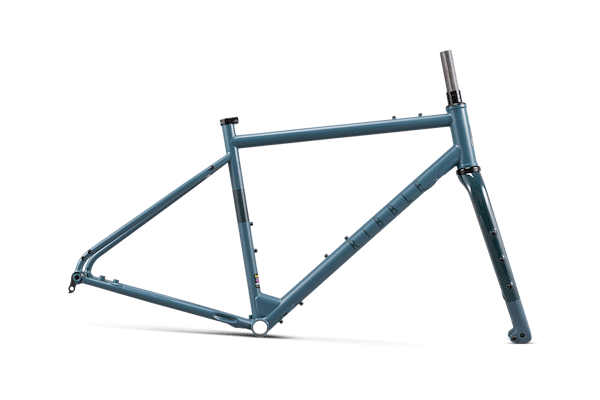

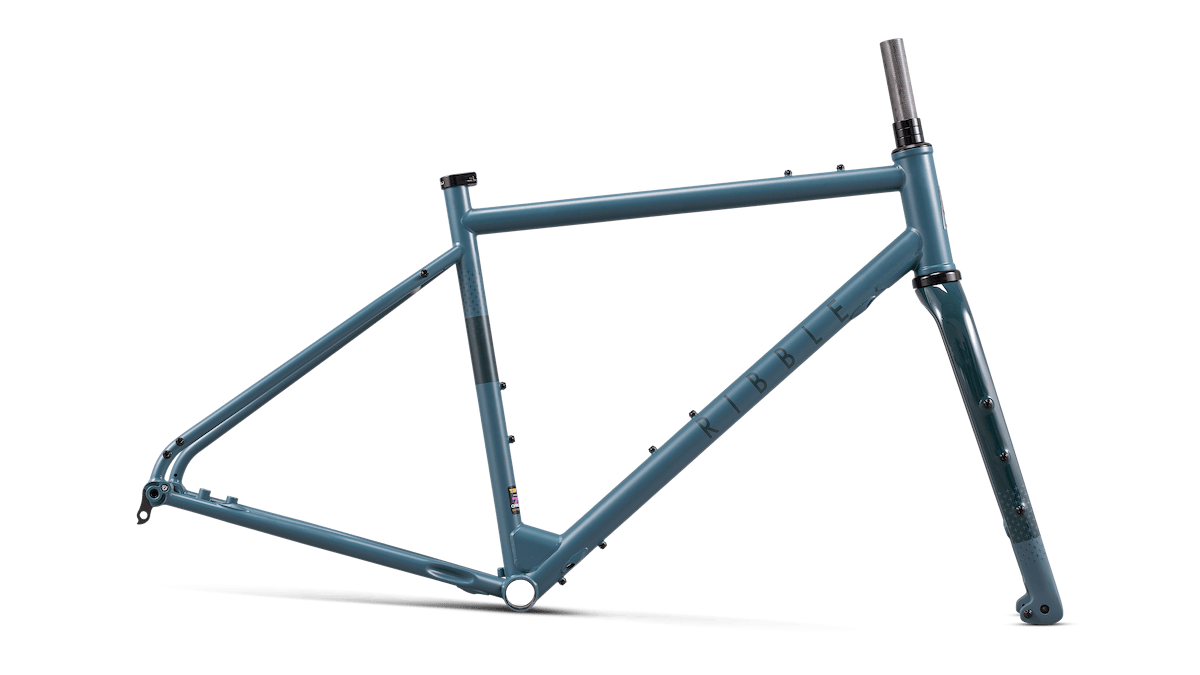

Gravel 725 Frameset

  1. £0
Built for thrill-seekers and trailblazers, the Gravel 725 fuses iconic Reynolds steel strength with cutting-edge design to conquer any terrain in style. Now available as a frameset, it’s your launchpad for a gravel bike that’s anything but ordinary.

This bike is currently out of stock.

Product code: FGRAV725

...And Many Ways To Pay...

DescriptionConstructionGeometryVersatilityTyre ClearanceSpecificationsSizeGeometryFrequently Asked Questions

Description

Blending classic resilience with modern performance, the adventure-ready Gravel 725 harnesses the legendary ride quality of Reynolds steel with a sleek, contemporary edge. Now available as a frameset, it’s your blank canvas to build the ultimate gravel machine— tailored to your style, your terrain, and your vision.

Make it yours. Make it unforgettable!

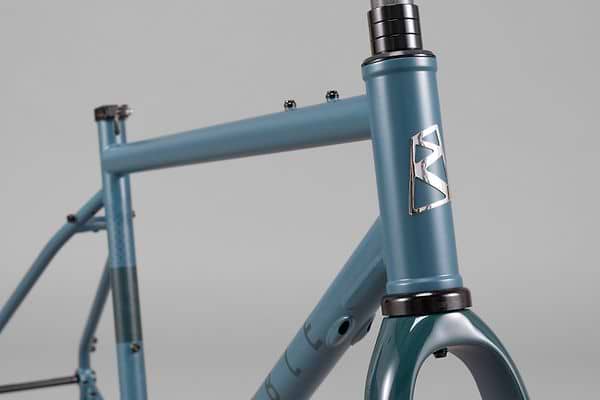

Construction

Handcrafted from Reynolds 725 triple-butted steel tubing, the Gravel 725 combines reassuring strength, resilience, and that signature steel ride feel. Engineered for adventure if offers a spirited yet smooth experience across diverse terrain. Precision seamless weld technology enhances durability while maintaining a sleek, streamlined aesthetic-built to go the distance in style.

Construction

Geometry

Our most advanced geometry yet pairs a longer reach with a slacker head tube and extended fork offset for the ultimate off-road experience. This optimised design boosts confidence across diverse gravel terrains, delivering a lively, responsive feel on fast stretches while enhancing stability and control on high-speed descents and flowing singletrack.

Geometry

Versatility

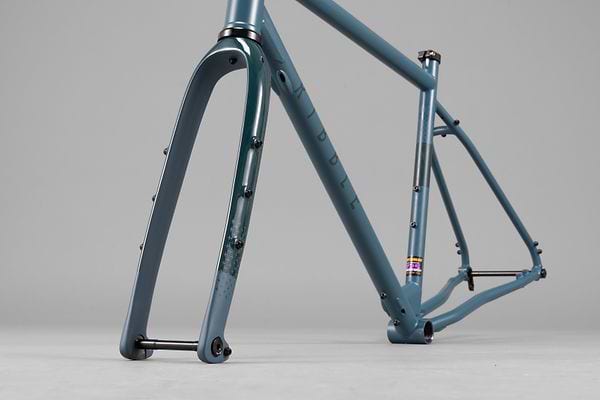

Pack light or for extended trips, with additional mounts for water bottles and tools, as well as frame and fork mounts for everything any adventure calls for.

Versatility

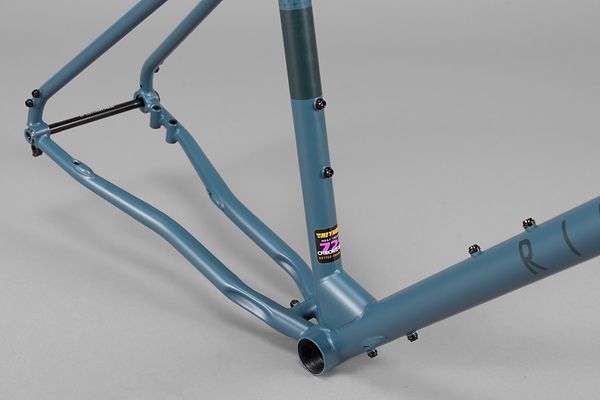

Tyre Clearance

Go wide or narrow, you decide. With 45 mm tyres supplied as standard, you can conquer the most extreme roads and trails while enjoying a more engaging and comfortable ride.

Tyre Clearance

Specifications

  • Frame: Ribble Gravel 725 Triple-Butted Reynolds 725 Steel
  • Forks: Ribble Gravel 725 Full Carbon Tapered with Fork Mounts
  • Headset: LEVEL 44 with Top Cap & Bolt (included)
  • Bottom Bracket: Threaded 68mm BSA
  • Front Derailleur Fitting: N/A (1x only)
  • Max. Tyre Clearance: 700c x 45 mm or 650b x 47 mm
  • Front Axle: 12 x 100 mm (included)
  • Rear Axle: 12 x 142 mm (included)
  • Weight: Frame - XXXX g; Forks - XXX g

* Dependent upon tyre tread profile

Size

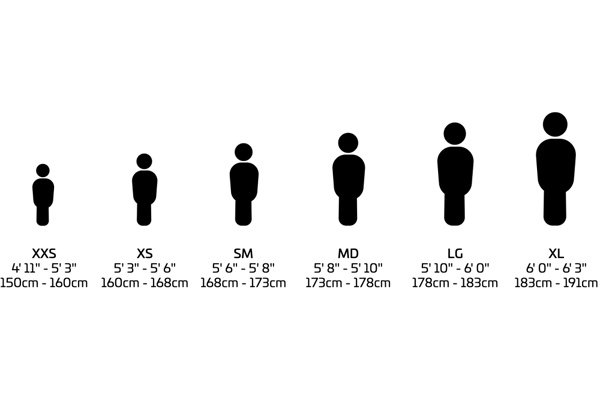

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

Size

Geometry

SizeXXSXSSMMDLGXL
Rider Height4'11 - 5'3 (150-160cm)5'3 - 5'6 (160-168cm)5'6 - 5'8 (168-173cm)5'8 - 5'10 (173-178cm)5'10 - 6'0 (178-183cm)6'0 - 6'3 (183-191cm)
A - Seat Tube440460480500520540
B - Head Tube90110130150170190
C - Top Tube508522550570587603
D - BB Drop707067656565
E - Head Angle70°70.5°71.5°71.5°72°72°
F - Seat Angle75.5°75.5°74°73.5°73.3°73°
G - Fork Offset (rake)505050505050
FC - Front Centre594606611626639650
RC - Chainstay Length435435435435435435
Reach372381388397409413
Stack525546566584604625
WB - Wheelbase102010321037105210661077

Frequently Asked Questions

The triple-butted Reynolds 725 steel frame weighs XXXX g, and the matching full carbon forks XXX g (size medium).

We offer a lifetime warranty on all Ribble frames and forks for the original purchaser. This covers any manufacturing defects in materials or workmanship so you can ride with complete confidence. The standard manufacturer's warranty covers all other components.

All cables can be routed internally to provide maximum protection from dirt and water ingress, while also accommodating dropper posts or a Shimano Di2 drivetrain.

No. The Gravel 725 is a 1x-specific frameset, making it incompatible with double-ring chainsets.

The Gravel 725 requires a 41 x 30.2 x 6.5 mm 36° x 45° top and 52 x 40 x 8 mm 45° x 45° bottom bearing (included with headset).

The frame takes a 68mm threaded BSA bottom bracket.

Three. Two are within the main triangle, and one is underneath the down tube.

There are three in total, providing mounting points for a top tube bag, rear rack, and oversized cages on the forks. The carryall mounts on each fork leg allow bulky items, such as ground mats and sleeping bags, to be carried as luggage.

Yes, eyelets on the frame ensure compatibility with full-coverage mudguards. However, this results in a reduced tyre clearance of 40 mm.

Yes, there are built-in mounts on the seat stays and dropouts for a rear-fitting pannier rack.

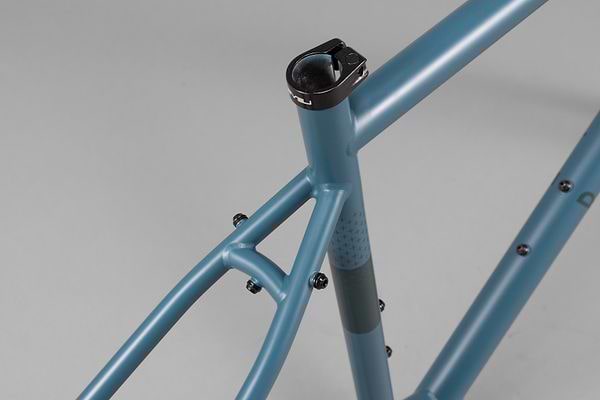

The Gravel 725 accepts a 27.2 mm seat post and 30.0 mm seat clamp.

When tightening the seat collar bolt, do not exceed a maximum torque of 5-7Nm.

The frame uses M12 x 120 mm x 1.5 mm front and M12 x 172 mm x 1.5 mm rear thru axles (supplied).

When tightening the axles, you should not exceed 10 Nm.

The Gravel 725 is a 1x-specific frame set, so a front derailleur is not required or compatible.

Yes. The internal cable routing ensures compatibility with most dropper posts.

The components you fit to your steel frameset will require different protection depending on their material and the job they are designed to perform. We recommend applying lithium grease to the following:

  • All bottle cage, mudguard and fixture bolts
  • Headset bearings & bottom bracket cups
  • The crank arm threads that accept the pedals axle
  • Both thru axles
