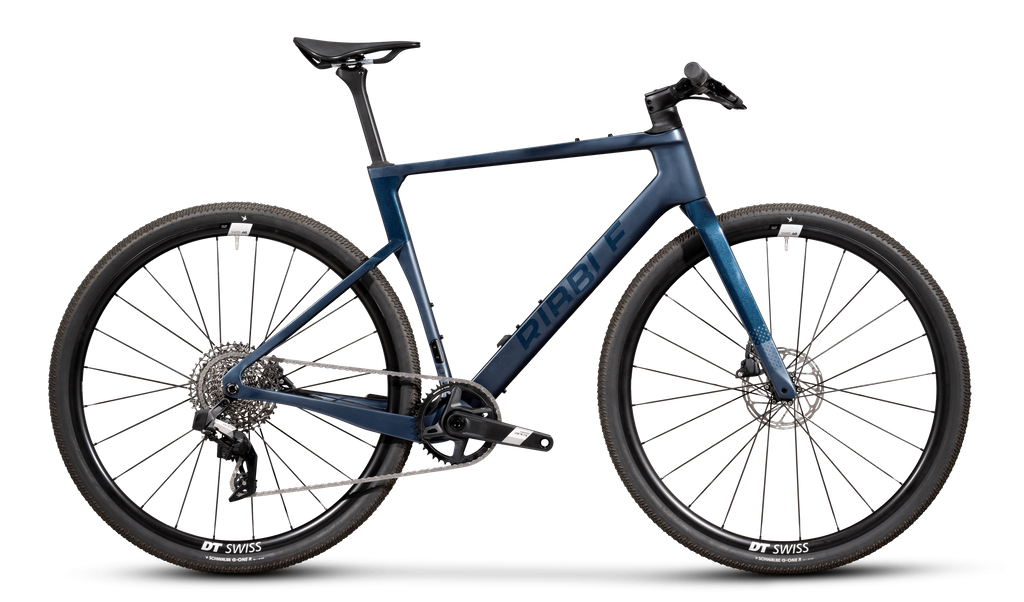

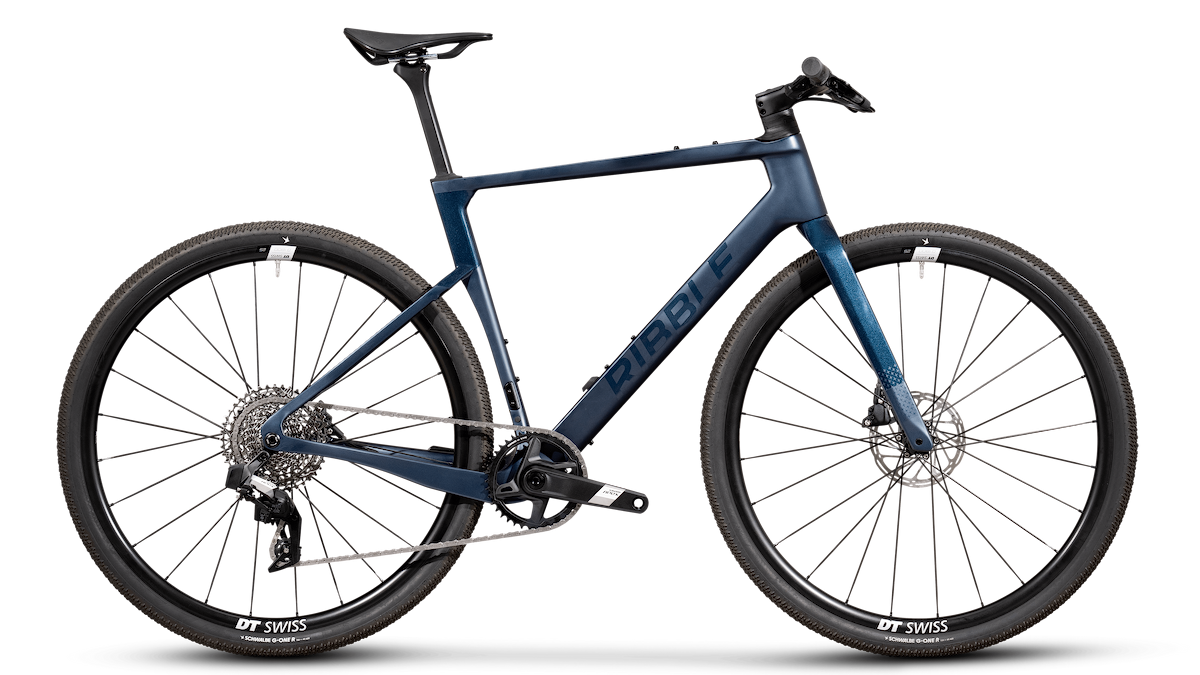

Ultra-Grit Sportfit Apex XPLR AXS

  1. $2,599
The ULTRA-GRIT SPORTFIT is derived from the race-proven ULTRA-GRIT platform, developed with the Ribble Outliers gravel team in the world’s toughest off-road races, from Unbound to The Traka and The Dirty Reiver. With its more upright, confident riding position, SPORTFIT gives you greater control without compromising speed. Weighing just 8.9 kg, it pairs our lightweight, aero-optimised frameset with a rugged SRAM Apex XPLR AXS wireless drivetrain, durable DT Swiss G 1800 wheels, 45mm Schwalbe G-One R tyres, and a comfort-focused Selle Italia Novus Boost saddle. Topped off with an ergonomic one-piece carbon cockpit.
Choose Your Size
Product code: BGRAVSLRAPAXFB

...And Many Ways To Pay...

Description

The ULTRA-GRIT SPORTFIT is derived from the race-proven ULTRA-GRIT platform, developed with the Ribble Outliers gravel team in the world’s toughest off-road races, from Unbound to The Traka and The Dirty Reiver. With its more upright, confident riding position, SPORTFIT gives you greater control without compromising speed. Weighing just 8.9 kg, it pairs our lightweight, aero-optimised frameset with a rugged SRAM Apex XPLR AXS wireless drivetrain, durable DT Swiss G 1800 wheels, 45mm Schwalbe G-One R tyres, and a comfort-focused Selle Italia Novus Boost saddle. Topped off with an ergonomic one-piece carbon cockpit.

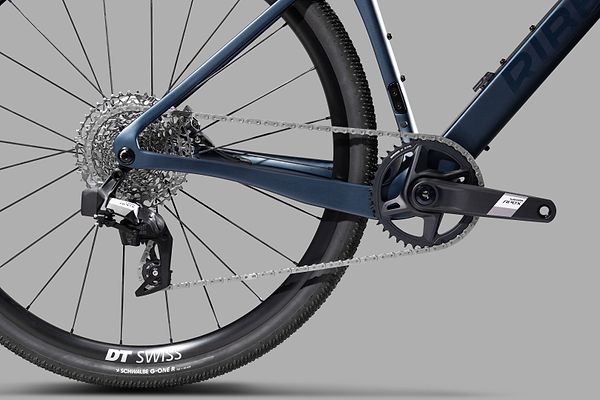

Groupset

Apex is the groupset designed for riders who demand versatility and performance. Apex AXS delivers a wide range 1x12 drivetrain that's ideal for gravel, bikepacking, adventure, casual rides, and everything in between. Its wireless electronic shifting ensures smooth, reliable performance with precise gear changes, excellent chain retention, and confident hydraulic disc braking. With full AXS connectivity, you can customise shift settings, monitor battery life, and update firmware, all from a single device. Intuitive and user-friendly, Apex keeps your focus where it belongs: on the ride.

Groupset

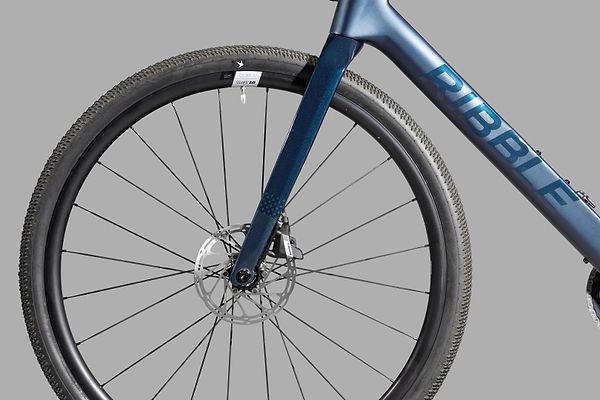

Wheelset

Boasting a wide rim profile and robust construction, the DT Swiss G 1800 Spline alloy wheelset delivers confident control and comfort across rough and unpredictable gravel terrain. Paired with 45 mm Schwalbe G-One R Performance tyres, it strikes the perfect balance of speed, grip, and stability. Ideal for riders who push the boundaries across varied and demanding surfaces.

Wheelset

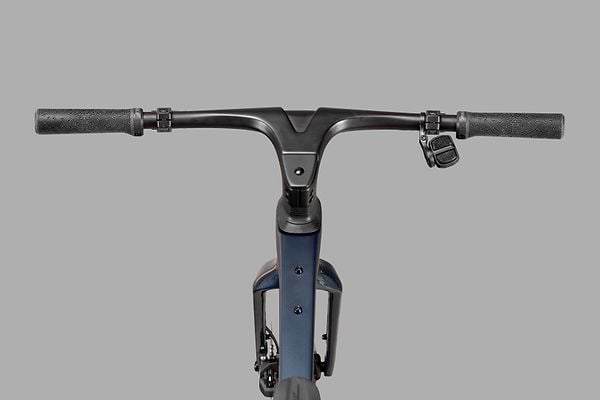

Handlebars

The new Ribble one-piece carbon cockpit enhances performance while sharpening the bike’s aesthetic with clean lines and fully integrated cabling. Its relaxed, upright position improves control and visibility across mixed terrain, while ergonomic grips boost all-day comfort and confident handling, on back lanes, gravel, and everything in between.

Handlebars

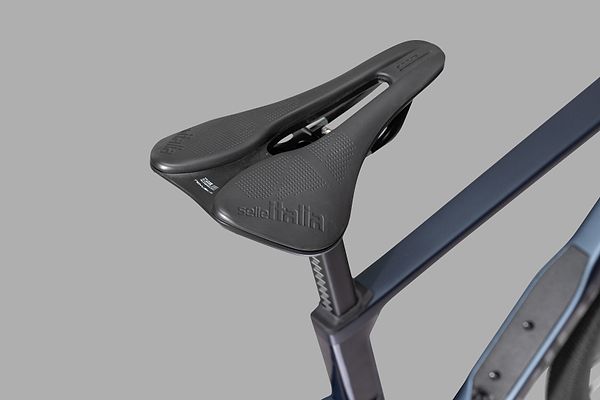

Saddle

Stay stable and comfortable over rough terrain. Our integrated seat clamp, proprietary D-shaped carbon seatpost, and Selle Italia Novus Boost Evo saddle combine to deliver outstanding rear-end compliance, smoothing out trail chatter for improved comfort and all-day performance.

Saddle

Suspension Fork Upgrade

When the gravel gets rough and the terrain turns technical, the RockShox Rudy Ultimate fork smooths out the ride. Available as an upgrade on the Ribble ULTRA-GRIT SPORTFIT, this premium suspension fork is purpose-built for gravel racing—delivering up to 30mm of travel for added comfort, control, and confidence. Whether you're carving through corners or charging down loose descents, Rudy’s refined damping and lightweight design help you stay fast, focused, and fully in command.

Suspension Fork Upgrade

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length (mm)165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube (mm)522550570585602
C- Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre430430430430430
FC - Front Centre605610626637648
Reach (mm)386394404410417
Stack (mm)526545562588607
Wheelbase (mm)10251031104810581070
Integrated Handlebar Default (mm)660 x 90660 x 90660 x 90660 x 90660 x 90
Min. Saddle Height (mm)620640710730740
Max. Saddle Height (mm)700720790810830

FAQ's

If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.

Weight varies by build and fork type. Based on a medium frame size:

  • Apex XPLR AXS build: 9.0 kg (carbon forks) / 9.7 kg (RockShox Rudy Ultimate)
  • Rival XPLR AXS build: 8.9 kg (carbon forks) / 9.6 kg (RockShox Rudy Ultimate)
  • Force XPLR AXS build: 8.3 kg (carbon forks) / 9.0 kg (RockShox Rudy Ultimate)
  • Red XPLR AXS build: 8.0 kg (carbon forks) / 8.7 kg (RockShox Rudy Ultimate)
  • Outliers Edition: 8.0 kg (carbon forks) / 8.7 kg (RockShox Rudy Ultimate)
  • SPORTFIT: 8.9 kg (carbon forks) / 9.6 kg (RockShox Rudy Ultimate)

Frame only (medium): 890 g in a raw finish.

Like all Ribble bikes, the ULTRA-GRIT SPORTFIT comes with a lifetime frame and fork warranty for the original owner. This covers any manufacturing defects in materials or workmanship. All other components, including third-party suspension forks, are covered by the standard manufacturer’s warranty.

Yes, the ULTRA-GRIT SPORTFIT frameset is UCI-approved and has been raced extensively by our Outliers pro gravel team.

Yes. The ULTRA-GRIT SPORTFIT is available with the optional RockShox Rudy suspension fork. This upgrade improves comfort and control on rougher gravel trails, helping you stay fast and confident when the terrain gets technical.

Yes. The ULTRA-GRIT SPORTFIT features enhanced cable integration for a clean, cable-free look. Cables are hidden from view, protected from the elements and shielded from drag.

The ULTRA-GRIT SPORTFIT comes with 45 mm gravel tyres as standard and can take up to 50mm, or 45mm with mudguards. The fork can also accept a 29 x 2.1" (700 x 53c) mountain bike tyre.

Yes, you can fit a rear pannier rack using an adaptor kit (sold separately) to boost carrying capacity.

Yes. A removable bridge makes fitting mudguards easy (mudguard bridge sold separately).

The ULTRA-GRIT SPORTFIT is compatible with a 68 mm BSA threaded bottom bracket. Threaded bottom brackets offer key advantages over press-fit alternatives, including easier installation, simpler maintenance, and reduced risk of creaking. The robust, standardised design also makes removal and replacement more straightforward.

The ULTRA-GRIT SPORTFIT features a 1.5" integrated headset and R457B 52 x 42 x 7 mm 45° x 45° headset bearings top and bottom.

The ULTRA-GRIT SPORTFIT features a D-shaped carbon seat post with an integrated wedge clamp, compatible with both carbon and alloy saddle rails. Frame sizes XS–SM use a 280 mm post, while M–XL come with a 330 mm version.

There are two bottle cage mounts: one on the downtube and one on the seat tube. They’re compatible with Ribble aero cages.

The ULTRA-GRIT SPORTFIT includes extra luggage mounts on the top tube and underneath the downtube.

Thru axles.

  • Front: 12 mm x 123 mm x 1.5 mm
  • Rear: 12 mm x 174 mm x 1.0 mm

Yes. While the ULTRA-GRIT SPORTFIT comes with a 1x drivetrain, it can also accommodate a braze-on front derailleur using the supplied hanger and 2x gravel chainsets (31T/48T min/max).

The ULTRA-GRIT SPORTFIT uses SRAM’s UDH (Universal Derailleur Hanger) system, standardising hanger design across bikes. That means no more hunting for a frame-specific hanger with just one simple, universal solution.

The ULTRA-GRIT SPORTFIT has a maximum recommended system weight of 120 kg, including bike, rider and luggage.

Pedals aren’t included, so you can choose the ones that suit your riding style.
