Ribble Ultra SL R Frameset

BDFSULTRSLR
From: US$3,434.11
This is a loan of US$4,120.93 with US$0.00 deposit.
Repayable by 36 monthly repayments of US$140.78.
Total amount repayable US$5,067.96.
14.9 APR representative.
Finance is subject to status. Terms and conditions apply.
Or from: US$140.78 a month
Also available on Cycle To Work schemes

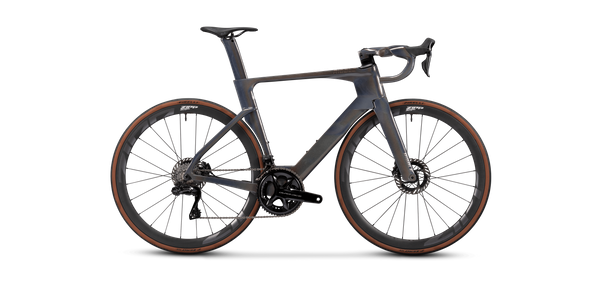

An image of the Ribble Ultra SL R Frameset
SPEED
THROUGH INNOVATION

The Ultra SL R was designed with a simple brief - to be the fastest aero road bike in the world. Not just designed to be the fastest when tested in isolation, but the fastest in the real world. Delivering watt-saving gains achieved across all areas of the frameset, the Ultra SLR has been optimised to perform around 5-10° of YAW commonly experienced by a cyclist. Every aspect of this pioneering aero frameset is engineered to scythe through the air with class-leading efficiency and scalpel-like precision.

The Ultra Aero cockpit forms an integral element of the Ultra SL R's world-leading aerodynamic innovation. Designed entirely around rider and bike interaction, adding wake generators to the underside of the bars creates a Drag Reduction Zone (DRZ) for the rider's leg to sit within, resulting in a net drag reduction of around 2.1% for bike and rider. This translates to an average 23.2-second of advantage over a full YAW sweep at 22mph over 40km when compared to our already aerodynamically optimised LEVEL 5 handlebar system.

Full
Specification
Frame: Toray T1000/T800 carbon fibre monocoque.
Colour: Spectrum Grey.
Fork: Carbon fibre monocoque, tapered steerer, stealth disc mounts.
Headset: 1.5"x1.5" top & bottom.
Brake Fitment: Flat mount disc.
Cable Routing: Internal, including compatibility with Shimano Di2 gear systems.
Front Derailleur Mount: Braze-On.
Bottom Bracket: Threaded BSA.
Seat Post:Ribble Ultra Aero Carbon with 10mm offset .
Seat Clamp: Internal wedge system.
Max Tyre Clearance: 32mm.
Mudguard Compatible. No.
Thru-Axles: 100/125/M12*P1.5 front - 142/173/M12*P1.5 rear.
Sizes: XS. S, M, L, XL.
Frameset
includes:
  • Frame & Fork
  • Handlebars
  • Headset
  • Carbon Seat Post
  • Wedge Seat Clamp
  • Carbon Fork Expander
  • Thru-Axles
Custom Colour
Available

You decide the design, we create the bike. Be bold and bright or stealthy as you like. With millions of combinations, you can make a bike unique to you.

Just select customise after choosing your size.

Your Bike. Your Way
Size
Guide

To assist you in selecting the correct size simply find you height below. The graphic below illustrates our recommendations so you can be confident that the size you order will be correct.

X-Small
5' 3" - 5' 5"
160cm - 165cm
Small
5' 5" - 5' 7"
165cm - 170cm
Medium
5' 7" - 5' 10"
170cm - 178cm
Large
5' 10" - 6' 1"
178cm - 185cm
X-Large
6' 1" - 6' 3"
185cm - 191cm
View Full Sizing & Geometry
Sizing &
Geometry
Ribble Ultra SL R Frameset
Size XS S M L XL
Rider Height 5'3" - 5'5"
160 - 165cm
5'5" - 5'7"
165 - 170cm
5'7" - 5'10"
170 - 178cm
5'10" - 6'1"
178 - 185cm
6'1" - 6'3"
185 - 191cm
Wheel Size 700C 700C 700C 700C 700C
A - Seat Angle 75.0° 74.0° 73.5° 73.3° 73.3°
B - Top Tube (mm) 515 535 555 575 590
C - Head Angle 72.0° 73.0° 73.0° 73.5° 73.5°
D - Offset (mm) 53 45 45 45 45
E - Head Tube (mm) 105 120 140 160 180
F - BB Drop (mm) 69 69 69 69 69
RC - Chain Stays (mm) 410 410 410 410 410
FC - Front Centre (mm) 518 575 585 598 613
Stack (mm) 506 523 545 564 583
Reach (mm) 379 385 392 401 410
WB - Wheelbase (mm) 981 975 985 999 1014
G - Seat Tube C-Top (mm) 470 500 520 540 560
