• New

CGR AL 105

  1. $1,799

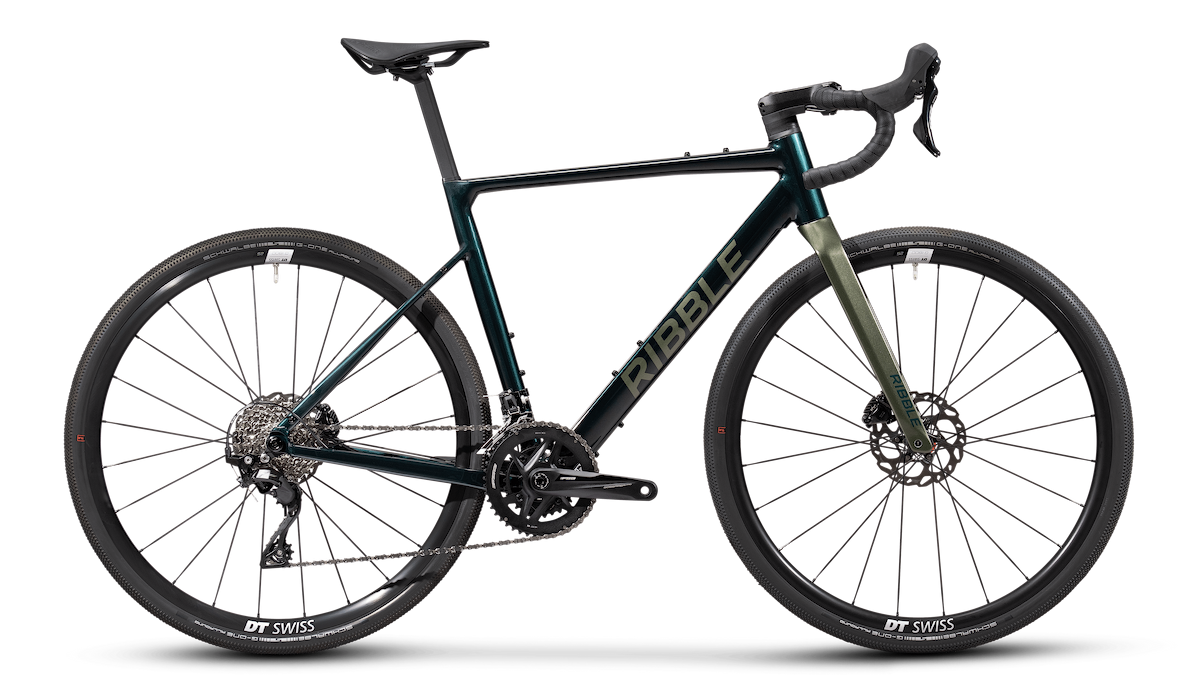

From commutes to café stop rides and gravel spins, the CGR AL delivers comfort, confidence and control across mixed terrain. It pairs a 7005 series hydroformed aluminium frame with Shimano’s 105 12-speed groupset for precision performance, durable DT Swiss G 1800 alloy wheels, and Schwalbe G-One Allround tyres. Finished with a Selle Italia Novus Boost saddle, it's the do it all bike that keeps on delivering mile after mile.
Choose Your Size
Product code: BCGRALG27100D

...And Many Ways To Pay...

Description

From commutes to café stop rides and gravel spins, the CGR AL delivers comfort, confidence and control across mixed terrain. It pairs a 7005 series hydroformed aluminium frame with Shimano’s 105 12-speed groupset for precision performance, durable DT Swiss G 1800 alloy wheels, and Schwalbe G-One Allround tyres. Finished with a Selle Italia Novus Boost saddle, its the do it all bike that keeps on delivering mile after mile.

Frameset

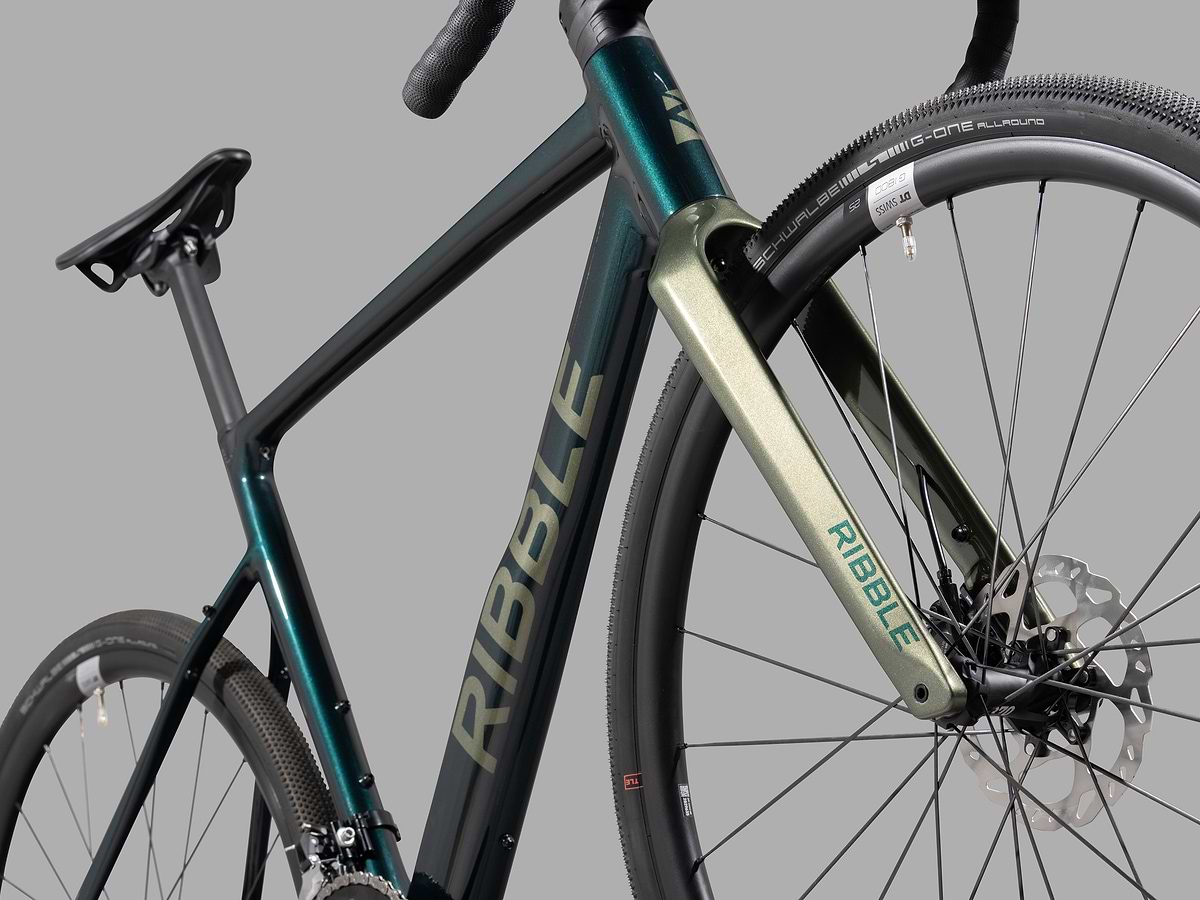

Built from upgraded 7005-series aluminium, the CGR AL frameset is lighter and tougher than ever. Hydroformed tubing gives it the clean, aero profile of our Allroad SL R carbon bike,bringing that performance edge to a more accessible platform. Internal cable routing keeps things tidy and works with integrated cockpits for a clean front end. A T47 bottom bracket boosts stiffness and makes internal routing easier, so power transfer stays smooth and handling stays sharp.

Frameset

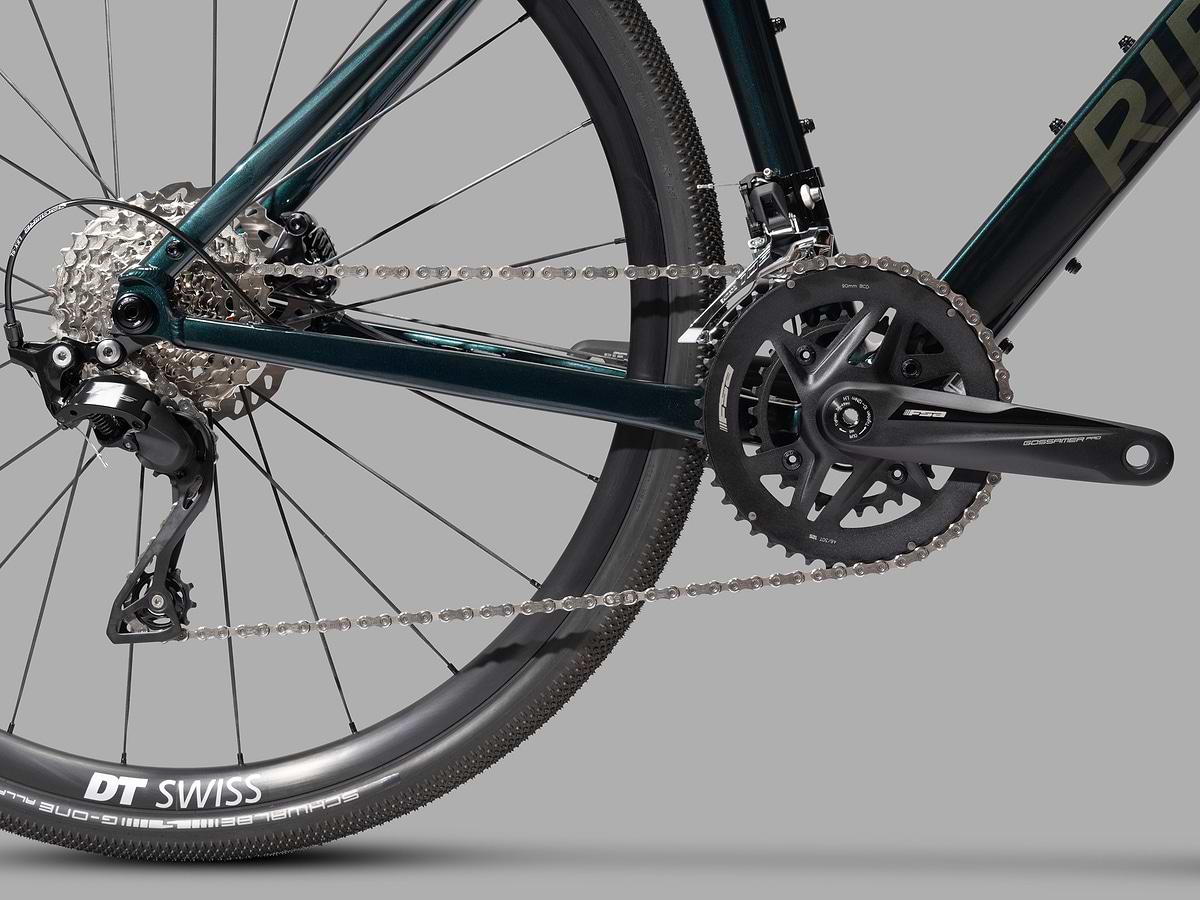

Groupset

Shimano’s first and only 12-speed mechanical groupset is the latest addition to their premium road family. The 105 R7100 combines pure cycling with pure craftsmanship, delivering the wide gear range, hand-friendly ergonomics, and all-condition braking confidence you’ve always craved. Developed from Shimano’s Science of Speed philosophy, 105 raises accessible performance to a whole new level and is paired with the lightweight, performance-driven FSA Gossamer chainset for efficient power delivery with every pedal stroke.

Groupset

Wheelset

Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.

Wheelset

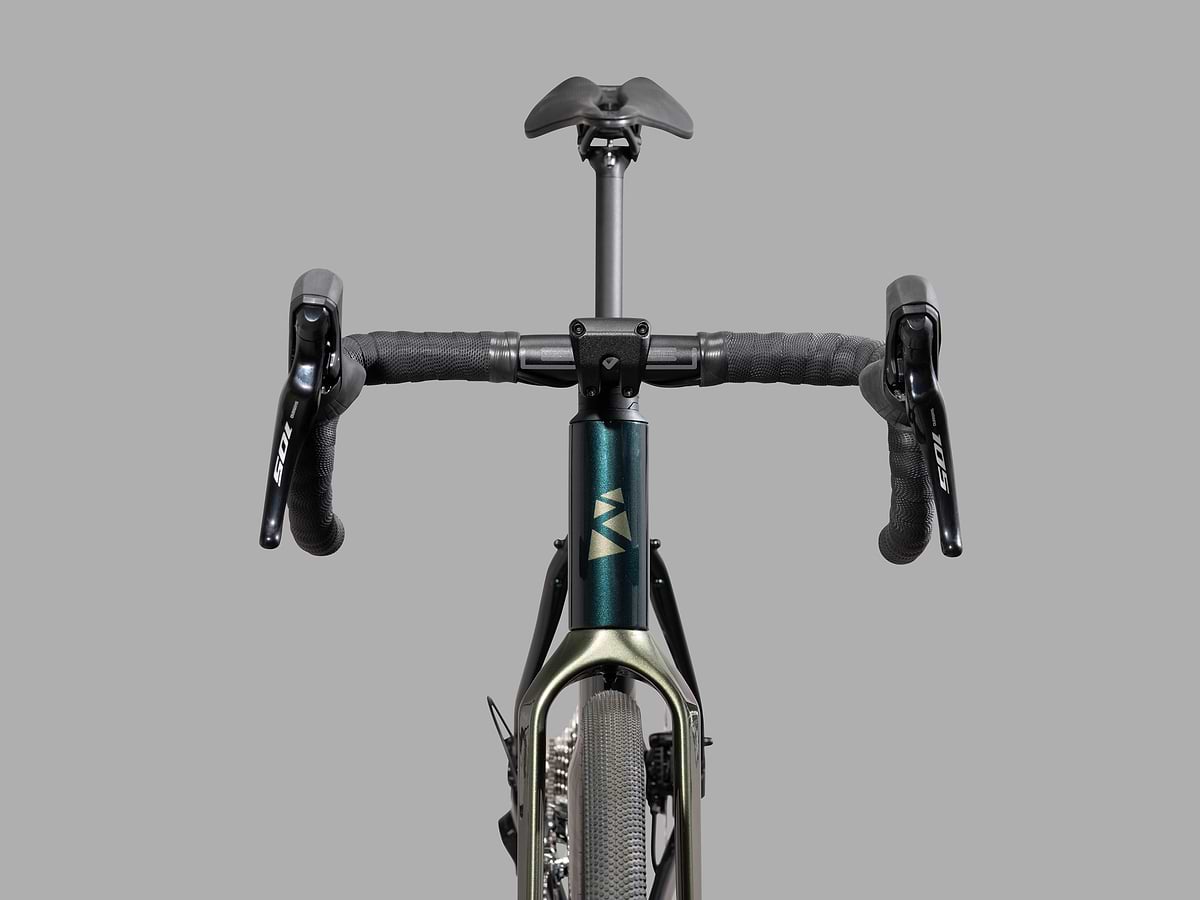

Handlebars

Ribble alloy bars are built for real-world riding, with a compact shape that makes it easy to move between tops, hoods and drops. The ergonomic profile helps reduce pressure and keeps things comfortable, mile after mile. Paired with a matching alloy stem and wrapped in soft bar tape, it’s a setup that feels right from the first pedal stroke—whether you’re heading out for an hour or all day.

Handlebars

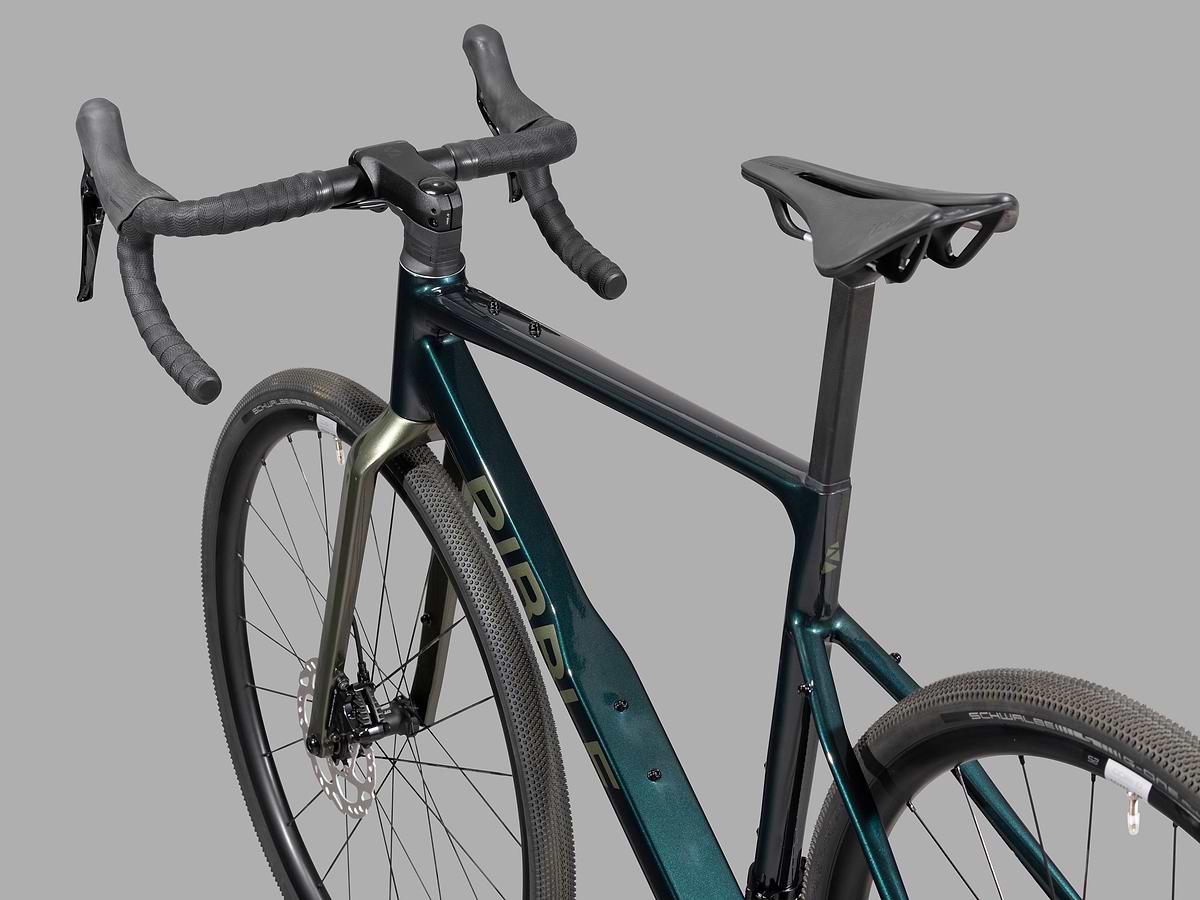

Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped alloy post and Selle Novus Boost Evo saddle work together to soak up the buzz and smooth out the ride.

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 -181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length (mm)165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73.3°
B - Top Tube C/C (Horizontal)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
WB - Wheelbase (mm)10301036105210611075
Handlebar Default (mm)380380400400420
Stem Default (mm)70809090100
Min. Saddle Height (mm)620640710730740
Max. Saddle Height (mm)700720790810830

Frequently asked Questions

If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.

Weights, based on a medium frame size:

  • Tiagra build: 10.4 kg
  • 105 build: 10.0 kg
  • SPORTFIT: 9.8 kg

Frame only (medium): 1700 g

The CGR AL includes a lifetime warranty on frame and forks for the original owner, covering manufacturing defects. Other components carry the standard manufacturer’s warranty.

The CGR AL SPORTFIT offers the same ride and versatility, but with flat bars for a more upright and confident position. It’s a step up from a typical hybrid, designed for control, comfort and all kinds of riding.

The CGR AL features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.

The CGR AL comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards.

Yes, you can fit a rear pannier rack using an adaptor kit (sold separately) to boost carrying capacity.

Yes. A removable bridge makes fitting mudguards easy (mudguard bridge sold separately).

The CGR AL uses a threaded 85.5 mm T47 bottom bracket.

The CGR AL features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.

The CGR AL comes with a 350 mm D-shaped alloy seat post (8 mm setback), compatible with both carbon and alloy saddle rails.

Two—on the downtube and seat tube. Both are compatible with Ribble aero cages.

Thru-axles.

  • Front: 12 mm x 123 mm x 1.5 mm
  • Rear: 12 mm x 167.5 mm x 1.0 mm

The CGR AL uses SRAM’s UDH (Universal Derailleur Hanger) system for universal hanger compatibility and easy replacement.

The maximum recommended system weight for the CGR AL is 120 kg, including bike, rider, and luggage.

The CGR AL comes with a 46-30T FSA chainset and doesn’t fit larger 50-34T road compacts.

Pedals aren’t included, so you can choose the ones that suit your riding style.
