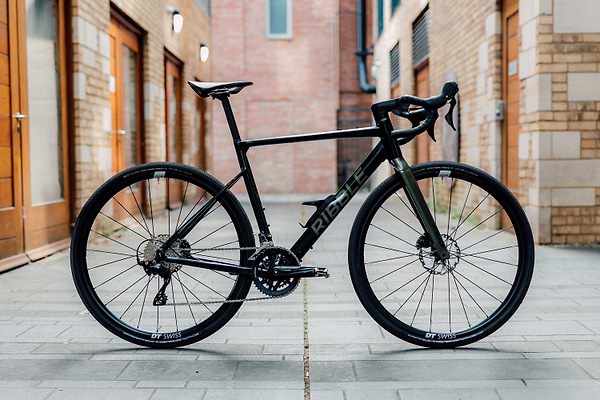

Ribble CGR AL
Light and robust the CGR Alloy is an impressive bike that will take you anywhere with capable performance and striking style. Strong, versatile and durable, the geometry of the hand built, British-designed CGR Alloy has been carefully formulated to conquer a wide range of riding surfaces with ease.
Don’t want to build your own? No problem. Below are the most popular builds with other riders, ready to ride or change as you like.

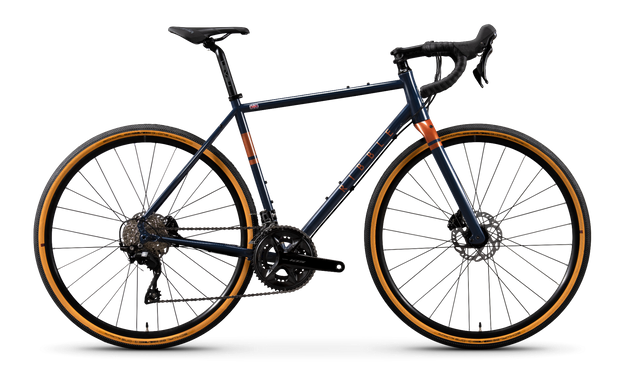

CGR AL Blue - Shimano Tiagra 2 x 10 speed.
- Shimano 34-50T x 11-32T gearing.
- Tektro mechanical disc brakeset.
- Mavic Aksium Disc 700c wheelset.
- Continental Ultra Sport tyres.
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.

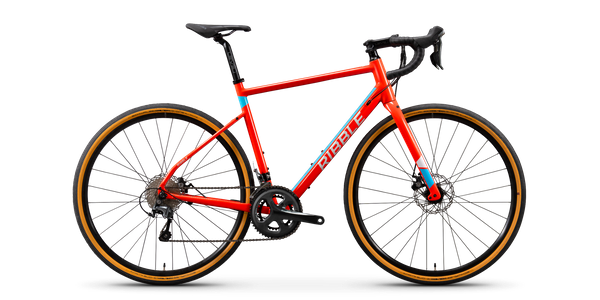

CGR AL Orange - Shimano Tiagra 2 x 10 speed.
- Shimano 34-50T x 11-32T gearing.
- Tektro mechanical disc brakes.
- Mavic Aksium Disc 700c wheelset.
- Schwalbe G-One Allround tyres.
- Level 1 Alloy fiinishing kit.
- Prologo Kappa RS saddle
CGR AL Blue - SRAM Apex 1 x 11 speed.
- SRAM 42T x 11-42T gearing.
- SRAM Apex hydraulic disc brakes.
- Mavic Aksium Disc 700c wheelset.
- Schwalbe G One Allround tyres.
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.
CGR AL Orange - SRAM Apex 1 x 11 speed.
- SRAM 42T x 11-42T gearing.
- SRAM Apex hydraulic disc brakeset.
- Mavic Aksium Disc 700c wheelset.
- Schwalbe G-One Allround 700c tyres.
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.

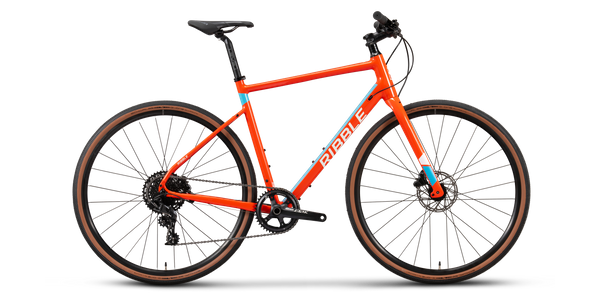

CGR AL Orange - Flat Bar - SRAM Apex 1x11 or Shimano 105 2x11-speed.
- SRAM Apex 42Tx11-42T or Shimano 34-50Tx11-32T.
- Hydraulic disc brakeset.
- Mavic Aksium Disc wheelset.
- Schwalbe G-One Allround tyres
- Level alloy finishing kit.
- Prologo Kappa RS saddle.

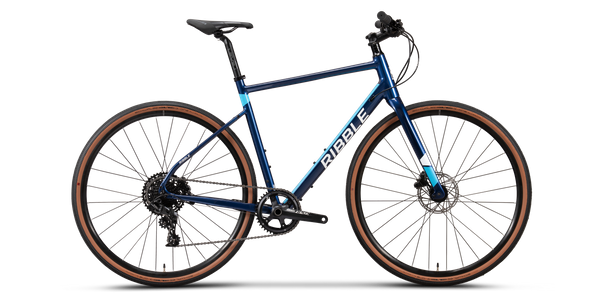

CGR AL Blue - Flat Bar - SRAM Apex 1x11 or Shimano 105 2x11-speed.
- SRAM Apex 42Tx11-42T or Shimano 105 34-50Tx11-32T.
- Hydraulic disc brakeset.
- Mavic Aksium Disc wheelset.
- Schwalbe G-One Allround tyres
- Level alloy finishing kit.
- Prologo Kappa RS saddle.
CGR AL Blue - SRAM Apex 1 x 11 speed.
- SRAM 42T x 11-42T gearing
- SRAM Apex hydraulic disc brakeset.
- Mavic Aksium Elite 650b wheelset
- WTB Horizon Road Plus 650b tyres.
- Level 1 Alloy finishing kit.
- WTB Koda Race saddle
CGR AL Orange - SRAM Apex 1 x 11 speed.
- SRAM 42T x 11-42T gearing
- SRAM Apex hydraulic disc brakeset.
- Mavic Aksium Elite Disc 650b wheelset.
- WTB Horizon Road Plus 650b tyres.
- Level 1 Alloyfinishing kit.
- WTB Koda Race saddle.
CGR AL Blue - Shimano 105 2 x 11 speed.
- Shimano 34-50T x 11-32T gearing.
- Shimano 105 hydraulic disc brakeset.
- Mavic Aksium Disc 700c wheelset.
- Continental Ultra Sport tyres.
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.
CGR AL Orange - Shimano 105 2 x 11 speed.
- Shimano 34-50T x 11-32T gearing.
- Shimano 105 hydraulic disc brakeset.
- Mavic Aksium Disc 700c wheelset.
- Schwalbe G-One Allround tyres.
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.
CGR AL Orange - Shimano GRX 1 x 11 speed.
- Shimano 40T x 11-42T gearing.
- Shimano GRX hydraulic disc brakeset.
- Mavic Aksium Disc 700c wheelset.
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.
CGR AL Blue - Shimano GRX 1 x 11 speed.
- Shimano 40T x 11-42T gearing.
- Shimano GRX hydraulic disc brakeset.
- Mavic Aksium Disc 700c wheelset.
- Schwalbe G-One Allround tyres.
- Level 1 finishing kit.
- Prologo Kappa RS saddle.
CGR AL Blue - SRAM Rival 1 x 11 speed.
- SRAM 42T x 11-42T gearing.
- SRAM Rival hydraulic disc brakeset.
- Mavic Aksium Disc 700c wheelset.
- Schwalbe G-One Allround tyres.
- Level 1 finishing kit.
- Prologo Kappa RS saddle.
CGR AL Orange - SRAM Rival 1 x 11 speed.
- SRAM 42T x 11-42T gearing.
- SRAM Rival hydraulic disc brakeset.
- Mavic Aksium Disc 700c wheelset.
- Schwalbe G-One Allround 700c tyres.
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.
CGR AL Orange - SRAM Rival 1 x 11 speed.
- SRAM 42T x 11-42T gearing.
- SRAM Rival hydraulic disc brakeset.
- Mavic Aksium Elite Disc 650b wheelset.
- WTB Horizon Road Plus 650b tyres.
- Level 1 Alloy finishing kit.
- WTB Koda Race 142 saddle
CGR AL Blue - SRAM Rival 1 x 11 speed.
- SRAM 42T x 11-42T gearing.
- SRAM Rival hydraulic disc brakeset.
- Mavic Aksium Elite Disc 650b wheelset.
- WTB Horizon Road Plus 650b tyres.
- Level 1 Alloy finishing kit.
- WTB Koda Race 142 saddle
CGR AL Orange - Shimano Ultegra 2 x 11 speed.
- Shimano 34-50 x 11-28T gearing.
- Shimano Ultegra hydraulic disc brakeset.
- Mavic Aksium Disc 700c wheelset.
- Continental Ultra Sport tyres.
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.
CGR AL Blue - Shimano Ultegra 2 x 11 speed.
- Shimano 34-50T x 11-28T gearing.
- Shimano Ultegra hydraulic disc brakeset.
- Mavic Aksium Disc 700c wheelset.
- Schwalbe G-One Allround tyres.
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.

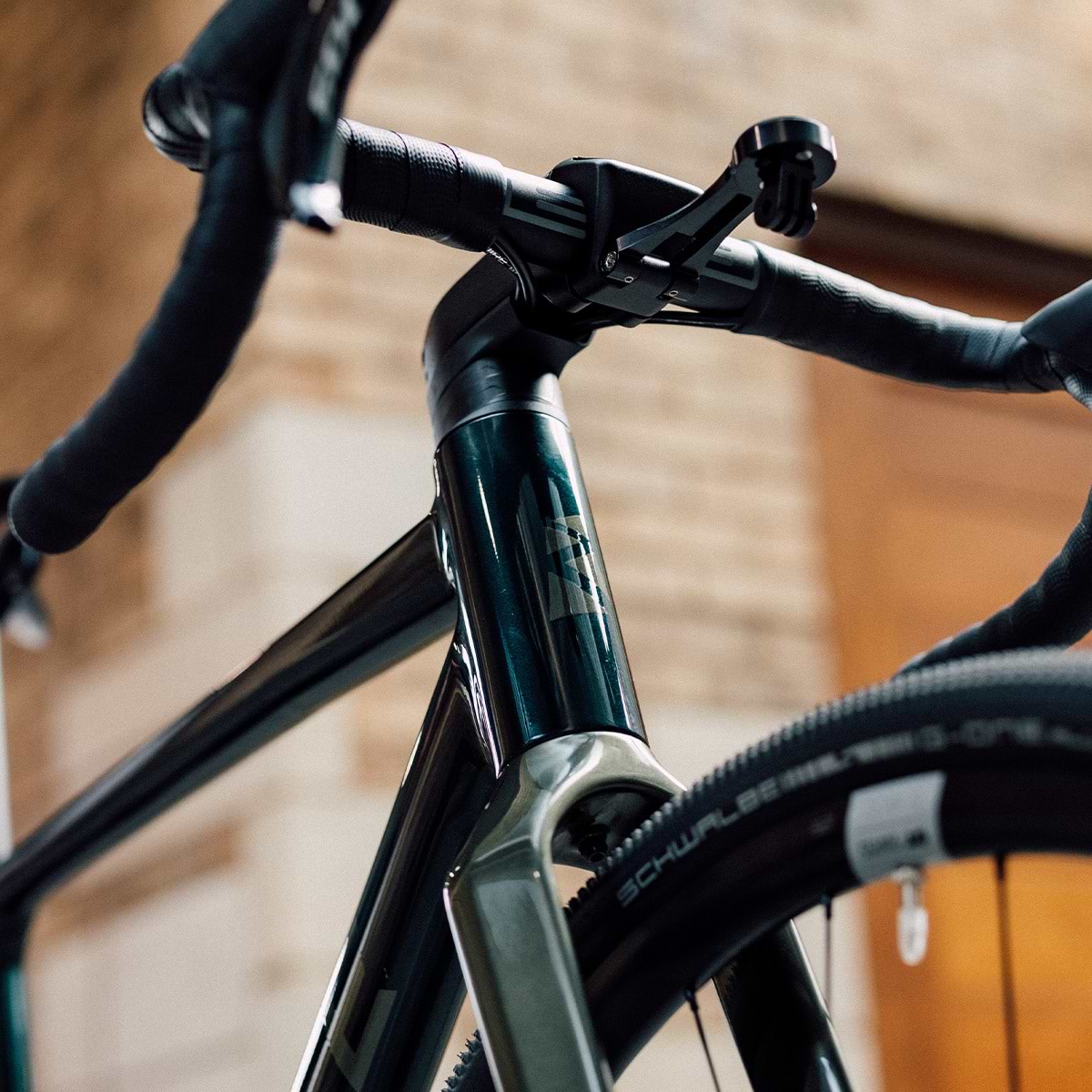

Versatility is at the core of the CGR range and this aluminium model certainly ticks all of the boxes. The endurance (relaxed riding position) geometry of the CGR Alloy makes this bike comfortable, composed, responsive and ready for any ride.
We liked the relaxed “endurance” riding position and our test bike, fitted with the excellent Shimano 105 groupset, was light enough to easily keep pace with clubmates on Sunday runs.
Engage adventure mode. 650b wheels, wider multi surface tyres, simple 1x groupset and mounts for luggage. The Adventure CGR Alloy is ready and raring to go off the beaten track.
Equally at home on the road with 700c wheels the CGR Alloy is ideal for a sportive or ride out with friends. A comfortable mile-eater that can outclass most.
We create the bike, you decide the design. Be bold and bright or stealthy as you like. With millions of combinations, you can make a bike unique to you.
Just select customise after choosing your size.
To assist you in selecting the correct size simply find you height below. The graphic below illustrates our recommendations so you can be confident that the size you order will be correct.
| Size | XS | S | M | L | XL |
| Rider Height | 5'4 - 5'7 162 - 170cm |
5'7 - 5'9 170 - 175cm |
5'9 - 5'11 175 - 180cm |
5'11 - 6'1 180 - 185cm |
6'1 - 6'4 185 - 194cm |
| A - Seat Angle | 74.5° | 74.0° | 73.5° | 73.0° | 72.5° |
| B - Top Tube(mm) | 520 | 540 | 555 | 570 | 590 |
| C - Head Angle | 70.5° | 71.0° | 71.5° | 72.0° | 72.0° |
| D - Offset (mm) | 50 | 50 | 50 | 50 | 50 |
| E - Head Tube (mm) | 140 | 150 | 170 | 190 | 200 |
| F - BB Drop (mm) | 69 | 69 | 69 | 69 | 69 |
| RC - Chain Stays (mm) | 435 | 435 | 435 | 435 | 435 |
| FC - Front Centre (mm) | 595 | 605 | 611 | 616 | 630 |
| Stack (mm) | 556 | 568 | 589 | 610 | 620 |
| Reach (mm) | 365 | 377 | 380 | 383 | 395 |
| WB - Wheelbase (mm) | 1021.5 | 1031 | 1036.8 | 1041.8 | 1055 |
| G - Seat Tube C-Top (mm) | 470 | 510 | 530 | 555 | 580 |

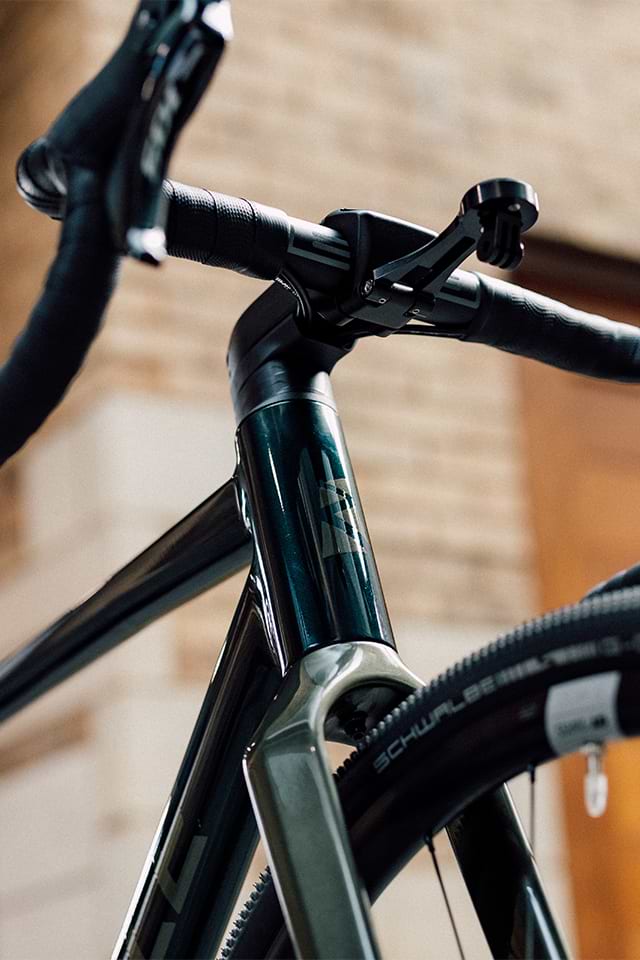

The Ribble CGR AL is available to order on cycle to work schemes.
We accept all major cycle to work scheme vouchers.

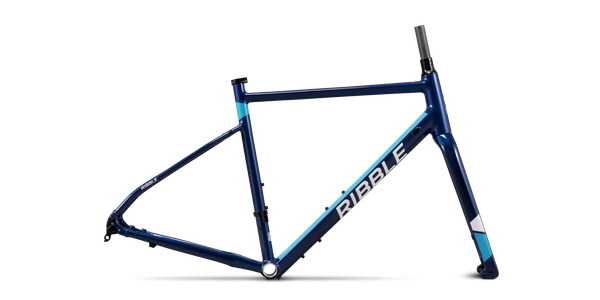

The 6061 Heat Treated Aluminium frame weighs 1.68kgs and the full monocoque carbon forks 470g. Approximate build weights are Tiagra 10.5kgs,105 10kgs and Rival 1x 10.1kgs.
The frame carries a 3 year warranty. All other parts have the standard manufacturer's warranty.

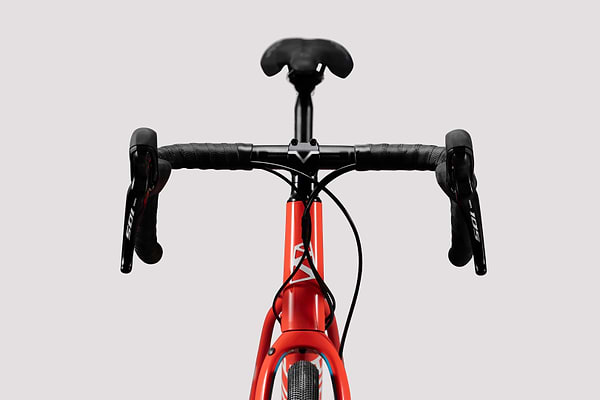

Yes the cables run internally for a neater appearance and better protection from the elements.
The CGR AL has ample clearance for 45mm tyres on the 700c wheels (40mm with full length mudguards) and 47mm on the 650b version.
There are 3 bottle cage mounts, seat tube, down tube and underneath the down tube.
We recommend a maximum rider weight of 120kgs (264lbs).

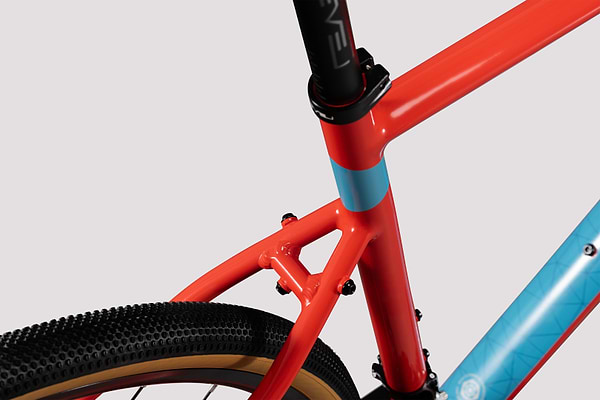

Yes, the frame has discreet mudguard mounts for fitting full length mudguards (700c only).
The frame takes a traditional 68mm threaded bb.
The seatpost is a 27.2mm diameter and the seat collar 31.8mm.
The CGR AL has mounts for a rear pannier rack and can accommodate 20kgs of luggage with ease.
The CGR AL has thru axles of 12x100 front and 12x142 rear.
Due to the many different systems people use we do not supply pedals with bikes but you can find a great array of pedals here.
I bought a CGR AL 105, I was concerned about the build quality, aesthetic, size and fitting before buying online having never seen the bike, as soon as I received the bike, all my concerns were removed completely. The orange looks amazing! It was well packaged to prevent any damage in transit. Minimum requirements needed to complete the build and a PDF file is provided through email, as not to get things wrong!
I had a fault on the seat clamp, which was unforeseen by everyone, it was in the casting stages the fault must’ve developed, however Ribble were very good to act on this and replace it with 24hrs with a water bottle for my inconveniences, once set up the stem I chose was a little to long also, Ribble swapped this for me on their 30 day money back guarantee!
Once out on the bike, I felt it was more smooth than my “Focus Izalco Race Ultegra” the ride and response on everything was really really good!
I feel I have a good solid reliable work horse, a thorough bred, it is not to weighty either, (Aluminium frame)
To sum up, a excellent bike covering all terrains in all conditions, without any problems, excellent customer service and after sales service! I wouldn’t hesitate to buy from Ribble ever again
