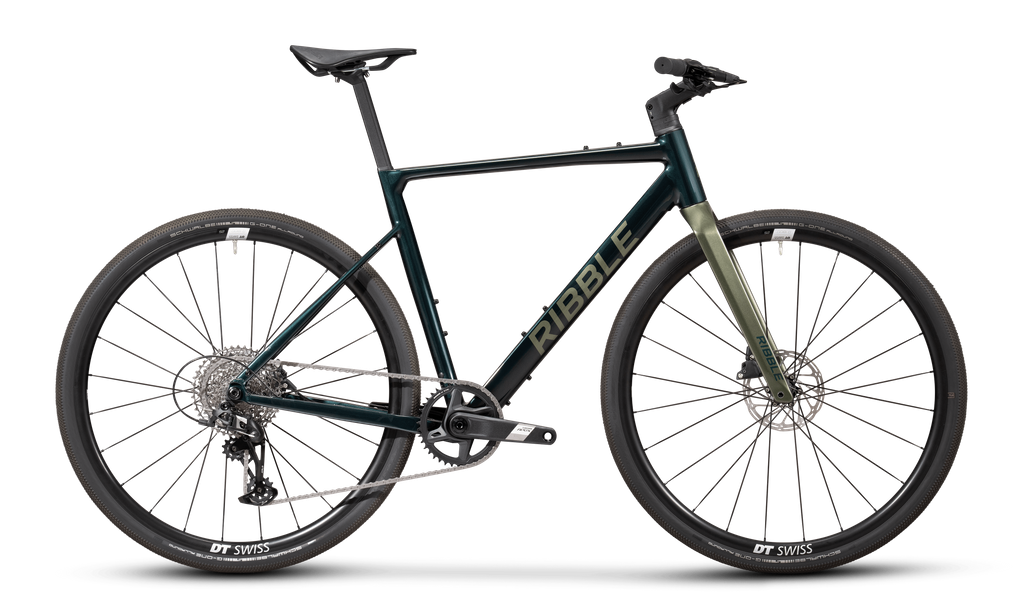

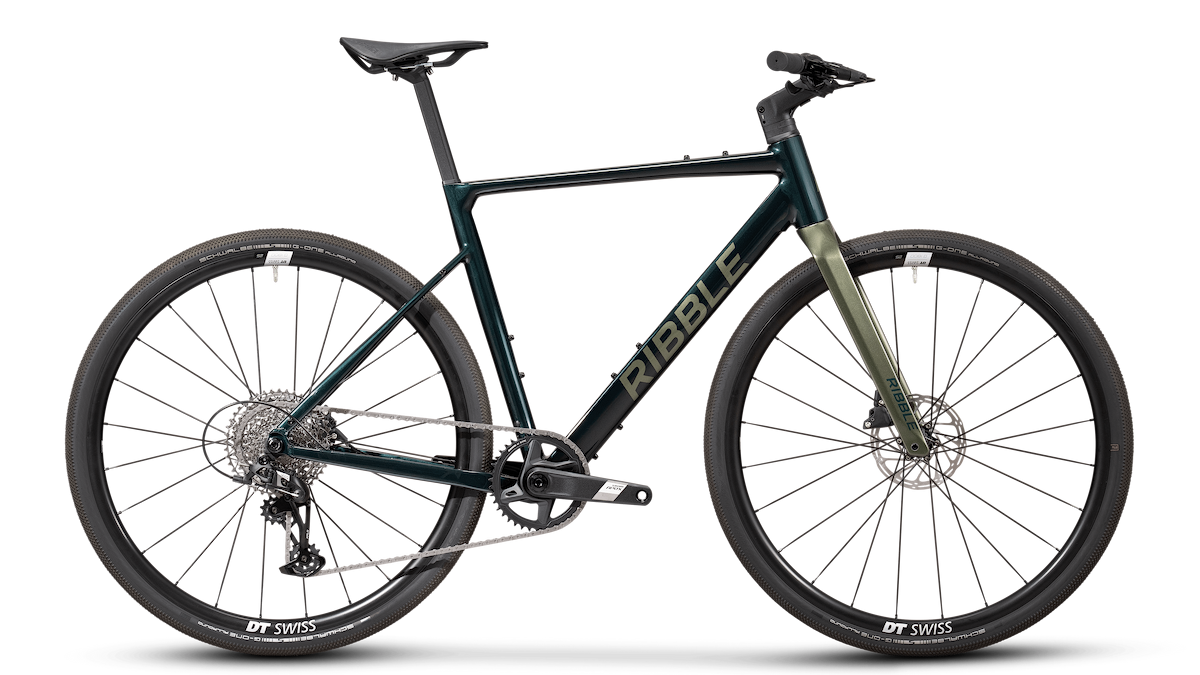

CGR AL Sportfit Apex XPLR

  1. $1,649
From commutes to gravel rides and Sunday loops, the CGR AL SPORTFIT delivers a more upright and confident position for mixed-terrain rides. It pairs a 7005-series hydroformed aluminium frame with flat bars for extra comfort and control, a wide-range SRAM Apex XPLR AXS groupset, durable DT Swiss G 1800 alloy wheels, and Schwalbe G-One Allround tyres. Finished with a Selle Italia Novus Boost saddle, it puts you in charge, whatever your ride.
Choose Your Size
Product code: BCGRALG2APXPFB

...And Many Ways To Pay...

Description

From commutes to gravel rides and Sunday loops, the CGR AL SPORTFIT delivers a more upright and confident position for mixed-terrain rides. It pairs a 7005-series hydroformed aluminium frame with flat bars for extra comfort and control, a wide range SRAM Apex XPLR groupset, durable DT Swiss G 1800 alloy wheels, and Schwalbe G-One Allround tyres. Finished with a Selle Italia Novus Boost saddle, it puts you in charge, whatever your ride.

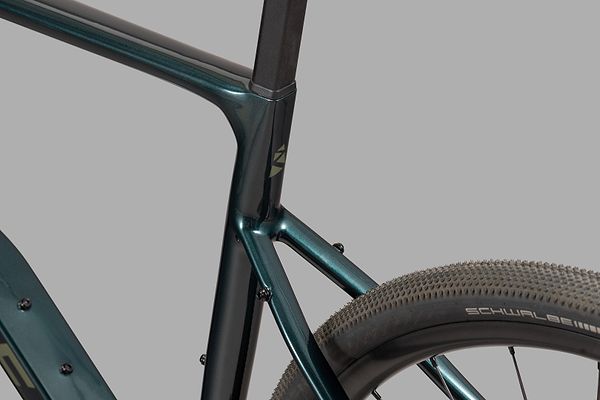

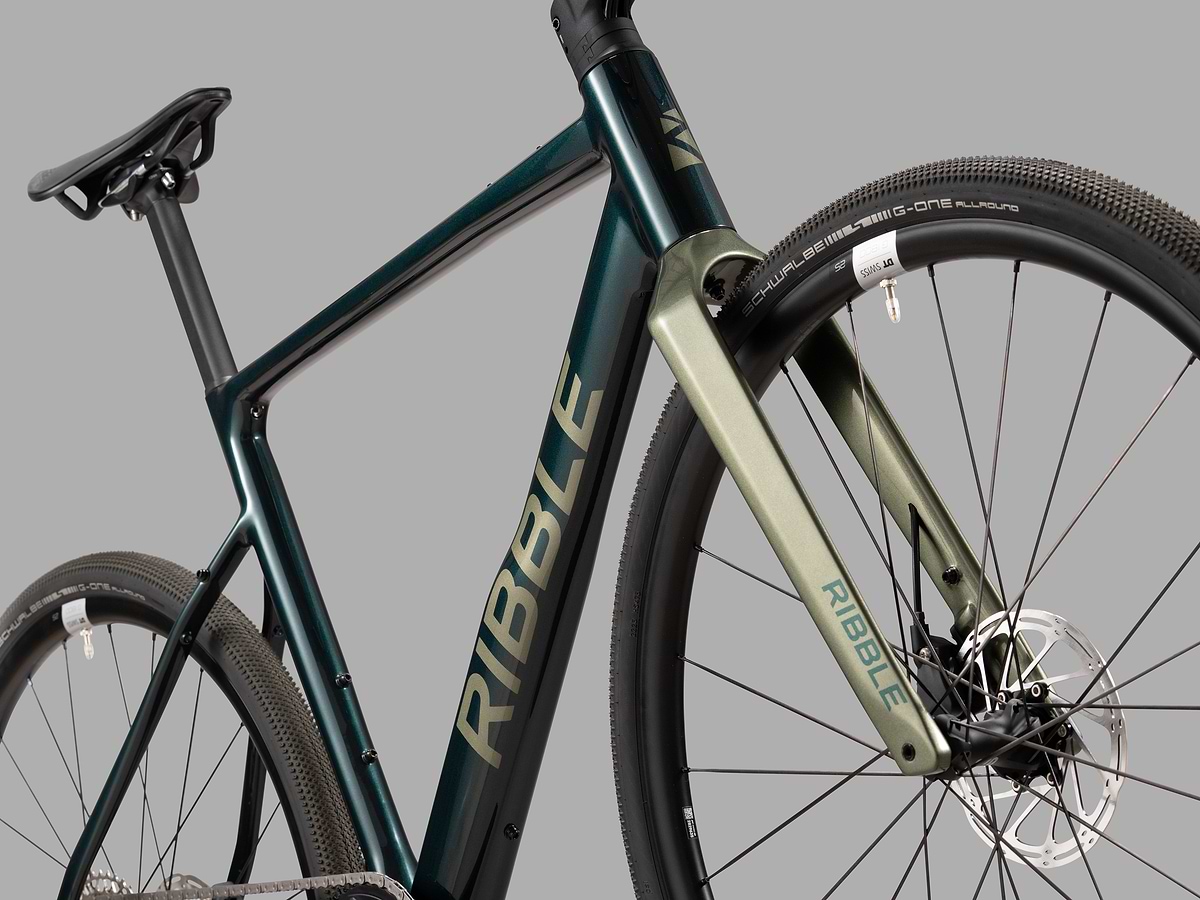

Frameset

Built from upgraded 7005-series aluminium, the CGR AL frameset is lighter and tougher than ever. Hydroformed tubing gives it the clean, aero profile of our Allroad SL R carbon bike, bringing that performance edge to a more accessible platform. Internal cable routing keeps things tidy and works with integrated cockpits for a clean front end. A T47 bottom bracket boosts stiffness and makes internal routing easier, so power transfer stays smooth and handling stays sharp.

Frameset

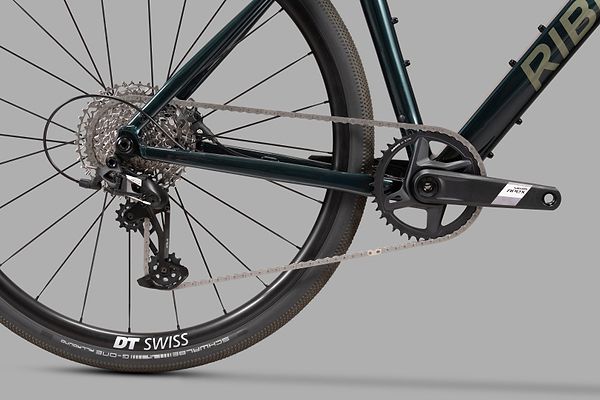

Groupset

When you want your bike to do everything, you need the gears to match. Apex XPLR hits the sweet spot, offering smooth jumps over a big gear range, with the added security and simplicity of a 1x drivetrain and the quiet confidence of hydraulic braking. Rapid and reliable, the wide-range gearing gives you the freedom to go full-gas on gravel, bike pack into the unknown or enjoy a casual cruise.

Groupset

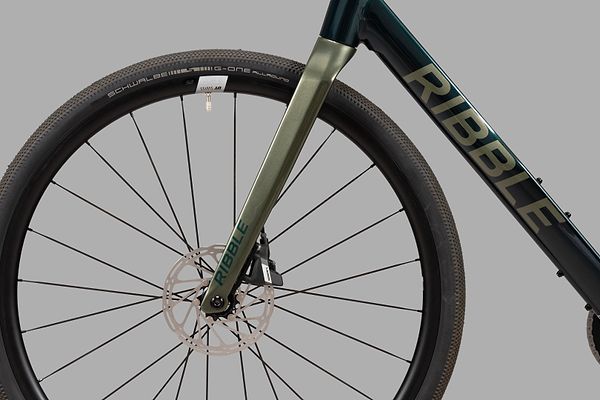

Wheelset

Built tough with a wide rim profile, the DT Swiss G 1800 Spline wheels offer solid handling and comfort on everything from loose gravel to smooth tarmac. Paired with 40mm Schwalbe G-One tyres, it's a setup that’s just as ready for back-lane exploring as it is for fast road miles.

Wheelset

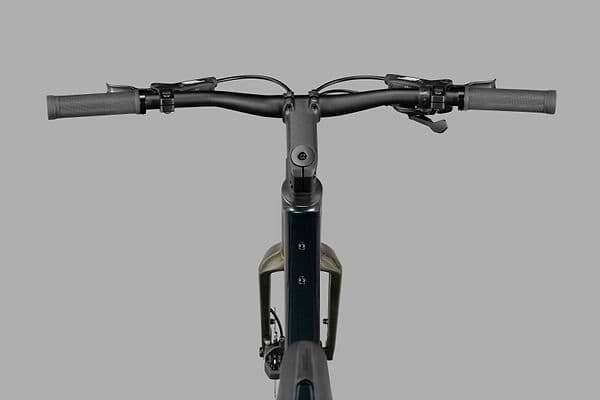

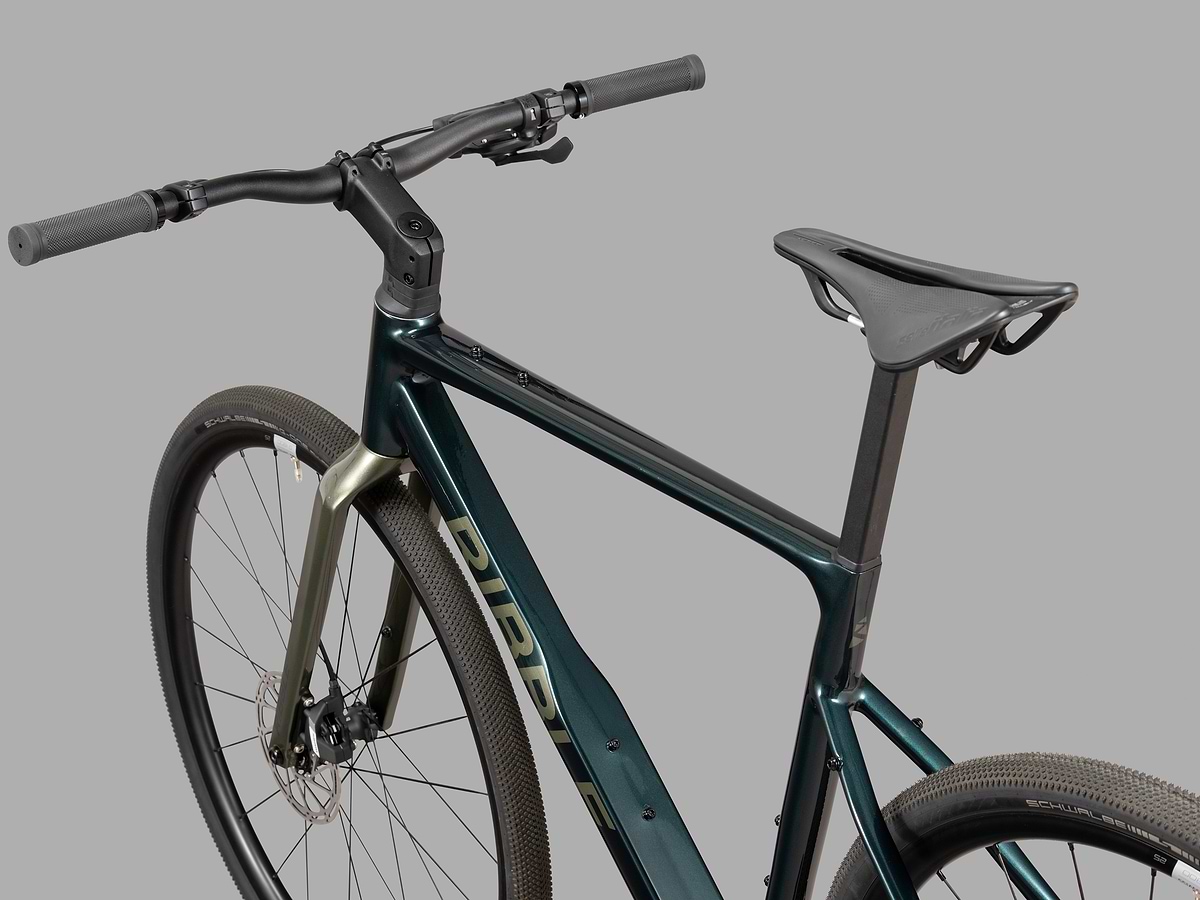

Handlebars

Flat bars put you in a relaxed, upright position so you’ve got a clear view and better control on varied terrain. Ergonomic grips add comfort on longer rides, and the lightweight Ribble alloy stem keeps things steady and responsive, on back lanes, gravel, and everything in between.

Handlebars

Saddle

Stay comfortable and in control, even when the trail gets rough. The hidden seatpost clamp, D-shaped alloy post and Selle Novus Boost Evo saddle work together to soak up the buzz and smooth out the ride.

Saddle

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.

Size

Geometry

SizeXSSMMDLGXL
Rider Height5'3 - 5'7 (159 - 169cm)5'6 - 5'9 (167 - 176cm)5'9 - 5'11 (174 - 181cm)5'10 - 6'1 (179 - 186cm)6'0 - 6'4 (184 - 193cm)
Crank Length165170170172.5172.5
A - Seat Angle75.5°74°73.5°73.3°73°
B - Top Tube C/C (Horizontal)522550570585602
C - Head Angle70.5°71.5°71.5°72°72°
D - Fork Rake (mm)5050505050
E - Head Tube (mm)105125145170190
F - BB Drop (mm)7067656565
G - Seat Tube (mm)470490510530550
RC - Rear Centre (mm)435435435435435
FC - Front Centre (mm)605610626634634
Reach (mm)386394404409417
Stack (mm)526545562588607
WB - Wheelbase (mm)10301036105210611075
Handlebar Default (mm)660660660660660
Stem Default (mm)9090909090
Min. Saddle Height (mm)620640710730740
Max. Saddle Height (mm)700720790810830

Frequently asked Questions

If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.

Weights based on a medium frame size:

  • Tiagra build: 10.4 kg
  • 105 build: 10.0 kg
  • SPORTFIT: 9.8 kg

Frame only (medium): 1700 g

The CGR AL SPORTFIT includes a lifetime warranty on frame and forks for the original owner, covering manufacturing defects. Other components carry the standard manufacturer’s warranty.

The CGR AL SPORTFIT features enhanced internal cable routing for a clean look, protecting cables from weather and reducing drag.

The CGR AL SPORTFIT comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards.

Yes, you can fit a rear pannier rack using an adaptor kit (sold separately) to boost carrying capacity.

Yes. A removable bridge makes fitting mudguards easy (mudguard bridge sold separately).

The CGR AL uses a threaded 85.5 mm T47 bottom bracket.

The CGR AL SPORTFIT features a 1.5" integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings top and bottom.

The CGR AL SPORTFIT comes with a 350 mm D-shaped alloy seat post (8 mm setback), compatible with both carbon and alloy saddle rails.

There are two bottle cage mounts: one on the downtube and one on the seat tube, both compatible with Ribble aero cages.

Thru-axles.

  • Front: 12 mm x 123 mm x 1.5 mm
  • Rear: 12 mm x 167.5 mm x 1.0 mm

The CGR AL SPORTFIT uses SRAM’s UDH (Universal Derailleur Hanger) system for universal hanger compatibility and easy replacement.

The maximum recommended system weight for the CGR AL SPORTFIT is 120 kg, including bike, rider, and luggage.

While equipped with a 1x drivetrain, the CGR AL SPORTFIT supports a 34.9 mm front derailleur and 2x gravel chainsets (31T/48T or 30T/46T).

Pedals aren’t included, so you can choose the ones that suit your riding style.
