Bikes Cyclocross Bikes

THOROUGHBRED RACE MACHINE

Ribble CX SL

Pure cyclocross racing machine designed with the highest level of competition in mind.

Begin Building or
Choose a popular build
Anthracite
Build your own Ribble CX SL

Don’t want to build your own? No problem, below are the most popular builds with other riders, ready to ride or change as you like.

CX SL - Sport Build CX SL - Sport Build
SRAM Apex 1x
  • SRAM Apex 1 x 11 speed.
  • SRAM Apex 42T x 11-42T.
  • SRAM Apex Hydraulic disc brakeset.
  • Mavic Aksium Disc wheelset.
  • Challenge Grifo tyres.
  • Level 1 6061 alloy cockpit.
  • Prologo Kappa RS accent colour saddle.
  • Level 1 6061AL seat post.
From: US$1,639.78
Or from US$54.62 a month
Learn More
CX SL - Enthusiast Build CX SL - Enthusiast Build
SRAM Rival 1x
  • SRAM Rival 1 x 11 speed.
  • SRAM Rival 42T x 11-42T gearing.
  • SRAM RIVAL hydraulic disc brakeset.
  • Mavic Aksium Disc wheelset.
  • Challenge Grifo tyres.
  • Level 5 Integrated carbon handlebar & stem.
  • Prologo Kappa RS accent colour saddle.
  • Level 2 Carbon seat post.
From: US$2,049.98
Or from US$68.29 a month
Learn More
CX SL - Pro Build CX SL - Pro Build
Ultegra Di2
  • Shimano Ultegra R8070 Di2 2 x 11 speed.
  • Shimano Ultegra 36-46T x 11-32T gearing.
  • Shimano Ultegra hydraulic flat mount brakeset.
  • Shimnao Ultegra R8000 36-46T cyclocross specific chainset.
  • Challenege Grifo Team Edition tubular tyres.
  • Level 40DB tubular carbon wheelset.
  • Fizik Antares R5 saddle.
  • Level 3 monocoque Carbon seatpost.
From: US$3,331.85
Or from US$110.99 a month
Learn More
CX SL Frameset

The CX SL frameset is manufactured from a carefully selected blend of Toray’s T1000 and T800 carbon layered to an exacting specification using an advanced monocoque mould technology incorporating an EPS inner core system which ensures complete consistency of the structural integrity of the fibres and resin throughout the frame. This system also eliminates excess material on the inside of the frame.

Frameset includes

  • Frame and Fork
  • Headset
  • Steerer Tube Bung
  • Seat Clamp
  • Thru-axles
From: US$1,332.13
Or from US$44.37 a month
Learn More
CX SL Frameset
THOROUGHBRED
RACE MACHINE

The Ribble CX SL is a pure cyclocross racing machine designed with the highest level of competition in mind. A super lightweight and durable carbon monocoque platform that has been fine tuned and loaded with modern performance features down to the smallest intricate detail. Tubing profiles have been optimised for aggressive power transfer, tackling technical terrain and shouldering the bike when required. Built to excel in the most extreme conditions the CX SL clears even the most stubborn mud and compatibility with the LEVEL 5 integrated carbon bar and stem provides a super clean, aerodynamic and stable front end.

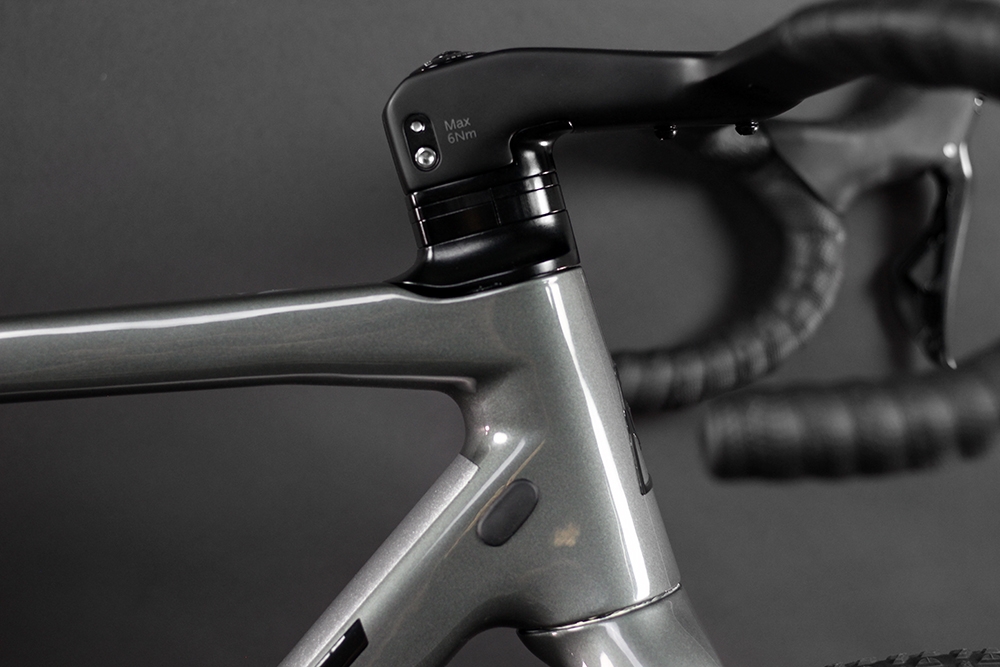

SEAMLESS
INTEGRATION

Fully internal cable routing and compatibility with the Level 5 Carbon integrated bar system provides for a super-clean front end and makes for quick cleans and less maintenance at pit stops.

ADVANCED MONOCOQUE
CONSTRUCTION

Lightweight and rugged the CX SL features an advanced monocoque construction and full EPS inner core system for consistent strength and improved torsional stiffness. The race enhanced geometry provides compliance through dropped stays across varied terrains without loss of power.

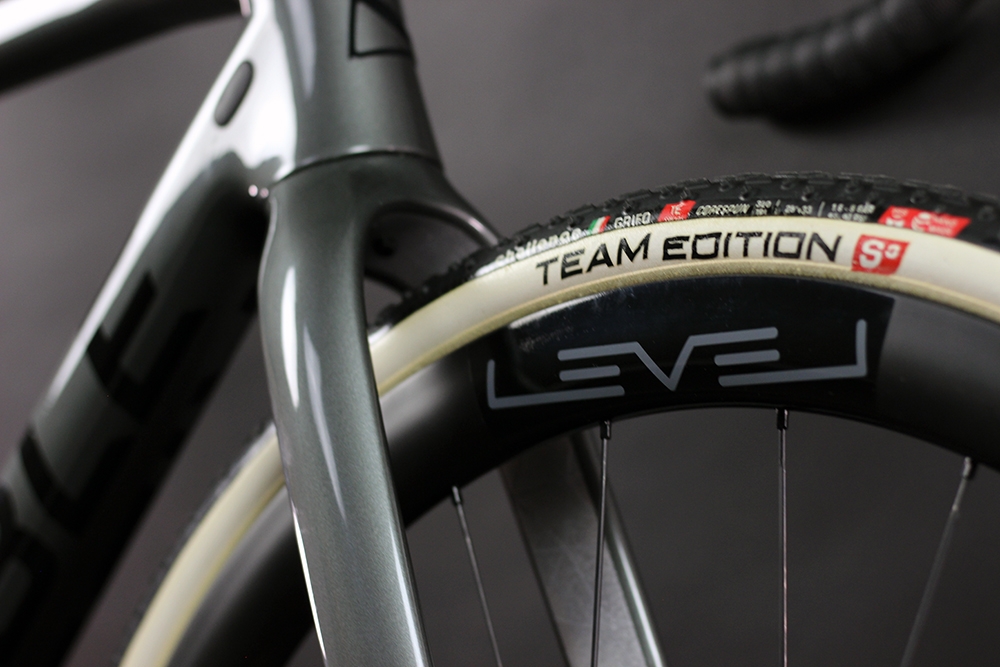

CONTROL
AND GRIP

Full carbon monocoque front forks for a lightweight and stable handling front end with generous mud shedding clearance.

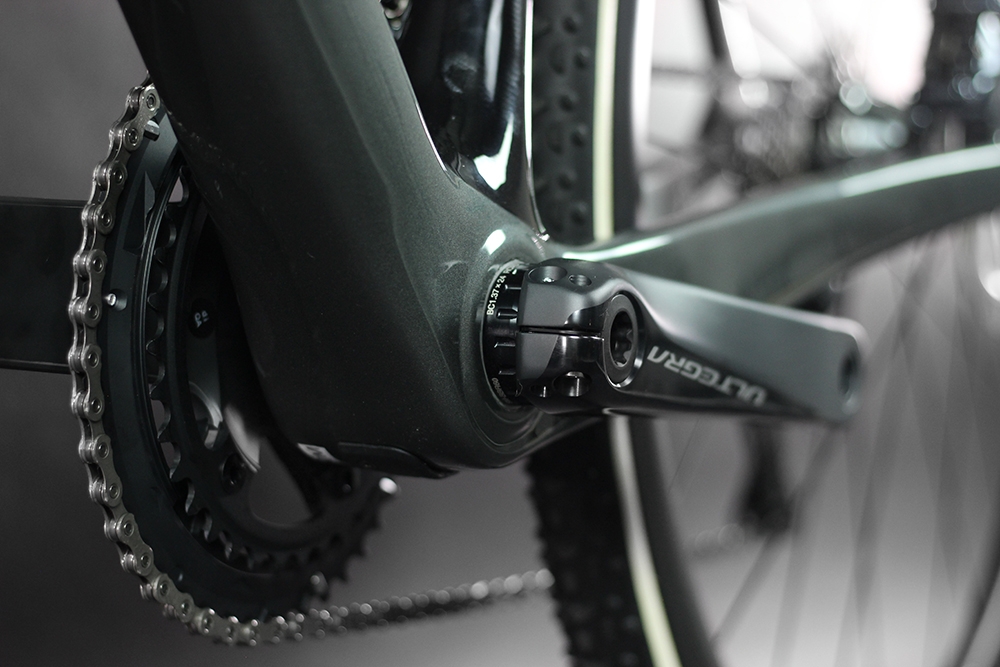

OPTIMISED
POWER TRANSFER

Oversized down tube to bottom bracket integration for increased stiffness and power transfer. Threaded BSA bottom bracket offer reliable, smooth running and ease of maintenance.

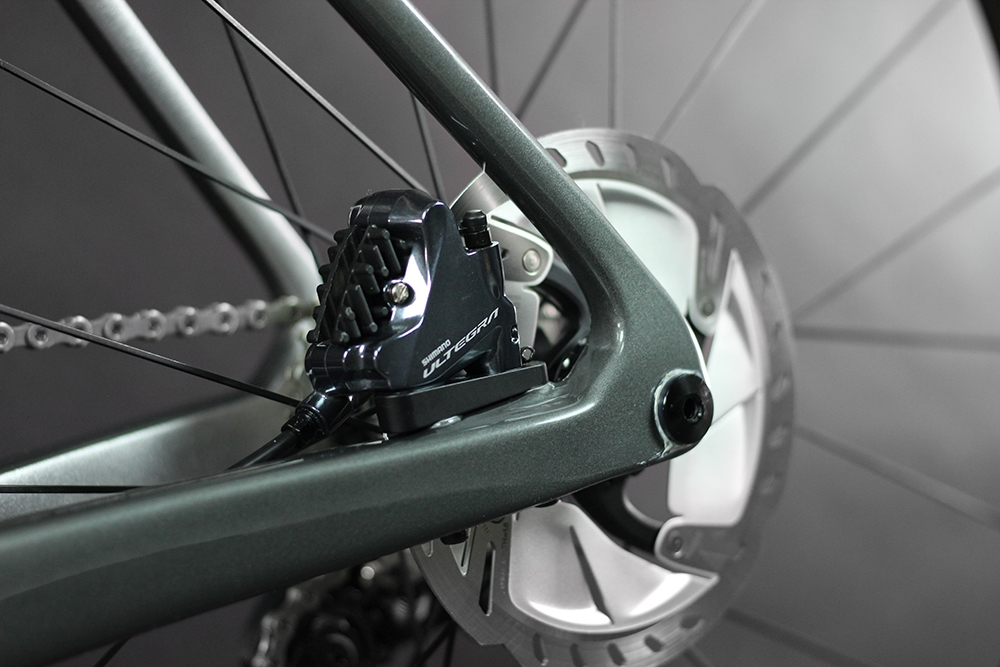

STOPPING
POWER

Both power and control are optimised through powerful flatmount brakes and a 142 x 12mm thru axle.

Size
Guide

To assist you in selecting the correct size simply find you height below. The graphic below illustrates our recommendations so you can be confident that the size you order will be correct.

X-Small
5' 3" - 5' 5"
160cm - 165cm
Small
5' 5" - 5' 7"
165cm - 170cm
Medium
5' 7" - 5' 10"
170cm - 178cm
Large
5' 10" - 6' 1"
178cm - 185cm
X-Large
6' 1" - 6' 3"
185cm - 191cm
View Full Sizing & Geometry
Sizing &
Geometry
Ribble CX SL
FRAME SIZE XS S M L XL
A 75º 74º 73.5º 73º 73º
B (mm) 520 535 545 560 575
C 71º 71.5º 72º 72º 72º
D (mm) 50 50 50 50 50
E (mm) 110 130 140 160 180
F (mm) 64 64 64 64 64
RC 425 425 425 425 425
FC 595 596 597 601 620
Stack 526 547 558 576 596
Reach 376 378 380 384 393
WB 1010 1012 1013.5 1024 1038
G 470 500 520 540 560
Available on
Cycle To Work

The Ribble CX SL is available to order on cycle to work schemes.

We accept all major cycle to work scheme vouchers.

Cyclescheme logos
Finance
Calculator
US$
%
Total amount repayable . APR representative. Finance is subject to status. Terms and conditions apply.
AVAILABLE
OPTIONS
LEVEL 40
CARBON TUBULAR DISC ELITE WHEELSET
  • Rim profile: 40mm profile depth. 26.5mm external width
  • Weight: 1528gr per pair
  • Front hub: Precision machined straight pull hub. 24 H. 100m x 12mm Thru axle. Anodised grey finish. Centre lock disc brake fitting
  • Rear hub: Precision machined straight pull hub. 24 H. 142m x 12mm Thru axle. Shimano 11v freehub. Anodised grey finish. Centre lock disc brake fitting
  • Bearings: Japanese sealed cartridge bearings. 2 X Front hub 4 x Rear hub
  • Spokes: Pillar PSR XTRA butted aero blade
  • Spoke count: 24H Front/ 24H Rear
  • Rim technology: HI-TG Carbon fibre UD Finish
  • Freehub body: 3 multi point pawls and 30T ratchet ring with a 10 degree engagement angle
  • Max PSI: 140 PSI
  • Max rider weight: 100kg
  • Warranty: 2 years
LEVEL 5
INTEGRATED CARBON HANDLEBAR AND STEM
  • Full monocoque one piece design
  • Truncated aerofoil design (40% faster than a traditional handlebar and stem)
  • Fully internal brake and gear cable routing
  • 380gr +/- 5gr total weight (400mm x 90)
  • Fittings for inline out front style Garmin mount
  • Available in 4 sizes: 380mm x 70mm, 400mm x 90mm, 420mm x 110mm, 420mm x 125mm
  • 125mm drop
  • 75mm reach
  • Supplied with specialist integrated headset spacers offering 40mm of stack height and 15mm of adjustability
Frequently Asked
Questions
How much does the CX SL weigh?

The full carbon monocoque frame weighs 1150g and the carbon fork 450g (+/-5g size M). With full bikes builds starting from 7.7kg Ultegra Di2, 9.0kg SRAM Rival, 9.5kg SRAM Apex

What is the warranty on the frame?

The frame has a year 3 warranty against manufacturing defects. All other parts have the manufacturer's standard warranty.

What is the maximum width of tyre that can be fitted to the CX SL?

The CX SL can accommodate tyres up to 40mm.

What size seat post does the CX SL require?

27.2 mm

How many bottle cage mounts are there?

There are 2 sets of bottle cage mounts, seat tube and down tube

Does the CX SL take mudguards?

Yes, the CX SL is equipped with hidden mudguard mounts

What type of bottom bracket does the frame require?

The BB shell is a 68mm BSA threaded

Are the axles quick release or Thru axles?

The CX SL has Thru axles 12 x 100 front and 12 x 142 rear

What is the maximum rider weight?

We recommend a maximum rider weight of 120kg

Is the bike supplied with pedals?

Due to the many different systems people use we do not supply pedals with bikes but you can find a great array of pedals please click here.
