Endurance & Performance

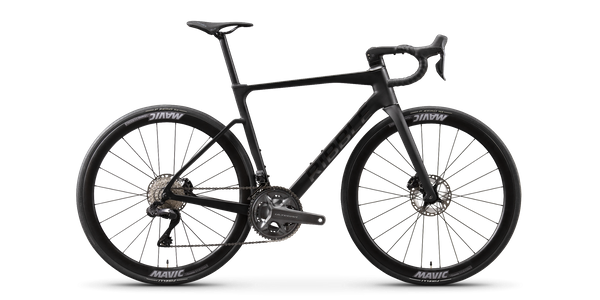

Ribble Endurance SL R Series Disc

The Endurance SL R Series is our flagship carbon endurance bike, this high-performance frameset is superlight (frame sub 900g) and the truncated aerofoil profile of the tubes makes it the lightest and one of the fastest packages that we offer.

Begin Building or
Choose a popular build
Build your own Ribble Endurance SL R Series Disc

Don’t want to build your own? No problem. Below are the most popular builds with other riders, ready to ride or change as you like.

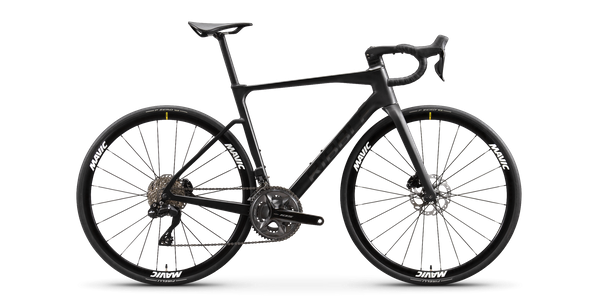

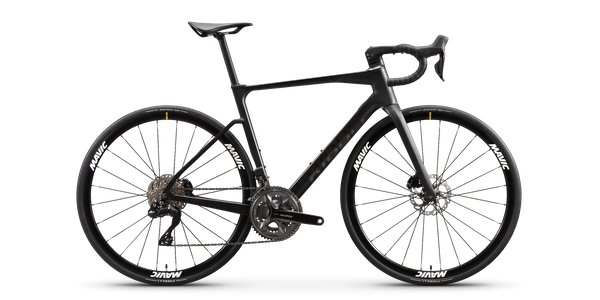

Endurance SL R Series Disc Endurance SL R Series Disc
Shimano Ultegra
  • Shimano Ultegra 2 x 11 speed.
  • Shimano Ultegra hydraulic disc brakeset.
  • Shimano 34-50T x 11-28T gearing.
  • Mavic Aksium Disc wheelset.
  • Continental Ultra Sport 2 tyres.
  • Level 1 Alloy finishing kit.
  • Prologo Kappa RS saddle.
From: US$3,180.44
Or from US$99.03 a month
Learn More

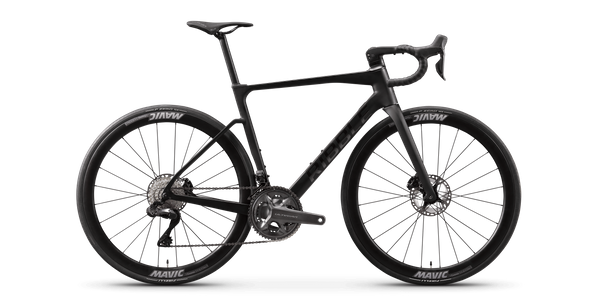

Endurance SL R Series Disc Endurance SL R Series Disc
Shimano Ultegra Di2
  • Shimano Ultegra Di2 2 x 11 speed.
  • Shimano Ultegra hydraulic disc brakesET.
  • Shimano 34-50T x 11-28T gearing.
  • Mavic Aksium Disc wheelset.
  • Continental GP5000 Folding tyres.
  • Level 1 Alloy finishing kit.
  • Prologo Kappa RS saddle.
From: US$3,838.69
Or from US$119.53 a month
Learn More
Endurance SL R Series Disc Endurance SL R Series Disc
Sram eTap HRD
  • SRAM Red eTap 2 x 11 speed .
  • SRAM Red hydraulic disc brakeset.
  • SRAM 34-50T x 11-28T gearing.
  • Mavic Ksyrium Elite Disc wheelset.
  • Continental GP5000 Folding tyres.
  • Level 5 Carbon integrated bar and stem.
  • Fizik Aliante R5 Kium rail saddle.
From: US$5,155.19
Or from US$160.53 a month
Learn More
Endurance SL R Series Disc Endurance SL R Series Disc
Shimano Dura Ace Di2
  • Shimano Dura Ace Di2 2 x 11 speed .
  • Shimano Dura Ace hydraulic disc brakeset.
  • Shimano 34-50T x 11-28T gearing.
  • Mavic Ksyrium Elite Disc wheelset.
  • Vittoria Corsa G2.0 Folding tyres.
  • Level 5 Carbon integrated bar and stem.
  • Fizik Aliante R5 Kium rail saddle.
From: US$5,484.32
Or from US$170.78 a month
Learn More
Endurance SL R Series Disc Endurance SL R Series Disc
SRAM Red eTap AXS HRD
  • SRAM Red eTap AXS 2 x 12 speed.
  • SRAM Red hydraulic disc brakeset.
  • SRAM 37-50T x 10-28T gearing.
  • Zipp 302 DB Carbon clincher wheelset.
  • Continental GP5000 Folding tyres.
  • Level 5 Carbon integrated bar and stem.
  • Fizik Arione R5 Kium rail saddle.
From: US$7,020.23
Or from US$177.75 a month
Learn More
Endurance SL R Series Disc
SRAM eTap HRD Team Edition
  • SRAM Red eTap 2 x 11 speed .
  • SRAM Red hydraulic disc brakes.
  • SRAM 34-50T x 11-28T gearing.
  • Zipp 302 DB Carbon clincher wheelset.
  • Continental GP5000 Folding tyres.
  • Level 3 Carbon cockpit.
  • Fizik Antares R5 Kium rail saddle.
From: US$6,800.82
Or from US$172.20 a month
Learn More
Endurance SL R Series Disc SRAM eTap HRD Team Edition
FOCUS THE MIND.
AT ONE WITH THE MACHINE.

Whether it’s your favourite or nemesis ride, you visualise it in your head the night before, you know the roads like the back of your hand, every corner, climb and descent it’s as if you were there already….then press start, click in, change down, you're off, the anticipation as you glide out of town and onto the rolling roads up to the foot of the first climb. The headwind doesn’t bother you “tailwind home" you say to yourself.

As the climb draws near you're conserving energy ready ahead of the first challenge of the day, the climb rolls on and you pass a few riders in their own moment of pain and ecstasy, the gradient steepens but you're feeling good, 100m to go that final push out of the saddle and the PB is yours, the first of many today. Then focus your mind for the rewarding descent, the spoils for your effort unfolds in front of you, swooping down it’s as if you’re on rails, the swish of the tyres and the sound of the wind, at one with the machine.

WHO IS THE
SL R SERIES DISC FOR?

With its impeccable performance, versatility and a multitude of wheel, component and finishing kit options the Endurance SL and SL R Series can be fine-tuned for all riders of all levels of experience and ability.

The serious racer whether Elite or local hero will appreciate the frames stiffness and power transfer. The built-in aerodynamic tech, builds tipping the scales below the UCI weight limit and disc and caliper brake options mean the Endurance SL R platform offers a performance advantage in all race situations.

The Endurance rider will benefit from the race bike attributes designed into the frame and will also see gain from the comfort-enhancing and fatigue-reducing features ensuring that they can go further, higher and quicker whether all day Epic or Weekend Gran Fondo.

Fitness and Leisure riders can experience the feeling you only get from a high-end race bike but with the geometry and fit required to achieve a comfortable and efficient riding position. The platform's comfort, stability, handling, and braking performance will inspire confidence making the Endurance SL R the perfect partner as you develop your riding ability. Ride further, comfortably with less fatigue, make light work of hills, as you progress to experience longer rides over more challenging terrain.

THE SL R SERIES
FRAMESET

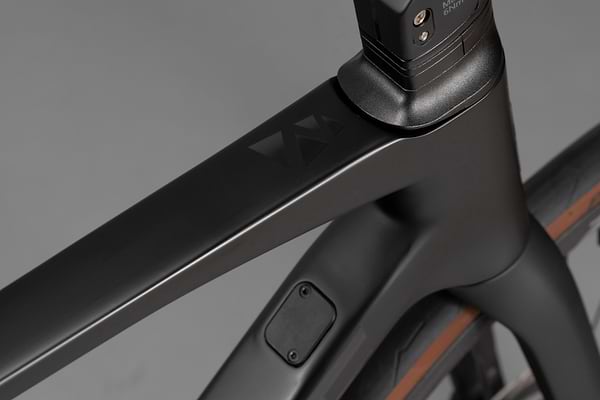

The SL R frameset is manufactured from a carefully selected blend of Toray’s T1000 and T800 carbon fibre, using more of the T1000 carbon layup than any other frame in the Ribble range. This unique mixture of carbon is layered to an exacting specification using an advanced monocoque mould technology, incorporating an EPS inner core system that ensures complete consistency of the structural integrity of the fibres and resin throughout the frame. This system also eliminates excess material on the inside of the frame and in turn eliminates any weak spots in the construction.

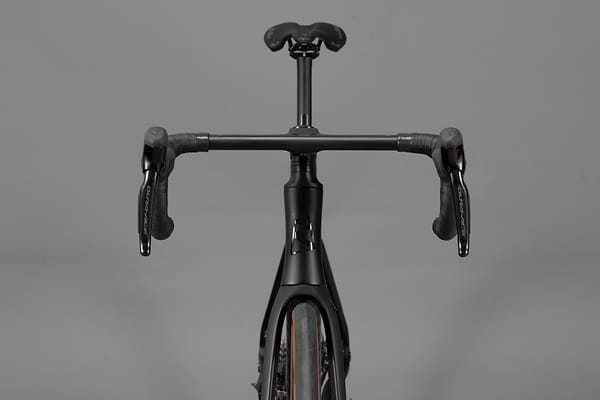

Aerodynamics have been a major consideration in the development of the new Endurance SL R with the new frameset generating up to 28.5% less drag compared to the previous generation.

Aerodynamic drag saving features include,

  1. Truncated aerofoil down tube
  2. Aero fork blade profile
  3. Truncated aerofoil seat tube and seat post
  4. Internal cable routing

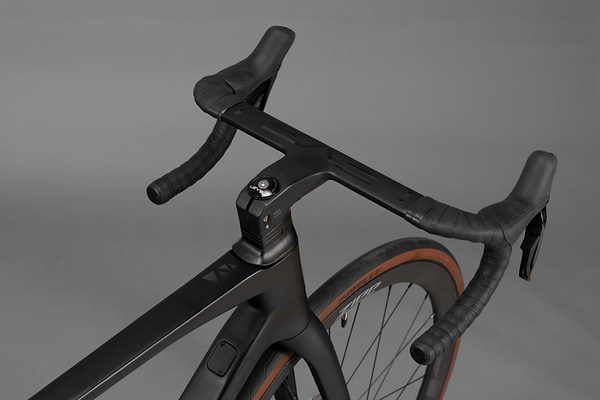

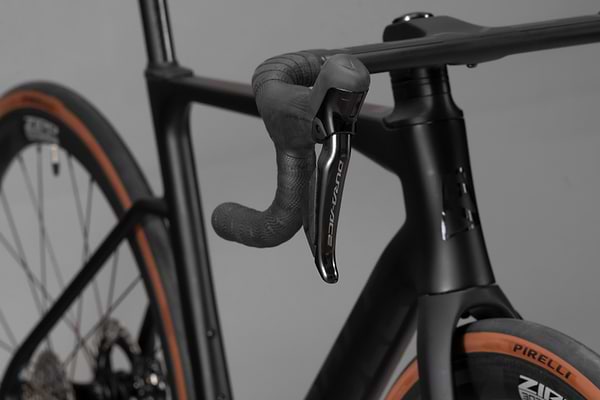

  5. Optional aero one piece cockpit enabling all cables to be routed internally and away from the airflow generating over 40% less drag compared to a conventional bar and stem set up (disc brake version has all cables completely hidden and caliper brake just the front brake cable).

Power transfer and torsional stiffness have been taken into account through the tapered downtube, oversize BB area, and box section chainstays ensuring that your power wattage is efficiently transferred to forward motion. The tapered fork steerer, oversize headtube area and fork profile ensure that front end stiffness is taken care for out of the saddle efforts.

Comfort through road surface impact and vibration absorption is very important in an Endurance bike and the specific shapes and profiles of the seat stays, seat post and carbon cockpit ensure that the Endurance SL R is smooth and comfortable over rough road surfaces and long distances.

The SL R frameset has discreet mudguard mounts and tyre clearances for up to 30c tyres ensuring that the Endurance SL R can be ridden in all season and weather conditions.

Frame
Only

The SL R Series frameset is manufactured from a carefully selected blend of Toray’s carbon using more of the T1000 grade than the standard SL and layered to an exacting specification to reduce weight without compromising stiffness and strength. The frame is crafted using advanced monocoque mould technology incorporating an EPS inner core system which ensures complete consistency of the structural integrity of the fibres and resin throughout the frame. This system also eliminates excess material on the inside of the frame.

Frame Price: US$1,973.65
Or from US$61.45 a month and available on Cycle To Work schemes
Buy Now
Size
Guide

To assist you in selecting the correct size simply find you height below. The graphic below illustrates our recommendations so you can be confident that the size you order will be correct.

X-Small
5' 3" - 5' 5"
160cm - 165cm
Small
5' 5" - 5' 7"
165cm - 170cm
Medium
5' 7" - 5' 10"
170cm - 178cm
Large
5' 10" - 6' 1"
178cm - 185cm
X-Large
6' 1" - 6' 3"
185cm - 191cm
View Full Sizing & Geometry
Sizing &
Geometry
Ribble Endurance SL R Series Disc
Size XS S M L XL
Rider Height 5'3" - 5'5"
160 - 165cm
5'5" - 5'7"
165 - 170cm
5'7" - 5'10"
170 - 178cm
5'10" - 6'1"
178 - 185cm
6'1" - 6'3"
185 - 191cm
Wheel Size 700C 700C 700C 700C 700C
A - Seat Angle 74.5° 74.0° 73.6° 73.3° 73.0°
B - Top Tube(mm) 520 535 550 570 585
C - Head Angle 71.0° 72.0° 72.5° 73.0° 73.3°
D - Offset (mm) 53 45 45 45 45
E - Head Tube (mm) 110 130 150 170 190
F - BB Drop (mm) 68 68 68 68 68
RC - Chain Stays(mm) 415 410 410 410 415
FC - Front Centre (mm) 581 584 591 598 607
Stack (mm) 498 521 541 562 582
Reach (mm) 382 385 390 396 402
WB - Wheelbase (mm) 982 984 991 999 1007
G - Seat Tube C-Top(mm) 470 490 510 530 550
Available on
Cycle To Work

The Ribble Endurance SL R Series Disc is available to order on cycle to work schemes.

We accept all major cycle to work scheme vouchers.

Cyclescheme logos
Finance
Calculator
US$
%
Total amount repayable . APR representative. Finance is subject to status. Terms and conditions apply.
Frequently Asked
Questions
How much does the Endurance SL R Series Disc weigh?

The internally routed Toray 800/1000 full carbon monocoque frame weighs 850g and the full monocoque carbon forks 400g. A built up bike with Dura Ace Di2 weighs in at 7.3kgs.

What is the warranty on the frame?

The frame carries a 3 year warranty. All other parts have the standard manufacturer's warranty.

What is the tyre clearance?

The SL R Series Disc has clearance for 32mm tyres (depending upon model of tyre )and 25mm with full length mudguards fitted.

How many bottle cage mounts are there?

There are 2 bottle cage mounts.

What is the maximum rider weight?

We recommend a maximum rider weight of 100kgs (224lbs).

Does it take mudguards?

Yes, there are mounts for fitting mudguards.

What type of bottom bracket does the frame require?

The BB shell is PF86.

What size seatpost does the SL R Series Disc require?

The semi-aero seatpost is exclusive to the SL R Series Disc and is supplied with the bike.

Can I fit a rack?

No, the frame does not have rack mounts.

Are the axles quick release or thru axle?

The frame has thru axles of diameter 12x100 front and 12x142 rear.

Is the bike supplied with pedals?

Due to the many different systems people use we do not supply pedals with bikes but you can find a great array of pedals here.

Customer
Reviews
Tom McCafferty
I went for my first ride on my new Ribble Endurance SL R today. A short 15 miler to check out the seat post height and seat position. After the ride I made a couple minor adjustments. It rides like a dream. The Ultegra Di2 shifting is super smooth and quick. I was very happy with the ordering process and the communication from Ribble letting me know how the order and the build were progressing. I had a couple of minor issues. I ordered an outfront computer mount for the Level 5 Integrated bars, and the bolts that came with the bars were a little to short. I couldn't get them to catch the threads under the bars once I tried to attach the mount. No big issue. I just went to the local Home Depot and bought some longer bolts for less than a dollar. The other issue wasn't with Ribble directly, but with the shipping company, Parcel Force. Once the bike arrived in the US, I could no longer track it. It was delivered about 6 days after it arrived in the US, but during that time, I had no idea where it was, or if it was held up in customs. Again, a small issue, but something US customers should be aware of. I would recommend Ribble to anyone who wants a great bike at a great price.
Adam
I collected my SL-R from the Bluewater store on Wednesday, exactly 49 days from the bike order, which was as expected, given I had ordered custom paint, which was well worth the extra wait and expense.

The bike is excellent and I’m very pleased.

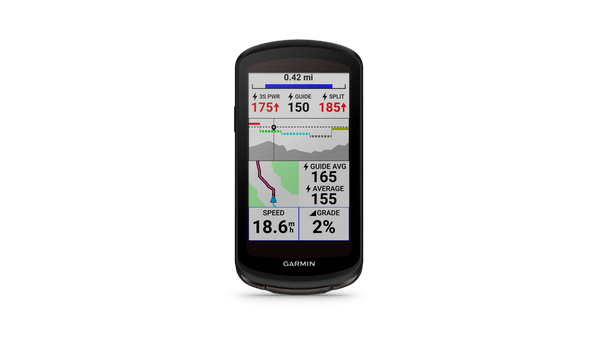

The Di2 is fantastic and an excellent upgrade. The only criticism would be not having the Bluetooth capability to link my Garmin and phone to the Di2 as standard. I had to purchase an additional item (SM-EWWU111) and cable at a cost of £70. While I acknowledge this wasn’t in the list of components sent to me when I purchased the bike, I wouldn’t have known it was required given I had no previous experience of Di2. I also wasted time trying to pair the devices which wasn’t possible. Lucky I phoned the store for advice and all became apparent. I would recommend in future Ribble make it clear to customers the extra item is required to use Bluetooth.

I had used the in store bike fitting rig to check my size as I’m 6’1” and between large and extra large frame size. I went for extra large and it is perfect. The bike is fast, lightweight, comfortable and smooth. Looking forward to a third longer ride tomorrow!

I went for the basic wheel option as this will be my first upgrade in the near future.

Finally thank you to Ribble. The communication throughout was excellent, especially the consultation with Jason who painted my bespoke coloured bike.
Review 1 to 2 of 6
Show All Reviews
Related
Bikes

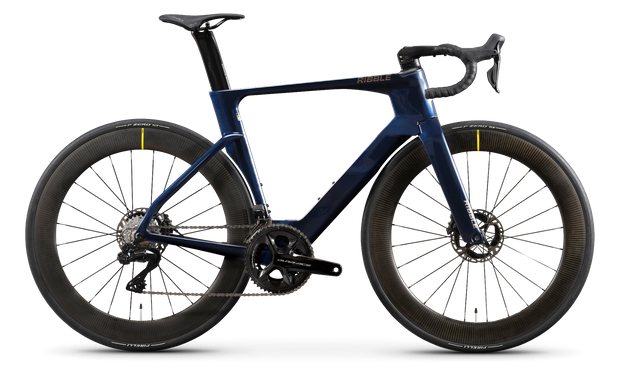

Ribble Aero 883 Disc Ribble Aero 883 Disc
