Ribble Hybrid Trail AL

From: US$976.84
This is a loan of US$1,172.21 with US$0.00 deposit.
Repayable by 36 monthly repayments of US$40.04.
Total amount repayable US$1,441.54.
14.9 APR representative.
Finance is subject to status. Terms and conditions apply.
Or from: US$40.04 a month
Image is for illustration purposes only.
The upgrades are:

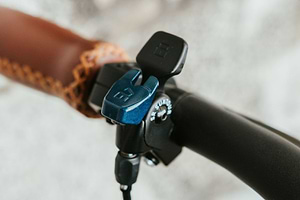

  • Level suspension seatpost

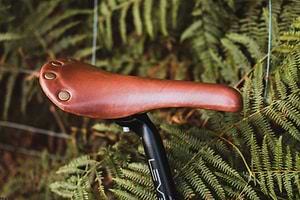

  • Ribble classic saddle

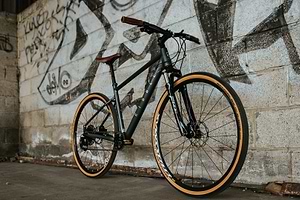

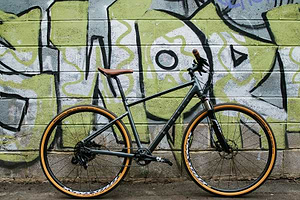

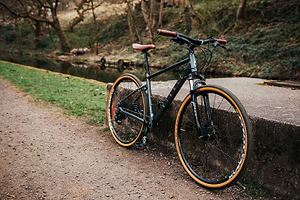

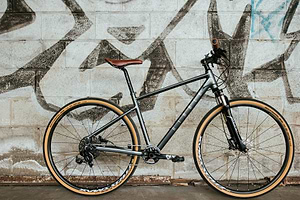

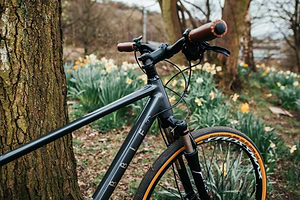

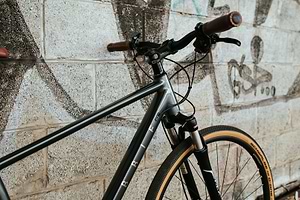

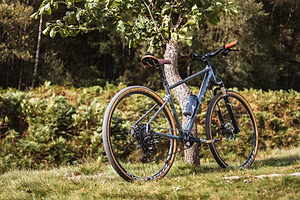

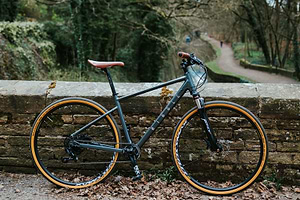

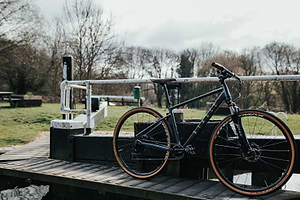

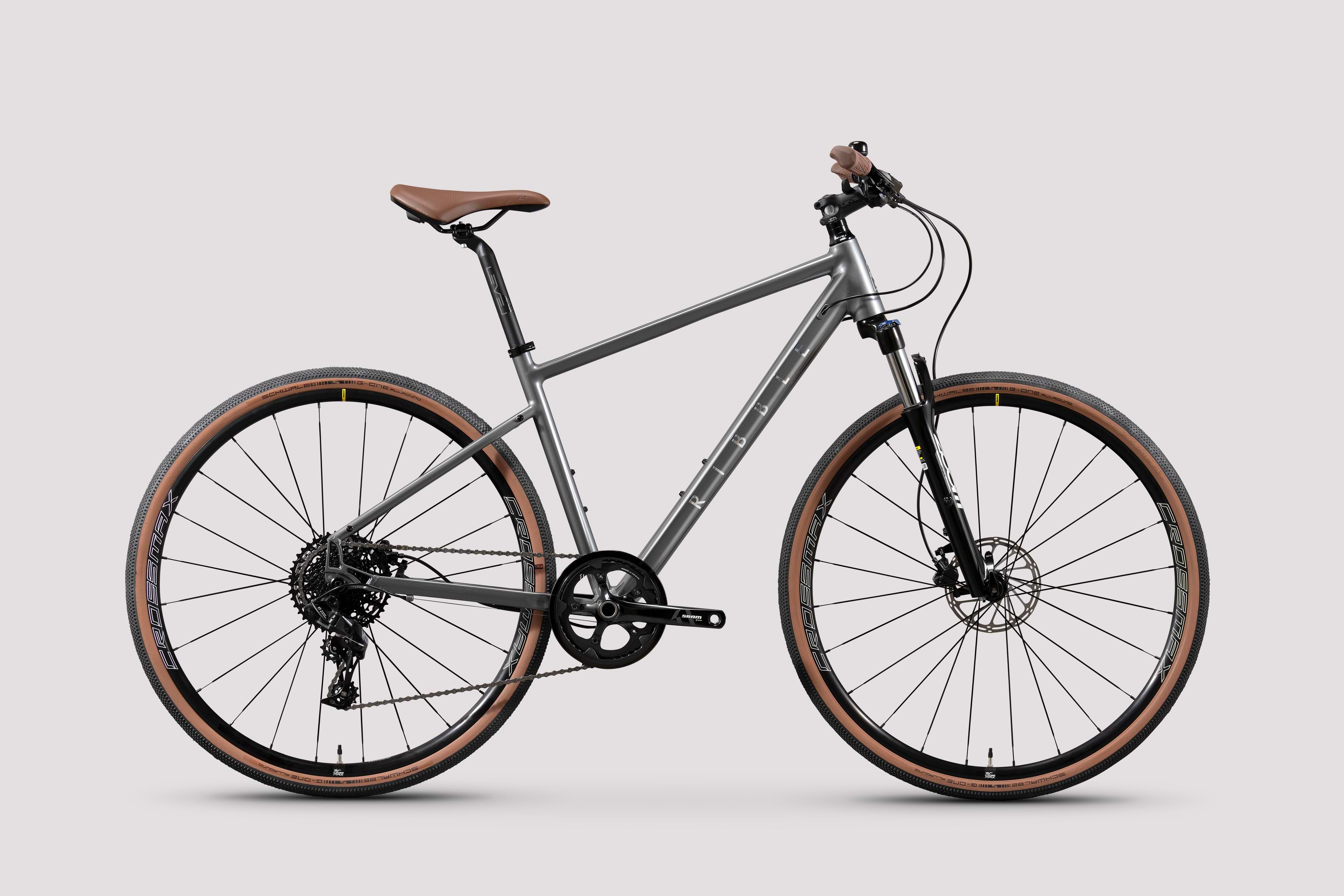

An image of the Ribble Hybrid Trail AL
DESIGNED
WITH PASSION

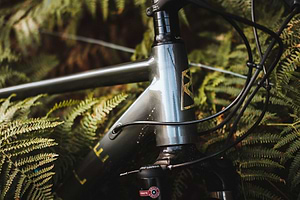

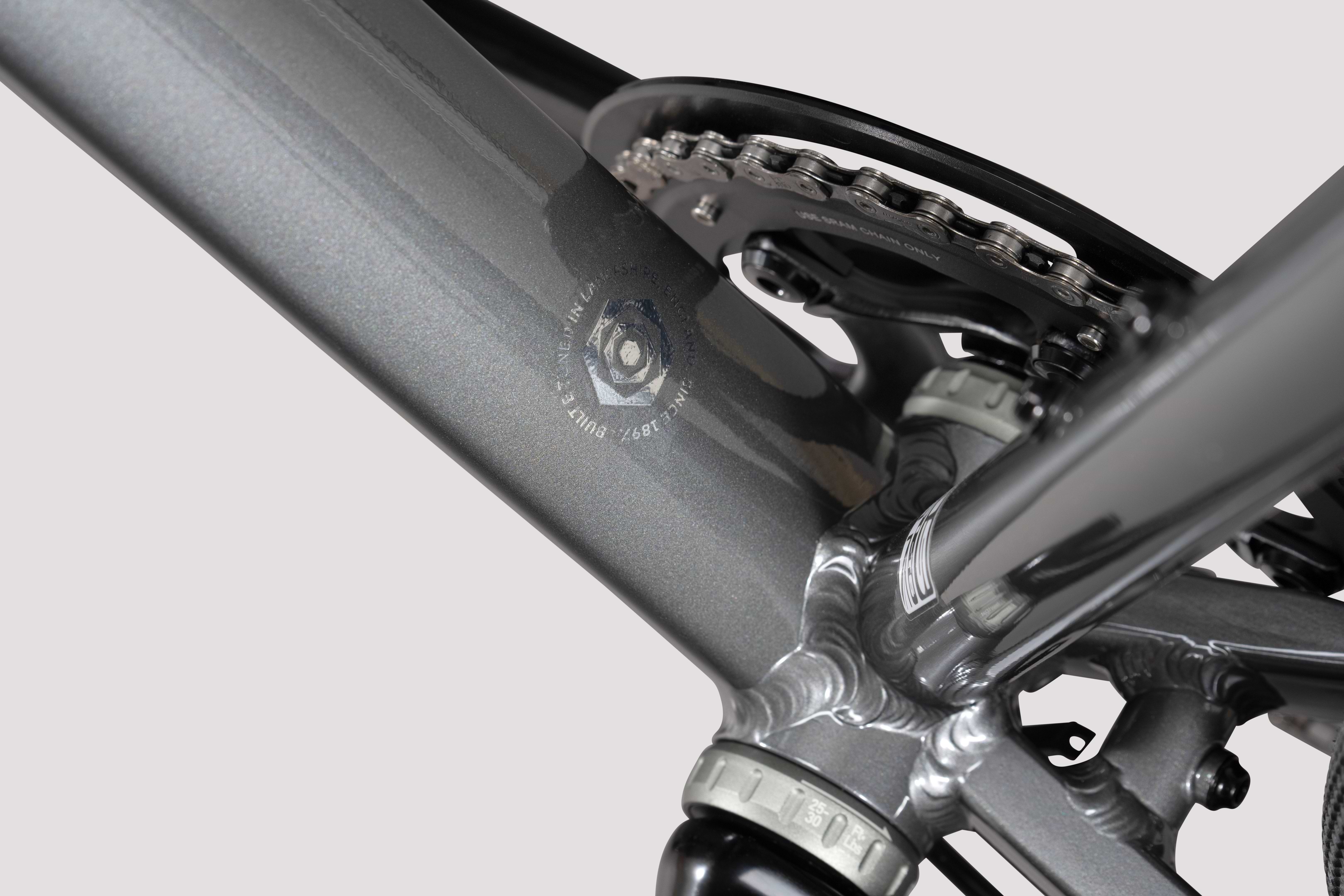

The carefully designed frame with built in stiffness for direct power transfer, sweet handling geometry and vibration absorbing comfort ensure road miles are covered with ease and the MTB originated 63mm travel suspension fork and hydraulic disc brakes provide controlled and confidence inspiring off-road performance. A Sram NX 1x drivetrain offers a wide range of gearing to enable the bike to handle any terrain with ease, multi-surface tyres and compatibility with mudguards and a rear pannier rack add to the versatility.

Custom Colour
Available

We create the bike, you decide the design. Be bold and bright or stealthy as you like. With millions of combinations, you can make a bike unique to you.

Just select customise after choosing your size.

Your Bike. Your Way
Size
Guide

To assist you in selecting the correct size simply find you height below. The graphic below illustrates our recommendations so you can be confident that the size you order will be correct.

Small
5' 4" - 5' 7"
163cm - 170cm
Medium
5' 7" - 5' 10"
170cm - 178cm
Large
5' 10" - 6' 1"
178cm - 185cm
X-Large
6' 1" - 6' 4"
185cm - 193cm
View Full Sizing & Geometry
Sizing &
Geometry
Ribble Hybrid Trail AL
Size S M L XL
Rider Height 5'4 - 5'7
163cm - 170cm
5'7 - 5'10
170cm - 178cm
5'10 - 6'1
178cm - 185cm
6'1 - 6'4
185cm - 193cm
Stack (mm) 566 584 603 622
Reach (mm) 379 401 411 432
G - Seat tube c/t (mm) 410 450 490 540
B - Top Tube horizontal (mm) 552 585 601 634
E - Head Tube (mm) 110 130 150 170
A - Seat Angle 73° 72.5° 72.5° 72°
C - Head Angle 71° 71° 71° 71°
RC - Rear Centre RC (mm) 436 436 436 436
FC - Front Centre FC (mm) 608 637 654 681
WB - Wheelbase (mm) 1038 1068 1085 1112
F - BB Drop (mm) 50 50 50 50
Full
Specification
Groupset
SRAM NX 1 x 11 Speed Hydraulic Disc.
Shifters - SRAM NX Trigger Shifters 11 Speed.

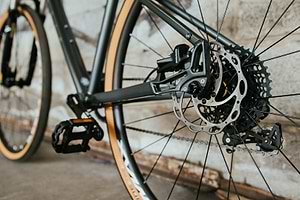

Brakes - SRAM Level Hydraulic Disc.
Chainset - SRAM NX GXP 1 x 11 Speed 32T.
Bottom Bracket - SRAM GXP Team BSA.
Cassette - SRAM PG-1130 11-42T.
Chain - SRAM PC1130 with Powerlock.
Rotors - Tektro Lyra CL 160mm.

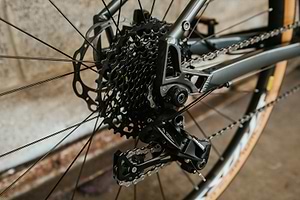

Rear Derailleur - SRAM NX 1 Long Cage.
Wheelset
Wheels - Mavic Crossmax 29, 12mm Bolt Thru-Axle.
Tyres - Schwalbe Marathon Plus 700x35c, Black/Reflex.
Frameset
Frame - 6061 T6 Heat-Treated Aluminium.

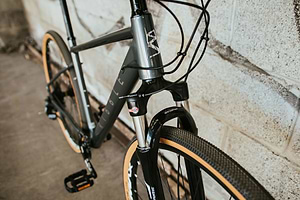

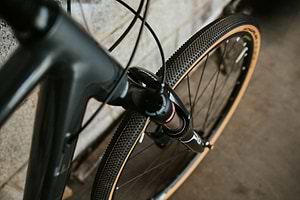

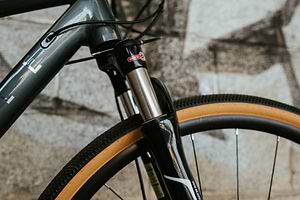

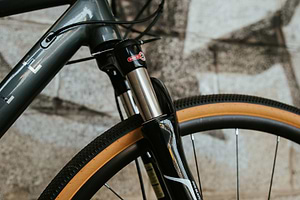

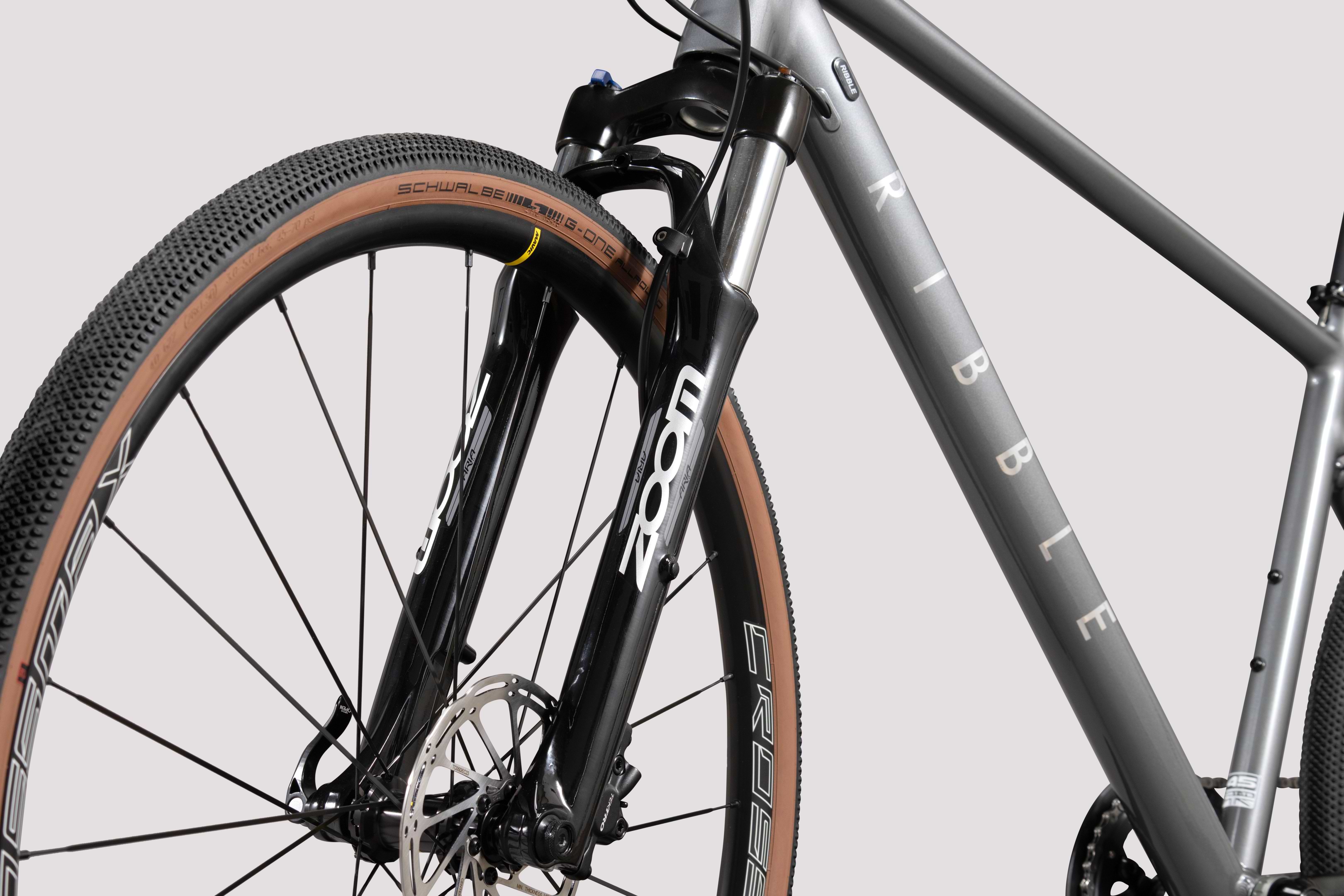

Forks - Suntour NCX D-DS-RL Air Fork, QR Axle.
Finishing Kit

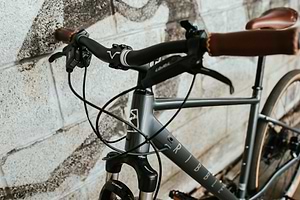

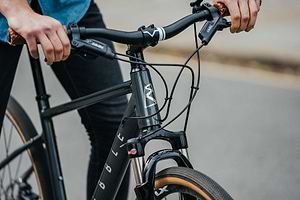

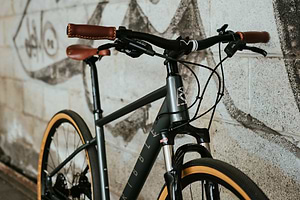

Bars - Level Urban 6061 Alloy, Black.

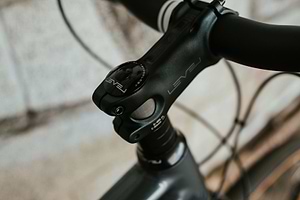

Stem - Level Gravel 6061 Alloy, Black.

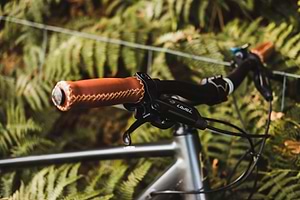

Grips - Level Rubberised, Black.
Seatpost - Level 1 6061 Alloy, 27.2mm, 350mm, Black.
Saddle - Prologo Kappa RS, Black.
From: US$976.84
This is a loan of US$1,172.21 with US$0.00 deposit.
Repayable by 36 monthly repayments of US$40.04.
Total amount repayable US$1,441.54.
14.9 APR representative.
Finance is subject to status. Terms and conditions apply.
Or from: US$40.04 a month
Finance
Calculator
US$
%
Total amount repayable . APR representative. Finance is subject to status. Terms and conditions apply.
Customer
Reviews
AMC
I really love my new hybrid bike, I was looking for a comfortable and lightweight bike that would get me from A to B on a variety of paths and trails and this does the job. The service from start to finish was excellent. I did visit the shop a number of times before deciding on the bike and each time I got useful advice. I was able to test the bike on the car park and this helped me decide on the correct size (it was in fact the size recommended online)
Frequently Asked
Questions
How much does the Hybrid Trail AL weigh?

The 6061 T6 Heat Treated Aluminium frame weighs 1680g and the Suntour NCX suspension forks 2.2kgs. A full build with Shimano Deore is approximately 12.5kgs.

What is the warranty on the frame?

The frame carries a 3 year warranty. All other parts have the standard manufacturer's warranty.

What is the tyre clearance?

There is clearance for tyres up to 45mm and 40mm with mudguards on the 700c wheels. Up to 47mm on the 650b wheels.

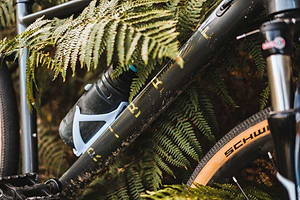

How many bottle cage mounts are there?

There are 2 bottle cage mounts.

What is the maximum rider weight?

We recommend a maximum rider weight of 120kgs.

Show more
Does it take mudguards?

Yes, there are discreet mounts for fitting mudguards.

What type of bottom bracket does the frame require?

The BB shell is a 68mm BSA threaded.

What size seatpost does the Hybrid Trail AL require?

The seatpost diameter is 27.2mm with a 30.0mm seat collar.

What type of front derailleur does the frame require?

The derailleur is a band on 31.8mm diameter.

Does it take a rack?

Yes, there are mountings for a rear pannier rack and luggage up to 20kgs can be carried with ease.

What brakes fit this frame?

The frame takes post mount disc brakes as do the forks .

Are the axles quick release or thru axle?

They are thru axles, 12x100 front and 12x142 rear.

Is the bike supplied with pedals?

Due to the many different systems people use we do not supply pedals with bikes but you can find a great array of pedals here.
