Description

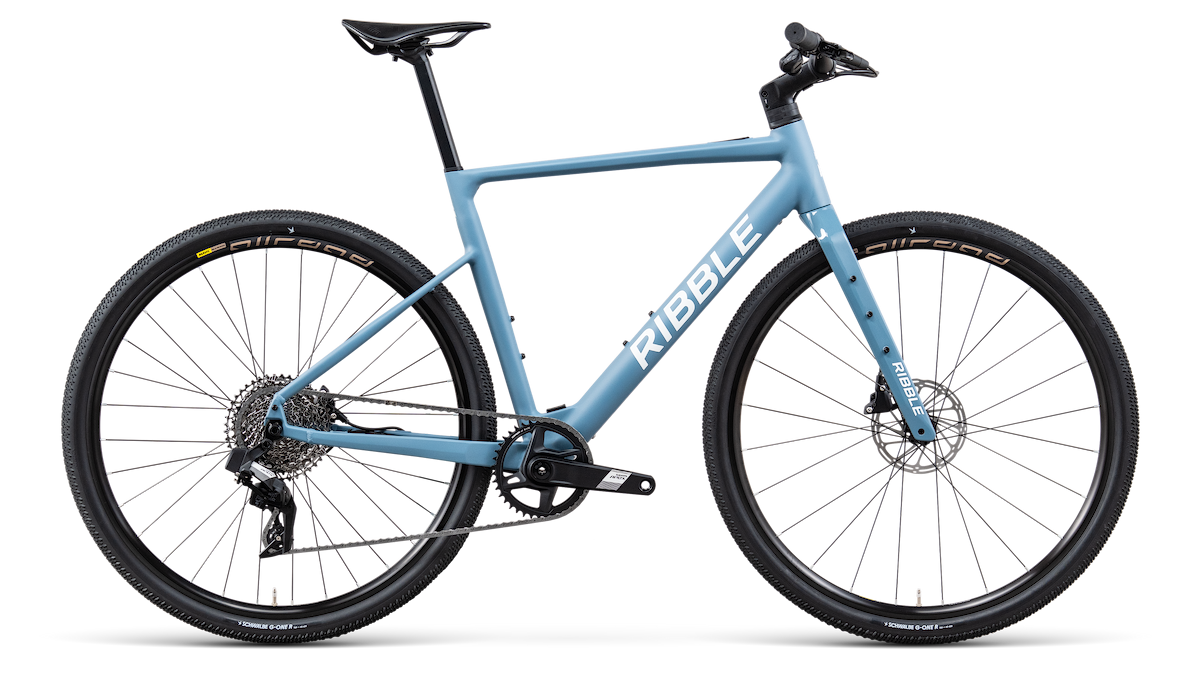

The ALLGRIT E AL SPORTFIT Apex XPLR AXS is a lightweight 13.8 kg aluminium e-gravel bike that seamlessly combines everyday gravel performance with smooth, on-demand electric assistance for everyday adventure. It features a 7005 aluminium frame and an upright, flat-bar position, boosting comfort, confidence and control across rough terrain. The wide gear range of SRAM's Apex XPLR AXS wireless electronic groupset, Mavic Allroad wheels, 45 mm Schwalbe G-One tyres, and a Selle Italia Model X saddle complete this versatile, go-anywhere machine.

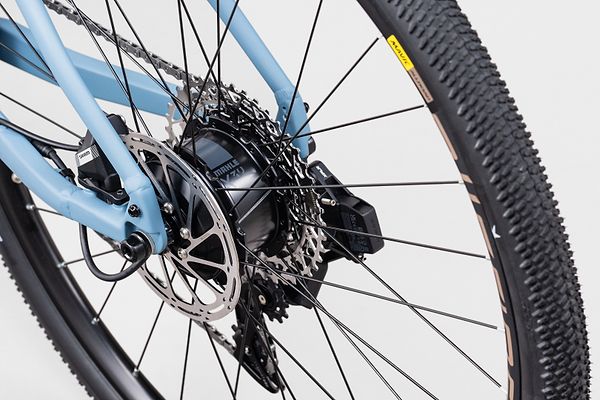

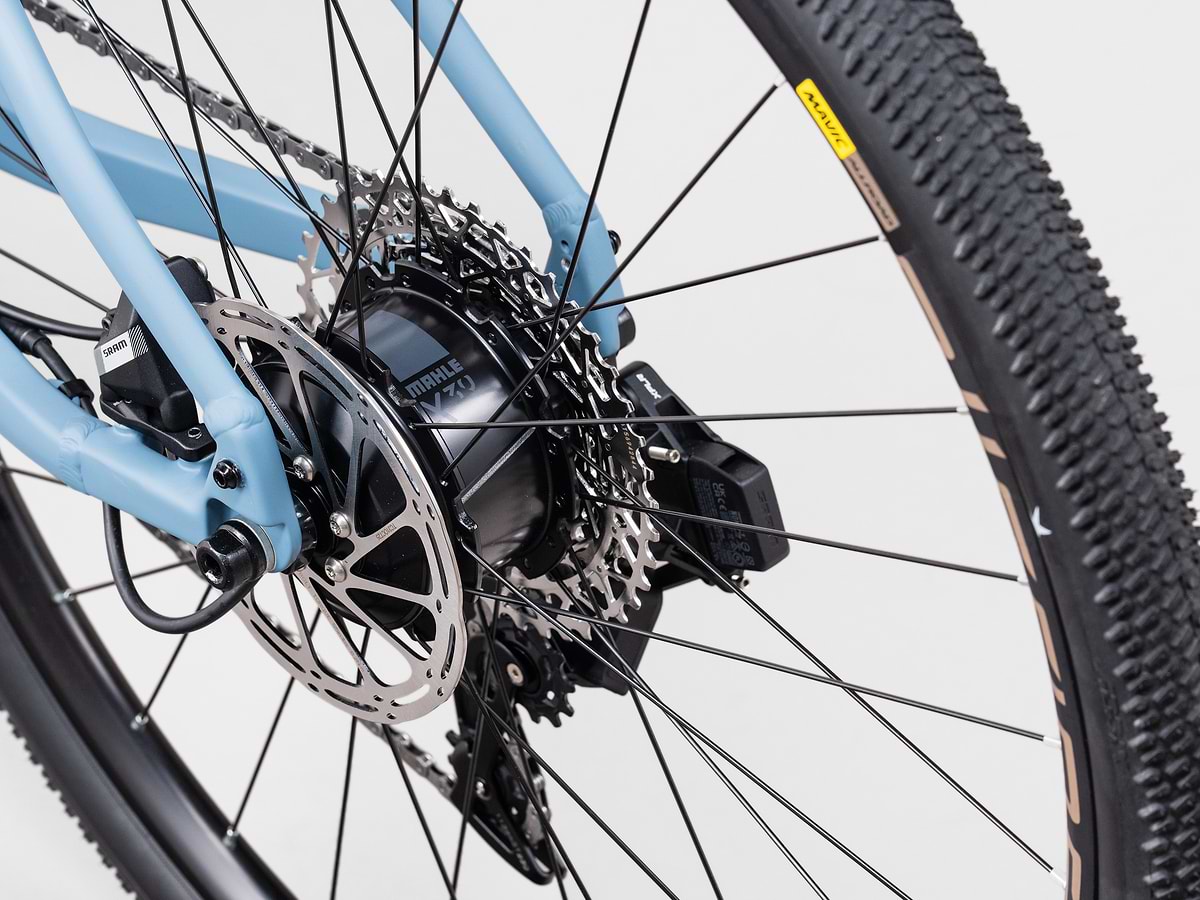

Electric Motor System
The MAHLE X30 e-drive system delivers just the right level of assistance. Light, quiet and so seamlessly integrated, it fades into the background. Designed for mixed-terrain exploration, it offers a natural ride feel, an impressive 90 km range on a single charge and low-maintenance performance. The intuitive Duo handlebar remote puts unmatched command of your ride at your fingertips, while over-the-air updates and a lighter overall system make it as easy to live with as it is to ride.

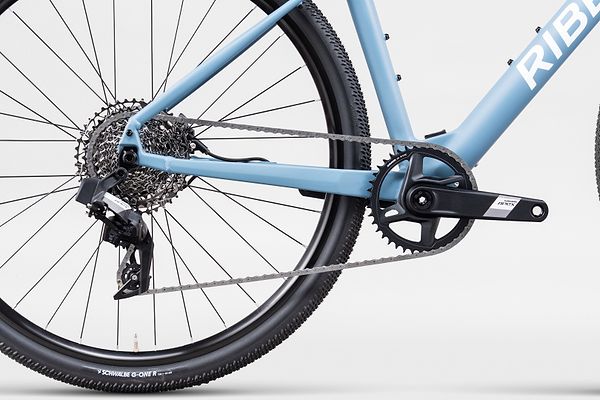

Groupset
Apex XPLR AXS is built for riders who want one setup that can handle anything from gravel adventures to everyday miles. The simple 1×12 gearing gives you plenty of range, while wireless shifting stays smooth and consistent when the surface turns rough. Braking feels calm and controlled, and the drivetrain remains quiet even when the ride gets bumpy. You can check battery life and fine-tune settings from your phone, but once it’s set up, it fades into the background so you can simply focus on the ride.

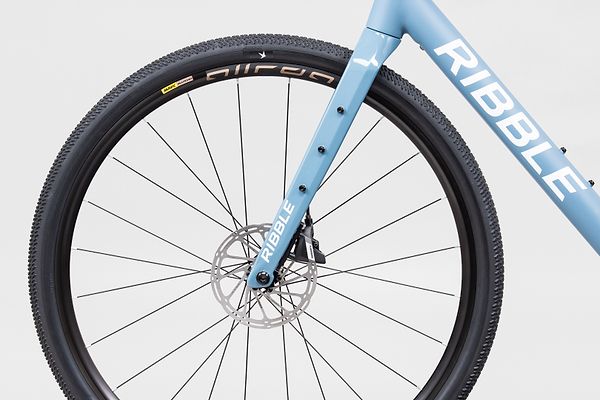

Wheelset
Designed to feel smooth and easy to ride on roads, gravel tracks and dirt paths, this flat bar e-gravel setup gives you confident control wherever you go. Rugged Mavic Allroad wheels keep the ride responsive, while the MAHLE X30 motor adds a natural boost when you need it. Paired with 45 mm Schwalbe G-One R Performance tyres, it rolls quickly on tarmac and stays stable and grippy when the surface turns rough.

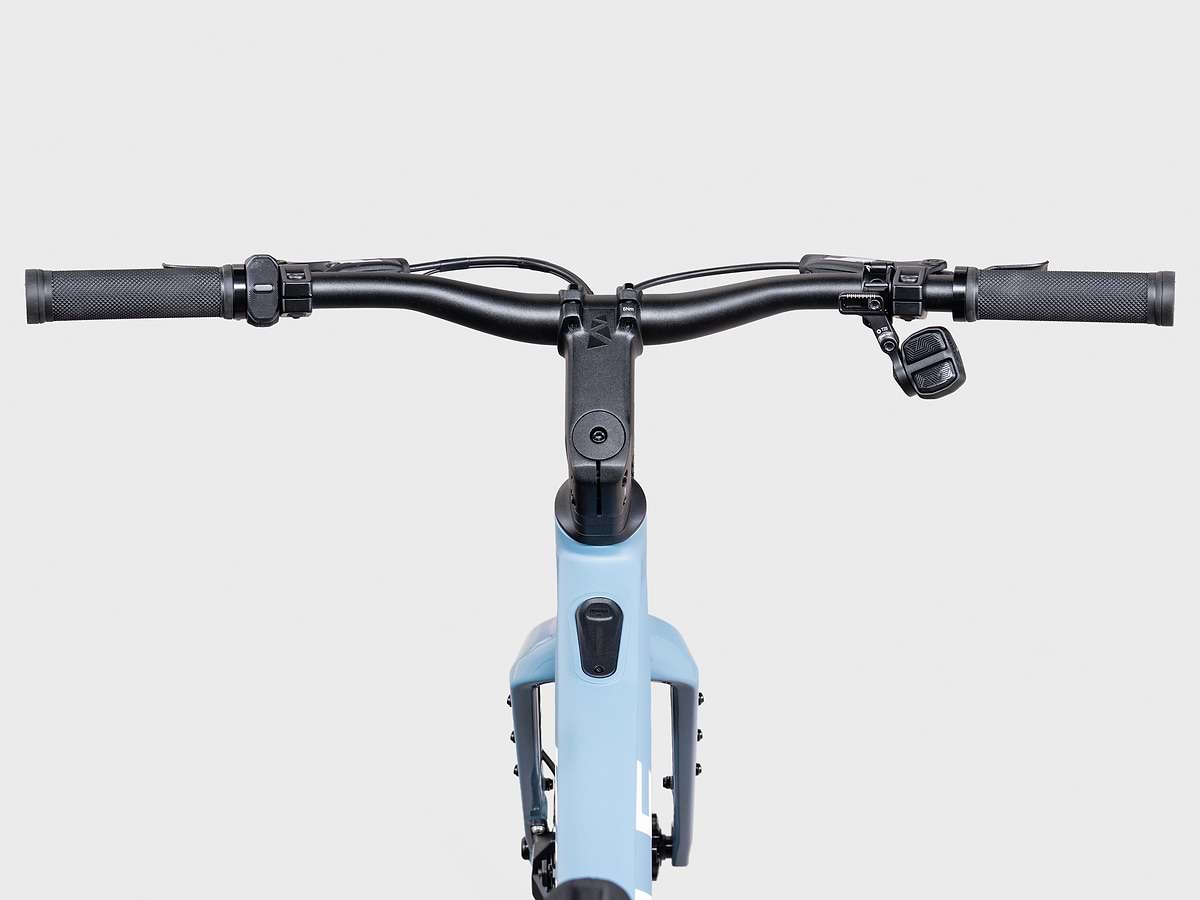

Handlebars
Flat bars put you in a relaxed, upright position for better visibility and confident control across varied terrain. The Duo handlebar control unit lets you effortlessly adjust assistance levels without taking your hands off the bars, keeping you fully focused on the ride. Ergonomic grips enhance long-ride comfort, while the lightweight Ribble alloy stem ensures responsive, stable handling on back lanes, gravel and everything in between.

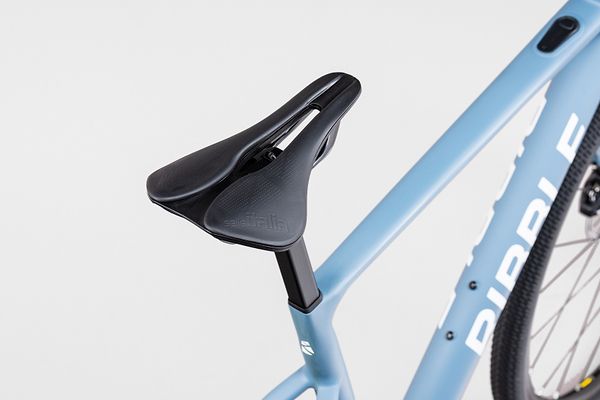

Saddle
The integrated seat clamp works with our D-shaped alloy seatpost and Selle Italia Model X saddle to take the sting out of rough surfaces. Together they smooth out trail buzz and help you stay comfortable and settled when the miles start to add up.
Suspension Fork Upgrade
When the gravel gets rough and the terrain turns technical, the RockShox Rudy Ultimate fork smooths out the ride. Available as an upgrade on the Ribble ALLGRIT E AL SPORTFIT, this premium suspension fork is purpose-built for gravel racing, delivering up to 30mm of travel for added comfort, control and confidence. Whether you're carving through corners or charging down loose descents, Rudy’s refined damping and lightweight design help you stay fast, focused and fully in command.
To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.
For more information on why choosing the right bike size is important, please visit our Bike Sizing page, or learn more about Bike Fitting.
5'3 - 5'7
159 - 169cm
5'6 - 5'9
167 - 176cm
5'9 - 5'11
174 - 181cm
5'10 - 6'1
179 - 186cm
6'0 - 6'4
184 - 193cm
Full Spec
Please note that the exact specification below will differ based on the size and specification you select.
Bike
- Active Charger 4A
- Active Charging Point 6 Pin
- Allgrit E AL Frame Blue XSM 47cm
- Alloy Riser Flat Bar Black 66cm
- Alloy Riser Stem 90mm
- Apex 1 DUB Wide Crankset 165mm 40T
- Apex Flattop 12spd Chain 120 Links
- Apex XPLR AXS Rear Derailleur
- C-Clips For Brake Hose Black
- Centreline Rotor 6-Bolt Steel Bolts 160mm
- Chainstay Protector
- Charger Wire For UK
- Compression Bushing Fits Stealth-a-Majig System AL
- D-Shaped Alloy Seatpost - 350mm
- D-Shaped Rubber Seat Clamp Cover
- DB-S300-A1 Brake Lever & Caliper LH 1900mm
- DB-S300-A1 Brake Lever & Caliper RH 950mm
- Disc Caliper Bolt Black 22mm
- Duo Remote Handlebar Mounted Power Button - 750mm
- E AL Bottom Bracket Cover
- E AL Rear Derailleur Hanger
- EC-AXS-POD-D1 AXS Pod Controller RH
- Headset Bearing Cover for Urban Riser Stem
- IWOC One Head Unit - Std
- M3 12mm T10 Countersunk P0.5 Black
- M3 6mm Hex 2 Countersunk Black
- M4 12mm Hex 2.5 Countersunk P0.7 Black
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 8mm Hex 4 Tapered Head P0.8 W/Washer Black
- M5 T Bolts E-Bikes 8mm Rear Rotor Battery Fitment
- MY25 Ti/AL Seatpost Wedge Kit
- Needle Insert Fits Stealth-a-Majig System SS
- PG1231 XPLR Cassette HG 11-44T
- Plastic Compression Spider 42mm 0.0mm Offset
- Plastic Shield
- Powerpack 1 Battery & Charger (cable not included)
- Rubberised Bar Grips Black
- SRAM DUB Wide Adapter Set for PF46-30 (6 PCS)
- Short Door - Ti Alloy - Blank
- Starter Kit Black One Size
- Thru Axle Lever
- Urban Riser Stem Spacer - 10mm
- Urban Riser Stem Spacer - 15mm
- Warning sticker sheet Torques to be applied at PDI
- X20 TCS PF46-30 Bottom Bracket
- X20-30 Quick Guide
- X30 Axle Lock Nut
- X30 Axle Washer Nut
- X30 Motor Wire Connection
- X30 iX2+ Battery Pack
Fork
- Allgrit E AL Carbon Fork Blue
- Expander For Carb Steerer 1-1/8 x 65mm (Regular)
- M5 12mm Hex 4 Tapered Head P0.8 W/Washer Black
- MY24/25 Front Thru Axle
- R457B Headset Bearing
Wheelset
- Allroad Disc Front Wheel 700c 6B 12mm TL
- Allroad Mahle X30 6-Bolt Rear HG
- G-One R Performance RaceGuard TLR Tyre BLK 700x45mm
- Inner Tube SV17 700x28/47 Presta 40mm
Saddle
- Selle Italia Model X Light FeC Saddle
FAQs
If you're between sizes, we usually recommend going smaller. It's easier to tweak the fit with a longer stem or more seat post, while a bigger frame gives you less room to adjust.
Build weights are provided for a medium‑sized frame and are intended solely as general guidance. Actual weight will vary based on the selected components and accessories, as well as standard manufacturing tolerances. These figures do not constitute a guarantee or warranty of final product weight, and we may occasionally make minor modifications to specifications without prior notice.
- Apex XPLR AXS build: 13.9 kg (carbon forks) / 14.6 kg (RockShox Rudy Ultimate)
- Apex XPLR build: 13.8 kg (carbon forks) / 14.5 kg (RockShox Rudy Ultimate)
- SPORTFIT: 13.8 kg (carbon forks) / 14.5 kg (RockShox Rudy Ultimate)
- Frame only (medium): 2.0 kg in a raw finish
Like all Ribble bikes, the ALLGRIT E AL SPORTFIT comes with a lifetime frame and fork warranty for the original owner. This covers any manufacturing defects in materials or workmanship. All other components, including third-party suspension forks, are covered by the standard manufacturer’s warranty.
Yes. The ALLGRIT E AL SPORTFIT is available with the optional RockShox Rudy suspension fork. This upgrade enhances comfort and control on rougher gravel trails, allowing you to stay fast and confident when the terrain becomes technical.
Range for the ALLGRIT E AL depends on rider weight, terrain, tyre pressures, and temperature. Typically, a 90 kg rider on mixed routes can expect up to 90 km, with an optional eX1 range extender increasing this by up to 60 km.
Yes. The ALLGRIT E AL SPORTFIT is pedal-assisted, so it always requires rider input. Stop pedalling and it coasts to a stop. Just like a regular bike.
Absolutely. The motor only provides assistance when you pedal. You’re always in full control of speed and handling.
No. You don’t need a licence, tax or insurance to ride pedal-assisted electric bikes in the UK. That said, we always recommend having some form of bike insurance.
Yes, the ALLGRIT E AL SPORTFIT is eligible for Cycle to Work.
The Duo handlebar remote lets you adjust assistance levels with a single press, providing effortless, intuitive control at your fingertips. Assistance levels are shown as follows:
- White: off
- Green: minimum
- Orange: medium
- Purple: maximum
- Cyan: smart assist via app

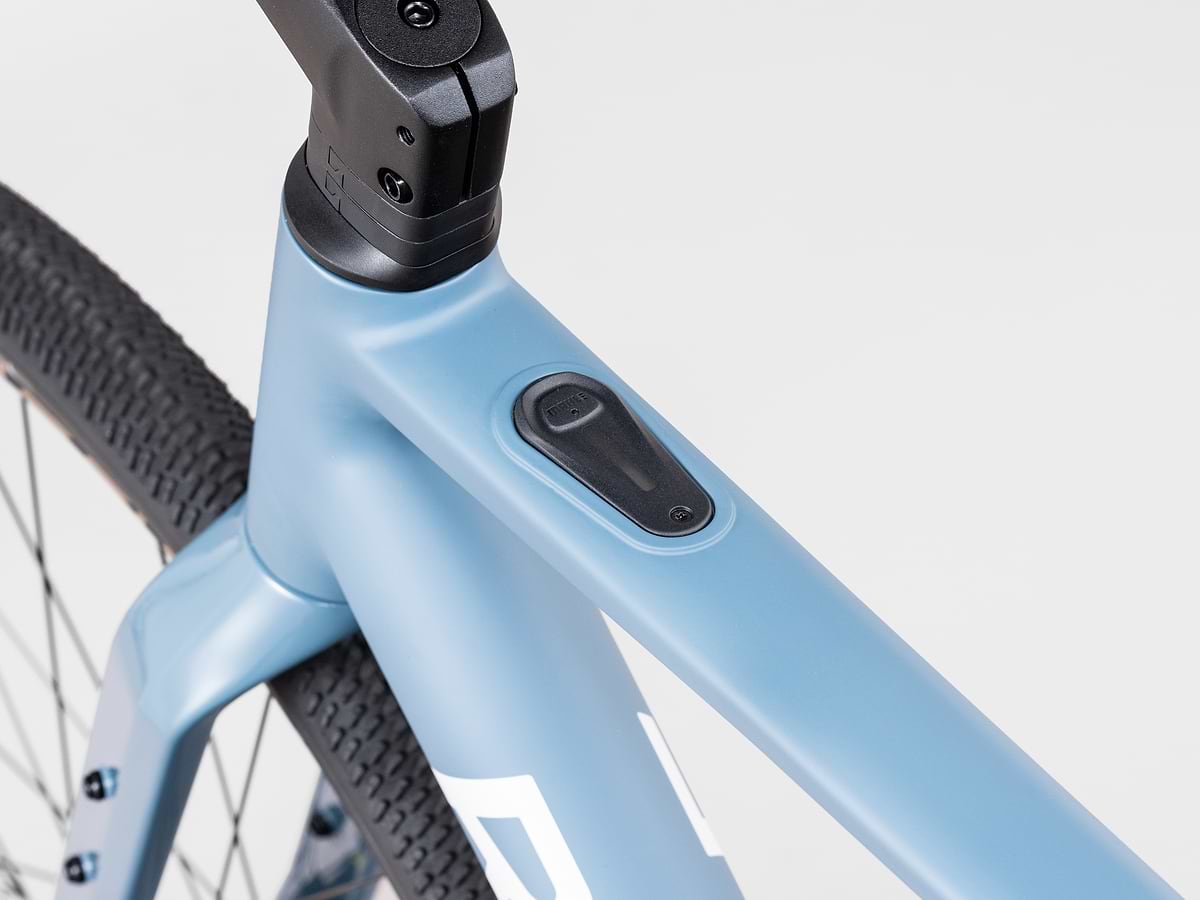

The ALLGRIT E AL’s X30 control unit shows battery charge with seven LEDs.
- Fully lit = 94–100%
- Fewer lights = lower charge
- Slow blinking = 0–10%
- Fast blinking = critically low
Just plug into any standard socket using the supplied charger. The optional range extender can also be used to charge the main battery on the go.
Yes, you can test ride the ALLGRIT E AL at our Clitheroe Showroom. Contact the showroom in advance to reserve your test bike.
Yes. The ALLGRIT E AL SPORTFIT’s electrical components are IP54 rated for splash protection but should not be jet washed or fully immersed. Use a waterproof cover when transporting in wet conditions.
Yes. A MAHLE-certified technician can remove the battery by taking off the press-fit bottom bracket via the bottom bracket shell.
The ALLGRIT E AL SPORTFIT's iX2 battery is designed to handle around 500 full charge cycles with minimal degradation, provided it is stored and maintained correctly.
Yes. The ALLGRIT E AL features integrated cable routing for a clean look and protection from the elements.
The ALLGRIT E AL SPORTFIT comes with 40mm tyres as standard and can take up to 50mm, or 45mm with mudguards. The front forks will also accept a 29 x 2.1" (700x53c) mountain bike tyre.
Yes. The ALLGRIT E AL can be fitted with a rear pannier rack using our pannier rack adaptor kit, boosting carrying capacity by up to 15 kg (sold separately).
No, it is not approved for use with child safety seats.
Yes. A removable mudguard bridge makes fitting mudguards easy (kit sold separately). We also offer a combined mudguard and rack adaptor kit for anyone looking to fit both.

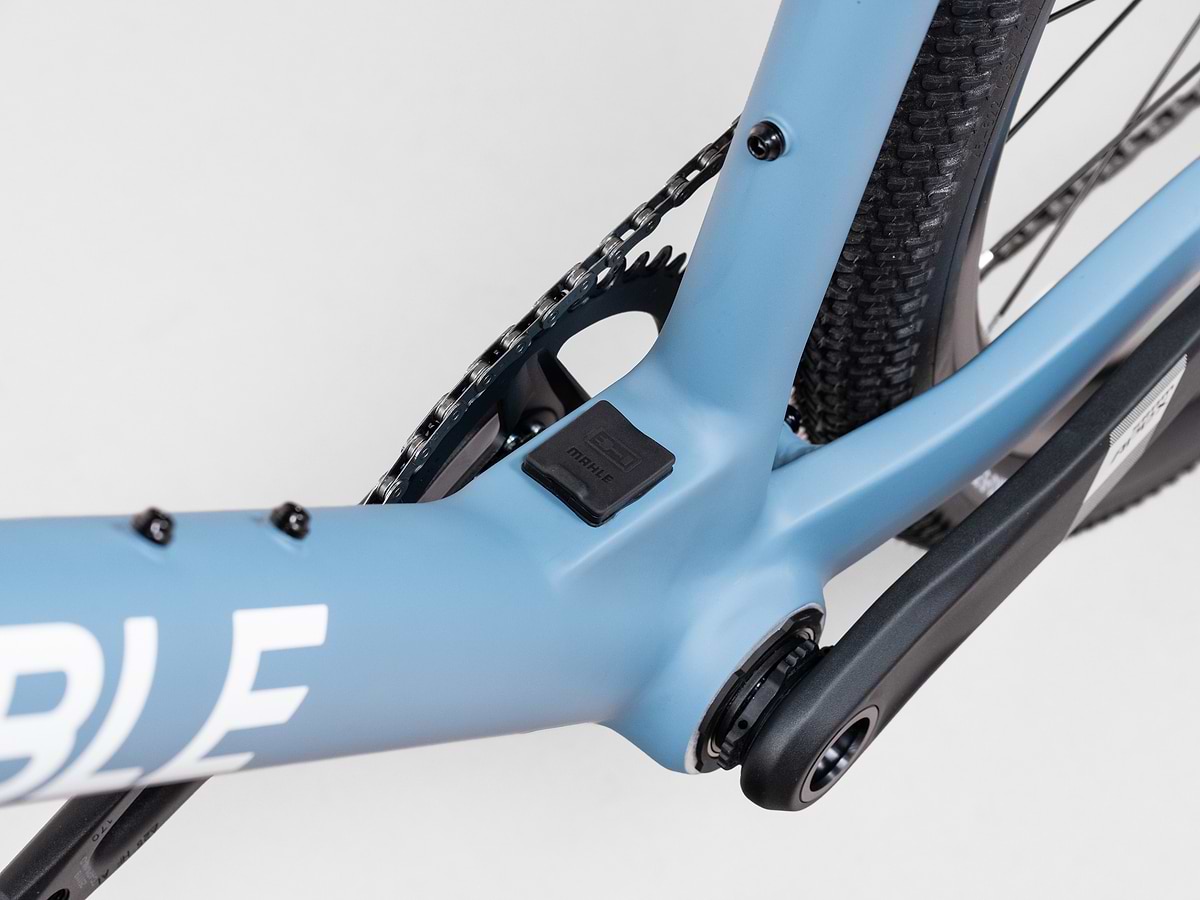

The frame uses a Mahle-specific press-fit PF46 bottom bracket with an integrated torque sensor.
It features a 1.5” integrated headset with R457B 52 x 42 x 7 mm 45° x 45° bearings.
The ALLGRIT E AL uses a proprietary D-shaped alloy seatpost with 10 mm setback, and compatible with carbon or alloy saddle rails.
Two: one on the downtube and one on the seat tube, positioned to work with Ribble aero bottle cages.
The ALLGRIT E AL SPORTFIT has full frame mounts including rear rack, top tube, downtube, and carryall mounts on the forks.
Yes, the ALLGRIT E AL accepts 34.9 mm front derailleurs and 2x compact road chainsets (34/50T), though it comes standard with a 1x drivetrain.
The ALLGRIT E AL uses the following axles:
- Front: M12 x 1.5 mm x 123mm
- Rear: Bolt-on
It features a proprietary derailleur hanger designed specifically for the MAHLE e-system, ensuring perfect alignment. ribble-allroad-allgrit-cgr-e-al-rear-mech-hanger
The ALLGRIT E AL SPORTFIT supports a total system weight of 120 kg including rider, bike, and luggage.
The ALLGRIT E AL SPORTFIT is designed for the latest flat-mount disc brakes.
Yes, the bike comes with a set of flat platform pedals for general use.
