Re-define your limits
Ribble CGR AL e
E-BIKE
The CGR AL e (Cross/Gravel/Road) combines our on or off-road, a versatile all-rounder with our market-leading e-bike technology.

Don’t want to build your own? No problem. Below are the most popular builds with other riders, ready to ride or change as you like.

- Shimano Tiagra 4700 2x10 Speed.
- Shmano 50-34T x 11-32T Gearing.
- Tektro Mechanical Disc Brakeset.
- Mavic Aksium Elite Evo UST Wheelset.
- Continental Ultra Sport III 28mm Tyres.
- LEVEL 1 6061 Alloy Handlebar & Stem.
- LEVEL 1 6061 Alloy Seatpost.
- Prologo Kappa RS Saddle.
Repayable by 36 monthly repayments of US$110.85.
Total amount repayable US$3,990.74.
14.9 APR representative.

- Shimano Tiagra 4700 2x10 Speed.
- Shmano 34-50T x 11-32T Gearing.
- Tektro Mechanical Disc Brakeset.
- Mavic Aksium Elite Evo UST Wheelset.
- Continental Ultra Sport III 28mm Tyres.
- LEVEL 1 6061 Alloy Handlebar & Stem.
- LEVEL 1 6061 Alloy Seatpost.
- Prologo Kappa RS Saddle.
Repayable by 36 monthly repayments of US$110.85.
Total amount repayable US$3,990.74.
14.9 APR representative.

- SRAM Apex 1 HRD 1x11 Speed.
- SRAM 42T x 11-42T Gearing.
- SRAM Apex Hydraulic Disc Brakeset.
- Level 650-e Alloy Disc Wheelset.
- WTB Horizon Road Plus 47mm Tyres.
- LEVEL 1 6061 Alloy Handlebar & Stem.
- LEVEL 1 6061 Alloy Seatpost.
- Prologo Kappa RS Saddle.
Repayable by 36 monthly repayments of US$120.09.
Total amount repayable US$4,323.34.
14.9 APR representative.

- SRAM Apex 1 HRD 1x11 Speed.
- SRAM 42T x 11-42T Gearing.
- SRAM Apex Hydraulic Disc Brakeset.
- Level 650-e Alloy Disc Wheelset.
- WTB Horizon Road Plus 47mm Tyres.
- LEVEL 1 6061 Alloy Handlebar & Stem.
- LEVEL 1 6061 Alloy Seatpost.
- Prologo Kappa RS Saddle.
Repayable by 36 monthly repayments of US$120.09.
Total amount repayable US$4,323.34.
14.9 APR representative.

- Shimano 105 R7000 2x11 Speed.
- Shmano 105 50-34T x 11-32T.
- Shimano 105 Hydraulic Disc Brakeset.
- Mavic Aksium Elite Evo UST Wheelset.
- Continental Ultra Sport III 28mm Tyres.
- LEVEL 1 6061 Alloy Handlebar & Stem.
- LEVEL 1 6061 Alloy Seatpost.
- Prologo Kappa RS Saddle.
Repayable by 36 monthly repayments of US$124.72.
Total amount repayable US$4,489.88.
14.9 APR representative.

- Shimano 105 R7000 2x11 Speed.
- Shmano 105 50-34T x 11-32T Gearing.
- Shimano 105 Hydraulic Disc Brakeset.
- Mavic Aksium Elite Evo UST Wheelset.
- Continental Ultra Sport III 28mm Tyres.
- LEVEL 1 6061 Alloy Handlebar & Stem.
- LEVEL 1 6061 Alloy Seatpost.
- Prologo Kappa RS Saddle.
Repayable by 36 monthly repayments of US$124.72.
Total amount repayable US$4,489.88.
14.9 APR representative.

- Shimano Ultegra R8000 2x11 Speed.
- Shmano Ultegra 50-34T x 11-32T Gearing.
- Shimano Ultegra Hydraulic Disc Brakeset.
- Mavic Aksium Elite Evo UST Wheelset.
- Schwalbe G-One Tubeless-Ready 40mm Tyres.
- LEVEL 1 6061 Alloy Handlebar & Stem.
- LEVEL 1 6061 Alloy Seatpost.
- Prologo Kappa RS Saddle.
Repayable by 36 monthly repayments of US$138.58.
Total amount repayable US$4,989.03.
14.9 APR representative.

- Shimano Ultegra R8000 2x11 Speed.
- Shimano Ultegra 50-34T x 11-32T Gearing.
- Shimano Ultegra Hydraulic Disc Brakeset.
- Mavic Aksium Elite Evo Disc Wheelset.
- Schwalbe G-One Tubeless-Ready 40mm Tyres.
- LEVEL 1 6061 Alloy Handlebar & Stem.
- LEVEL 1 6061 Alloy Seatpost.
- Prologo Kappa RS Saddle.
Repayable by 36 monthly repayments of US$138.58.
Total amount repayable US$4,989.03.
14.9 APR representative.
The CGR AL e (Cross/Gravel/Road) combines our on or off-road, versatile all-rounder with our market leading e-bike technology. This offers super stealth smooth and controlled power assistance with power settings..

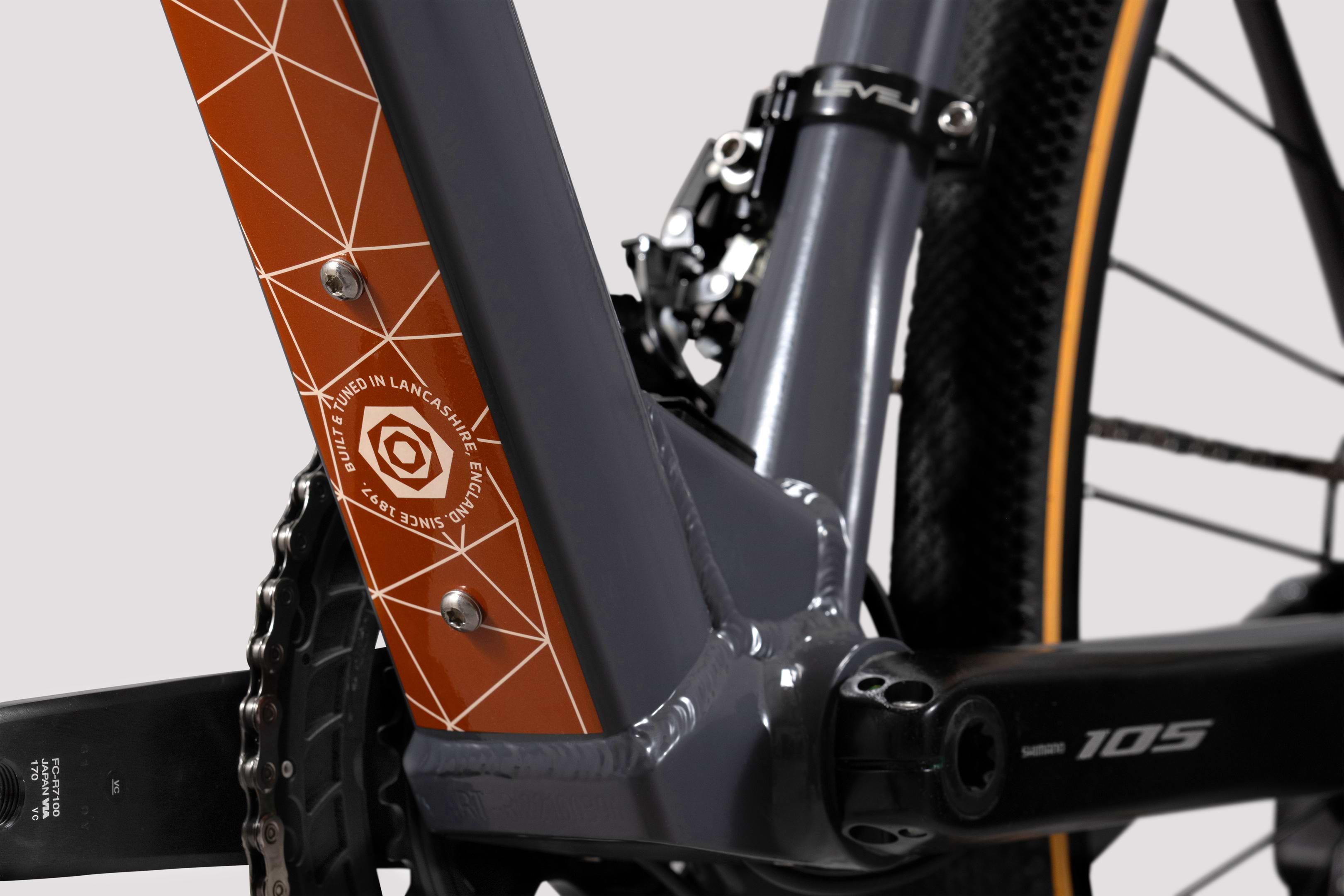

Carefully designed tube profiles and geometry provide stability, controlled handling and comfort over multiple terrains. The sleek and lightweight battery is completely hidden within the frames downtube, giving the appearance of a traditional bicycle frame.

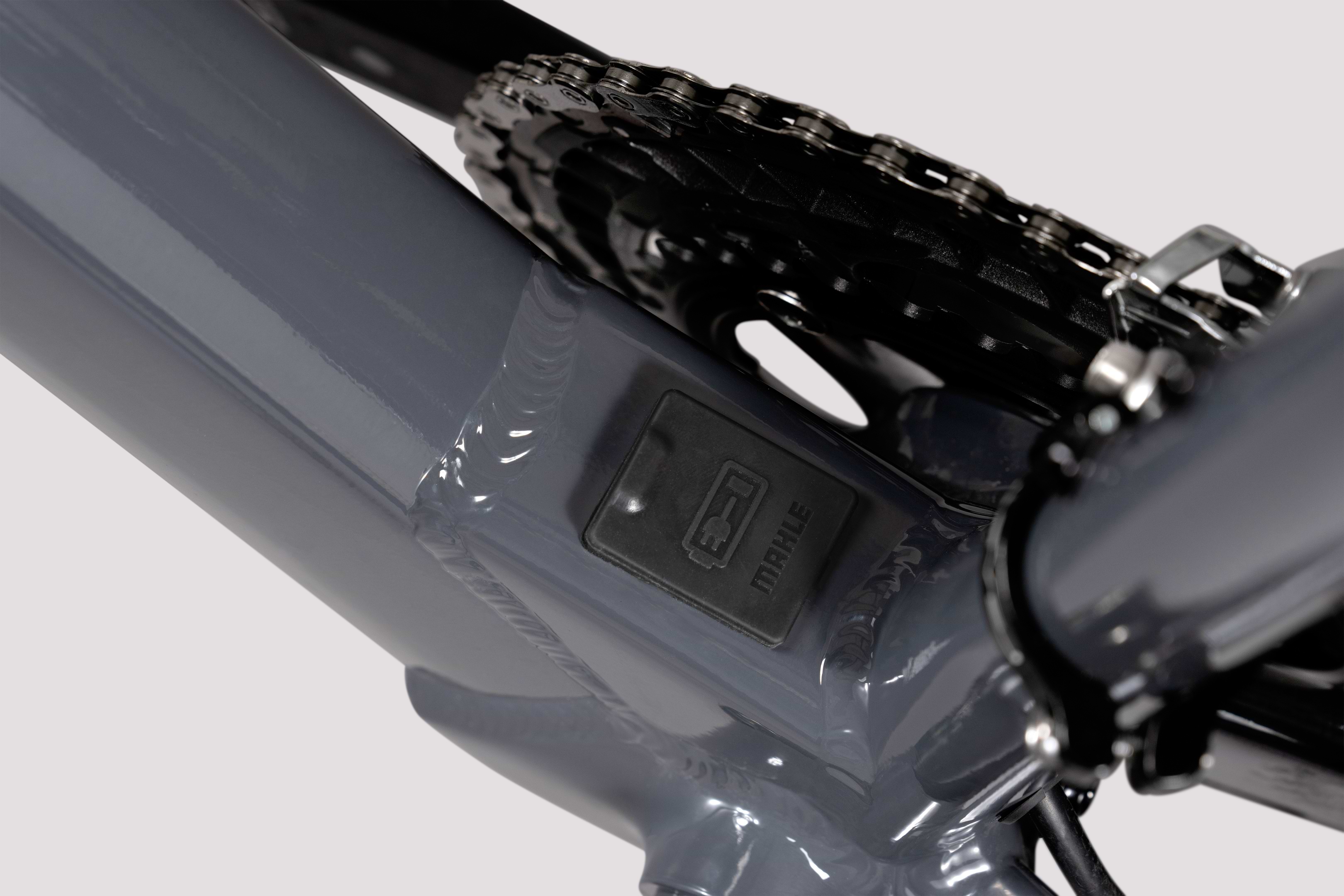

The lightweight hub-driven motor system provides smooth, reliable power assistance levels and near-zero drag in off mode, ensuring your ride feels as natural as a traditional bike. The slimline and lightweight Panasonic 36V/250Wh battery fits discreetly within the frame's downtube, reaches maximum capacity from fully depleted in just 3.5 hours and is capable of providing on average up to 60 miles of assistance over variable terrain

A choice of 700c or 650b wheelsets with a monster tyre clearance of 2”. Mudguards and rack mounts complete the versatility ensuring that this bike is as at home on the road as it is on the most adventurous of trails. No ride will ever be too much again. Re-define your limits and make it possible...


You decide the design, we create the bike. Be bold and bright or stealthy as you like. With millions of combinations, you can make a bike unique to you.
Just select customise after choosing your size.
To assist you in selecting the correct size simply find you height below. The graphic below illustrates our recommendations so you can be confident that the size you order will be correct.

Size | XS | S | M | L | XL |
Rider Height | 5'4 - 5'7 162 - 170cm |
5'7 - 5'9 170 - 175cm |
5'9 - 5'11 175 - 180cm |
5'11 - 6'1 180 - 185cm |
6'1 - 6'4 185 - 194cm |
A - Seat Angle | 74.5° | 74.0° | 73.5° | 73.0° | 72.5° |
B - Top Tube (mm) | 520 | 540 | 555 | 570 | 590 |
C - Head Angle | 70.5° | 71.0° | 71.5° | 72.0° | 72.0° |
D - Offset (mm) | 50 | 50 | 50 | 50 | 50 |
E - Head Tube(mm) | 140 | 150 | 170 | 190 | 200 |
F - BB Drop(mm) | 69 | 69 | 69 | 69 | 69 |
RC - Chainstay (mm) | 435 | 435 | 435 | 435 | 435 |
FC - Front Centre (mm) | 595 | 605 | 611 | 616 | 630 |
Stack (mm) | 556 | 568 | 589 | 610 | 620 |
Reach (mm) | 365 | 377 | 380 | 383 | 395 |
WB - Wheelbase (mm) | 1021.5 | 1031 | 1036.8 | 1041.8 | 1055 |
G - Seat Tube(mm) | 470 | 510 | 530 | 555 | 580 |
The Ribble CGR AL e is available to order on cycle to work schemes.
We accept all major cycle to work scheme vouchers.

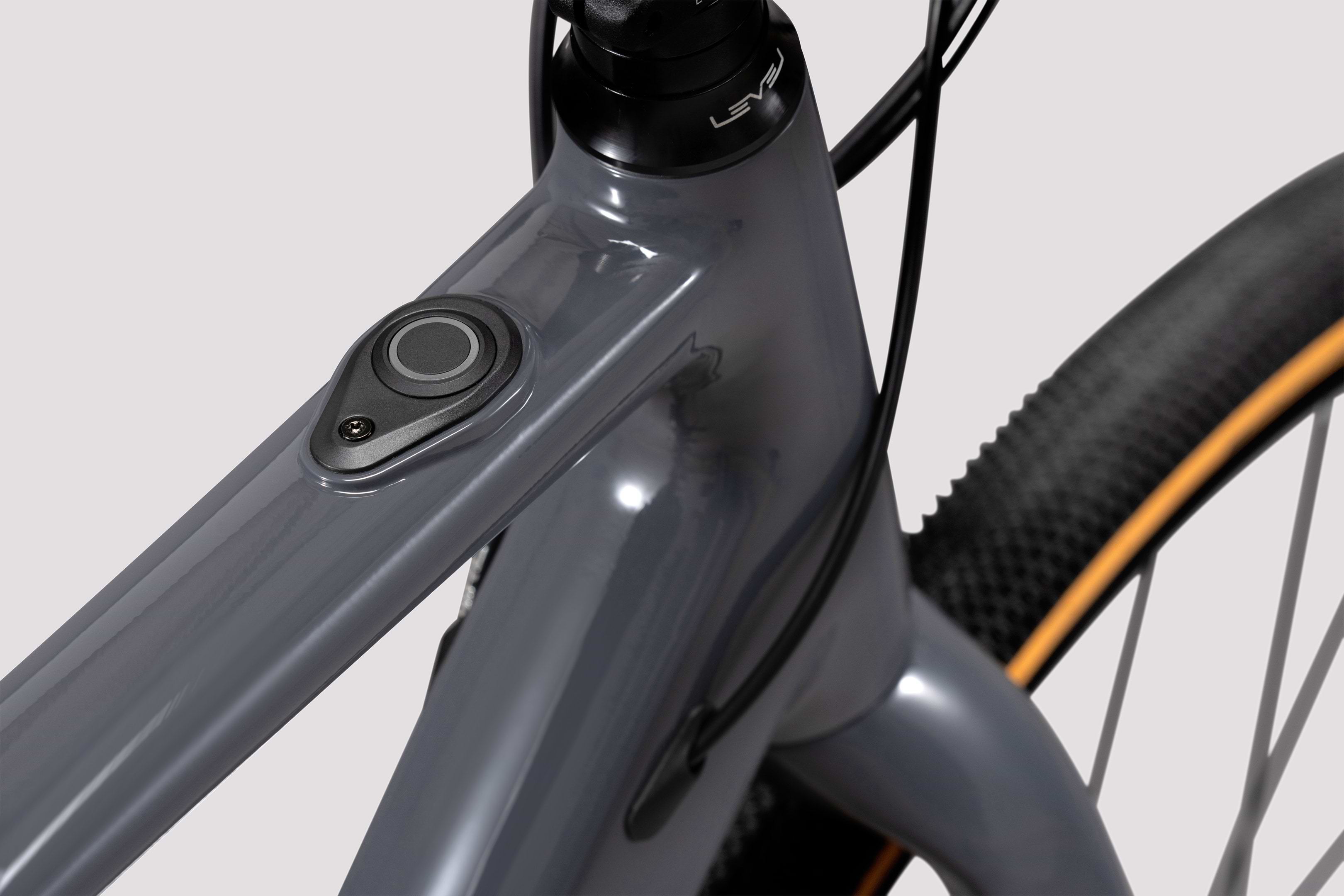

There is an easy to use button on the top tube that enables you to set the level of assist that you require and which also displays the battery charge remaining.
The button mounted on the top-tube indicates the remaining battery life at a glance using a simple colour-code. White= 75% capacity or more remaining, Green= 50-75%, Orange= 25-50%, Red= 15-25%, Slow Red Flash= 10-15% and Rapid Red Flash= 10% or less remaining. You can also keep track of the remaining battery life using the Ebikemotion companion app.
Yes, our e-bikes are pedal assisted models which require rider input at all times.
There’s no need to worry, being a pedal assisted model means you are in full control at all times. When a power assist level is selected the motor simply provides a little extra boost whilst you pedal and does not take over.
No, pedal assisted electric bikes do not require you to hold a valid driver’s licence, pay any form of road tax or take out insurance.
To charge the battery you simply plug the bike into a household socket using the supplied charger and cable. (The optional range extender can also charge the main battery whilst you are on the move).
The electric components used on our e-bikes are IP54 rated. They can be used in inclement weather conditions and are protected against splashing, but not against full immersion or when subjected to pressurised water from a hose pipe or jet wash. When transporting the bike on the outside of a vehicle a waterproof cover should be utilised to ensure the protection of the electronic components from water damage during such transportation. As with any bike, we recommend thoroughly cleaning and drying the bike after any wet weather ride to ensure the peak performance of your bike.
Yes, all ebikes can be purchased through all the major cycle to work scheme providers. The government have even abolished the £1000 limit making obtaining an ebike on cycle to work more beneficial than ever.
The ebikemotion X35 power assist system offers assistance up to 15mph, at which point (by law, as with all e bikes in the UK) the assistance cuts out. If you drop back below 15mph then they system will re-engage until such time as you turn the assistance off.
The battery range of the CGR AL e depends on a number of factors including rider weight, route profile and temperature. A rider of 90kg, on a varied route including climbs, descents and flats can expect an approximate range of up to 60 miles. An optional range extender is also available for all of our e-bikes, which effectively doubles the bikes available range.

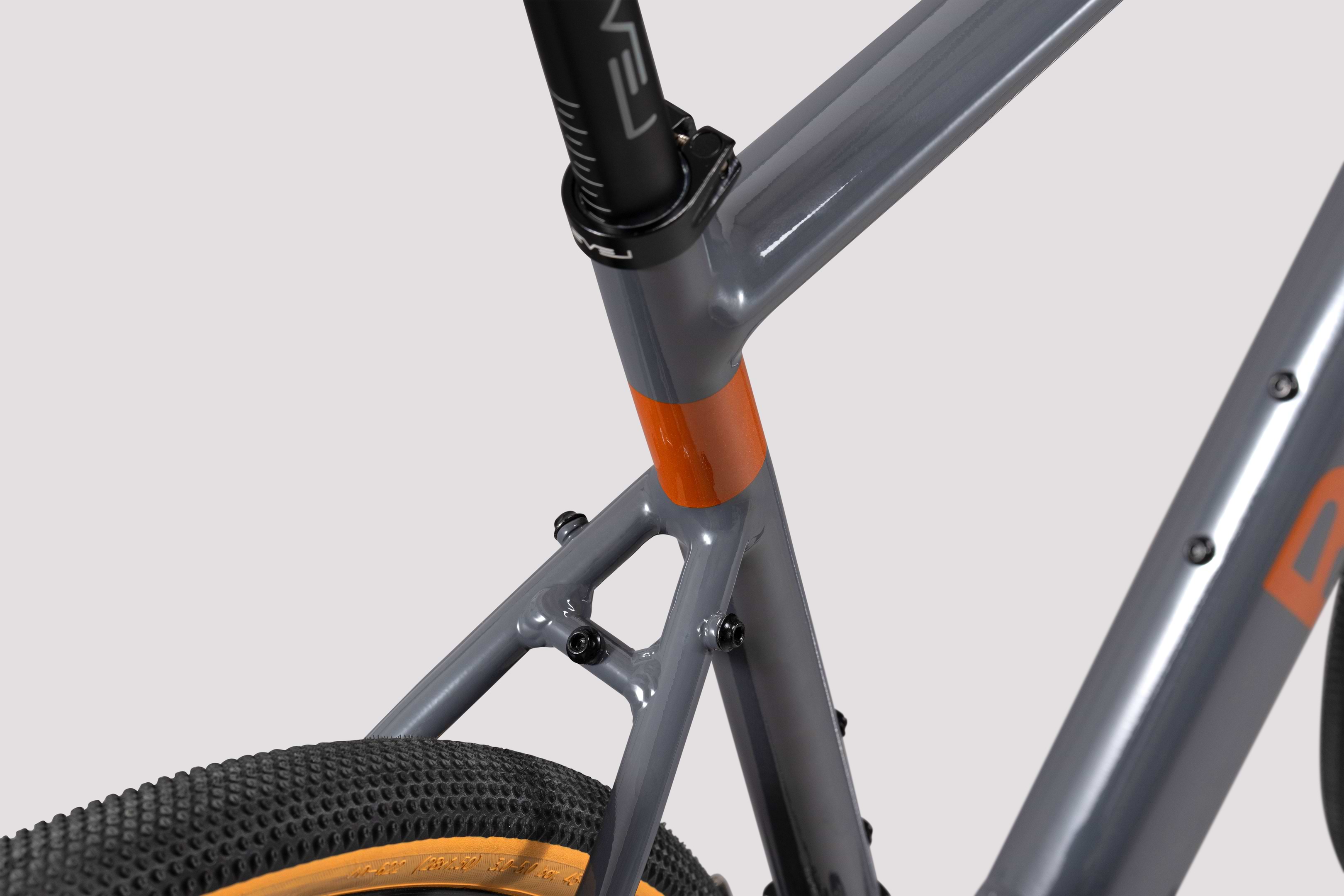

The CGR AL e has mounts for the fitting of a rear pannier rack.
There is clearance for tyres up to 45mm in width without mudguards or 40mm with guards fitted.
The ebikemotion system requires a bolt on fitting rear wheel, the front is a standard 12 x 100mm bolt thru axle.
No, we do not supply pedals with this bike, a selection of pedals are available to order with the bike.
With SRAM Apex 1x and in a size Medium it weighs in at approx 13.5kgs making it one of the lightest e bike ranges in the world. We also make the lightest e road bikes in the world.
Yes, the battery can be accessed through the bottom bracket. The press fit bottom bracket has to be removed first to facilitate this removal.
The battery can reach up to 500 charging cycles while still retaining up to 90% of its capacity as long as its care and maintenance are adequate. For maximum efficiency, it is important to maintain a battery charge of between 20-80% of its total capacity. Charging the battery to 100% capacity from fully depleted is one complete charging cycle. Similarly, topping up the battery from 80-100% five times amounts to one complete charging cycle. If you are not going to be using your bike for a period of time you should always ensure that it is stored in a dry environment (out of direct sunlight) with a charge level of between 40-50%. A full charge should also be carried out every 2 months. Take care not to leave the charger connected to the bike continuously, doing so could accelerate the degradation of battery life. Ideally, the charger should not be connected for more than 5 hours at a time. Use only the original Ebikemotion charger supplied with your bike.
Simply disconnect the cable to the rear wheel motor by unclipping the connector on the chainstay. Then, using an 8mm allen key to loosen the nuts on the rear axle, then reverse the process when the puncture has been repaired.
The frame has a 3-year warranty against manufacturing defects. All other parts are covered by the manufacturer's standard warranty. The Ebikemotion system is covered against manufacturing defects for a period of 2-years.

I opted for the ebikemotion system because I still wanted to put the work in with a little help up the hills and against the wind.
I must say, although early days, this bike is just the job. I'm now looking forward to getting back in the saddle, riding further and not like a limp lettuce on getting back.
I ordered everything online being so remote, and it was great to be able to spec your own build. Plenty of communication from ribble and a first class product at the end.

I shouldn't have been worried, what a bike. The electric assistance is up to you. You still work as hard as you need to and enjoy keeping up with the rest.
I'm 58yrs old, and now back riding and smiling without the pain in the back when riding the hills.
Highly commended and recommended, both the bike and customer service.
Thanks all.
Ebikemotion's smartphone app can help you keep track of all you need with journeys, locations, speeds, maps and much more.
Should you have a problem with the system and you have the app connected our experts can run remote diagnostics from wherever you are to help get you back on your journey.
Download the brochure and user guides to get started with the eBikeMotion system.
