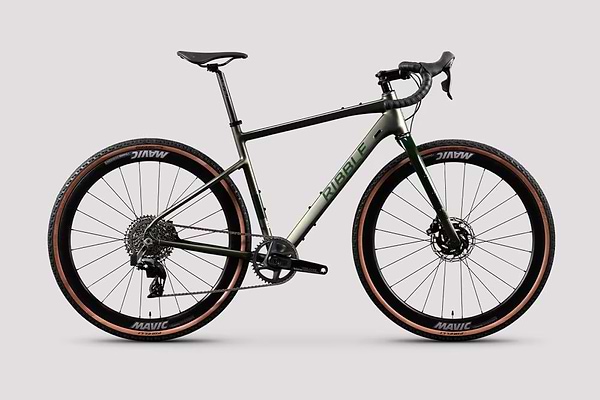

Ribble Gravel AL

Lightweight and robust, the Gravel AL is a fun-igniting drop-bar gravel machine with a go-anywhere attitude that's destined to conquer the toughest terrain.

Begin Building or
Choose a popular build
Satin Metallic Green
Build your own Ribble Gravel AL

Don’t want to build your own? No problem. Below are the most popular builds with other riders, ready to ride or change as you like.

Gravel AL - Sport Gravel AL - Sport
GRX 400
  • Gravel AL Aluminium Frame
  • Shimano GRX RX400 2x10 Speed
  • LEVEL Gravel Alloy 650b Wheels
From: US$1,850.18
This is a loan of US$2,220.21 with US$0.00 deposit.
Repayable by 36 monthly repayments of US$75.84.
Total amount repayable US$2,730.24.
14.9 APR representative.
Finance is subject to status. Terms and conditions apply.
Or from: US$75.84 a month
Learn More
Gravel AL - Enthusiast Gravel AL - Enthusiast
GRX 600
  • Gravel AL Aluminium Frame
  • Shimano GRX RX600 1x11-Speed
  • LEVEL Gravel Alloy 650b Wheels
From: US$2,197.30
This is a loan of US$2,636.76 with US$0.00 deposit.
Repayable by 36 monthly repayments of US$90.07.
Total amount repayable US$3,242.59.
14.9 APR representative.
Finance is subject to status. Terms and conditions apply.
Or from: US$90.07 a month
Learn More
Gravel AL - Pro Gravel AL - Pro
GRX 800
  • Gravel AL Aluminium Frame
  • Shimano GRX RX810 1x11 Speed
  • LEVEL Gravel Alloy 650b Wheels
From: US$2,775.84
This is a loan of US$3,331.01 with US$0.00 deposit.
Repayable by 36 monthly repayments of US$113.79.
Total amount repayable US$4,096.35.
14.9 APR representative.
Finance is subject to status. Terms and conditions apply.
Or from: US$113.79 a month
Learn More
GRAVEL
EVOLVED

The Gravel AL really explodes into life where the road ends and the off-road adventure begins. It's designed for a new breed of rider, one that thrives on pushing bike and body to the limit on a bike designed to conquer the most challenging gravel terrain. Delivering a ride that is fast, light and agile, it bursts into life when tackling flowy singletrack or injecting some adrenaline-fuelled action into your off-road exploration. Taking inspiration from the geometry of MTB's, it features a progressive long and low geometry, combining a longer top tube with a shorter stem for enhanced handling and agility on loose, technical terrain.

To ride
is to love

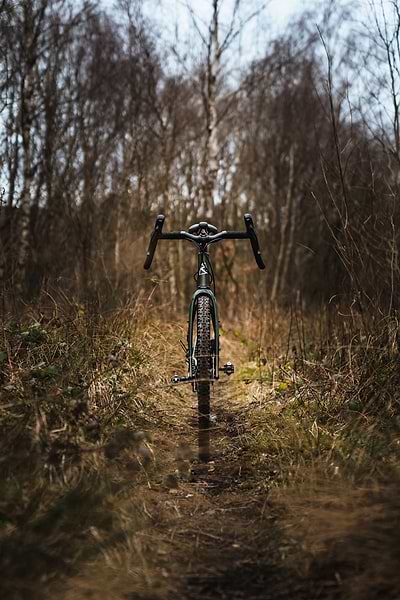

Chalk off those rides that make up your bikepacking bucket list. Climb the highest mountain pass, discover forgotten dirt roads or navigate secluded forest trails. The Gravel AL’s terrain-taming ability and huge luggage capacity allows you to set free your adventurous spirit and embark on epic adventures into the wild beyond.

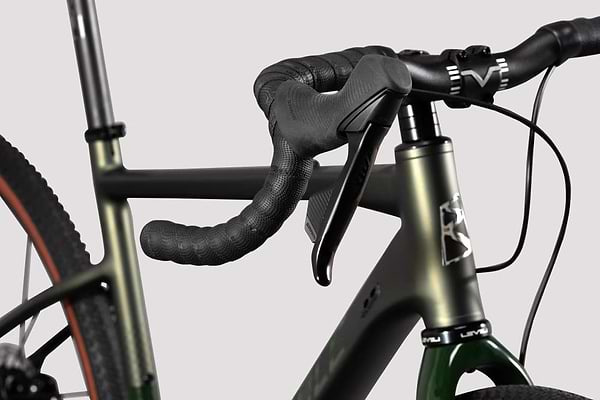

LONG & LOW
GEOMETRY

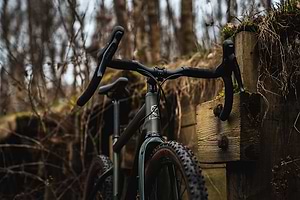

Designed for off-road riding and conquering extreme gravel tracks, a gravel optimised geometry offers a longer and lower frame for a more planted feel over technical terrain. An oversized 44mm headtube combined with a shorter stem and handlebars designed specifically for gravel provide greater confidence and control with the added practicality of barbag clearance. A LEVEL 44 headset in a choice of anodised colours is available to order in BikeBuilder and adds a splash of colour to any build.

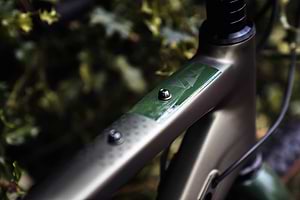

CARRYALL MOUNTS &
LUGGAGE CAPACITY

Multiple frame mounts for even the most extreme of bike packing requirements. These include 2 sets of water bottle mounts inside the main triangle as well as extra sets underneath the downtube and along the top tube. Rear rack mounts plus carryall mounts on the front fork allow the attachment of oversize cages for items such as dry bags, ground mats and sleeping bags.

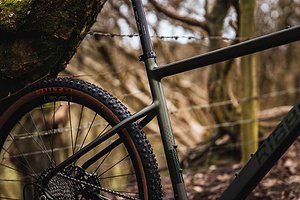

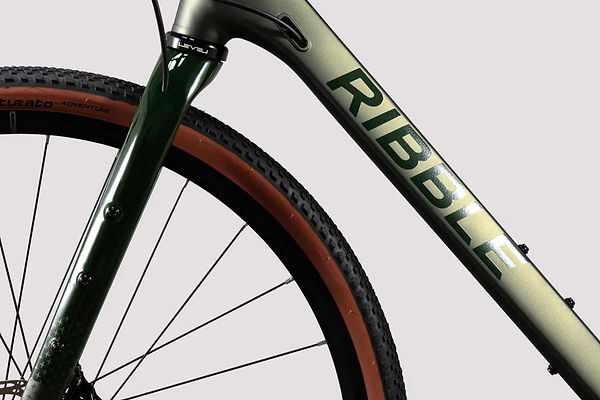

TYRE
CLEARANCE

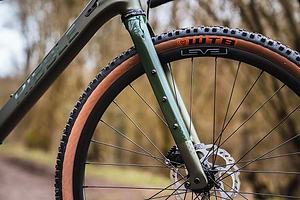

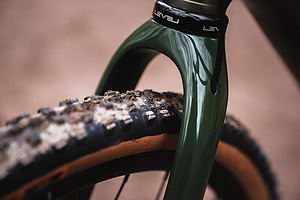

Whether you prefer your tyres wide and aggressive or narrow and fast, you can now have your cake and eat it. There’s ample clearance for 650bx47mm or 700Cx45mm tyres and a wide selection of tyres with multiple tread patterns available in BikeBuilder which offer the perfect solution for all types of gravel terrain.

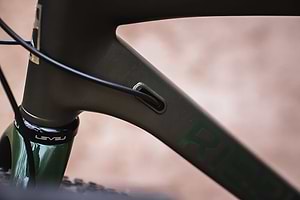

INTERNAL CABLE
ROUTING

Internal cable routing offers sleek, clean looks and keeps the cables protected from dirt and grime. This also extends to the possibility to upgrade to an internally routed dropper post to make the ride as wild as you like and compatibility with Shimano Di2 gear systems.

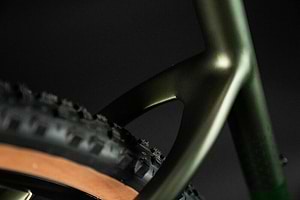

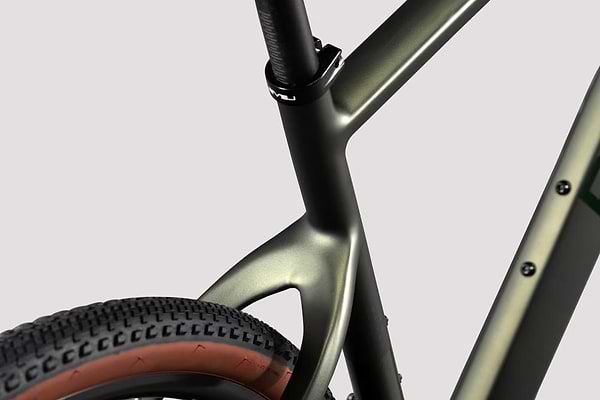

SEAMLESS
WELDS

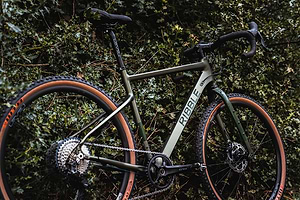

Handcrafted from custom formed 6061 T6 heat-treated aluminium with meticulously designed tube profiles for a rugged yet lightweight platform with seamlessly smooth welds offering enhanced strength and a premium finish. A lightweight full carbon front fork with an oversized steerer compliments this bike for front end stiffness and precision steering control.

Custom Colour
Available

You decide the design, we create the bike. Be bold and bright or stealthy as you like. With millions of combinations, you can make a bike unique to you.

Just select customise after choosing your size.

Your Bike. Your Way
Gravel AL Frameset

Lightweight and robust, the Gravel AL is a fun-igniting gravel machine with a go-anywhere attitude that is destined to conquer the most extreme terrain. Leave the everyday behind and engage in some adrenaline-fuelled off-road exploration.

Frameset includes:
  • Frame & Fork
  • Headset
  • Seat Clamp
  • Carbon Fork Expander
  • Thru-Axles
From: US$808.80
This is a loan of US$970.56 with US$0.00 deposit.
Repayable by 36 monthly repayments of US$33.14.
Total amount repayable US$1,193.17.
14.9 APR representative.
Finance is subject to status. Terms and conditions apply.
Or from: US$33.14 a month
Learn More
Gravel AL Frameset
Size
Guide

To assist you in selecting the correct size simply find you height below. The graphic below illustrates our recommendations so you can be confident that the size you order will be correct.

XX-Small
5' 0" - 5' 4"
152cm - 162cm
X-Small
5' 4" - 5' 7"
162cm - 170cm
Small
5' 7" - 5' 9"
170cm - 175cm
Medium
5' 9" - 5' 11"
175cm - 180cm
Large
5' 11" - 6' 1"
180cm - 185cm
X-Large
6' 1" - 6' 4"
185cm - 194cm
View Full Sizing & Geometry
Sizing &
Geometry
Ribble Gravel AL
Size XXS XS S M L XL
Rider Height 5'0" - 5'4"
152 - 162cm
5'4" - 5'7"
162 - 170cm
5'7" - 5'9"
170 - 175cm
5'9" - 5'11"
175 - 180cm
5'11" - 6'1"
180 - 185cm
6'1" - 6'4"
185 - 194cm
Wheel Size 650B/700c 650B/700c 650B/700c 650B/700c 650B/700c 650B/700c
A - Seat Angle (mm) 75.5° 75.5° 74° 73.5° 73.3° 73°
B - Top Tube, Horizontal (mm) 508 522 550 570 588 603
C - Head Angle (mm) 70.0° 70.5° 71.5° 71.5° 72° 72°
D - Fork Rake/Offset (mm) 50 50 50 50 50 50
E - Head Tube (mm) 90 110 130 150 170 190
F - BB Drop (mm) 70 70 67 65 65 65
G - Seat Tube (mm) 440 460 480 500 520 540
RC - Chainstay (mm) 440 440 440 440 440 440
FC - Front Centre (mm) 595 606 611 626 637 649
Reach (mm) 372.2 381 388 397.2 406 412
Stack (mm) 525 546 565 584 602 625
WB - Wheelbase (mm) 1025 1036 1042 1057.8 1068 1081
Available on
Cycle To Work

The Ribble Gravel AL is available to order on cycle to work schemes.

We accept all major cycle to work scheme vouchers.

Cyclescheme logos
Finance
Calculator
US$
%
Total amount repayable . APR representative. Finance is subject to status. Terms and conditions apply.
Frequently Asked
Questions
How much does the Gravel AL weigh?

The Sport edition weighs in at 10.87kg, Enthusiast 10.44kg and Pro 10.31kg.

What is the warranty on the frame?

The frame has a 3-year warranty against manufacturing defects. All other parts have the standard manufacturer's warranty.

Are the cables internally routed?

Yes, all cables are routed internally which includes the possibility to ft a dropper post and compatibility with Shimano Di2 electronic systems.

What type of bottom bracket does it take?

The frame requires a traditional 68mm BSA threaded style of bottom bracket.

What is the maximum tyre size size?

The Gravel AL has clearance for 650bx47mm and 700cx45mm tyres.

Show more
How many bottle cage mounts are there?

There are four in total, with two being situated within the main triangle, one on the underside of the downtube and one on the top tube.

Can I fit a rear pannier rack?

No, there are no mounts for a rear pannier rack. There are, however, carryall mounts situated on the forks that enable the attachment of oversize cages for items such as ground mats and sleeping bags.

Is it Di2 compatible?

Yes, all cables are routed internally which includes compatibility with Shimano Di2 systems.

What is the seat post diameter ?

The Gravel AL is compatible with 27.2mm seat posts and a 31.8mm seat collar.

What type of brakes fit this frame?

The frame requires flat mount disc brakes at the front and rear.

Are the axles thru-axle or quick release?

The frame requires thru-axles of 100/120/M12*P1.5 front and 142/157/M12*P1.5 rear.

Does it take mudguards?

Yes, there are eyelets on the frame for the fitting of full coverage mudguards.

Is the bike supplied with pedals?

Due to the many different systems people use we do not supply pedals with bikes, but you can find a great selection of pedals here.
