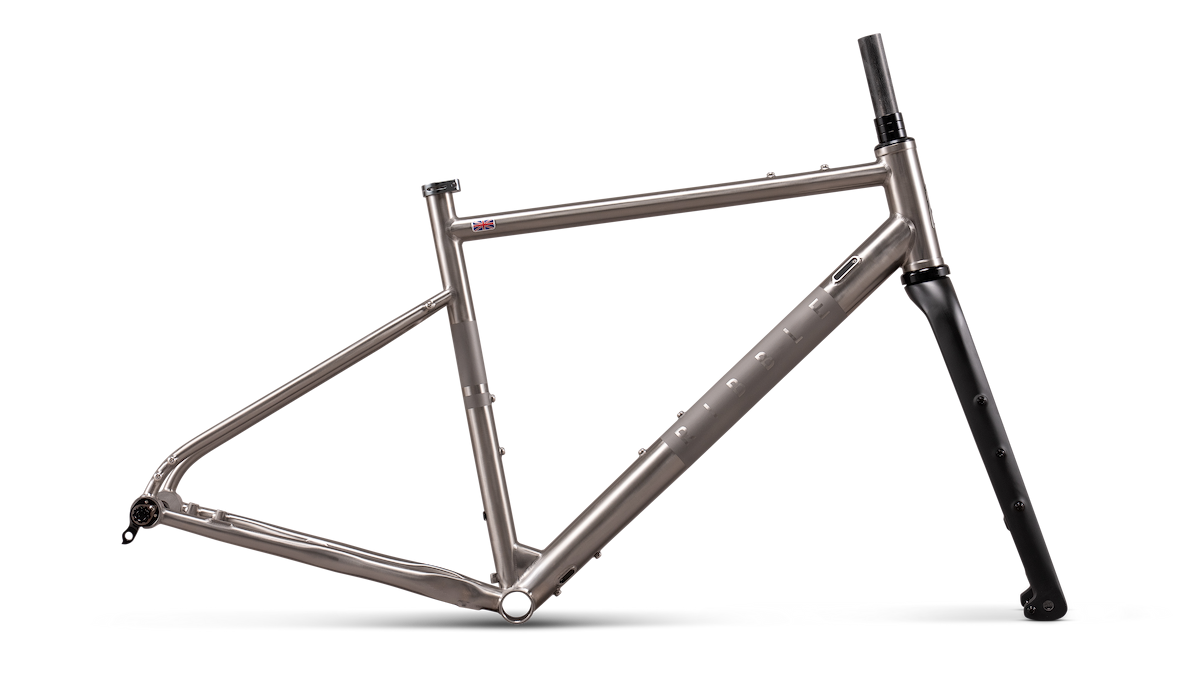

Gravel Ti Frameset

  1. £0
The Ribble Gravel Ti delivers next-level performance with the unmistakable ride quality of premium titanium. Engineered for strength, built to last, and finished with a raw aesthetic that evolves with every ride, this is a frameset that thrives in rough terrain and shines on smooth roads.

This bike is currently out of stock.

Product code: FGRAVTI

...And Many Ways To Pay...

Description

From epic trails to rugged backroads, the Gravel Ti adapts effortlessly to every ride, delivering precision, performance, and unmatched comfort. Handcrafted from premium titanium, its advanced construction offers exceptional durability and resilience, standing up to the toughest conditions while maintaining its sleek, timeless aesthetic.

This premium titanium frameset is your perfect opportunity to build the ultimate adventure machine—tailored to your ride, your style, and your next big journey.

Construction

Combining timeless elegance with rugged practicality, the Gravel Ti delivers performance and comfort across all terrains. Meticulously handcrafted from custom-profiled 3Al/2.5V titanium tubing using seamless weld technology, it provides exceptional strength and durability, along with that signature titanium aesthetic. Naturally corrosion-resistant, the titanium develops a unique patina over time, adding character ride after ride

Construction

Versatility

Go light and long. The Gravel Ti is adventure-ready, with a plentiful array of frame, fork and bottle mounts letting you load up for weekend adventures or bikepacking trips into the back of beyond.

Versatility

Tyre Clearance

Roll over the rough stuff with ease. With ample room for chunky 45 mm tyres, you can confidently explore new roads and routes, maximising your comfort and grip on every ride.

Tyre Clearance

Geometry

Our updated geometry combines a longer reach with a slacker head tube and a longer fork offset. This results in increased confidence across a wider variety of gravel terrains, providing riders with a lively and responsive experience on faster surfaces, as well as improved stability and control on fast descents.

Geometry

Specifications

  • Frame: Ribble Gravel Ti 3Al/2.5V Triple-Butted Titanium
  • Forks: Ribble Gravel Ti Full Carbon Tapered with Fork Mounts
  • Headset: LEVEL 44 with Top Cap & Bolt (included)
  • Seat Collar: 31.8 mm (included)
  • Bottom Bracket: 68mm Threaded BSA
  • Front Derailleur Fitting: 31.8 mm Band-On
  • Max. Tyre Clearance: 700c x 45 mm or 650b x 47 mm
  • Front Axle: 12 x 100 mm (included)
  • Rear Axle: 12 x 142 mm (included)
  • Weight: Frame - 1700 g; Forks - 470g

* Dependent upon tyre tread profile

Size

To assist you in selecting the correct size, simply find your height on the graphic. It illustrates our recommendations so you can be confident that the size you order will be correct. If you find that your height is between sizes, we recommend you opt for the smaller size.

Size

Geometry

SizeXXSXSSMMDLGXL
Rider Height4'11 - 5'3 (150-160cm)5'3 - 5'6 (160-168cm)5'6 - 5'8 (168-173cm)5'8 - 5'10 (173-178cm)5'10 - 6'0 (178-183cm)6'0 - 6'3 (183-191cm)
A - Seat Tube440460480500520540
B - Top Tube508522550570585602
C - Reach (mm)372381388397406412
D - Head Tube90110130150170190
E - Stack525546565584603625
F - Head Angle70°70.5°71.5°71.5°72°72°
G - Wheelbase (mm)102010161037105210681075
H - Chainstay Length435435435435435435
I - Seat Angle75.5°75.5°74°73.5°73.3°73°
Fork Offset (rake)505050505050
BB Drop (mm)707067656565

Frequently Asked Questions

The triple-butted 3Al/2.5V titanium frame weighs 1700 g, and the matching full carbon forks 470 g (size medium).

We offer a lifetime warranty on all Ribble frames and forks for the original purchaser. This covers any manufacturing defects in materials or workmanship so you can ride with complete confidence. The standard manufacturer's warranty covers all other components.

The frame offers clearance for 700 x 45 mm or 650b x 47 mm tyres.

Yes. Discreet frame mounts allow full-length mudguards to be fitted for unrivalled wet weather protection. However, this reduces tyre clearance to 40 mm.

Yes, there are built-in mounts on the seat stays and dropouts for a rear-fitting pannier rack, as well as fork mounts for cargo cages.

The frame takes a 68mm threaded BSA bottom bracket.

We recommend a total system weight of 120 kg (bike, rider, and luggage).

The Gravel Ti uses a 27.2 mm seat post and 31.8 mm seat clamp.

When tightening the seat collar bolt, do not exceed a maximum torque of 5-7Nm.

The bearing dimensions are 41 x 30.2 x 6.5 mm 35° x 45° top and 52 x 40 x 8mm 45° x 45° bottom (included with headset).

The frame uses M12 x 120 mm x 1.5 mm front and M12 x 172 mm x 1.75 mm rear thru axles (supplied)

When tightening the axles, you should not exceed 10 Nm.

All cables can be routed internally to provide maximum protection from dirt and water ingress, while also accommodating Shimano Di2 drivetrains.

Yes. The Gravel Ti is compatible with both single-ring and double-ring chainsets.

Three. Two are within the main triangle, and one is underneath the down tube.

There are three in total, providing mounting points for a top tube bag, rear rack, and oversized cages on the forks. The carryall mounts on each fork leg allow bulky items, such as ground mats and sleeping bags, to be carried as luggage.

The Gravel Ti requires a 31.8 mm band-on style front derailleur.

The components you fit to your titanium frameset will require different protection depending on their material and the job they are designed to perform. We recommend the following:

  • Copper grease - headset bearings, rear thru-axle, bottle cage bolts
  • Copepr slip - bottom bracket, frame doors
  • Carbon grip paste - seat post, fork expander
  • Lithium grease - mudguard bolts, front thru axle
