Ribble Hybrid AL e
Looking to get fit, commute to work or something for the family weekend rides? The Hybrid AL e is our power-assisted electric hybrid.
Don’t want to build your own? No problem. Below are the most popular builds with other riders, ready to ride or change as you like.
Hybrid AL e - Blue - SRAM NX 1x11 speed.
- SRAM 42T x 11-42T.
- Shimano BL-MT201/UR300 hydraulic disc brakeset.
- Mavic Aksium Elite Evo wheelset..
- Schwalbe Marathon Rigid tyres..
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.
Repayable by 36 monthly repayments of US$80.45.
Total amount repayable US$2,896.26.
14.9 APR representative.
Hybrid AL e - Copper - SRAM NX 1x11 speed.
- SRAM 42T x 11-42T.
- Shimano BL-MT201/UR300 hydraulic disc brakeset.
- Mavic Aksium Elite Evo wheelset..
- Schwalbe Marathon Rigid tyres..
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.
Repayable by 36 monthly repayments of US$80.45.
Total amount repayable US$2,896.26.
14.9 APR representative.

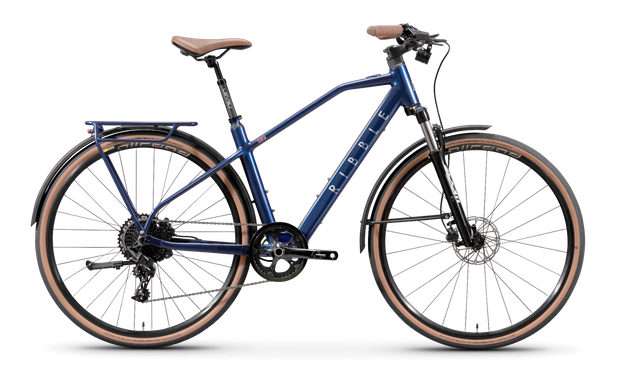

Hybrid AL e - Blue - SRAM NX 1x11 speed.
- SRAM 42T x 11-42T.
- Shimano BL-MT201/UR300 hydraulic disc brakeset.
- Mavic Aksium Elite Evo wheelset..
- Schwalbe Marathon Rigid tyres..
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.

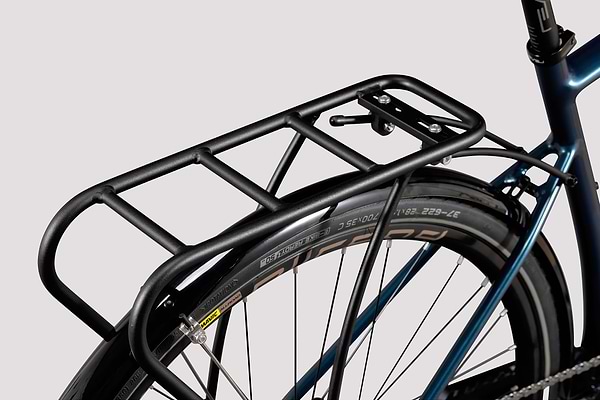

- Pannier Rack
- Knog Oi Classic bell

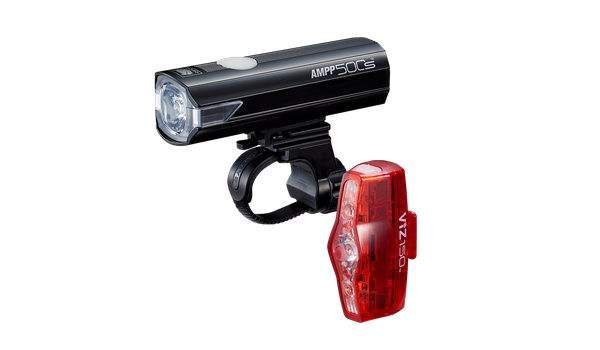

- Ribble rechargable lightset (front 300 lumen and rear 150 lumen)
- SKS Guards with Mudflap front and rear
Repayable by 36 monthly repayments of US$84.69.
Total amount repayable US$3,048.96.
14.9 APR representative.

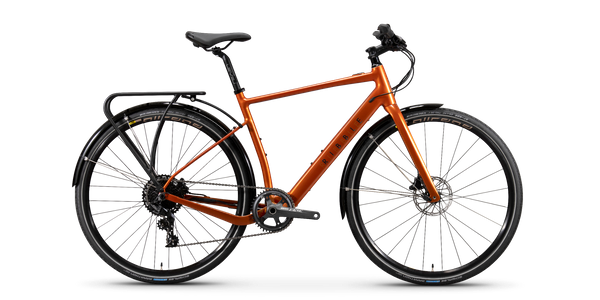

Hybrid AL e - Copper - SRAM NX 1x11 speed.
- SRAM 42T x 11-42T.
- Shimano BL-MT201/UR300 hydraulic disc brakeset.
- Mavic Aksium Elite Evo wheelset..
- Schwalbe Marathon Rigid tyres..
- Level 1 Alloy finishing kit.
- Prologo Kappa RS saddle.
- Pannier Rack
- Knog Oi Classic bell
- Ribble rechargable lightset (front 300 lumen and rear 150 lumen)
- SKS Guards with Mudflap front and rear
Repayable by 36 monthly repayments of US$84.69.
Total amount repayable US$3,048.96.
14.9 APR representative.
The perfect blend of style, comfort and efficiency the Hybrid AL e combines features and technology with classic British styling.
At home in the city and on the trails this cycle scheme approved bike is the choice for those who want to enjoy riding without being limited by terrain or distance.
With mudguard and rack mounts built into the frame, you have the option to fit full coverage mudguards and carry luggage. Perfect for those longer days in the saddle.
Using our famous BikeBuilder, you’ll be able to customise and accessorise your bike. So, changing your tyres and saddle preferences are a breeze.
To assist you in selecting the correct size simply find you height below. The graphic below illustrates our recommendations so you can be confident that the size you order will be correct.
| Size | S | M | L | XL |
| Rider Height | 5'4 - 5'7 163cm - 170cm |
5'7 - 5'10 170cm - 178cm |
5'10 - 6'1 178cm - 185cm |
6'1 - 6'4 185cm - 193cm |
| Stack (mm) | 530 | 571 | 591 | 630 |
| Reach (mm) | 390 | 405 | 415 | 430 |
| G - Seat tube c/t (mm) | 420 | 490 | 540 | 590 |
| B - Top Tube horizontal (mm) | 552 | 585 | 600 | 634 |
| E - Head Tube (mm) | 122 | 165 | 190 | 230 |
| A - Seat Angle | 73° | 72.5° | 72.5° | 72° |
| C - Head Angle | 71° | 71° | 71° | 71° |
| RC - Rear Centre RC (mm) | 436 | 436 | 436 | 436 |
| FC - Front Centre FC (mm) | 608 | 637 | 654 | 682 |
| WB - Wheelbase (mm) | 1039 | 1068 | 1085 | 1113 |
| F - BB Drop (mm) | 50 | 50 | 50 | 50 |

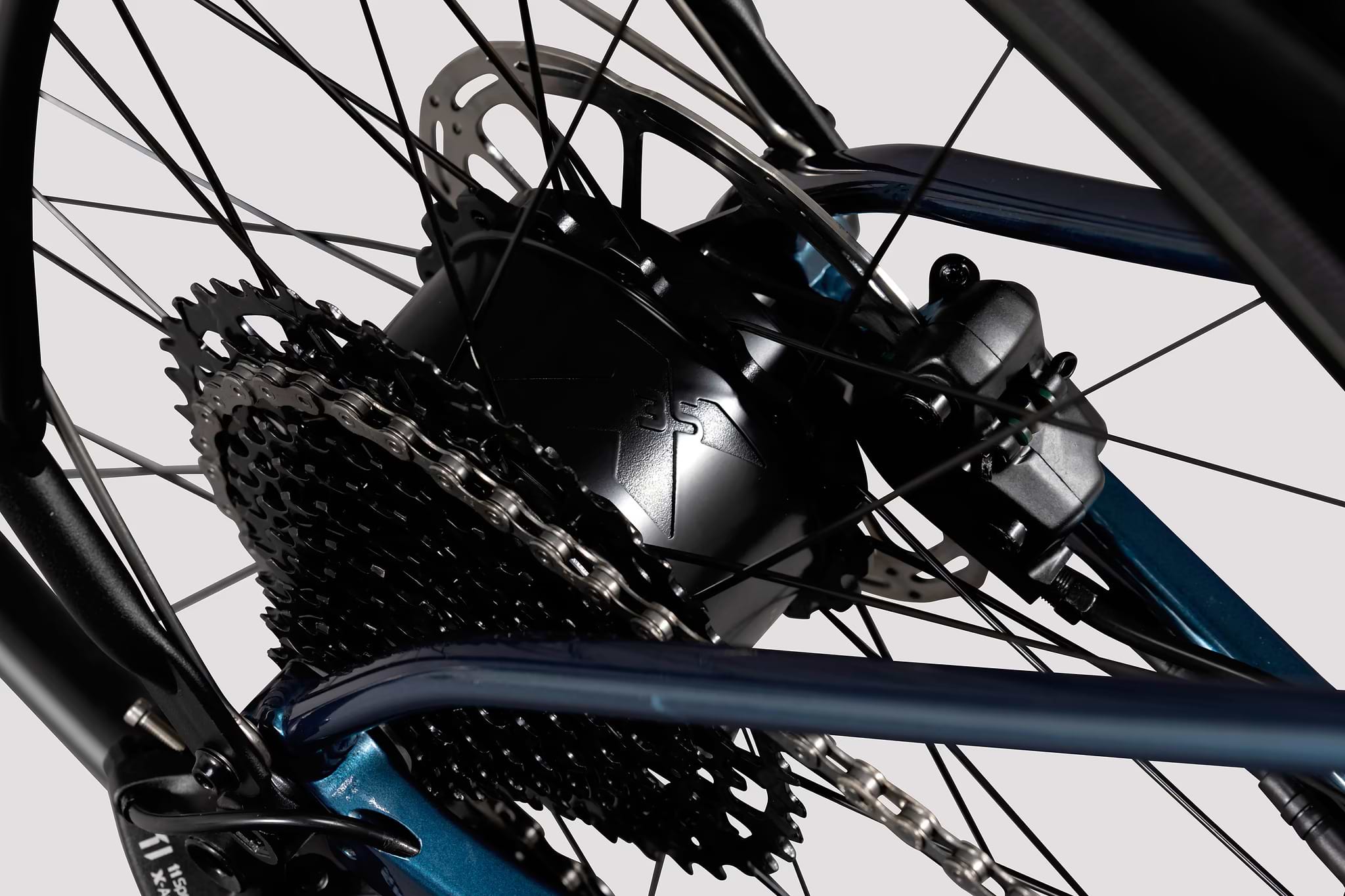

A lightweight hub driven motor provides smooth, reliable power assistance across 3 levels when you need it most. With the 250Wh battery you can have a range of up-to 100km* on a single charge and a full charge only taking 3 hours, you can have the assistance when and where you need it.
* average dependant on riding style, rider and terrain.

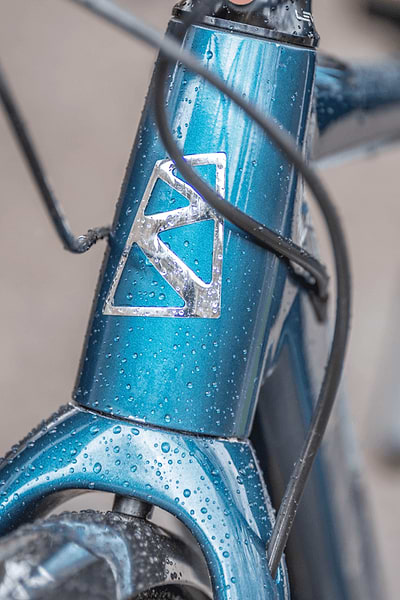

The light and strong aluminum frame makes the Hybrid AL e just as good for putting on the car for a fun weekend away as it is for the morning commute.
As the ebikemotion system weighs just 3.5kg, you get all the benefits of a smart ebike system with none of the typical compromises.
From the beautiful retro styling of the paintwork to the matched, faux leather handlebar grips and cushioned saddle you can be sure that this bike offers not only head turning good looks but also a very comfortable ride too.
If you want to look stylish around town and arrive where you’re going sweat-free, it’s definitely one to consider.
It weighted 13.95kg (size Medium) out of the box, so a bit more than the 13.1kg claimed on the website but still very reasonable indeed for an e-bike.

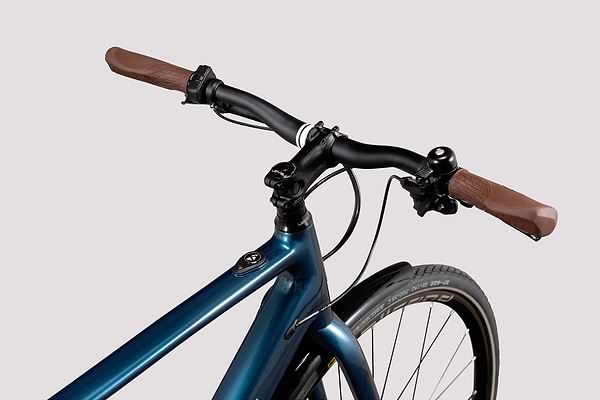

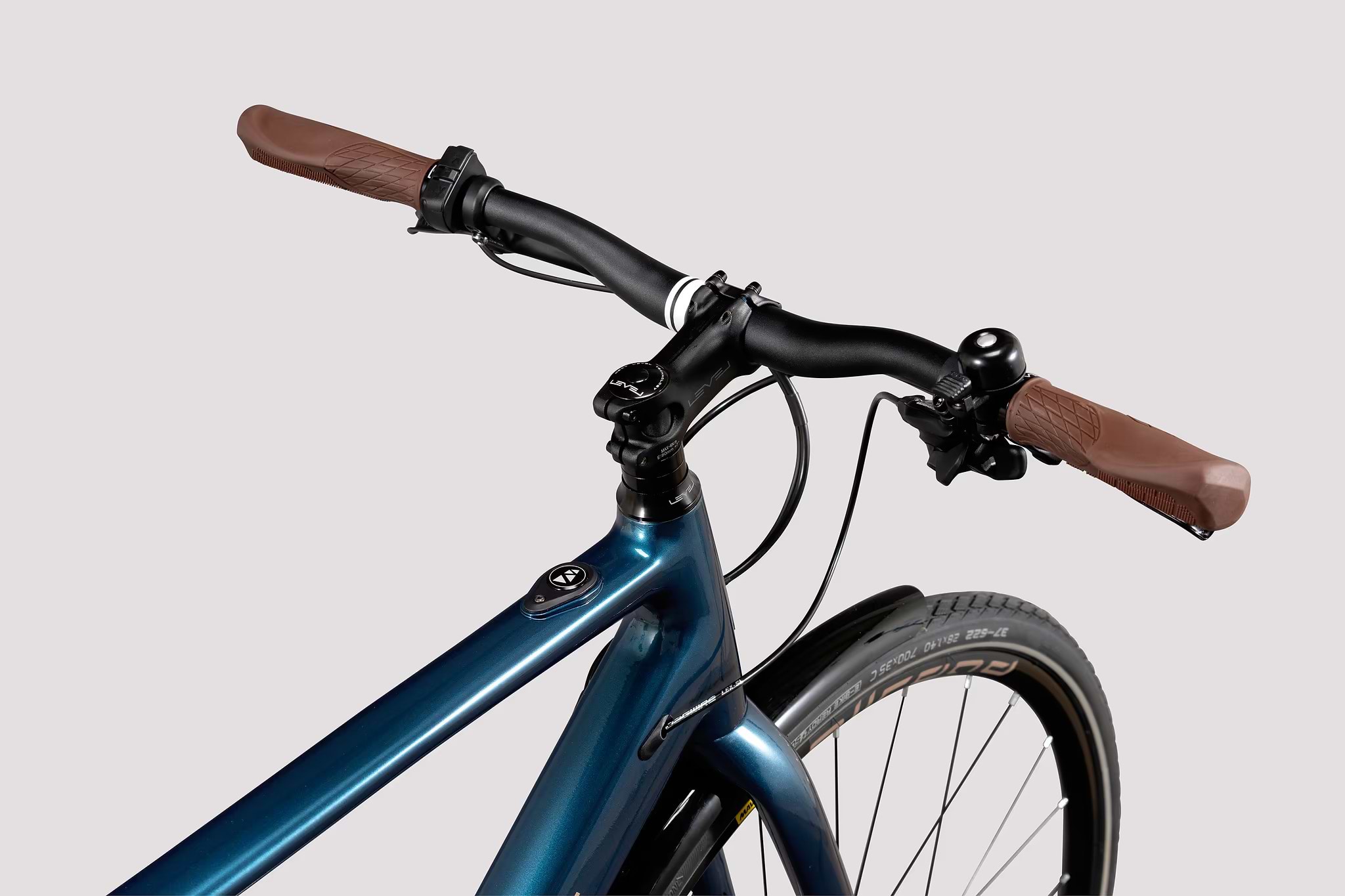

It comes with a very smart one-piece stem and handle bar that matches the colour of the rest of the frame, rather than the standard separate black stem and handlebar shown on the website. This means you can't adjust the fit by changing the stem unless you either a) replace the stem and bar yourself, or b) ask Ribble to fit a standard bar and stem combo at the time of ordering (no extra charge I believe). This is something you might want to think about since even with the supplied 30mm of spacers the position of the bars is probably a little bit lower than you might expect for this sort of bike. (Fine for me though - I'm sticking with the one-piece setup).
Battery range is of course hugely dependent on conditions, but I did a 30 mile ride with over 1800 feet of climbing and the assist level either set at yellow or red throughout and it used just less than 50% of the battery, so a 60 mile range with battery to spare should be easily achievable.
The SRAM gears are excellent and very easy to use with a big range and no front derailleur to worry about, although I had to tweak the indexing and limit screws slightly to get it all running perfectly. The Shimano hydraulic disc brakes are also superb with powerful, progressive braking.
I wasn't sure how comfy the standard brown saddle would be, but I was pleasantly surprised and my wife who's pretty fussy with saddles had no complaints. Again it makes for a very smart looking bike.
One thing to be aware of is that because the motor is in the hub, it doesn't know how hard you're pedalling. This means it won't reduce the assistance just because you ease off the pedals. Of course if you stop pedalling completely then after about half a second it does cut out but it's not quite immediate. None of this is a big deal, but it does mean it's a bit harder to precisely control your speed so you probably don't want to ride right on someone else's wheel as you might end up going into the back of them. In fact you might see this as a good thing - if you're feeling tired you can still get full assistance just by keeping the pedals going round without having to put any effort in at all.
All in all, this bike is easy to use, comfortable, very light indeed for an e-bike and looks great. The gears and brakes are excellent and it all looks very smart indeed. Even the wheels and tyres are quality components and I think it's great value for money. Just be aware that the motor assistance is basically on (pedalling) or off (completely freewheeling) rather than being progressive, although of course you still do have the three different levels of assistance to choose (4 if you include no assistance).
Ebikemotion's smartphone app can help you keep track of all you need with journeys, locations, speeds, maps and much more.
Should you have a problem with the system and you have the app connected our experts can run remote diagnostics from wherever you are to help get you back on your journey.
Download the brochure and user guides to get started with the eBikeMotion system.
Yes, our ebikes are pedal assisted models which require rider input at all times.
There’s no need to worry, being a pedal assisted model means you are in full control at all times. When a power assist level is selected the motor simply provides a little extra boost whilst you pedal and does not take over.
No, pedal assisted electric bikes do not require you to hold a valid driver’s licence, pay tax or take out insurance.
To charge the battery you simply plug the bike into a household socket using the supplied charger and cable. (The optional range extender can also charge the main battery whilst you are on the move).
The bike and propulsion system are fully weather proof so can be ridden in all weather conditions.
Yes, all ebikes can be purchased through all the major cycle to work scheme providers. The government have even adjusted the £1000 limit making obtaining an ebike on cycle to work more beneficial than ever.
Test rides of the e-bike are available from Ribble HQ in Preston. We would advise that you contact us ahead of making your journey to ensure there is availability for your test ride. Alternatively, you can hire the e-bike from E-Venture Bikes in Keswick, and the cost of the rental will be deducted from your purchase should you then decide to buy one of our e-bikes. We also have various demo days around the UK which can be viewed via social channels or our events section of the website.
Builds start at just 12.5kgs and this includes the motor system at 3.5kgs.
The Hybrid AL e has been built around the Ebikemotion X35 system.
Yes, you can cycle through 3 different assistance modes (which can be configured further in the app), or choose to have the motor turned off completely; all at the press of a single button.
The AL e’s motor system is 'pedal assist', which means that the motor supports you when you pedal the bike.
The AL e’s motor system will power you until you reach 15mph, at which point (by law, and as with all e bikes in the UK) the assistance will cut out. If you drop below 15mph the system will automatically kick back in with assistance if required.
The range of the ALe depends on a number of factors including rider weight, route profile and temperature. A rider of 90kg, on a varied route including climbs, descents and flats can expect a distance of up to approximately 100kms (62miles).
Yes, though the motor will only assist you up to 15mph, and for speeds above this you will be relying on your legs. Though in the US the bike is set up to max out at 20mph.
It is simple to disconnect the rear wheel from the frame by unclipping the connector on the chainstay and releasing the nuts on the rear axle. To reconnect, simply click back in and tighten the nuts.
The frame has a 3 year warranty against manufacturing defects. All other parts are covered by the manufacturers standard warranty including the Ebikemotion system.
Yes the frame is compatible with full mudguards thanks to its integrated mudguard mounts.
The Hyrid ALe is suitable for tyre widths up to 700x45c without mudguards, with mudguards fitted the bike will accept 700x40c tyres.
The relaxed geometry of this frame is best suited to comfortable and leisurely rides on paves surfaces though it is also capable on bridleways and towpaths.
Each frame size has mountings for 2 bottles.

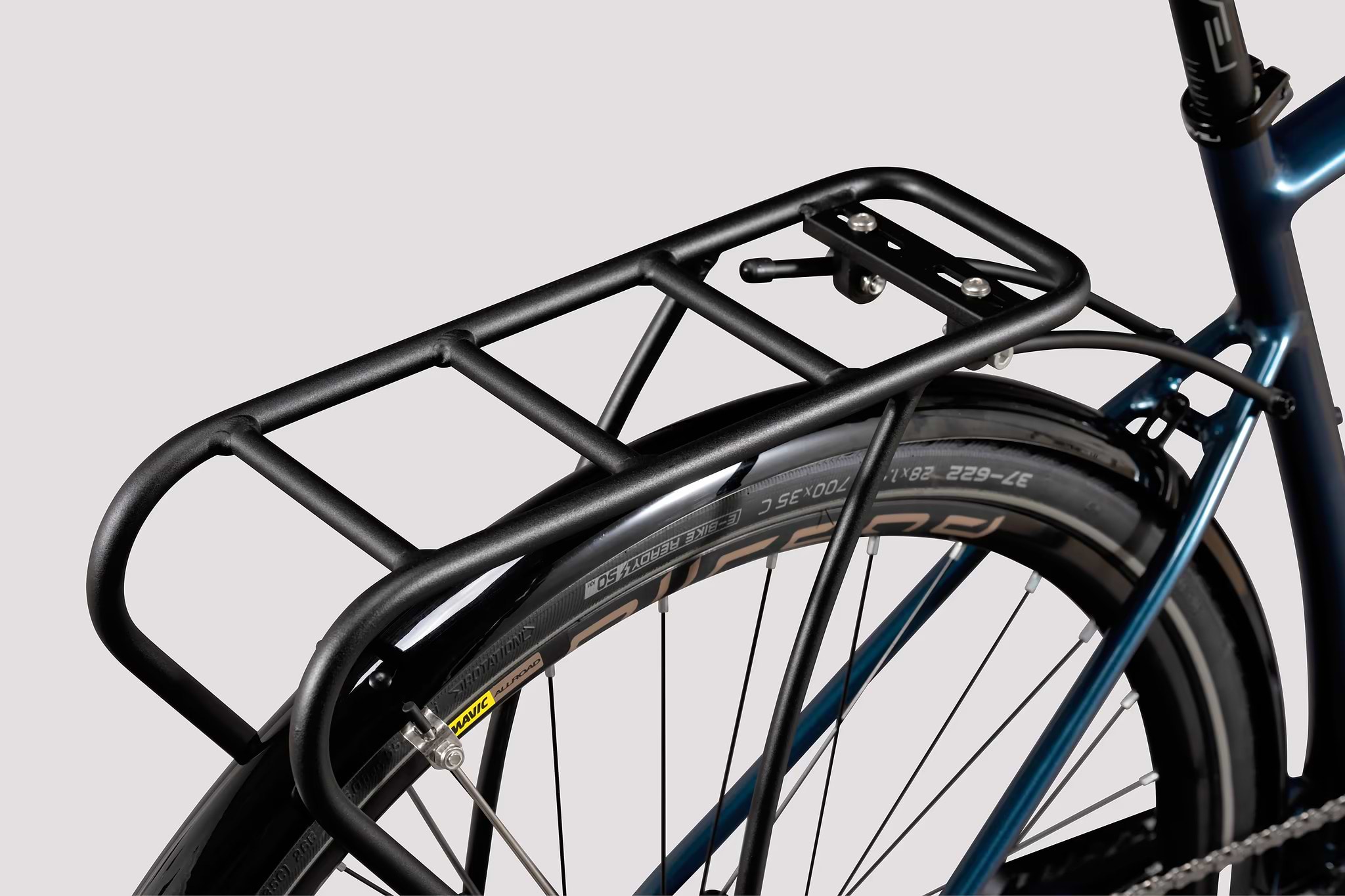

Yes, the frame does have mounting points for a rear pannier rack and if you opt for the Fully Loaded Edition a colour matched forms part of the specification.
No, it is not compatible with electronic groupsets.
From flat the battery takes 3.5 hours to reach full charge.

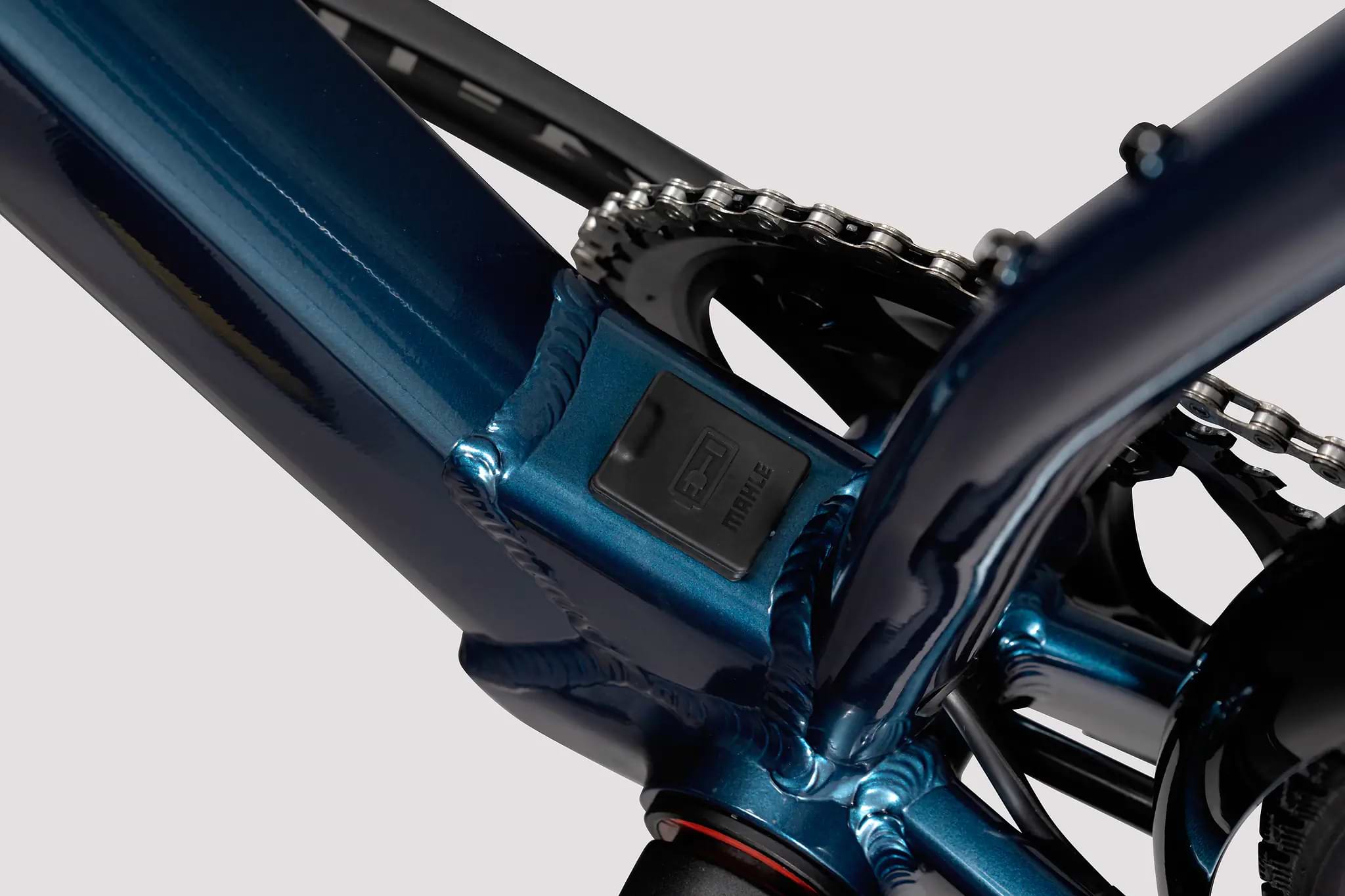

No, the charging port is easily accessible atop the bottom bracket shell.
The top-tube button indicates battery life at a glance with a simple colour-code. White means you’re at full battery; progressing down through Green, Amber and finally Red to indicate 25% or less remaining.
Yes, the motor system’s app is compatible with both Apple and Android OS’s and offers a full suite of functionality; from monitoring your exact battery life, to pairing the system with a heart rate monitor and having the motor kick in at a specific BPM limit.
The AL e is one of the lightest e-Bikes of its type currently available.
Yes, the battery is accessible by removing the bottom bracket. The motor is also easy to replace.
The brakes are the most current flat mount variant.
Our AL e bike is supplied with a 3-pin UK adaptor.
Bikes to the US are shipped with a different proplusion unit which meets the higher speed allowed within the US and includes a US plug charger, charging times and range may be affected slightly by the higher speed restriction.
You charge the system via the charging port that is easily accessible atop the bottom bracket shell.
The battery has a life expectancy of around 500 charging cycles.
The AL e takes a press fit style of BB, Shimano builds require a 86.5x41 BB and Sram a BB86.

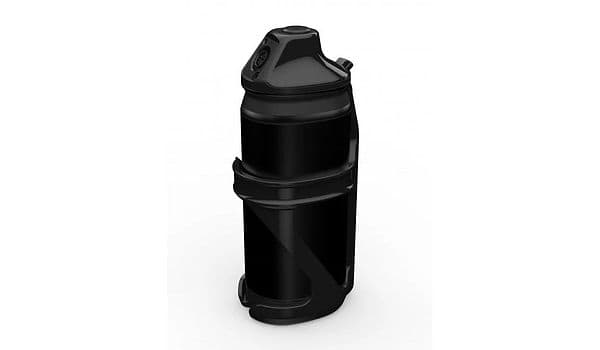

The additional battery comes in the form of a bottle and is supplied with its own bottle cage. This replaces the seat tube bottle cage mount (it cannot be mounted on the down tube) and a cable then runs from the extender into the charging port atop the bottom bracket shell.
Due to the many different systems people use we do not supply pedals with bikes but you can find a great array of pedals here.
We really didn't want to hand this one back. Its fun to ride, comfortable and looks great
Classy urban e-bike with an enjoyable ride and a good motor system. Ribble’s Hybrid Al e is a very well-rounded entry into the assisted urban bike market
Offering a smooth level of assistance from the Ebikemotion system, coupled with decent range and a fully loaded spec the Ribble Hybrid AL e can handle the daily commute as well as anything
