Ribble R872 Disc

The latest iteration of the highly successful and test winning R872 (Winner of Cycling Weekly and Cycling Plus 'Best on Test' Awards). The versatile ‘sportive’ geometry results in a bike equally well suited to epic century rides, fast commutes or for beginners looking to tip their toe into the world of road racing.

Begin Building or
Choose a popular build
Teal
Anthracite
Build your own Ribble R872 Disc

Don’t want to build your own? No problem. Below are the most popular builds with other riders, ready to ride or change as you like.

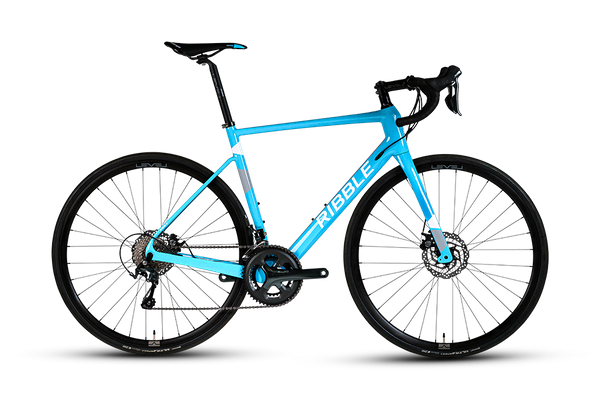

R872 Disc - Teal R872 Disc - Teal
Shimano Tiagra
  • Shimano Tiagra 2 x 10 speed .
  • Shimano 34-50T x 11-32T gearing.
  • Tektro mechanical disc brakeset.
  • Mavic Aksium Disc wheelse.
  • Level 1 Alloy cockpit.
  • Prologo Kappa RS saddle.
From: US$1,186.64
Or from US$37.54 a month
Learn More
R872 Disc - Anthracite R872 Disc - Anthracite
Shimano Tiagra
  • Shimano Tiagra 2 x 10 speed .
  • Shimano 34-50T x 11-32T gearing.
  • Tektro mechanical disc brakeset.
  • Mavic Aksium Disc wheelset.
  • Level 1 Alloy cockpit.
  • Prologo Kappa RS saddle.
From: US$1,186.64
Or from US$37.54 a month
Learn More
R872 Disc - Teal  R872 Disc - Teal
Shimano 105
  • Shimano 105 2 x 11 speed.
  • Shimano 34-50T x 11-32T gearing.
  • Shimano 105 hydraulic disc brakeset.
  • Mavic Aksium Disc wheelset.
  • Level 1 Alloy cockpit.
  • Prologo Kappa RS saddle.
From: US$1,510.57
Or from US$47.79 a month
Learn More
R872 Disc - Anthracite R872 Disc - Anthracite
Shimano 105
  • Shimano 105 2 x 11 speed .
  • Shimano 34-50T x 11-32T gearing.
  • Shimano 105 hydraulic disc brakeset.
  • Mavic Aksium Disc wheelset.
  • Level 1 Alloy cockpit.
  • Prologo Kappa RS saddle.
From: US$1,510.57
Or from US$47.79 a month
Learn More
R872 Disc - Teal R872 Disc - Teal
Shimano Ultegra
  • Shimano Ultegra 2 x 11 speed.
  • Shimano 34-50T x 11-28T gearing.
  • Shimano Ultegra hydraulic disc brakeset.
  • Mavic Aksium Disc wheelset.
  • Level 1 6061 Alloy cockpit.
  • Prologo Kappa RS saddle.
From: US$1,942.47
Or from US$61.45 a month
Learn More
R872 Disc - Anthracite - Shimano Ultegra R872 Disc - Anthracite - Shimano Ultegra
  • Shimano Ultegra 2 x 11 speed.
  • Shimano 34-50T x 11-28T gearing.
  • Shimano Ultegra hydraulic disc brakeset.
  • Mavic Aksium Disc wheelset.
  • Level 1 6061 Alloy cockpit.
  • Prologo Kappa RS saddle.
From: US$1,942.47
Or from US$61.45 a month
Learn More
The multi-award
winner's rebirth

The latest iteration of the highly successful, test winning R872 (Winner of Cycling Weekly and Cycling Plus 'Best on Test' awards).

The R872 Disc has a versatile ‘sportive’ geometry which results in a bike equally well suited to epic century rides and fast commutes. Flat mount disc brakes ensure, powerful, modulated stopping power in all weather conditions. With its precision handling, stiffness and stability this is also an excellent choice for those wishing to dip their toe into the world of road racing or simply those looking for an agile and nimble road bike.

DESIGNED
WITH PASSION

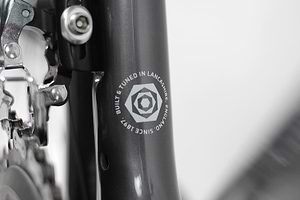

Designed in house here at Ribble HQ in Lancashire and expertly hand crafted from carbon this stylish and lightweight machine is built to offer you the perfect combination of a high-end performance road bike but with a slightly more relaxed 'sportive' geometry. The shape and dimensions of each tube have been carefully selected to offer you the most compliant ride possible for those epic rides yet not lose nothing in the bike's agility.

The sleek profiled tubing offers a perfectly blended balance between high-end performance and styling. Internal cable routing has been incorporated within the design to both improve the lines of the bike and also to keep the cables out of the elements. This, in turn, ensures that the bike preserves its clean lines for better aerodynamics enabling you to ride faster and climb better than ever before! We have made various changes to the previous R872s design to achieve an improved ride feel, these include;

  • An oversize profile, tapered downtube for improved torsional stiffness and power transfer.

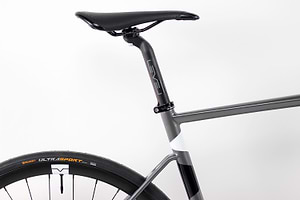

  • A dropped seat stay design for vertical compliance and vibration absorption enhancing comfort.
  • An aero profile carbon bladed fork for precision steering.
  • A tapered head tube offering improved front end stiffness.

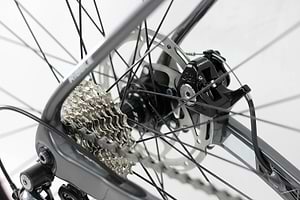

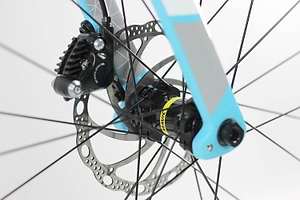

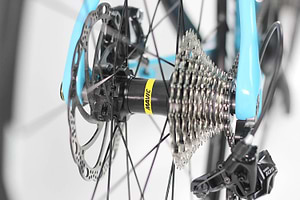

  • Disc Brakes for powerful, modulated braking in all conditions.
  • The chainstays have been lengthened slightly to provide extra stability.
  • Enhanced tyre clearance for additional comfort and grip.
  • Internal cable routing for cleaner lines and protection for the cables.
  • The tried and tested threaded bottom bracket design for increased durability.

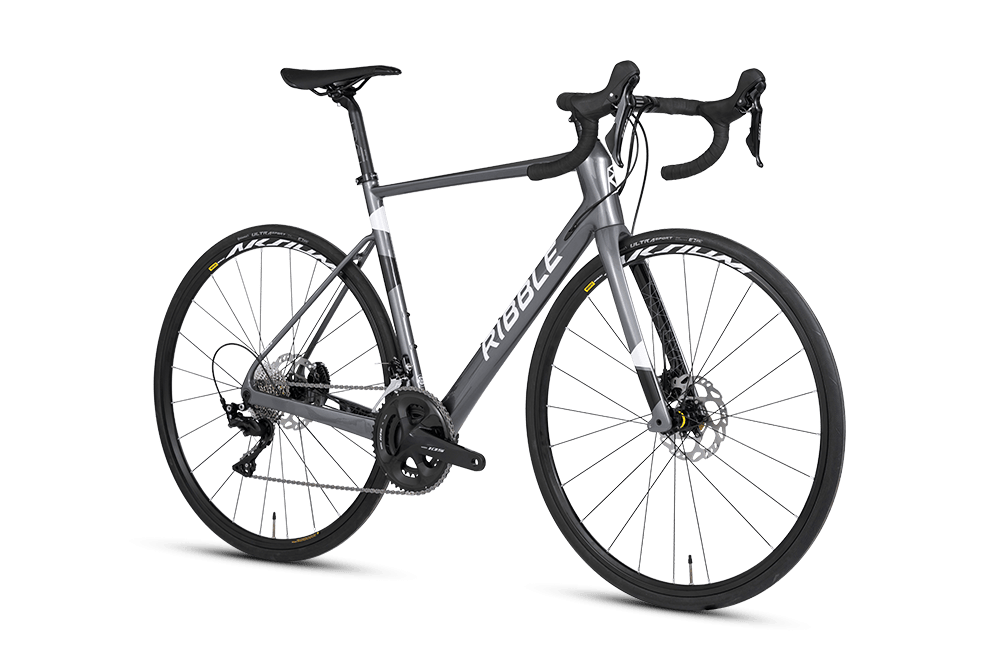

WHY THE
R872 Disc IS FOR YOU

The R872 is the right bike for someone looking for the low weight and high-end performance characteristics of a high-end carbon road bike but at an accessible price. Whether you are looking for a bike to introduce you to the world of cycling or are thinking of dipping your toe into road racing the R872 is both a lightweight and durable choice.

THE SPEC & TECH
YOU WILL GET

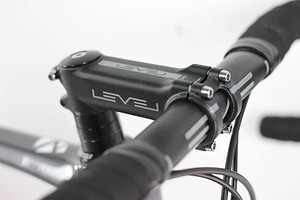

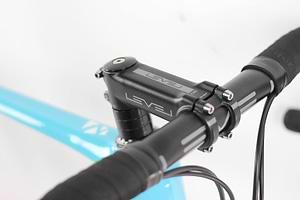

A lightweight carbon frame and carbon bladed fork, built with Shimano’s ever reliable, precise shifting groupsets. A complete, matched Level 1 Alloy finishing kit, internally routed cables for cleaner lines and better aerodynamics and Level aluminium wheels.

WHY SHOULD
YOU BUY THIS BIKE

The R872 Disc is a fantastic value upgrade option for anyone looking to upgrade to a carbon frame.

With its relaxed fit 'sportive' geometry, light weight, comfort and precision handling you can be sure it will be as comfortable for those all day in the saddle epics as it is quick and nimble when surmounting those pesky climbs and high-speed descents.

REASONS TO LOVE
THE R872
  1. It offers plenty of bang for your buck! A carbon frame and carbon bladed fork with a choice of Shimano groupsets for slick shifts and a complete matched Level finishing kit.
  2. The quick and responsive ride quality will have you beaming as well as being eminently comfortable thanks to the low weight, endurance geometry and precision handling.
  3. It’s infinitely upgradeable at a later date, should you wish to lighten it even further or add more bling. Once you have a great quality frameset you have the base for a very lightweight machine indeed.
OPTIMAL
POWER TRANSFER

The dropped seat stays, as well as offering better protection from road vibration also offer better power transfer thanks to the reduced section of the rear triangle. This translates into a lightning-fast bike that is equally at home on the sportive as it is on your commute.

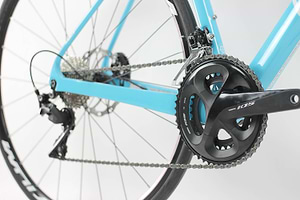

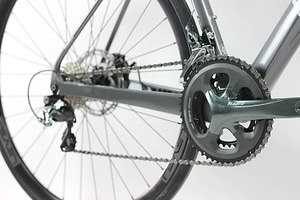

The compact rear triangle design combined with an oversize BB and box section chainstays allows more of the power generated to be transferred directly to the road. Every watt transferred into forward motion means less power is wasted, thanks to the increased torsional stiffness provided within the frames design features .

The front end stiffness is provided by the incorporation within the design of an oversize tapered head tube, tapered fork steerer and fork profile.

Size
Guide

To assist you in selecting the correct size simply find you height below. The graphic below illustrates our recommendations so you can be confident that the size you order will be correct.

X-Small
5' 0" - 5' 3"
152.4cm - 160.02cm
Small
5' 3" - 5' 7"
160.02cm - 170.18cm
Medium
5' 7" - 5' 10"
170.18cm - 177.18cm
Large
5' 10" - 6' 1"
177.18cm - 185.42cm
X-Large
6' 1" - 6' 4"
185.42cm - 193.04cm
View Full Sizing & Geometry
Sizing &
Geometry
Ribble R872 Disc
Size XS S M L XL
Rider Height 5'0 - 5'3
(152-160cm)
5'3 - 5'7
(160-170cm)
5'7 - 5'10
(170-178cm)
5'10 - 6'1
(178-185cm)
6'1 - 6'4
(185-193cm)
CT - Seat Tube (mm) 450 490 530 550 580
A - Head Tube 120 140 160 180 200
Offset 45 45 45 45 45
TT - Top Tube 505 525 545 565 585
HT - Head Angle 71 ° 72 ° 73 ° 73 ° 73 °
ST - Seat Angle 75 ° 74.5 ° 73.5 ° 73.5 ° 73.5 °
G - BB Drop 69 69 69 69 69
RC - Chainstay (mm) 410 410 410 410 410
FC - Front Centre (mm) 561.5 568.9 580.2 600.4 620.5
WB - Wheelbase 961.4 968.9 980.3 1000.6 1020.8
Reach (mm) 360.1 370.5 380.7 394.1 407
Stack 503.5 521.1 554.1 577 600.9
Available on
Cycle To Work

The Ribble R872 Disc is available to order on cycle to work schemes.

We accept all major cycle to work scheme vouchers.

Cyclescheme logos
Finance
Calculator
US$
%
Total amount repayable . APR representative. Finance is subject to status. Terms and conditions apply.
Frequently Asked
Questions
How much does the R872 weigh?

A Medium sized Tiagra build weighs in at approx 8.65kg, 105 8.8kg and Ultegra 8.6kg.This also factors in the weight difference between mechanical and hydraulic braking systems.

What is the warranty on the frame?

The frame carries a 3 year warranty. All other parts have the standard manufacturer’s warranty.

What size tyres does it take?

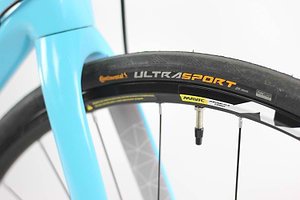

The R872 has clearance for 28mm tyres (25mm with mudguards).

How many bottle cage mounts are there?

There are mounts for 2 bottle cages.

Does it take mudguards?

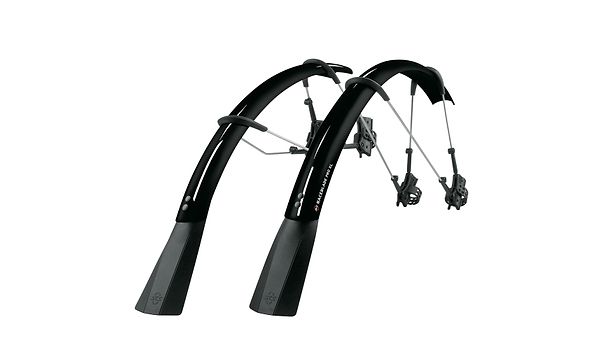

Yes, the frame has discreet mounts for fitting full mudguards.

What type of bottom bracket does the frame require?

The BB shell is a traditional threaded 68mm British type.

What size seatpost does the R872 require?

The seatpost is a 27.2mm diameter with a seat clamp of 31.8mm diameter.

Can I fit a pannier rack?

No, the frame does not have rack mounts.

Are the axles quick release or thru axle?

The frame takes 12mm Bolt Thru-Axles, front 12x100mm and rear 12x142mm.

What is the maximum rider weight?

We recommend a maximum rider weight of 120kgs (264lbs).

Is the bike supplied with pedals?

Due to the many different systems people use we do not supply pedals with bikes but you can find a great array of pedals here.

Customer
Reviews
clive boothman
have ridden 3 times this week since collecting 6 days ago and have to get used to various things like bar and saddle height but things are going well/very well, no probs. but it would have been handy to have had the bike set up for me when I picked it up. perhaps i'll review it again in a week or so when I've had some longer rides under the belt. so far have been well pleased with ribble staff helpfulness though I did find getting from the m6 to Walton summit harder than it should have been. I don't have satnav but do a lot of driving without one. lack of suitable road signs unhelpful. a small road map would have been helpful. first journey from Kendal southwards from M6 ended up in bamber bridge before turning round. 2nd journey on a v. rainy day took 30-40mins extra despite being given directions by your staff, ended up at oakdale? garden centre, 3+miles away but the bike itself well set up, attractive appearance
Richard Fryer
The service I have received from initial enquiry to delivery from the Ribble team has been exceptional. The Bike was delivered before the date advised. I have been for 3 rides about 200 km and the bike has exceeded my expectations.
Review 1 to 2 of 52
Show All Reviews
Related
Bikes
Ribble Endurance SL Disc Ribble Endurance SL Disc
Endurance & Performance
The new Ribble Endurance SL Disc is a superlight road platform designed for Endurance riding and racing.
From: US$1,942.47
Or from US$61.45 a month
Learn More

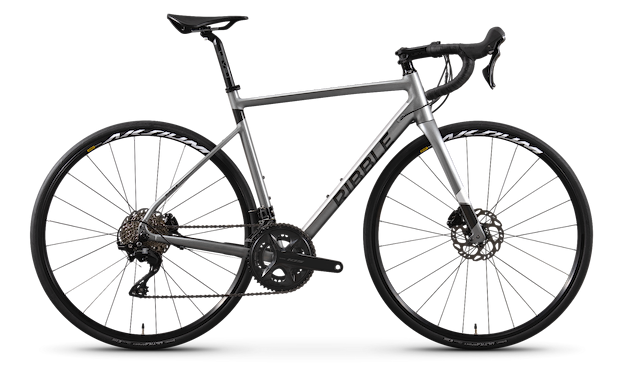

Ribble Endurance AL Disc Ribble Endurance AL Disc
