Ribble Gravel AL e - Sport
SRAM Apex 1x


Gravel AL e - Sport
Choose Your Size
Chosen Size:
  • Expected Dispatch Date: 14 Aug, 2022

You can change these by selecting "Customise"

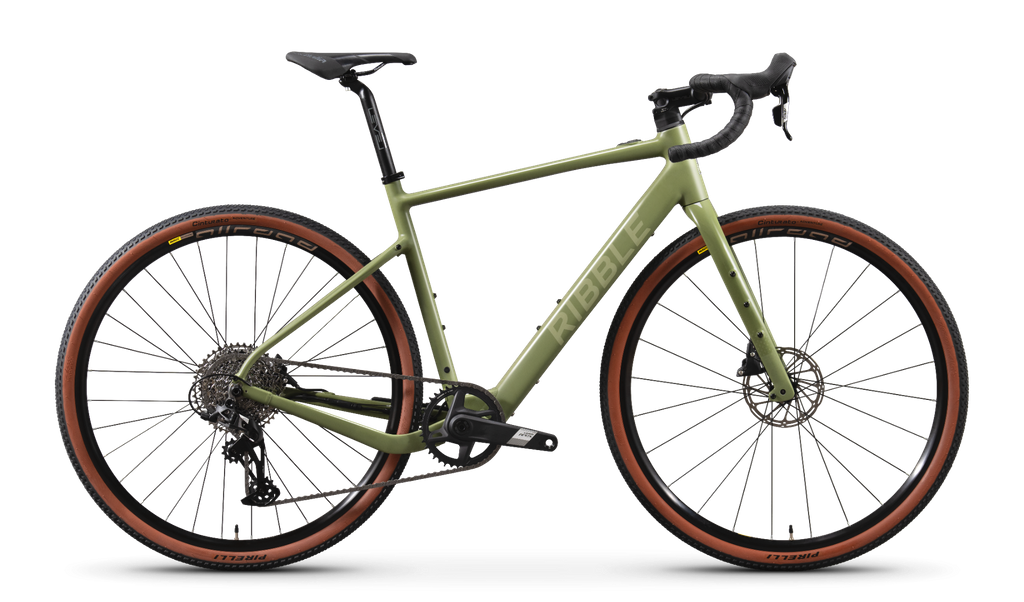

Gravel AL e - Sport

Power your gravel adventures on an e-gravel machine that sets the benchmark for lightweight, power-assisted, all-terrain performance. The Gravel AL e is fully equipped for epic off-road exploration with a component loadout that includes the single-ring simplicity, gravel-optimised gear ratios and accurate gear shifting of SRAM's Apex 1x11 groupset. Mavic Allroad 650b disc wheels fitted with chunky Halo GXC 650bx47mm tyres allow you to traverse the roughest terrain. A gravel-focused finishing kit that includes flared gravel riser bars provides stability and confident control, so you can tackle technical descents and sweeping singletrack with ease.

Ready to dispatch in 48 hours
  • Material

    6061-T6 Heat-Treated Aluminium

  • Groupset

    SRAM Apex 1x11 Speed

  • Wheels

    Mavic Allroad Disc Alloy 650b

  • Motor System

    MAHLE X35+ 250W


SRAM Apex provides a wide gear range and shifting simplicity that lets you ride wherever you feel. A single shifter gives you access to the gears you need to ride uphill or down. The secret to a great ride is dropping the hammer when you want, knowing you can stop when you want to. Apex 1 HRD hydraulic disc brakes deliver the powerful and controlled braking you need to ride with complete confidence, no matter where the ride takes you.


Developed specifically for the MAHLE X35+ SmartBike System, Mavic Allroad Disc 650b wheels are designed to tackle unpredictable roads. Tubeless compatible, they provide a smoother and faster ride on unruly roads, gravel, and dirt. The wheels are encased with aggressive, all-weather tyres from Halo. Their GXC Gravel 650bx47 tyres deliver surefooted traction and control when playing in the dirt or lighting it up on the loose stuff.


LEVEL Gravel Riser handlebars have been developed specifically for gravel riding; a 20mm rise offers multiple hand positions and more space on the bars when running a barbag. Flared drops provide a wider, more stable stance for improved handling and control when descending and navigating technical terrain. The handlebars are encased in a cushioned LEVEL bar ribbon and are neatly matched with a LEVEL 2 3D forged alloy handlebar stem.


A robust LEVEL 1 6061 alloy seat post fitted with a Prologo kappa Rs saddle provides just the right amount of comfort and support without impacting performance.  A wide selection of saddles to suit riders of all shapes and sizes is also available in Bike Builder.

Custom Colour

We create the bike, you decide the design. Be bold and bright or stealthy as you like. With millions of combinations, you can make a bike unique to you.

Just select customise after choosing your size.

Your Bike. Your Way
Free Insurance for 30 Days

Buy any bike from Ribble and we will provide you with specialist cycling insurance for your bike, including £250 accessories cover and Theft & Accidental Damage for 30 days in partnership with Pedalsure.

If you decide to keep your insurance, a 15% discount is applied on the remainder of your policy! Learn more about PedalSure.

Ride. Smart.
SRAM Apex 1x11 Speed Hydraulic Disc.
Shifters - SRAM Apex 1 L/H, Apex R/H Hydraulic.
Brakes - SRAM Apex HRD Hydraulic Disc.
Chainset - SRAM Apex 1 GXP, 1x11, 42T.
Crank Length - XXS/XS/SM:170mm, M/L/XL: 172.5mm.
Bottom Bracket - SRAM GXP Team Press Fit BB86.
Cassette - SRAM PG-1130 11-Speed 11-42T.
Chain - SRAM PC-1110 11-Speed with Powerlock.
Disc Rotors - SRAM Centreline 6-Bolt 160mm.
Rear Derailleur - SRAM Apex 1x11 Long Cage.
Wheels - Mavic Allroad Disc Alloy 650b, 12x100F/12x142R.
Tyres - Halo GXC Gravel, 650bx47mm, Tan Wall.
Frame - 6061-T6 Aluminium, Heat-Treated, Seamless Welds.
Forks - Gravel AL e, Full Carbon, Tapered, Carryall Mounts.
Headset - LEVEL 56, Semi-Integrated, Black.
Finishing Kit
Bars - LEVEL Gravel Riser Flared Alloy, 420/510mm.
Stem - LEVEL 2 3D-Forged Alloy, Black, 31.8mm.
Stem Length - XXS/XS: 80mm, SM/M:90mm, L/XL:110mm.
Bar Tape - LEVEL Cork Ribbon, Black.
Seatpost - LEVEL 1 6061 Alloy, 27.2mm, 350mm.
Saddle - Prologo Kappa RS, Black.
Motor System
Motor - MAHLE SmartBike Systems X35+ 250W.
Battery - Panasonic I250 36V/250Wh 18650GA-10S/2P.
Control Button - iWoc One, Top Tube Mounted.
Charger - Supplied with UK Power Cable.
Approximate Weight - 14.0kg/30.8lbs (medium)
