Ribble Gravel Ti - Sport
GRX 600

BBGRAVTI001
From: US$3,007.26
This is a loan of US$3,608.71 with US$0.00 deposit.
Repayable by 36 monthly repayments of US$123.27.
Total amount repayable US$4,437.76.
14.9 APR representative.
Finance is subject to status. Terms and conditions apply.
Or from: US$123.27 a month
Also available on Cycle To Work schemes

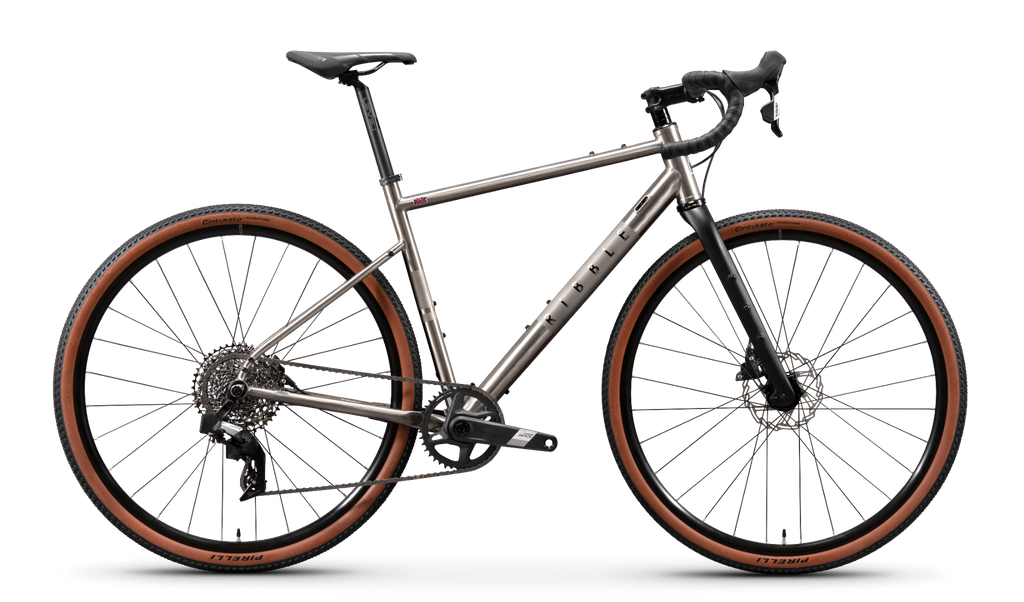

An image of the Ribble Gravel Ti - Sport GRX 600
ALL-TERRAIN
GRAVEL EXPLORER

The Gravel Ti is a supremely capable gravel bike that is designed to conquer the toughest terrain with the impeccable performance, timeless style and ultimate ride quality of Titanium. The Sport Edition comes fully kitted out with the gravel-optimised gearing of Shimano’s GRX 600 1x11 speed gear system with the additional stopping power of hydraulic disc brakes, tubeless-ready LEVEL 650b wheels and chunky 650b x 47mm tyres, plus a finishing kit that includes flared handlebars for more comfort and control when riding off the beaten track.

  • Material

    3Al/2.5V Triple-Butted Titanium

  • Groupset

    Shimano GRX RX600 1x11 Speed

  • Wheels

    LEVEL Gravel Alloy 650B

  • Seat Post

    LEVEL 2 Carbon/Alloy

GROUPSET

Shimano’s much-vaunted GRX series was developed for the gravel scene, with all-new gravel specific ergonomics, optimised gear ratios and rugged reliability. RX600 offers the simplicity and efficiency of a 1x11 speed gear system and the unrivalled shifting precision that is the hallmark of a Shimano drivetrain. An integrated chain retention mechanism with on/off switch provides chain security over the roughest terrain and along with the added stopping power and control of GRX hydraulic disc brakes deliver quiet confidence on every ride.

Groupset
WHEELSET

Designed to enhance the go-anywhere attitude of any gravel machine LEVEL’s tubeless-ready 650b alloy wheelset is made for those gravel-shredding adventures far off the beaten track. A super-durable wheelset that offers the performance and reliability that you need to support many miles of trouble-free riding pleasure. Fitted with WTB Sendero tyres which feature an aggressive tread pattern, ensuring surefooted traction when playing in the dirt or for lighting it up on the loose stuff.

Wheelset
FLARED BARS

LEVEL Gravel Riser handlebars have been developed specifically for gravel riding, a 20mm rise offers multiple hand positions and more space on the bars when running a barbag. Flared drops provide a wider, more stable stance for improved handling and control when descending and navigating technical terrain. The handlebars are wrapped in a comfortable LEVEL bar tape and are neatly matched with a LEVEL 1 alloy handlebar stem.

Handlebars
SADDLE

A LEVEL 2 carbon seat post fitted with a Selle Italia X3 Boost saddle provides insulation from the lumps and bumps of uneven terrain. A wide selection of saddles to suit riders of all shapes and sizes is also available in Bike Builder.

Saddle
Size
Guide

To assist you in selecting the correct size simply find you height below. The graphic below illustrates our recommendations so you can be confident that the size you order will be correct.

XX-Small
5' 0" - 5' 4"
152cm - 162cm
X-Small
5' 4" - 5' 7"
162cm - 170cm
Small
5' 7" - 5' 9"
170cm - 175cm
Medium
5' 9" - 5' 11"
175cm - 180cm
Large
5' 11" - 6' 1"
180cm - 185cm
X-Large
6' 1" - 6' 4"
185cm - 194cm
View Full Sizing & Geometry
Sizing &
Geometry
Ribble Gravel Ti - Sport
Size XXS XS S M L XL
Rider Height 5'0" - 5'4"
152 - 162cm
5'4" - 5'7"
162 - 170cm
5'7" - 5'9"
170 - 175cm
5'9" - 5'11"
175 - 180cm
5'11" - 6'1"
180 - 185cm
6'1" - 6'4"
185 - 194cm
Wheel Size 650b / 700c 650b / 700c 650b / 700c 650b / 700c 650b / 700c 650b / 700c
A - Seat Tube Length (mm) 440mm 460mm 480mm 500mm 520mm 540mm
B - Top Tube (mm) 508mm 522mm 550mm 570mm 585mm 602mm
C - Reach (mm) 372mm 381mm 388mm 397mm 406mm 412mm
D - Head Tube Length (mm) 90mm 110mm 130mm 150mm 170mm 190mm
E - Stack (mm) 525mm 546mm 565mm 584mm 603mm 625mm
F - Head Tube Angle 70° 70.5° 71.5° 71.5° 72° 72°
G - Wheelbase (mm) 1020mm 1016mm 1037mm 1052mm 1068mm 1075mm
H - Chainstay Length (RC) 435mm 435mm 435mm 435mm 435mm 435mm
I - Seat Tube Angle 75.5° 75.5° 74° 73.5° 73.3° 73°
Fork Rake/Offset (mm) 50mm 50mm 50mm 50mm 50mm 50mm
BB Drop (mm) 70mm 70mm 67mm 65mm 65mm 65mm
Available on
Cycle To Work

The Ribble Gravel Ti - Sport is available to order on cycle to work schemes.

We accept all major cycle to work scheme vouchers.

Cyclescheme logos
Full
Specification
Groupset
Shimano GRX RX600 1x11 Speed Hydraulic Disc.
Shifters - Shimano GRX RX600 11-Speed Hydraulic.
Brakes - Shimano GRX Flat Mount Hydraulic Disc.
Chainset - Shimano GRX RX600, 1x11 Speed, 40T.
Bottom Bracket - Shimano BB-R60 Threaded BSA.
Cassette - Shimano SLX M7000 11-Speed 11-42T.
Chain - KMC X11 11-Speed with MissingLink, Grey.
Rotors - Shimano RT70 Centre Lock 160mm.
Rear Derailleur - Shimano GRX RX812 Shadow RD+.
Wheelset
Wheels - LEVEL Gravel Alloy 650b, 12x100F/12x142R.
Tyres - WTB Sendero TCS Light/Fast, 650bx47mm, Tan Wall.
Frameset
Frame - 3AL/2.5V Titanium, Triple-Butted, Seamless Welds.
Forks - Full Carbon Monocoque, Tapered Steerer, Carryall Mounts.
Headset - LEVEL 44, 44mm External, (Available in a choice of colours).
Finishing Kit
Bars - LEVEL Gravel Riser Flared Alloy, 420/510mm.
Stem - LEVEL 1 6061 Alloy, Black.
Bar Tape - LEVEL Cork, Black.
Seatpost - LEVEL 2 Carbon/Alloy, 27.2mm, 350mm.
Saddle - Selle Italia X3 Boost, Black.
Frame Protection - Ribble Frame Protection Kit, Clear.
Weight
Approximate Weight - 10.45kg/22.99lbs (medium)
